Description

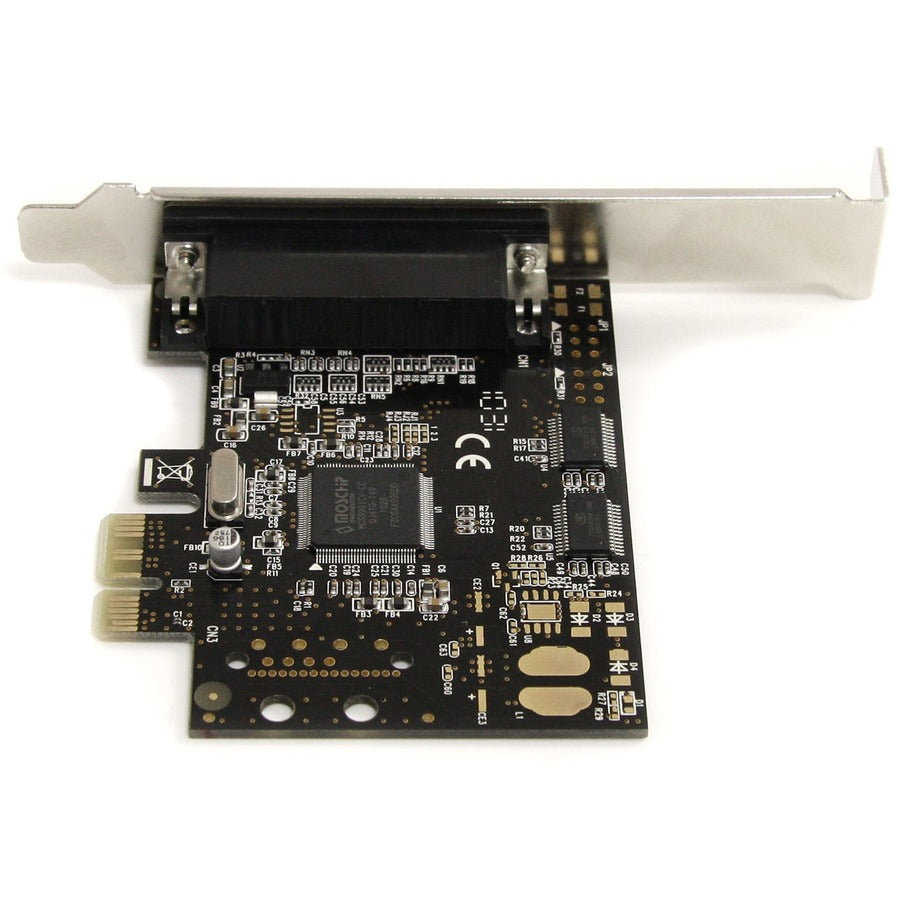

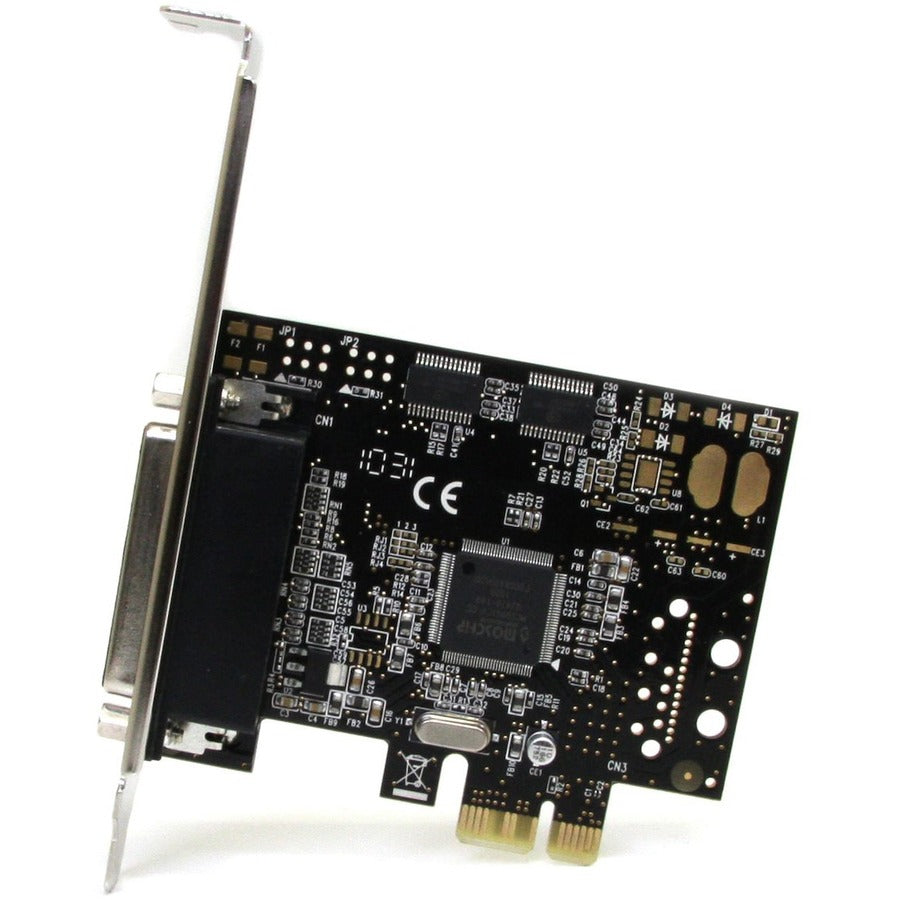

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

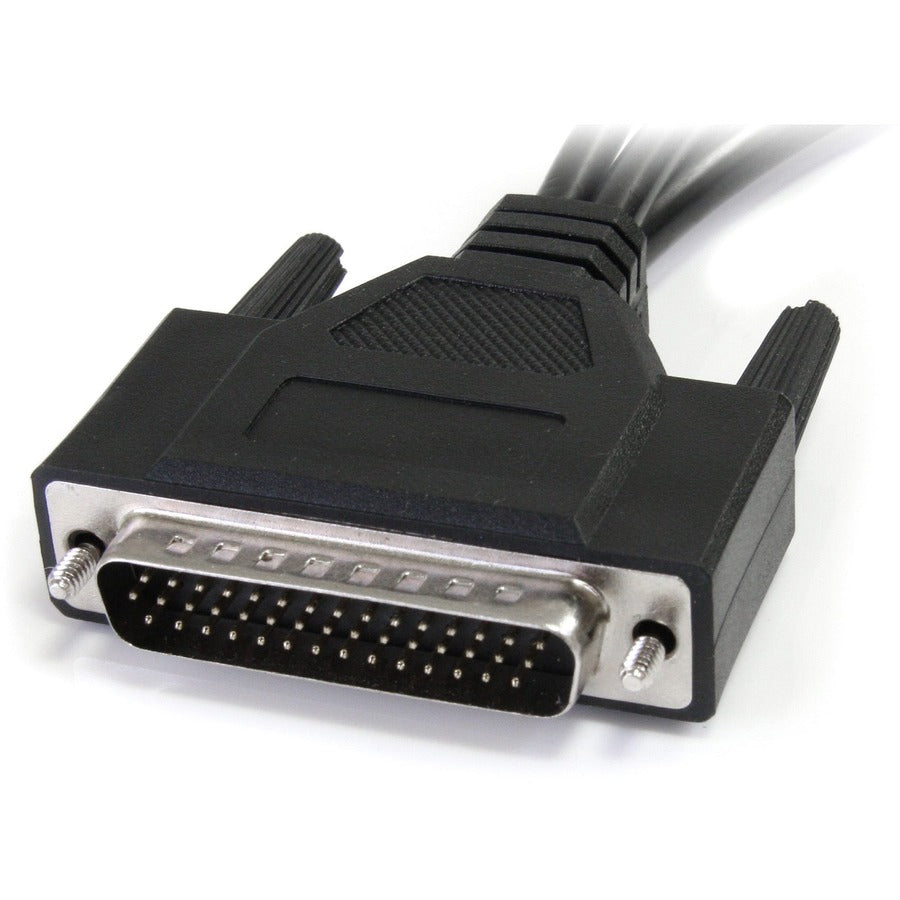

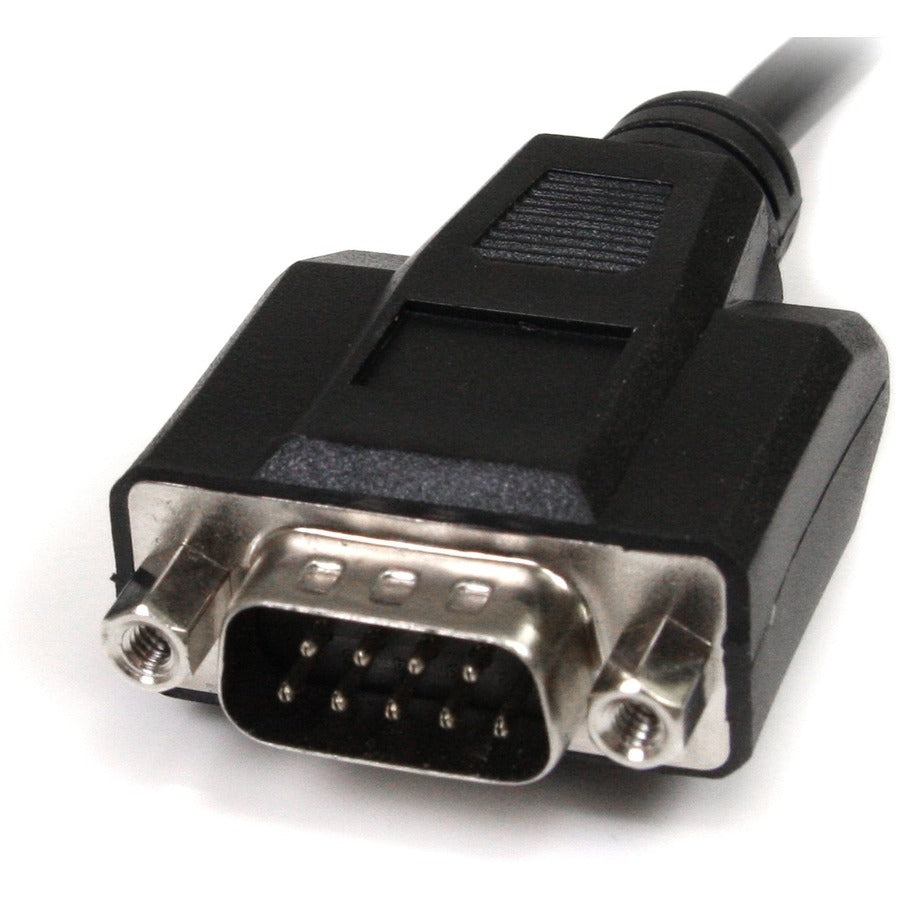

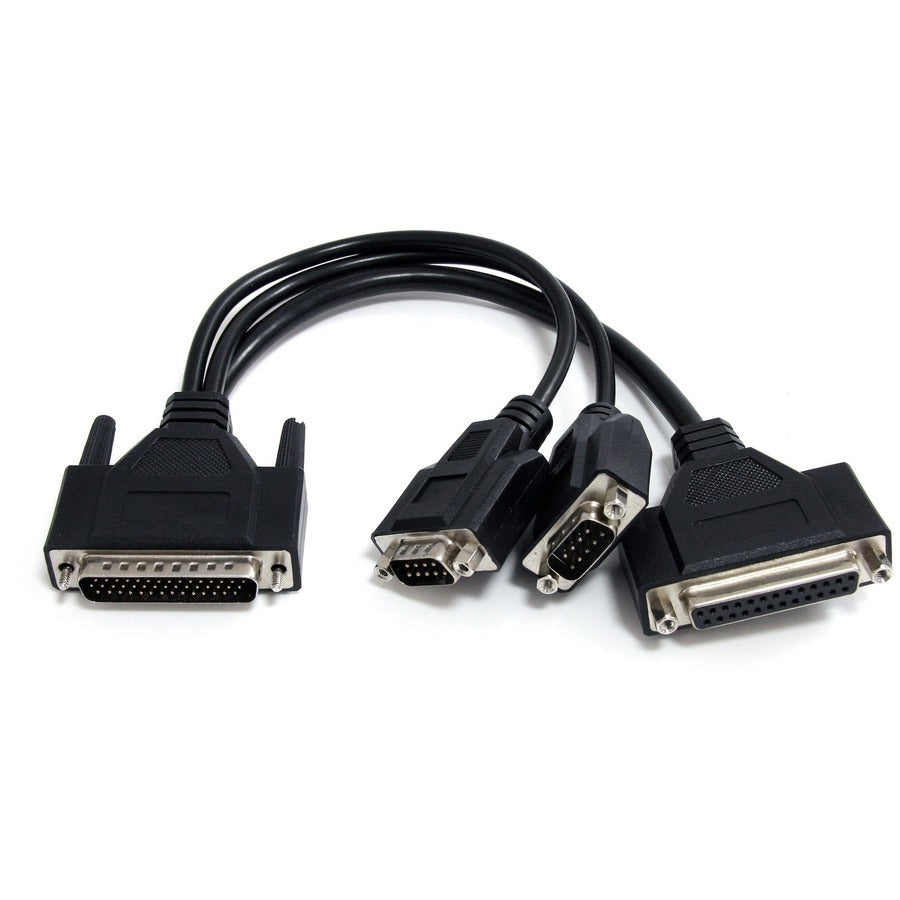

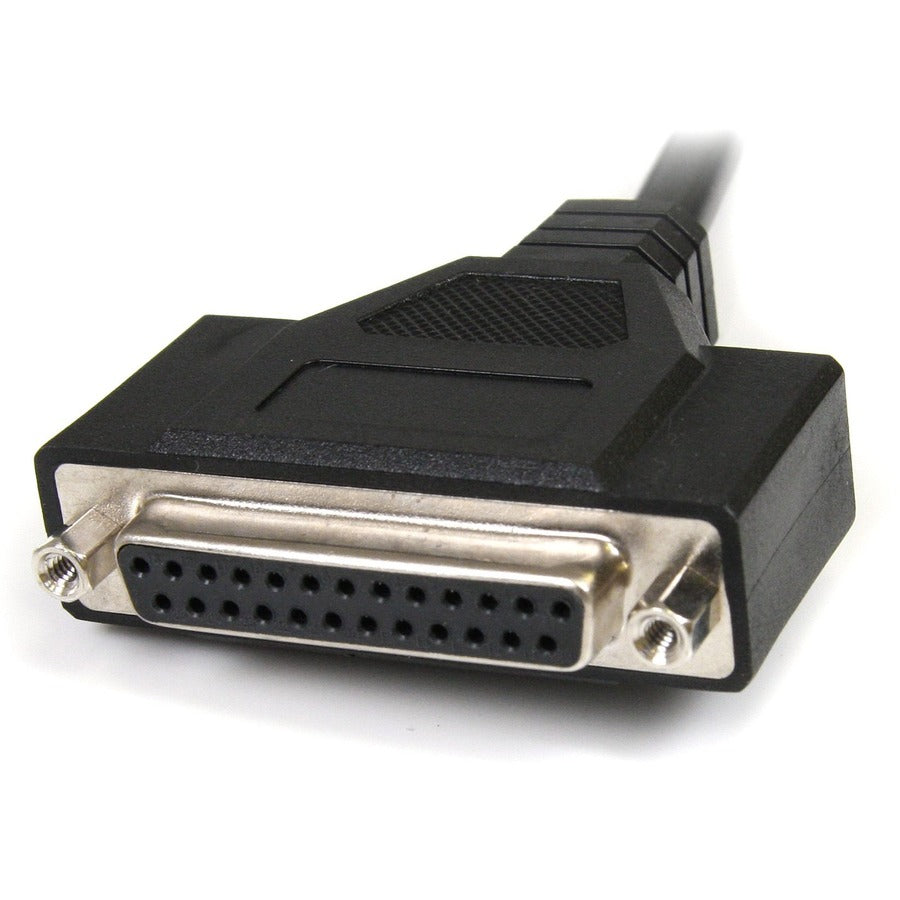

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.
The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.
This product is a replacement for our PEX2S1P552B card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
- Single-Lane (x1) PCI-Express host connection
- On-chip 256-byte depth FIFO in transmit/receive path of each port
- PCI Express Base Specification 1.0a compliant
- Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port(ECP)
- Compatible with industrial standard 16C450/16C550 UART
- Supports serial data transfer rate up to 250 Kbps (per port)
- Supports parallel data transfer rates up to 1.5 Mbps
- Single-chip architecture, no bridge chip

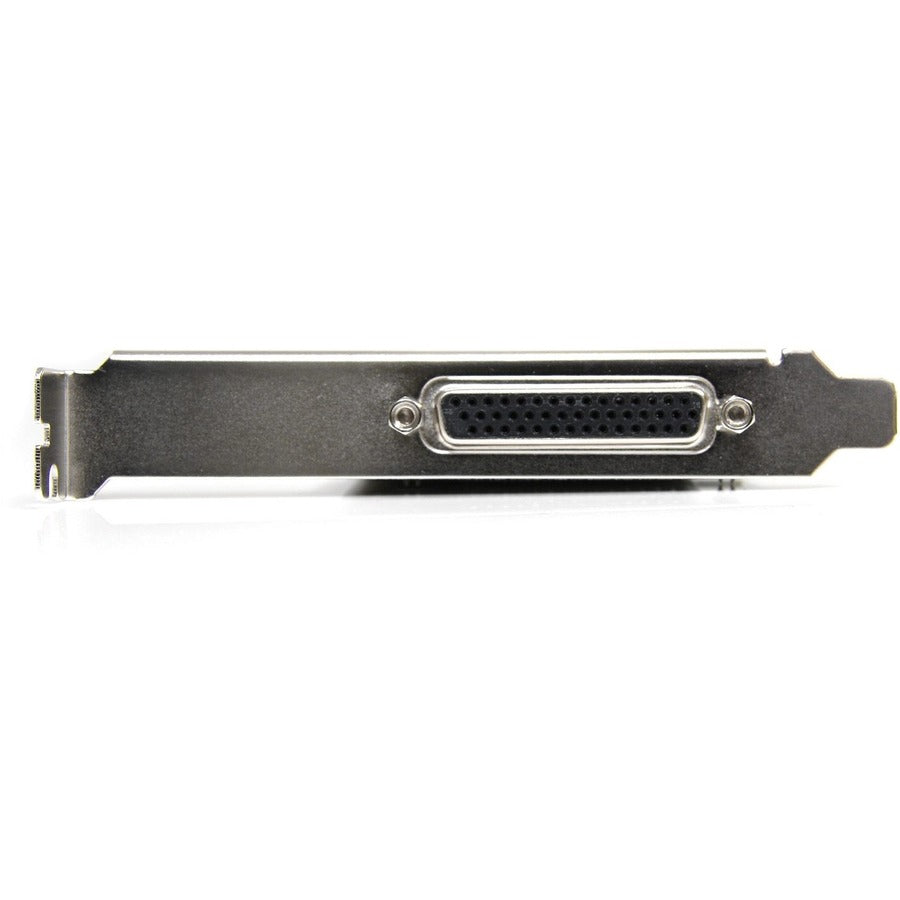

- Low profile/half-height design with optional full profile bracket
- Environmental Certification : RoHS,REACH,WEEE
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Platform Supported : PC,Mac
- Limited Warranty : Lifetime
- Number of Serial Ports (External) : 2
- Packaged Quantity : 1
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Product Type : Serial/Parallel Combo Adapter
- Card Height : Low-profile
- Host Interface : PCI Express x1
- Manufacturer : StarTech.com
- Number of Parallel Ports (External) : 1
- Country of Origin : China
- Parallel Port Modes : SPP,EPP,ECP
- UART Type : 16C450,16C550
