Description

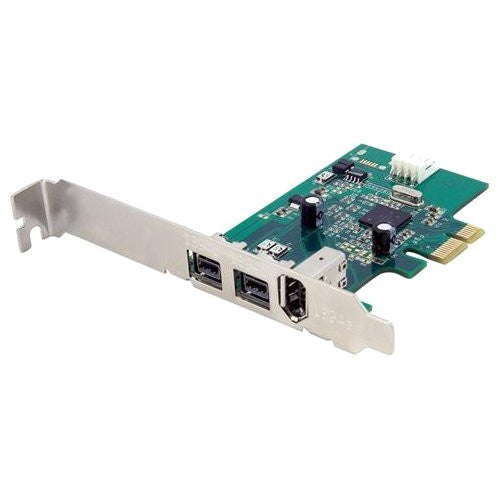

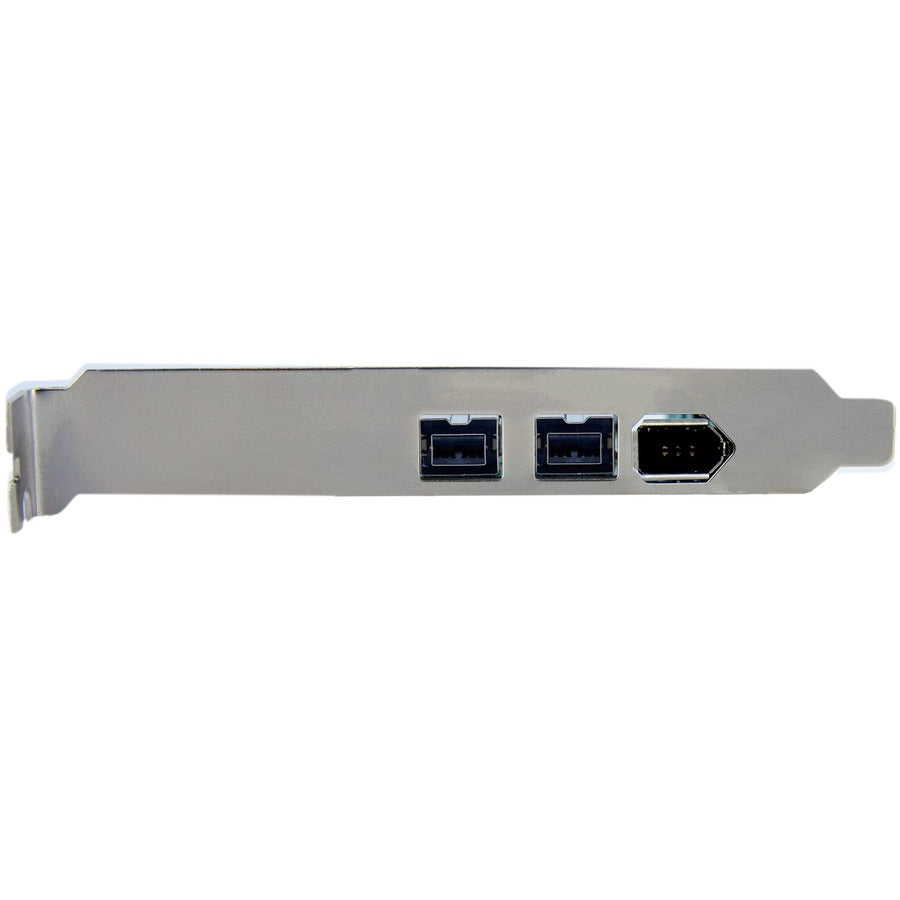

The StarTech.com PEX1394B3 3-port PCI Express FireWire adapter card installs in a PCI Express slot to add two IEEE 1394b (FireWire 800, 9-pin) ports and one IEEE 1394a (FireWire 400, 6-pin) port, providing broad compatibility with FireWire devices such as DV camcorders, external hard drives and digital cameras.
The 2b/1a card uses a native (single-chip) PCI Express chipset, giving faster, more reliable and more cost-effective performance than expansion cards that use a bridge chip.
Key features
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- One 6-pin FireWire 400 port with transfer rates up to 400Mbps
- Built with a native PCI Express chipset (Texas Instruments XIO2213B), no bridge chip
- Includes low profile/half-height installation bracket
- Internal LP4 power connector for high-powered FireWire devices
Applications
- Add high-speed FireWire ports to a desktop without any FireWire ports
- Connect a digital camera to a desktop with a PCI Express slot to download photos and video
- Connect a high-speed external hard drive to a PCI Express-enabled system
Specifications
- Bus type: PCI Express x1 (PCI Express 1.1)
- Interface: FireWire 800 (1394b), FireWire 400 (1394a)
- Industry standards: IEEE-1394/1394a/1394b, OHCI
- Number of ports: 3
- Maximum data transfer rate: 800 Mbps (1394b), 400 Mbps (1394a)
- Card type: Standard profile (low-profile bracket included)
- Input voltage: 12V DC
- Operating temperature: 0C to 70C (32F to 158F)
- Storage temperature: -20C to 90C (-4F to 194F)
- Humidity: 0~90% RH
- MTBF: 149,905 hours
- Product dimensions: 3.3 in x 0.7 in x 4.7 in (85.0 x 18.0 x 120 mm)
- Product weight: 1.7 oz (48 g)
- System requirements: PCI Express enabled computer with an available PCI Express x1 slot or higher
- Note: the included software supports a "typical" driver install only; custom driver setup requires third-party software
- In the box: 1 x PCI Express FireWire card, 1 x FireWire cable, 1 x low profile bracket, 1 x software CD, 1 x instruction manual
- Backed by a StarTech.com lifetime warranty
