Description

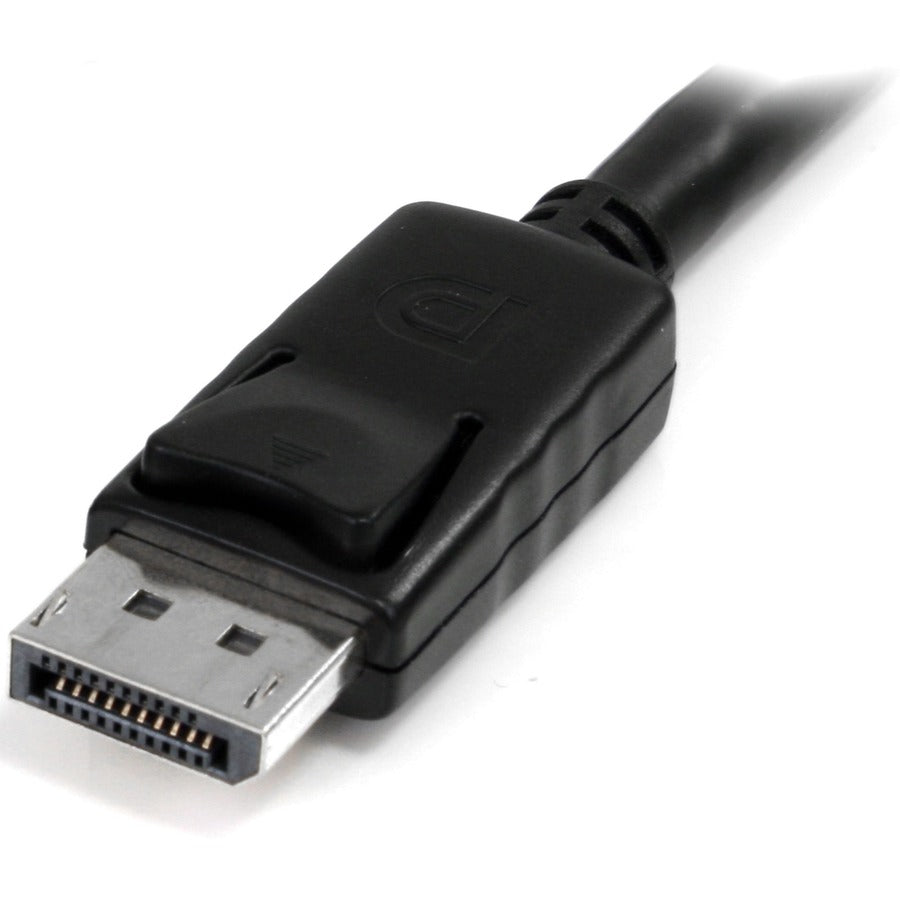

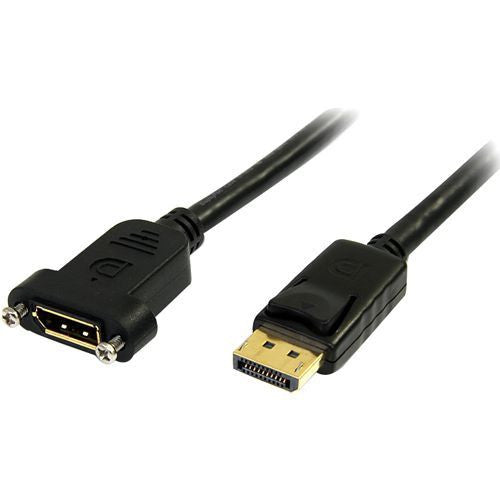

The DPPNLFM3PW 3ft DisplayPort Extension Panel Mount Cable features one DP male connector and one panel mount DP female connector, providing a well-secured, easy to access DisplayPort connection on your PC or faceplate, and allowing you to customize your systems to suit your needs. If power is required, the DisplayPort Cable uses all 20 pins and can deliver power accordingly.
The DPPNLFM3PW is backed by StarTech.com's lifetime warranty for guaranteed reliability.
- SPECS: 3' (0.91m)
- White
- DisplayPort 1.2
- DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws)
- 28 AWG
- PVC cable jacket, ABS connector shell
- Shield: Double sided copper foil
- Backward compatible w/ DP1.1
- Lifetime Warranty
- APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
- QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
- PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- Connector Gender on First End : Male
- Connector Gender on Second End : Female
- Data Transfer Rate : 21.6 Gbit/s
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Shielding : Yes
- Device Supported : Audio/Video Device,PC,Faceplate
- Limited Warranty : Lifetime
- Supported Resolution : 3840 x 2400
- Manufacturer Website Address : http://www.startech.com
- Product Type : Video Cable
- Contact Plating : Gold
- Manufacturer : StarTech.com
- Features : Molded,Flexible,Strain Relief,Fray Resistant,Damage Resistant,Latching Connector,EMI Protection
- Cable Length : 3 ft
- Country of Origin : China
- American Wire Gauge : 28 AWG
- Connector on First End Details : 1 x DisplayPort 1.2 Digital Audio/Video - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : White
- Connector on Second End Details : 1 x DisplayPort 1.2 Digital Audio/Video - Female
- Connector Type on First End : DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End : DisplayPort 1.2 Digital Audio/Video - Female
