Description

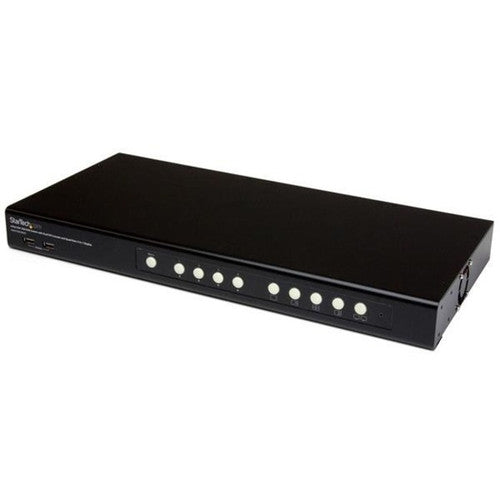

The SV431DVIUAQV 4-Port DVI KVM Switch with Quad-View Display lets you control 4 systems using a single peripheral set, with dual DVI console connections and multiple picture-in-picture display modes.
The DVI USB KVM features an integrated 2-port USB 2.0 hub for connecting additional peripherals to share, plus we've included the necessary DVI, USB and audio cables for a ready-to-use solution.
The Quad-View function integrates a quad screen splitter into the KVM switch to offer several picture-in picture display modes so you can monitor some or all of the connected PCs on the primary console display while interacting with the active PC on the secondary display. Choose from:
- Quad-View: Displays all 4 connected PCs simultaneously
- Picture-and-Picture (PAP): Displays the active PC in the main display area and 3 others along the right side
- Picture-in-Picture (PIP): Displays the active PC in the main display area and 1 other in a movable and sizeable PIP window
- Full-View: Displays the active PC on both of the console displays
Application Diagram

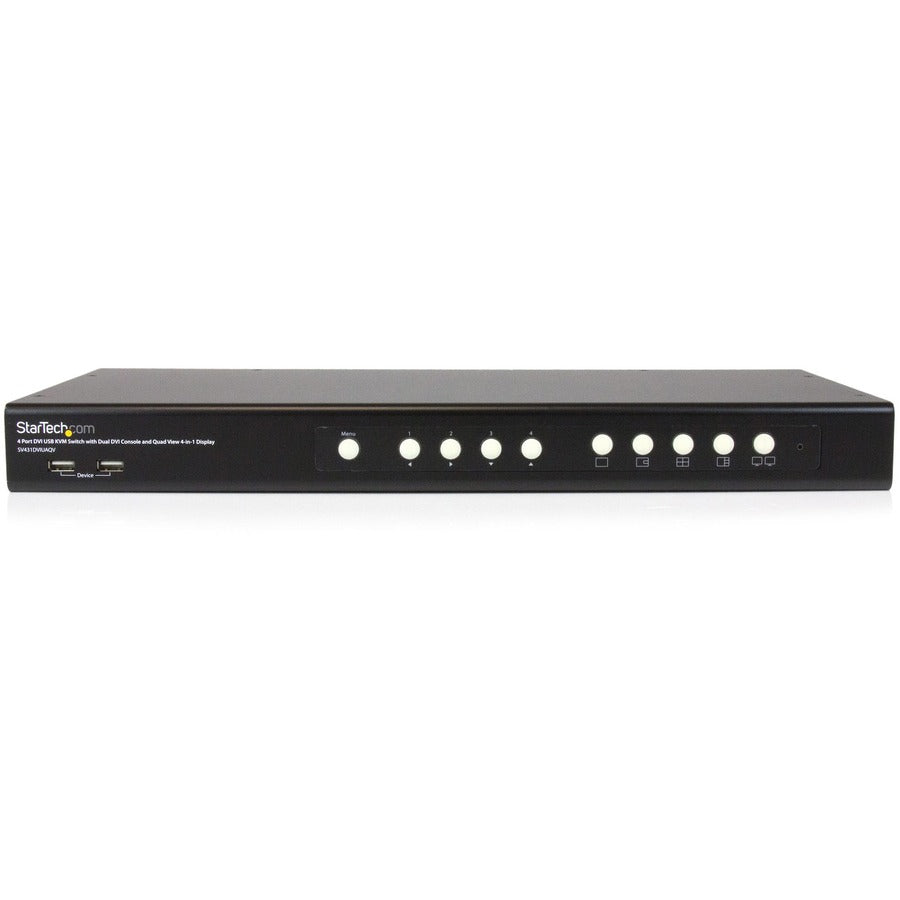

The KVM switch integrates front, push-button controls for simple switching between PCs, choosing your desired display mode and accessing the KVM menu, plus hot-keys and RS-232 command support, for flexible control.
For added versatility, you can daisy-chain up to 8 SV431DVIUAQV units total, for control of up to 32 PCs using a single peripheral set.
Backed by a Startech.com 2-year warranty and free, lifetime technical support.
- 3.5mm stereo audio support
- Front panel push-button and hot-key computer selection support
- Rack-mountable 1U design
- Includes KVM Cables (DVI / USB / Audio)
- Integrated 2-port USB 2.0 hub
- Supports HD resolutions up to 1920x1200
- Several display modes to choose from, including: Quad-View, PAP, PIP and Full-View
- Environmental Certification : RoHS,WEEE
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 4
- Number of DVI Ports : 6
- Limited Warranty : 2 Year
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Number of USB Ports : 8
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4 Port DVI USB KVM Switch with Dual DVI Console and Quad-View 4-in-1 Display
- 4 x DVI Cables
- 4 x USB A-B Cables
- 4 x 3.5mm Audio Cables
- 1 x Upgrade Cable
- 2 x Rack Mount Brackets
- 1 x Power Adapter
- 3 x Power Cords (NA / UK / EU)
- Network (RJ-45) : Yes
- Product Type : KVM Switchbox
- DVI : Yes
- Manufacturer : StarTech.com
- Input Voltage Range : 100V AC to 240V AC
- Graphic Mode : WUXGA
- Number of Network (RJ-45) Ports : 2
- Country of Origin : China
- Rack Height : 1U
- Number of Local Users Supported : 1
