Description
The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

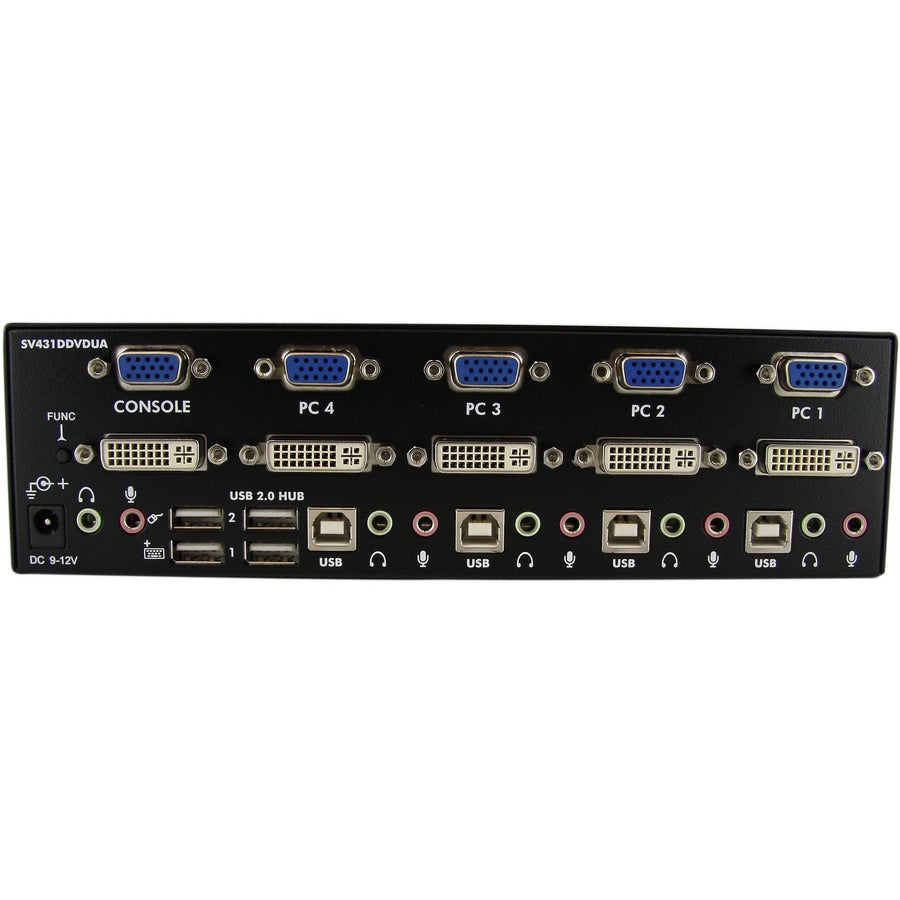

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.
The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.
NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.
- Selectable time intervals for auto scan
- USB style keyboard and mouse, plus two other USB 2.0 peripherals can be shared between up to two computers
- Tone indicator for computer switching
- Full support for plug-n-play peripherals
- Rugged, all-metal chassis for use in harsh environments
- Status LED display for easy port status monitoring
- OS independent (no drivers or software required)
- Independent or simultaneous audio switching
- Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440; Recommended resolution is 1920 x 1200

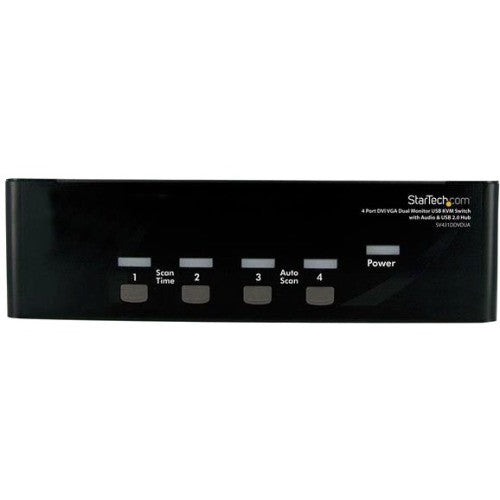

- Direct channel selection and operation using front panel push-button or keyboard hotkeys
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1920 x 1440
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 4
- Number of DVI Ports : 5
- Limited Warranty : 3 Year
- Packaged Quantity : 1
- VGA : Yes
- Form Factor : Rack-mountable,Desktop
- Number of USB Ports : 8
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4-Port DVI and VGA, USB KVM Switch with Audio and USB 2.0 Hub
- 4 x Rubber Feet
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Instruction Manual
- Product Type : KVM Switchbox
- DVI : Yes
- Number of VGA Ports : 5
- Manufacturer : StarTech.com
- Input Voltage Range : 100V AC to 240V AC
- Graphic Mode : SVGA,WUXGA
- Country of Origin : Taiwan
- Number of Local Users Supported : 1
