Description
The 4U 13.78in. (35cm) deep wall-mounting bracket for patch panels and network equipment, delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment up to ta total of 44lbs. (20kg). It's the perfect solution for areas where space is at a premium like small office/home office environments or spaces with limited server room because it doesn't take up any floor space.
Sturdy Construction & Easy Installation

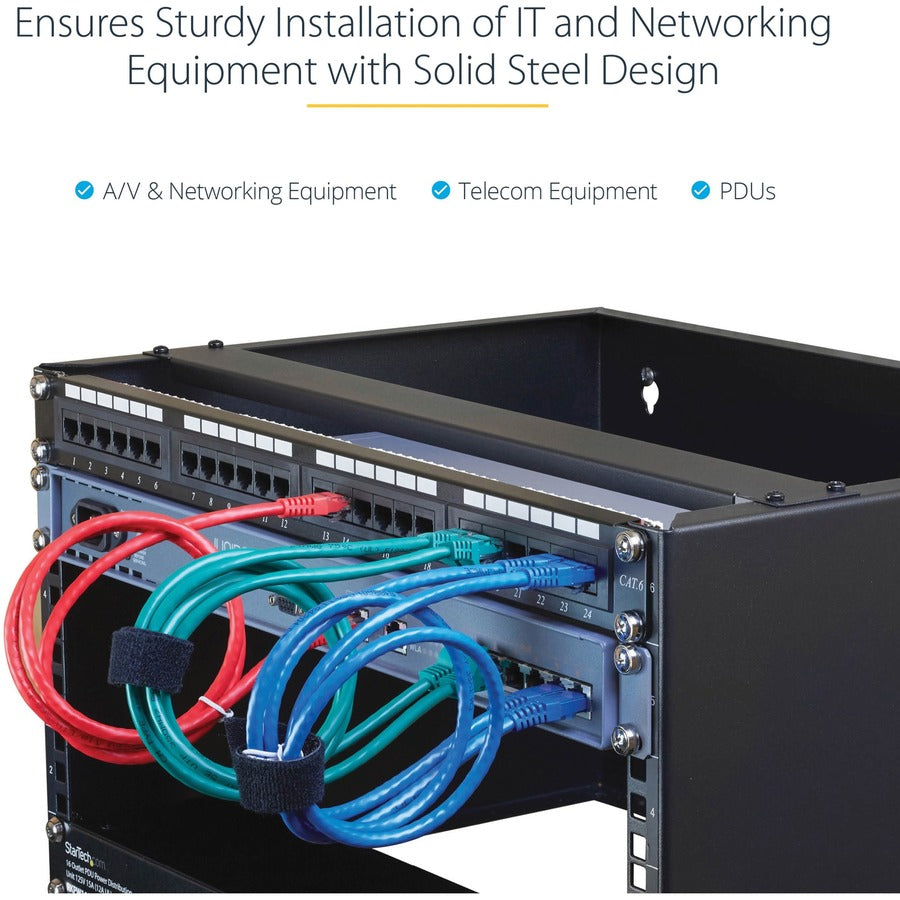

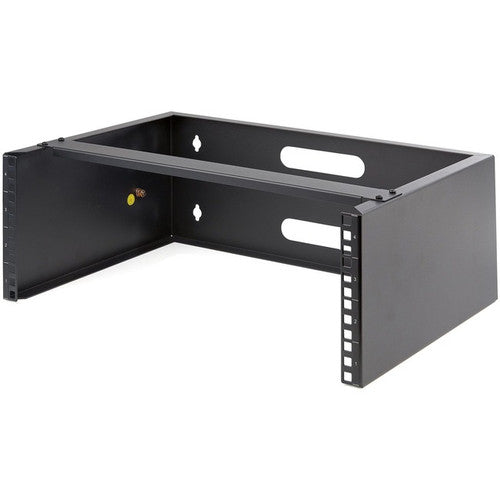

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in rack equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office or IDF. The sturdy steel construction is especially helpful for durability in harsh environments. The open frame wall rack's mounting holes are positioned 16in. apart, matching typical drywall construction framework to ensure simple and secure wall-stud anchoring.
Includes Hardware
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware. The bracket is ideal for mounting equipment 12" or less in depth to ensure there is room for cabling.
WALLMOUNT4 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

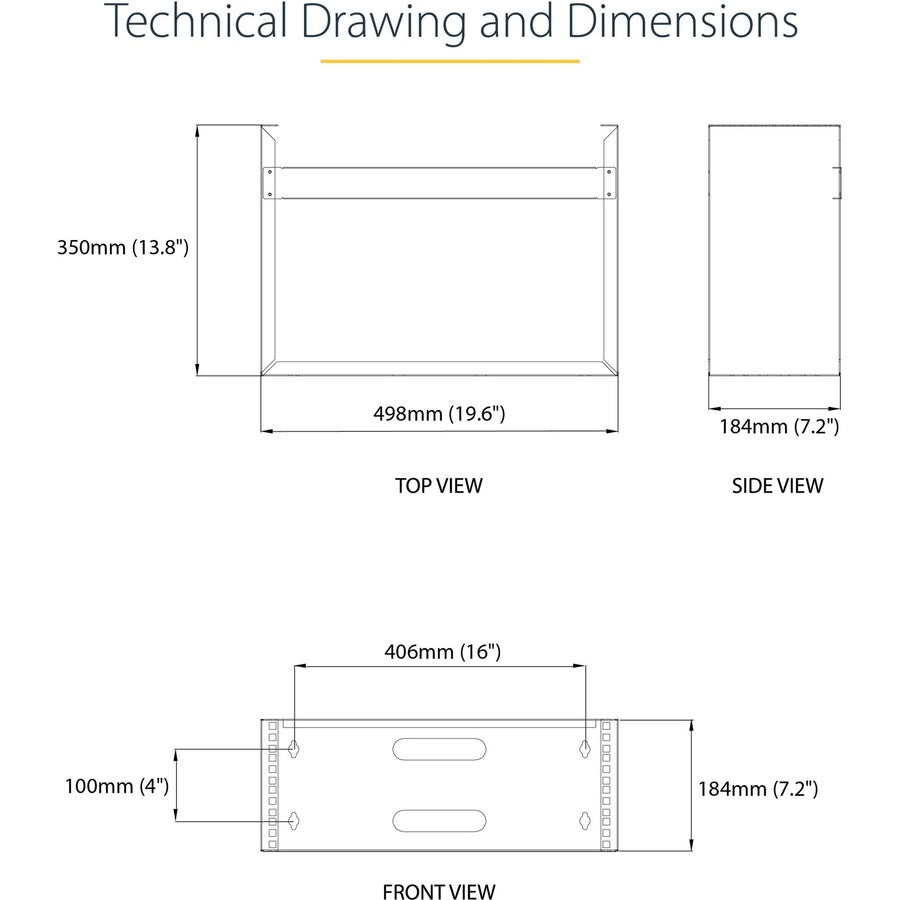

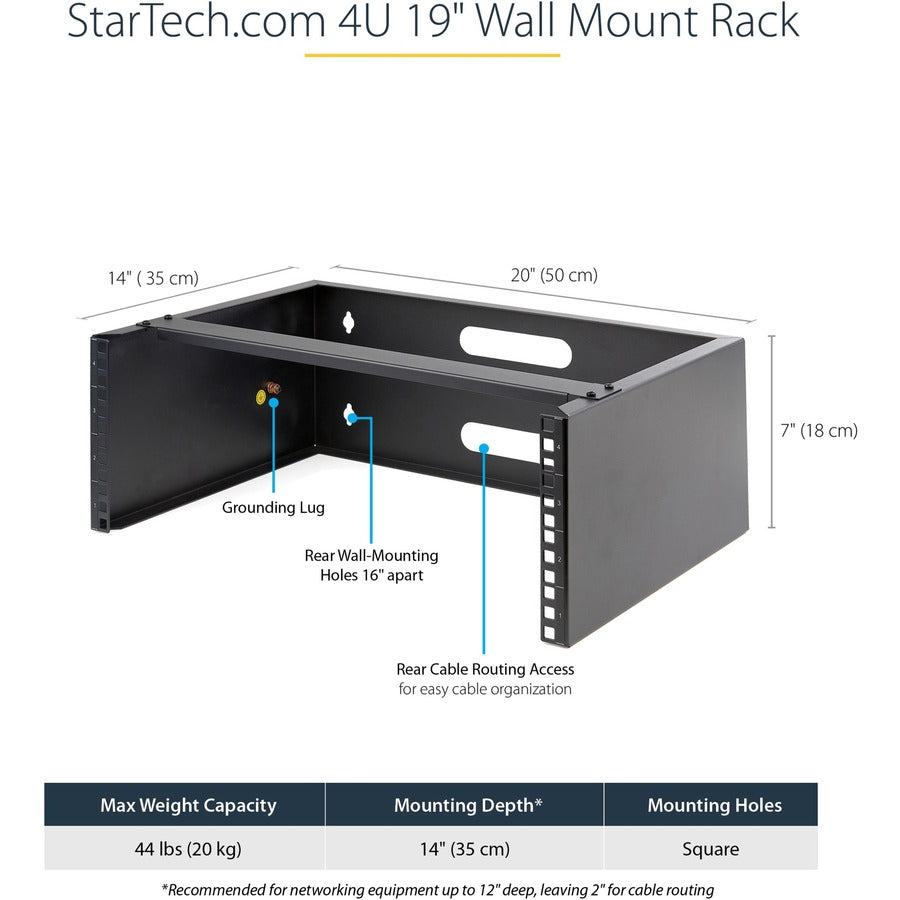

- 4U WALL MOUNT RACK: This 19 inch wide low profile wall mounted rack has a maximum mounting depth of 13.78 in [35 cm], recommended for networking equipment up to 12in deep, leaving 1.75in for cable routing; maximum weight capacity of 44 lbs [20kg]
- EASY TO INSTALL: The 4U wall mounting patch panel bracket ships fully assembled and comes complete with 16x M6 Screws and 16x M6 Cage Nuts for easier equipment installation, to save you the hassle of sourcing separate mounting hardware
- COLD-ROLLED STEEL CONSTRUCTION: The wall mounting data rack features a solid steel design for ultimate durability and to ensure a safe and sturdy mounting solution & includes wall mounting hardware; Installs onto 16" studs with mounting holes
- EASY CABLE MANAGEMENT: Built with efficiency in mind, the small wall mount patch panel bracket has rear cable routing access for easy cable organization in your network closet, server room, wiring closet, classroom
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; this 4U wallmount rack backed for life by StarTech.com, including free 24/5 North America based multi-lingual tech support
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- Wall Mounting Bracket for Patch Panel
- M6 Screws
- M6 Cage Nuts
- M6 Plastic Cup Washers
- Plastic Wall Anchors
- M5-25 Flat-head screws
- Product Type : Wall Mount
- Length : 13.80" (350.52 mm)
- Maximum Load Capacity : 20.05 kg
- Manufacturer : StarTech.com
- Limited Warranty : Lifetime
- Country of Origin : China
- Features : Sturdy,Cable Management,Durable
- Device Supported : Rack,Patch Panel,Switch,Network Equipment
- Product Material : Steel
- Product Color : Black
