Description

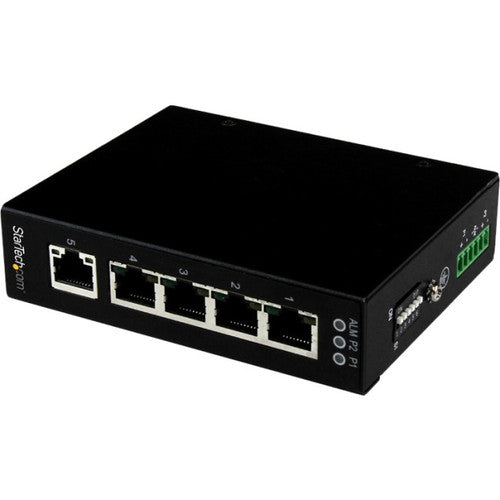

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.

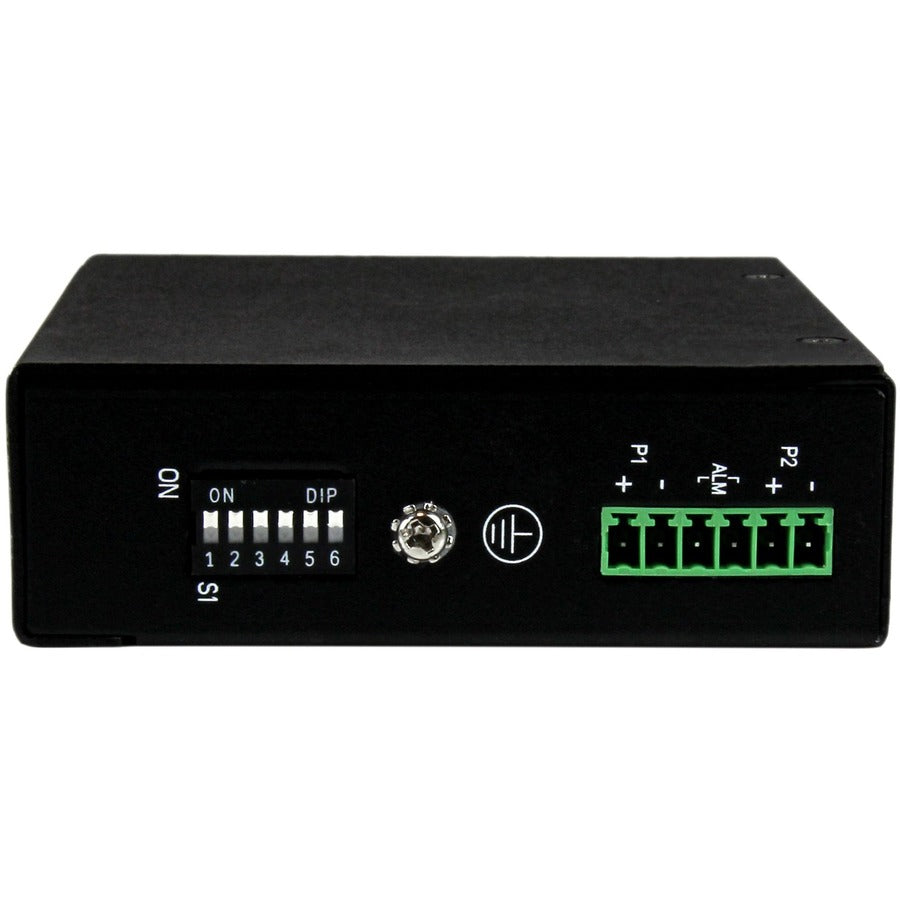

Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Supports IEEE 802.3x flow control and back-pressure
- IEEE 802.3az Energy-Efficient Ethernet
- Speed / duplex auto-negotiation and auto-MDIX detection on each port
- Up to 9K jumbo frame support
- Extended operating temperature range (-40?C to 75?C)
- Wide-range redundant power via two 12-58V DC terminal block inputs, with alarm relay
- Overcurrent and reverse polarity protection
- IP30-rated DIN rail and wall-mountable metal enclosure
- 5 10/100/1000 Mbps unmanaged RJ45 Ethernet ports
- Power Source : AC Adapter
- Modular : No
- PoE (RJ-45) Port : No
- Packaged Quantity : 1
- Form Factor : Rail-mountable,Wall Mountable
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
- 2 x Wall-Mount Brackets
- 1 x DIN-Rail Clip
- 4 x Screws
- 1 x Terminal Block
- 1 x Instruction Manual
- Uplink Port : No
- Manufacturer : StarTech.com
- Manageable : No
- Network Technology : 10/100/1000Base-T
- Environmental Certification : RoHS,REACH,WEEE
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Layer Supported : 2
- Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Stack Port : No
- Networking Standards : IEEE 802.3af,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.3
- Total Number of Network Ports : 5
- Power Consumption : 62 W
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Product Material : Steel
