Description

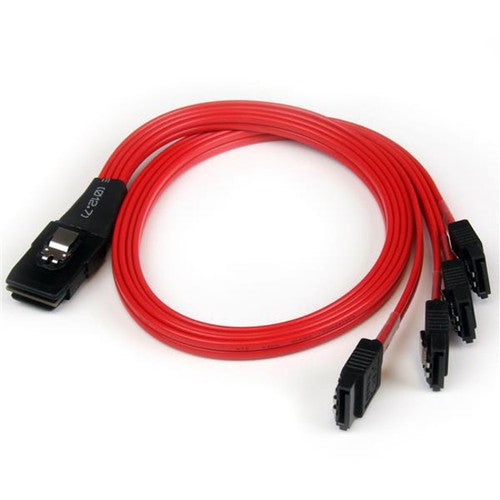

The SAS8087S4R50 SFF-8087 to 4x SATA Reverse cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard. Designed for long-lasting dependability and reliability, the Mini SAS to SATA cable is backed by StarTech.com's lifetime warranty.
- Multi-lane design
- Equivalent to Promise 3Ware CBL-SFF8087OCR-05M

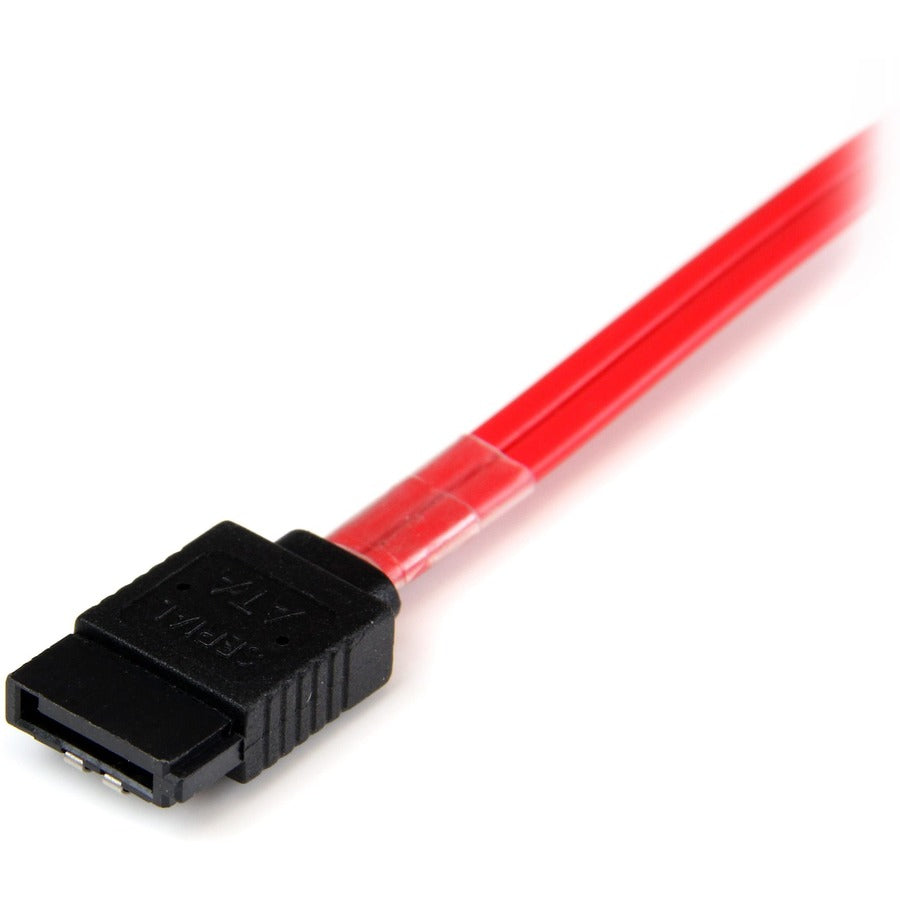

- 4x latching SATA connectors
- 6Gbps bandwidth per channel
- Data Transfer Rate : 6 Gbit/s
- Environmental Certification : RoHS,REACH,WEEE
- Cable Type : SAS/SATA
- Environmentally Friendly : Yes
- Device Supported : Motherboard,Storage Equipment,SAS Controller,RAID Controller
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Manufacturer Website Address : http://www.startech.com
- Product Type : Data Transfer Cable
- Manufacturer : StarTech.com
- Features : Reversible,Locking Latch,Latching Connector
- Cable Length : 1.6 ft
- Cable Characteristic : Fan-out Cable
- Country of Origin : China
- American Wire Gauge : 30 AWG
- Connector on First End Details : 1 x 36-pin SFF-8087 Mini-SAS - Male
- Product Color : Red
- Connector on Second End Details : 4 x 7-pin SATA 3.0 - Female
- Connector Type on First End : SFF-8087 Mini-SAS - Male
- Connector Type on Second End : SATA 3.0 - Female
