Description

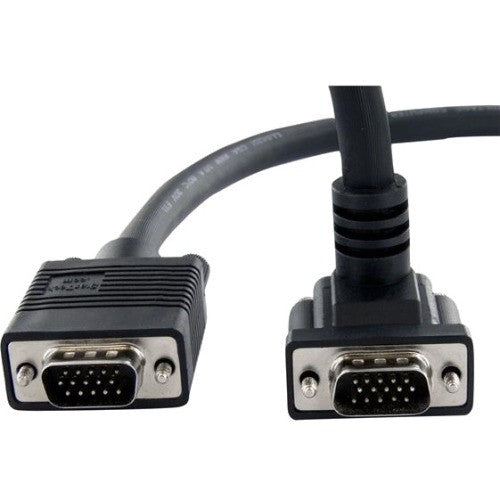

This 6ft High Resolution Video VGA Cable (90 degree) is designed to provide the highest video quality possible through a VGA connection and is specifically constructed to accomodate tight installation spaces.

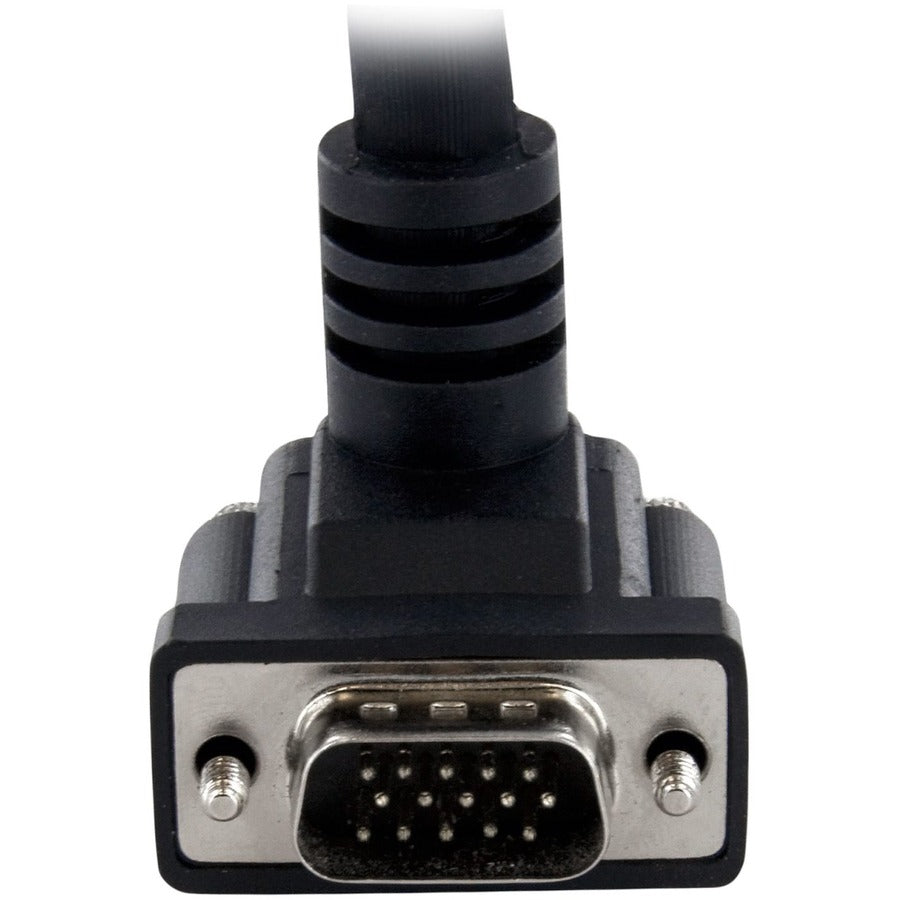

The high quality, shielded coax VGA cable features a 90 degree down-angled plug, which requires only 32.4mm (1.27") of space to make the video connection.
More than suitable for high-res VGA applications (1280x1024 resolution and above), the 90 degree VGA cable eliminates picture "ghosting" and fuzzy images that are common with non-coaxial cables, and provides superior EMI interference protection using ferrite cores near the connector ends.
- Triple-coaxial + twisted-pair wire construction
- Molded connector ends with strain relief
- Impedance matched at 75 Ohms
- Ideal for high resolution monitors (1280x1024 and above)
- Ferrite core
- 90? downward-angled connector with a 32.4mm depth
- Environmental Certification : RoHS,REACH,WEEE
- Cable Type : Coaxial
- Environmentally Friendly : Yes
- Shielding : Yes
- Device Supported : Monitor,Video Device
- Limited Warranty : Lifetime
- Manufacturer Website Address : http://www.startech.com
- Product Type : Video Cable
- Manufacturer : StarTech.com
- Features : EMI Protection,Ferrite Bead,90° Angled Connector,Down-angled Connector,Molded,Strain Relief
- Cable Length : 6 ft
- Country of Origin : China
- American Wire Gauge : 28 AWG
- Connector on First End Details : 1 x 15-pin HD-15 - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black
- Connector on Second End Details : 1 x 15-pin HD-15 - Male
- Connector Type on First End : HD-15 - Male
- Connector Type on Second End : HD-15 - Male
