StarTech.com 6 Port Unmanaged Industrial Gigabit Ethernet Switch w/ 4 PoE+ Ports and Voltage Regulation - DIN Rail / Wall-Mountable IES61002POE

The IES61002POE 6-Port Industrial PoE+ switch lets you connect Gigabit Ethernet data and power to four PoE-enabled devices, with two additional GbE ports.

Fully compliant with IEEE 802.3at / 802.3af, the industrial Ethernet switch offers up to 30 Watts output per port, through the four PoE+ / PSE ports, while all six shielded RJ45 ports support auto-negotiation of speed and duplex for 10/100/1000Mbps Ethernet networks.

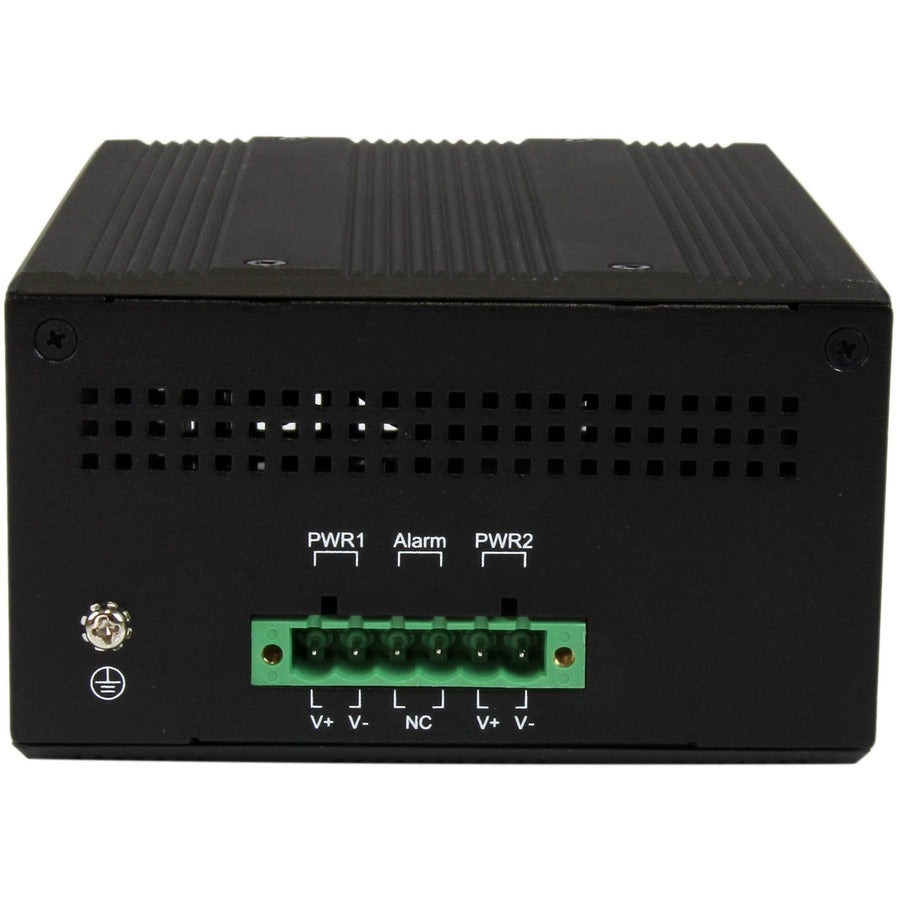

Providing seamless power failover in the event of power dips or failures, the switch features redundant 20-57V DC (nominal 24/48V DC) terminal block power inputs. When used with multiple power sources, the switch supports alarm relay contacts, which can be wired to your existing alarm circuit to give you instant notice when a power disruption occurs.

The switch also features an internal DC-DC converter with voltage regulation, which provides the PoE injector with high voltage output from a low voltage input (

To ensure dependable performance in harsh environments, this power over Ethernet switch features an extended operating temperature range (-40°C to 75°C), a rugged IP-30 rated case design and includes both DIN-Rail and wall-mount brackets for flexible installation options.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

• DIN-Rail and Wall-Mountable
• Wide operating temperature range -40?C to 75?C (-40?F to 167?F)
• IP-30 rated metal enclosure
• DC to DC 24V step-up converter
• Accepts wide-range 20-57V DC power input
• Redundant power inputs via 24/48V DC terminal block with alarm relay
• Supports up to 55V, 30 Watts max output per PoE port
• 4 PoE+/ PSE (Power + Data) Gigabit IEEE 802.3at / 802.3af compliant ports, plus 2 additional GbE ports

• Input Voltage : 57 V DC
• Manufacturer Website Address : http://www.startech.com
• Power Consumption : 143 W
• Uplink Port : No
• Networking Standards : IEEE 802.3x
• Material : Steel
• TAA Compliant : Yes
• Packaged Quantity : 1
• Power Source : AC Adapter
• Package Contents :
  • 6 Port Gigabit Switch
  • 1 x Terminal Block
  • 1 x Wall Mount Bracket w/ Screws
  • 1 x DIN Rail Bracket w/ Screws
  • 1 x Instruction Manual
• Modular : No
• Total Number of Network Ports : 6
• Manageable : No
• Environmentally Friendly : Yes
• Layer Supported : 2
• Port/Expansion Slot Details : 6 x Gigabit Ethernet Network
• Network Technology : 10/100/1000BASE-T
• Environmental Certification : WEEE
• Media Type Supported : Twisted Pair
• Form Factor : Rail-mountable
• Manufacturer : StarTech.com
• Product Type : Ethernet Switch
• Limited Warranty : 2 Year
• Stack Port : No
• Ethernet Technology : Gigabit Ethernet
• Network (RJ-45) : Yes
• PoE (RJ-45) Port : No

. .

• Input Voltage : 57 V DC
• Manufacturer Website Address : http://www.startech.com
• Power Consumption : 143 W
• Uplink Port : No
• Material : Steel
• TAA Compliant : Yes
• Packaged Quantity : 1
• Power Source : AC Adapter
• Package Contents :
  • 6 Port Gigabit Switch
  • 1 x Terminal Block
  • 1 x Wall Mount Bracket w/ Screws
  • 1 x DIN Rail Bracket w/ Screws
  • 1 x Instruction Manual
• Total Number of Network Ports : 6
• Modular : No
• Manageable : No
• Layer Supported : 2
• Environmentally Friendly : Yes
• Port/Expansion Slot Details : 6 x Gigabit Ethernet Network
• Network Technology : 10/100/1000BASE-T
• Media Type Supported : Twisted Pair
• Manufacturer : StarTech.com
• Product Type : Ethernet Switch
• Stack Port : No
• Limited Warranty : 2 Year
• Ethernet Technology : Gigabit Ethernet
• Network (RJ-45) : Yes
• PoE (RJ-45) Port : No
• Networking Standards : IEEE 802.3x
• Environmental Certification : WEEE
• Form Factor : Rail-mountable
