Description

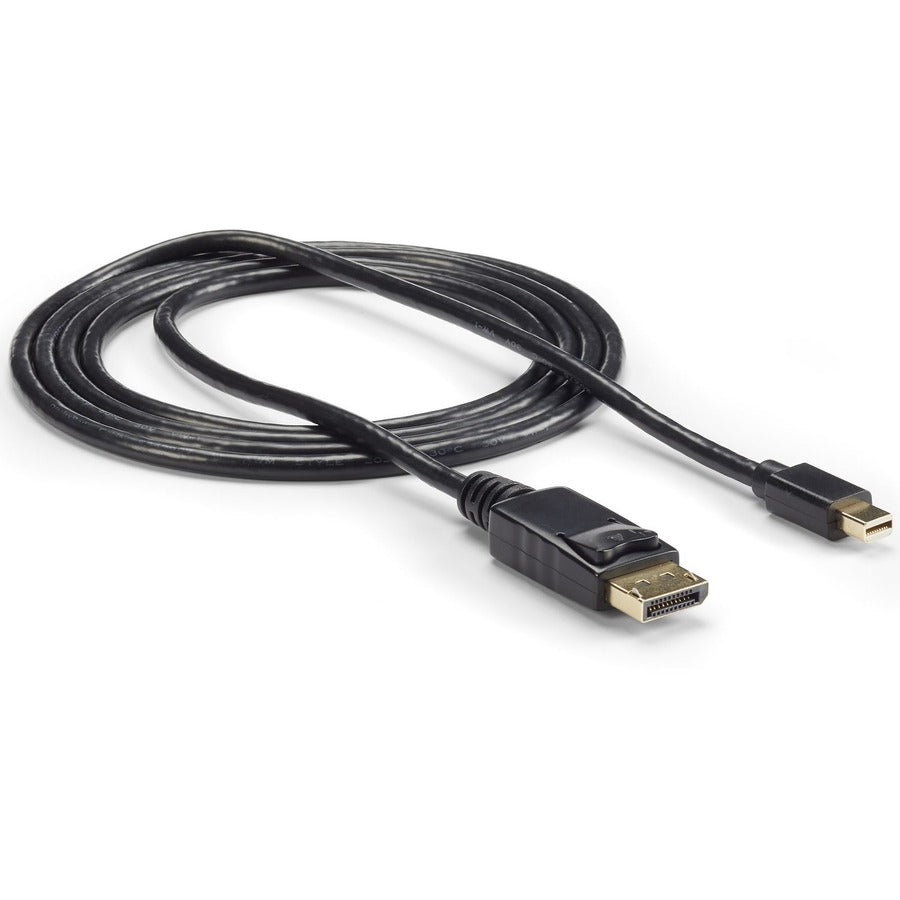

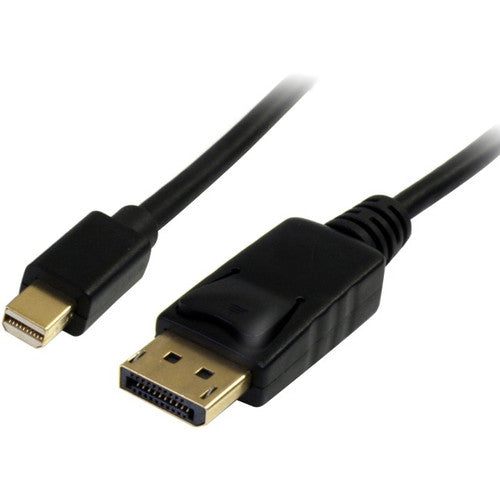

The MDP2DPMM6 6ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM6 is backed by StarTech.com's Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
- SPECS: 6.6 ft (2 m)
- Black
- DisplayPort v1.2
- Mini-DP Male to Standard DP Latching Male
- 32 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: HBR 2, MST, GTC
- Lifetime Warranty
- APPLICATIONS: Ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations with AMD FirePro? W9100/8100, Nvidia NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 6/4
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
- MINI-DP to DISPLAYPORT 1.2 CABLE: This 6.6ft (2m) DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- Environmental Certification : RoHS,WEEE,REACH
- Device Supported : Audio/Video Device,Notebook,TV,Monitor,Projector,HDTV,Desktop Computer
- Features : DPCP,HDCP,EMI Protection,Flexible,Strain Relief,Latching Connector,Multi-Stream Transport (MST) Support,Damage Resistant,Fray Resistant
- Data Transfer Rate : 21.6 Gbit/s
- Connector Material : ABS
- Product Type : Video Cable Adapter
- Cable Type : DisplayPort/Mini DisplayPort
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Connector Plating : Gold
- Supported Resolution : 3840 x 2160
- Manufacturer Website Address : http://www.startech.com
- Manufacturer : StarTech.com
- Jacket Type : CMG
- Cable Length : 6 ft
- Country of Origin : Vietnam
- American Wire Gauge : 32 AWG
- Connector on First End Details : 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black
- Connector on Second End Details : 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on First End : Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End : DisplayPort 1.2 Digital Audio/Video - Male
