Description

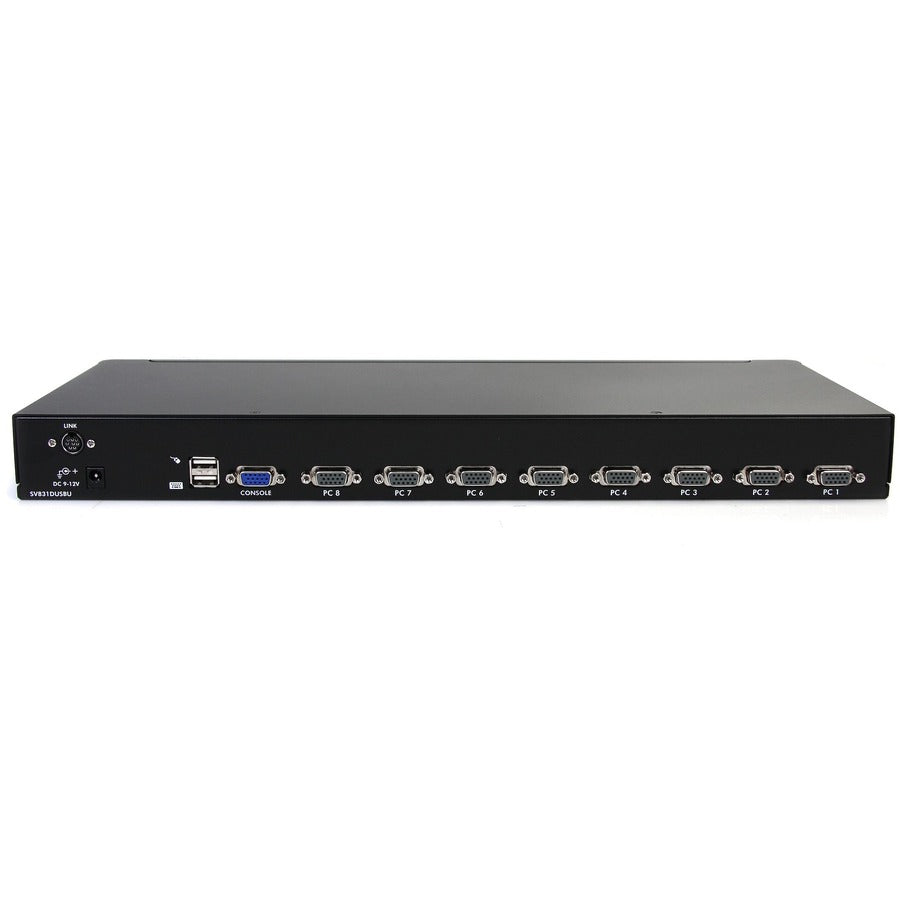

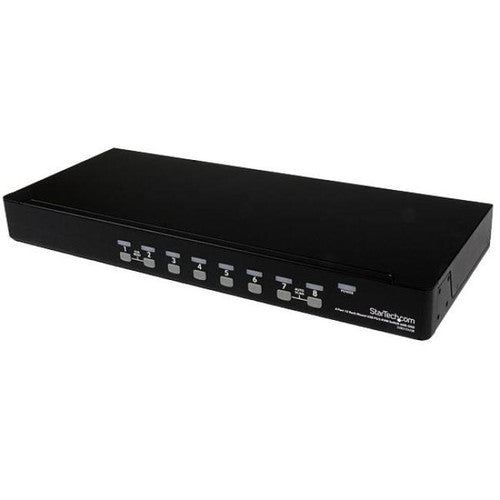

The SV831DUSBU 8 Port 1U Rack Mount USB KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB-connected computers from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers added configuration options and convenience through an On Screen Display (OSD).
A suitable addition to server room operations, the 8 port switch can be rack mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 64 computers from this single switch.
The SV831DUSBU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below:
6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
- USB Keyboard and Mouse combo supported on one USB connection
- Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
- Plug-and-play system configuration
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- USB console interface
- Cascade configuration expands system capability
- Auto-scan function automatically selects computer sequentially
- Identify and select computers by names assigned via the OSD menu
- OSD security allows each PC to be password protected
- Supports Hotkey and front panel push-button switching
- Environmental Certification : RoHS,WEEE
- Maximum Video Resolution : 1920 x 1440
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 8
- Limited Warranty : 3 Year
- Packaged Quantity : 1
- Form Factor : Rack-mountable
- Number of USB Ports : 2
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 8 Port 1U Rack Mount USB KVM Switch with OSD
- 2 x Mounting Brackets
- 8 x 6ft 2-in-1 USB VGA KVM cables
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x User Manual
- Product Type : KVM Switchbox
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
- Rack Height : 1U
