Description

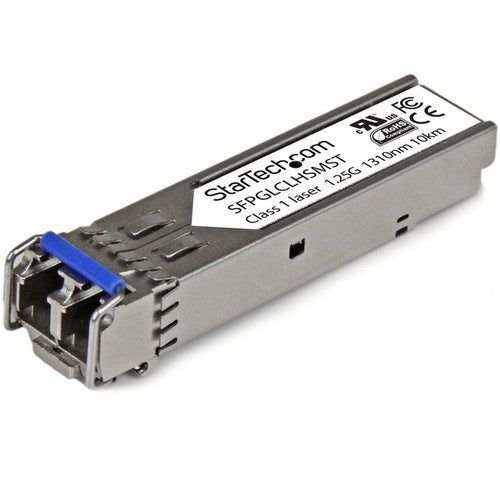

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode / Multimode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
- TECHNICAL SPECS: 1000BASE-LX/LH
- 1 Gbps
- Single Mode (SMF)/Multi Mode (MMF)
- LC Connector
- 1310nm
- Distances up to 10km (6.2mi)
- 100% CISCO GLC-LH-SM COMPATIBLE: Works with Cisco switches like IE3400, IE3300, IE3200, ME1200, ME2400 and others
- Environmental Certification : RoHS,WEEE,REACH
- Form Factor : Hot-pluggable,Hot-swappable
- Application/Usage : Data Networking,Optical Network
- Ethernet Technology : 1.25 Gigabit Ethernet
- Environmentally Friendly : Yes
- Limited Warranty : Lifetime
- Manufacturer Website Address : http://www.startech.com
- Total Number of Ports : 1
- Product Type : SFP (mini-GBIC)
- Connector Type : LC
- Manufacturer : StarTech.com
- Compatibility :
MSA Compliant
Cisco Firepower Switches:
- IE3400
- IE3300
- IE3200
- ME1200
- ME2400
- Media Type Supported : Optical Fiber
- Fiber Mode Supported : Single-Mode
- Country of Origin : China
- Network Technology : 1000BASE-LH
- Interfaces/Ports Details : 1 x LC Duplex 1000Base-LH Network
