Description

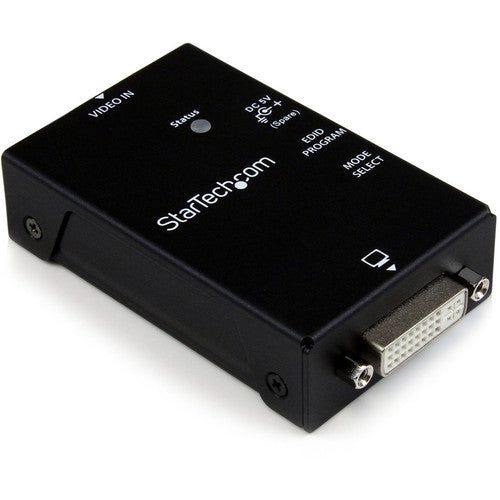

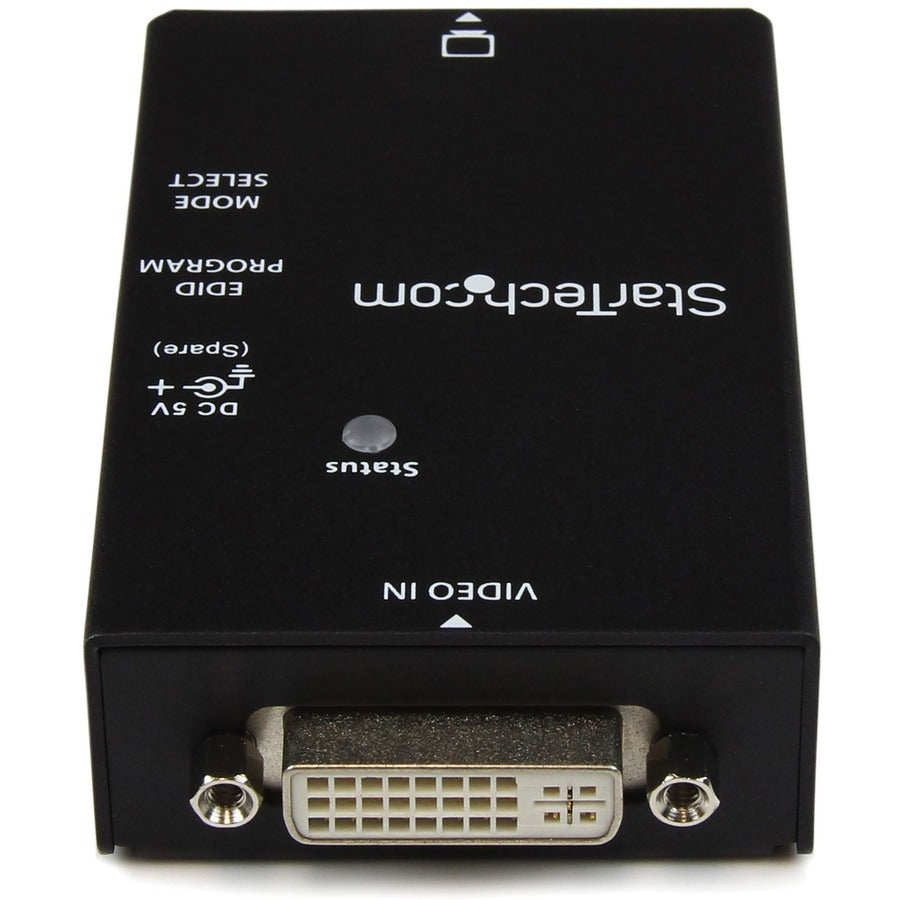

The VSEDIDDVI DVI EDID Emulator enables you to capture and retain Extended Display Identification Data from a monitor, which can then be connected to the video signal source (Video Extender, KVM Switch, etc.) to pass the EDID information and ensure the proper video settings are maintained.
EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the DVI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
- USB-powered using the included USB to DC power cable

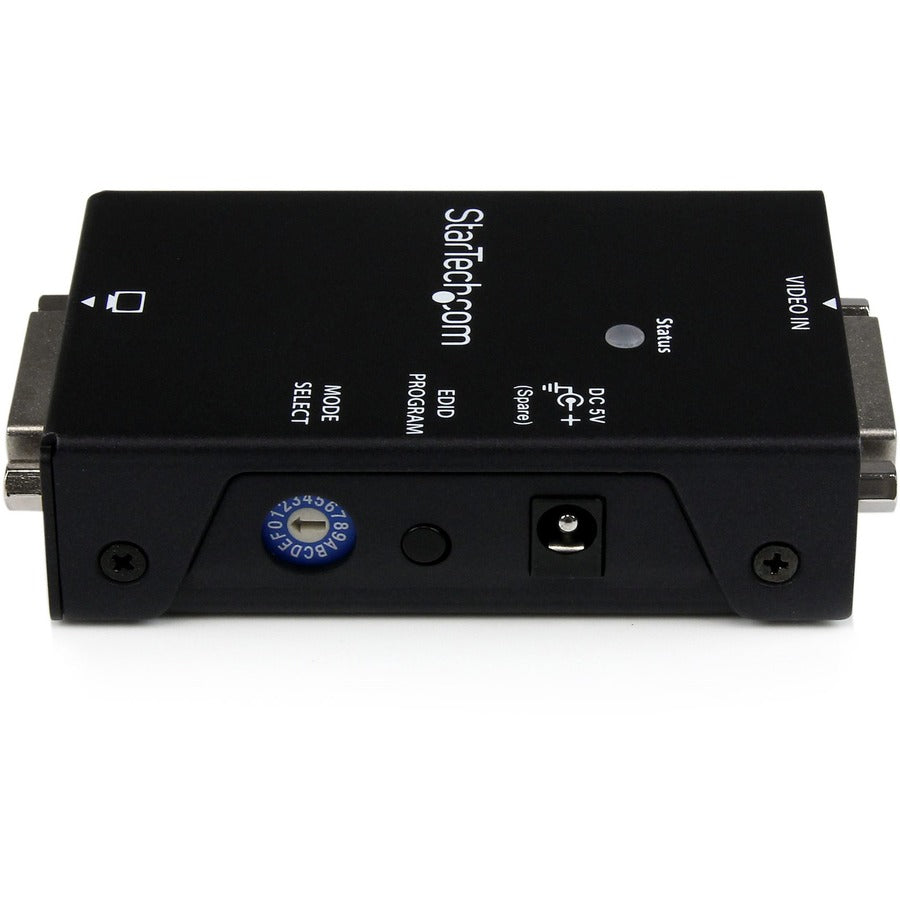

- Rotary switch for manual resolution setting selection
- Maintain proper display settings when using video extension systems
- Stores EDID settings even when unit has been unplugged
- TAA Compliant : Yes
- DVI : Yes
- Packaged Quantity : 1
- Maximum Resolution : 2560 x 1600
- Package Contents :
- DVI DDC EDID Ghosting Emulator with EDID Copy
- 1 x USB to DC Power Cable
- 1 x Pack, Rubber Feet
- 1 x Instruction Manual
- Functions : Video Emulation
- Manufacturer Website Address : http://www.startech.com
- Audio Line In : No
- Audio Line Out : No
- Environmentally Friendly : Yes
- Environmental Certification : REACH
- Manufacturer : StarTech.com
- Platform Supported : PC
- Product Type : Video Emulator
- Limited Warranty : 2 Year
- Country of Origin : Taiwan
- DVI : Yes
- TAA Compliant : Yes
- Maximum Resolution : 2560 x 1600
- Packaged Quantity : 1
- Package Contents :
- DVI DDC EDID Ghosting Emulator with EDID Copy
- 1 x USB to DC Power Cable
- 1 x Pack, Rubber Feet
- 1 x Instruction Manual
- Manufacturer Website Address : http://www.startech.com
- Functions : Video Emulation
- Audio Line In : No
- Audio Line Out : No
- Environmentally Friendly : Yes
- Manufacturer : StarTech.com
- Product Type : Video Emulator
- Platform Supported : PC
- Limited Warranty : 2 Year
- Country of Origin : Taiwan
- Environmental Certification : REACH
