Description

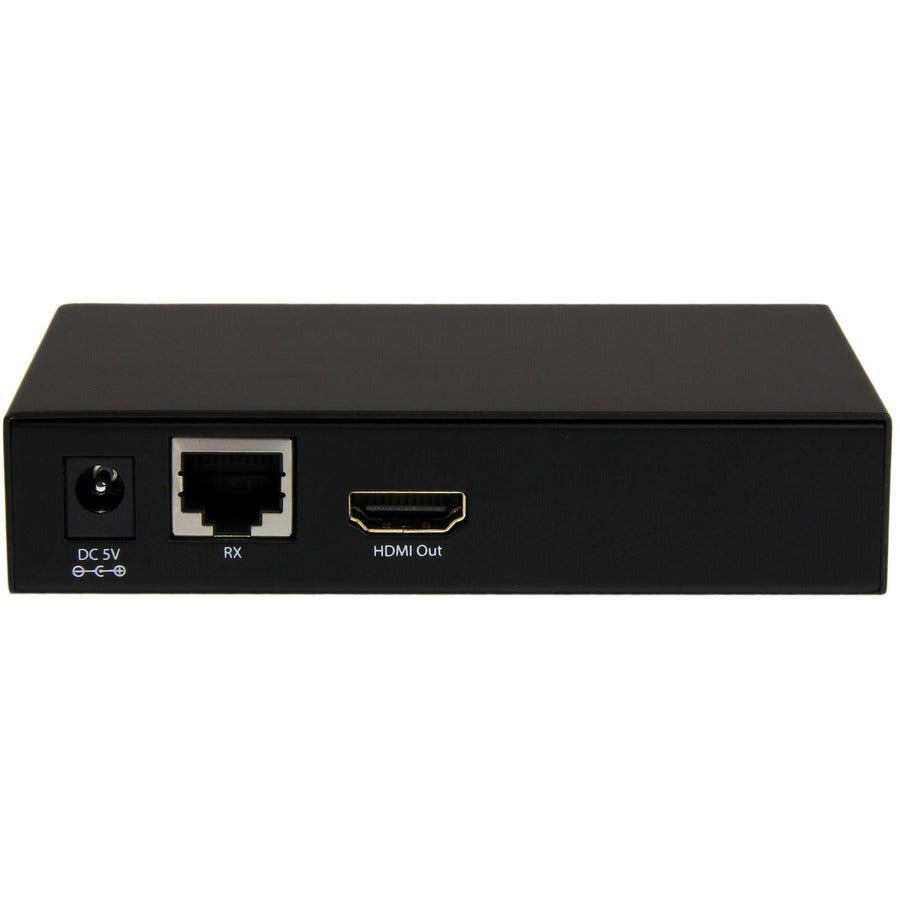

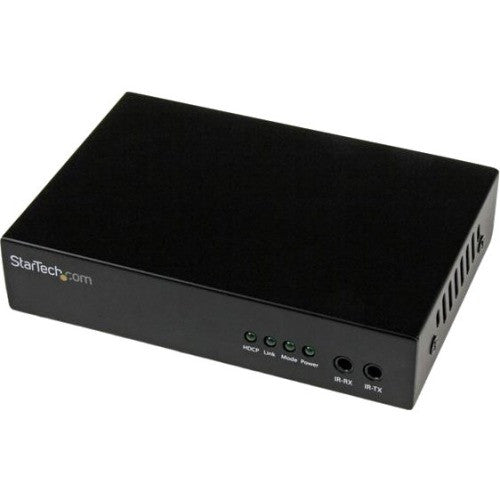

This HDBaseT receiver works with the ST424HDBT HDMI matrix switch to extend an HDMI audio/video source up to 230ft (70m) over Cat5e/6 cabling. One STHDBTRX receiver unit is required for each individual remote display.
Together with the ST424HDBT, the CAT5 HDMI receiver works to create a digital signage solution that eliminates the expense and hassle of running multiple devices with an HDMI matrix switch and extender in one clutter-free system. Because the signal is extended using standard Cat5e/6 Ethernet cables with RJ45 connectors, you can use your existing cabling infrastructure, without the additional cost of special cabling or connectors.
For remote source operation, the HDMI receiver can also extend an Infrared signal from a remote control to operate either the display or the video source from either side or system, using the included IR extender and receiver cables.
The STHDBTRX is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- Support for video resolution up to 1920x1200/1080p
- IR extender/receiver cables included
- Mounting brackets included
- 230ft (70m) HDMI extension over Cat5/6 Cabling
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 230 ft (70104 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 215.5 g
- Form Factor : Desktop
- Receiver Width : 3" (76.20 mm)
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 1 X Hdmi Receiver Unit
- 1 X Mounting Brackets
- 1 X Ir Kit (Transmitter/Receiver)
- 1 x Universal Power Adapter (NA/UK/EU/AUS)
- 1 X Quick Install Guide
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6
- Manufacturer : StarTech.com
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1920 x 1200
- Environmentally Friendly : Yes
- Receiver Height : 0.90" (22.86 mm)
- Receiver Depth : 4.30" (109.22 mm)
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Graphics Modes : WUXGA
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 1
- Country of Origin : China
- Connectivity Technology : Wired
- Product Color : Black
- Product Type : Video Extender Receiver
