Description
This HDMI® extender kit lets you transmit yourHD video sourceto your remote HDMIdisplay at a distance of up to 165 ft. (50 m) away. 1080p video can be extended 131 ft. (40 m) using shielded CAT 6 cabling. The extender features a built-in4-port USB 2.0 hub that also lets you connect four remote USB peripheral devices at your display location.
Crystal-clear picture quality
Using this HDMI extender, you can maintain the quality ofyour high-definition video signal along with theaccompanying 7.1 digital audio, even at 165 feet away from your source device. The extender supportsresolutions up to 1920x1200 or 1080p -perfectfor dazzling your audience in remote digital-signage applications in hospitalsor at shopping centers.
Hassle-free remote USB integration
The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display -great forflash drives, printers, scanners, external hard drives andI/O devices.Remote USB extension also enables you to remotelycontrol your sourcedevice, which is idealfor adding touchscreen interfaces at your display in market or POS kiosks.
Easy installation and setup
For hassle-freesetupthe HDMI extender offerseasy plug-and-play installation with noadditional software or drivers required. Plus, the extender passes theEDID information included inyour HDMIsignal,and automatically adjusts video equalizationensuring you won't have to configure it manually. Mounting hardware is also included, for a tidy and professional installation.
Note: To maximize performance this extender requires shielded CAT6 cable. When using unshielded CAT6 cable the maximum distance is reduced to 30m. When using CAT5 cable the maximum distance is reduced to 15m.
The ST121USBHD is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.
- Supports CAT5e and CAT6 Ethernet cable
- HDMI transmitter and receiver included
- Extends HDMI video and four USB peripheral devices up to 165 ft
- Tidy, professional installation using the included mounting hardware
- Easy remote peripheral integration, with a built-in 4-port USB hub
- Crystal-clear picture quality, with support for uncompressed 1920x1200 or 1080p HD video extension
- Number of HDMI Outputs : 1
- Maximum Operating Distance : 260 ft (79248 mm)
- Number of Input Devices Supported : 1
- Transmitter Depth : 3.20" (81.28 mm)
- Number of Output Devices Supported : 1
- Transmitter Weight (Approximate) : 460 g
- Number of USB Ports : 5
- Receiver Width : 3.20" (81.28 mm)
- Manufacturer Website Address : http://www.startech.com

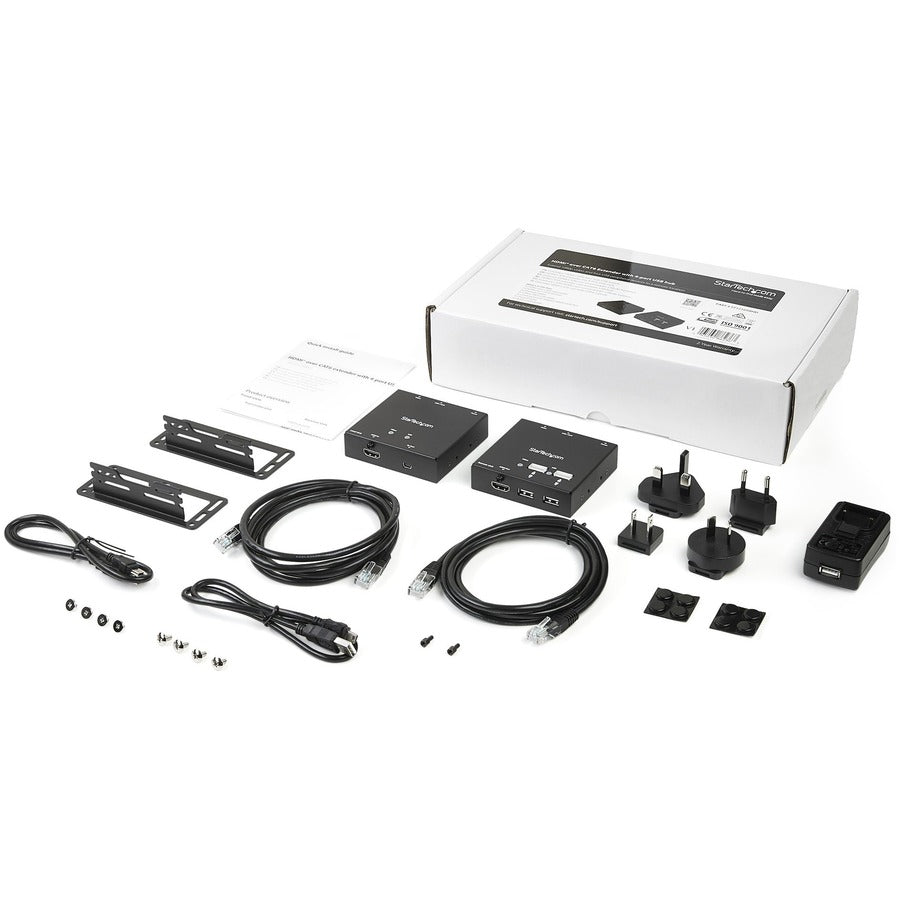

- Package Contents :
- 1 x HDMI over CAT6 Transmitter
- 1 x HDMI over CAT6 Receiver
- 2 x Ethernet Cables
- 2 x USB to Mini-USB Cables
- 1 X Universal Power Adapter (NA/EU/UK/AU)
- 1 x Mounting Kit
- 1 X Quick Install Guide
- HDMI Out : Yes
- Twisted Pair Cable Standard : Category 6
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 460 g
- Transmitter Height : 0.80" (20.32 mm)
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Video Resolution : 1920 x 1200
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Receiver Height : 0.80" (20.32 mm)
- USB : Yes
- HDMI In : Yes
- Receiver Depth : 3.20" (81.28 mm)
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Number of HDMI Inputs : 1
- Product Type : Video Extender Transmitter/Receiver
- Graphics Modes : WUXGA
- Transmitter Width : 3.20" (81.28 mm)
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 4
- Country of Origin : Taiwan
- Connectivity Technology : Wired
