Description

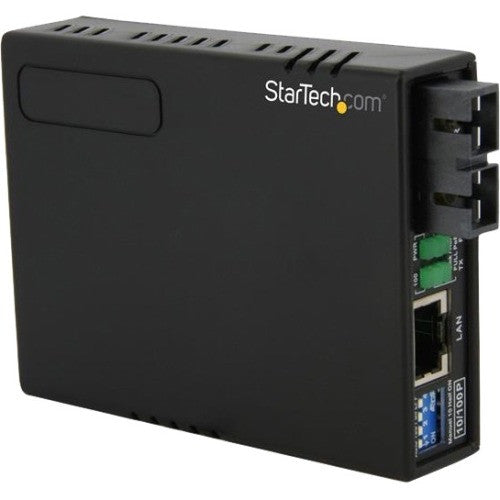

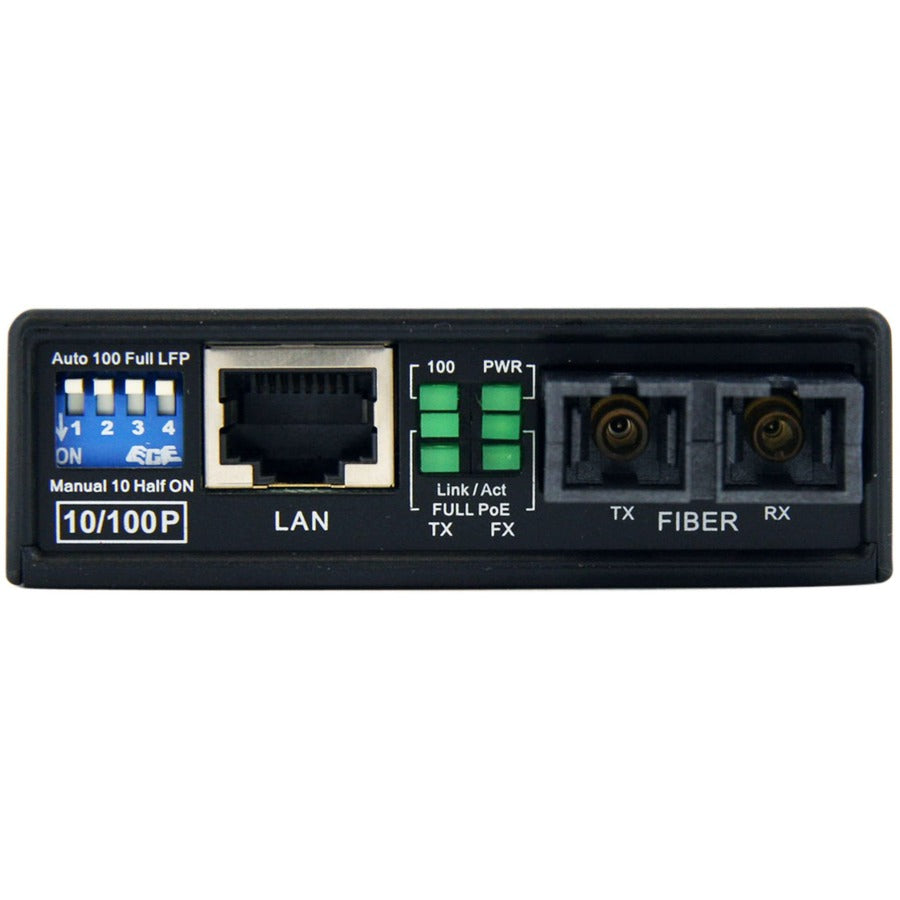

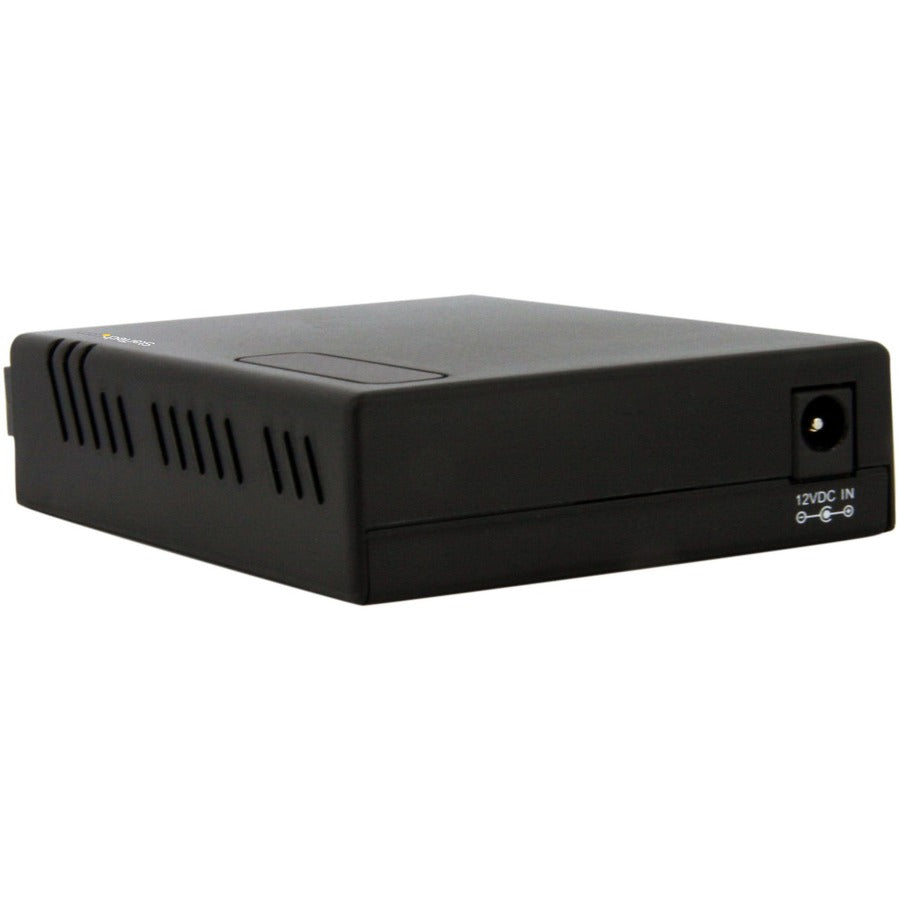

The MCM110SC2P 10/100 Multi Mode Fiber to Ethernet Media Converter supports a maximum fiber cable distance of 2km, ensuring a highly reliable signal for ideal network connectivity and performance.
Featuring Power over Ethernet support, the converter draws power from a PoE network, delivering the freedom to use the converter in environments and scenarios where additional standard power options are unavailable.
Rather than paying for expensive installations of power wire (at drop points that may have them), running PoE requires only standard network cable (e.g. Cat5e cable), eliminating added cost and hassle.
Backed by a StarTech.com 2-year warranty and free lifetime technical support, the 10/100Base to 100Base-FX Multimode Fiber Ethernet Media converter features a durable design to help ensure reliability and long-lasting performance.
Featuring Power over Ethernet support, the converter draws power from a PoE network, delivering the freedom to use the converter in environments and scenarios where additional standard power options are unavailable.
Rather than paying for expensive installations of power wire (at drop points that may have them), running PoE requires only standard network cable (e.g. Cat5e cable), eliminating added cost and hassle.
Backed by a StarTech.com 2-year warranty and free lifetime technical support, the 10/100Base to 100Base-FX Multimode Fiber Ethernet Media converter features a durable design to help ensure reliability and long-lasting performance.
- Fiber Support Cable Type - 62.2/125?m & 50/125?m
- Supports Flow Control (Pause) and Link Fault Pass-Through (LFP)
- Forward 1600 bytes (Max.) packets
- Supports IEEE 802.1q VLAN tagging pass-through
- Supports Q in Q double tagged frame transparent
- 10/100 Mbps auto-negotiation and auto-crossover on RJ45 port
- Supports a maximum multimode fiber optic cable distance of 2km
- Compact and lightweight design for portability
- Auto detects half/full duplex transfer mode on RJ45 port
- Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
- Power Source : AC Adapter
- Number of PoE (RJ-45) Ports : 1
- Packaged Quantity : 1
- Fiber Optic Cable Standard : 62.5/125 µm,50/125 µm
- Form Factor : External
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 10/100 Multi Mode Fiber to Ethernet Media Converter SC 2km with PoE
- 1 x Power Adapter
- 1 x Instruction Sheet
- Total Number of Ports : 2
- Manufacturer : StarTech.com
- Network Technology : 10Base-T,100Base-FX,100Base-TX
- Fiber Optic Wavelength : 1310 nm
- Environmental Certification : RoHS,WEEE,REACH
- Ethernet Technology : Fast Ethernet
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- SC Port Type : Duplex
- Number of SC Ports : 1
- PoE Port Type : PD
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Plug/Connector Type : Type M
- Product Type : Transceiver/Media Converter
- Power Consumption : 4.80 W
- Maximum Distance Supported : 1.2 Mile
- Media Type Supported : Optical Fiber,Twisted Pair
- Fiber Mode Supported : Multi-mode
- Country of Origin : Taiwan
