Description

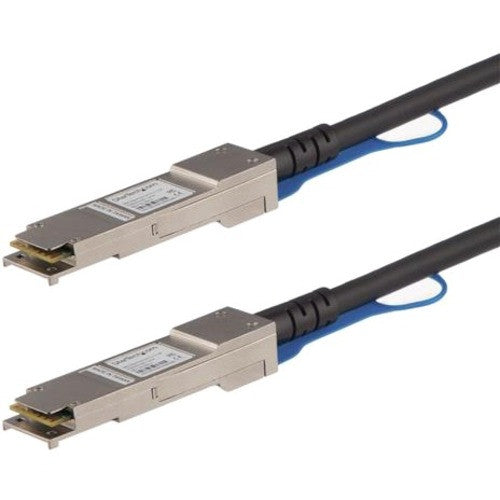

The QFXQSFPDAC1M is a Juniper QFX-QSFP-DAC-1M compatible direct-attach copper QSFP+ cable that's designed, programmed and tested to work with Juniper® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP CablesAll StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
- 100% JUNIPER QFX-QSFP-DAC-1M COMPATIBLE DAC: 40G direct attach cable works with Juniper switches and is MSA compliant
- TECHNICAL SPECS: 1m (3.3ft)
- 40 Gbps
- Passive Twinax (Copper)
- 2 x QSFP+ Pluggable Connector
- 100 Ohm Impedance
- 30 AWG Wire Gauge
- PVC Cable Jacket
- Hot swappable
- MSA Compliant
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Juniper routers and switches
- LIFETIME WARRANTY: Backed by a lifetime warranty on the life of the module itself, not the life of your switch; our modules won't void your OEM warranty and supported by our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
- Data Transfer Rate : 40 Gbit/s
- Environmental Certification : RoHS,WEEE,REACH
- Cable Type : Twinaxial
- Environmentally Friendly : Yes
- Device Supported : Network Device,Server,Switch,Router,Network Switch,Transceiver
- Limited Warranty : Lifetime
- Packaged Quantity : 1
- Manufacturer Website Address : http://www.startech.com
- Product Type : Network Cable
- Manufacturer : StarTech.com
- Features : Passive
- Cable Length : 3.3 ft
- Country of Origin : Taiwan
- American Wire Gauge : 30 AWG
- Product Material : Copper
- Connector on First End Details : 1 x QSFP+ Network - Male
- Jacket Material : Polyvinyl Chloride (PVC)
- Product Color : Black
- Connector on Second End Details : 1 x QSFP+ Network - Male
- Connector Type on First End : QSFP+ Network - Male
- Connector Type on Second End : QSFP+ Network - Male
