Description

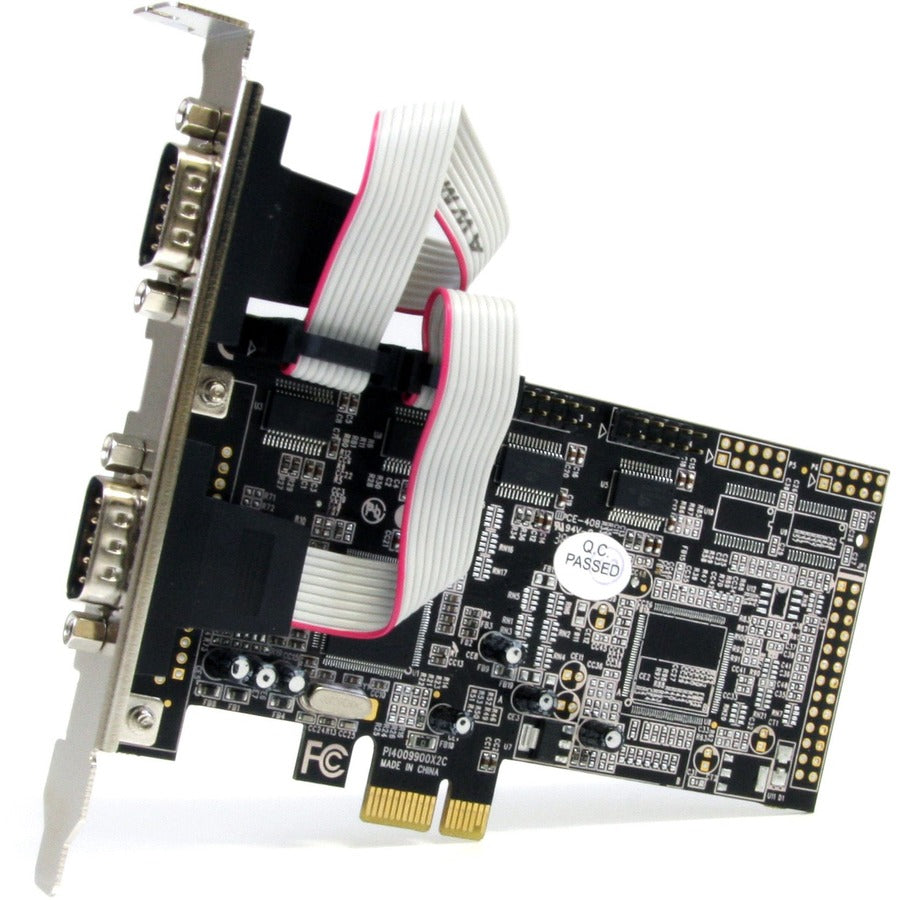

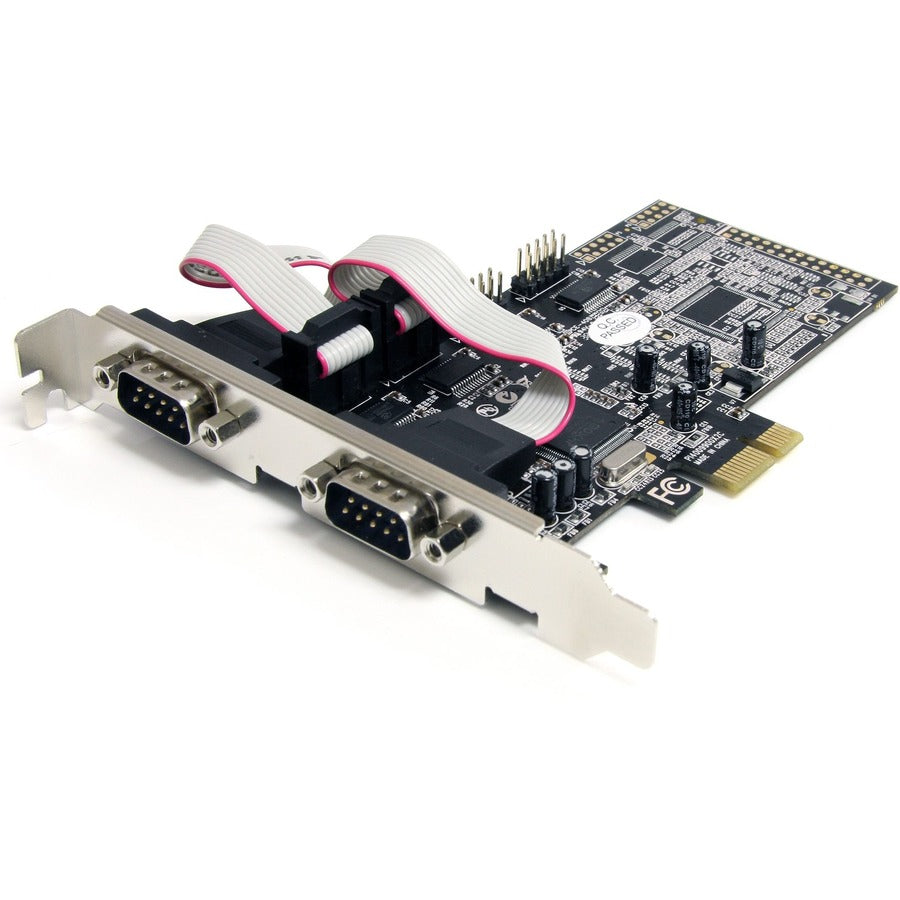

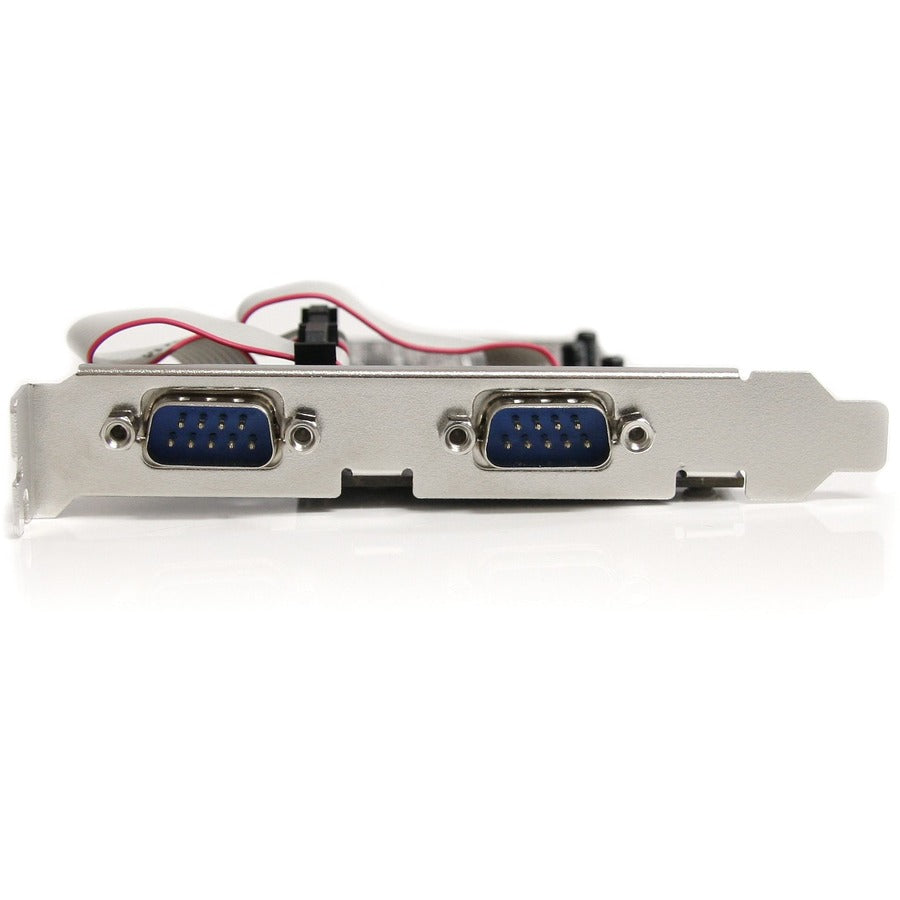

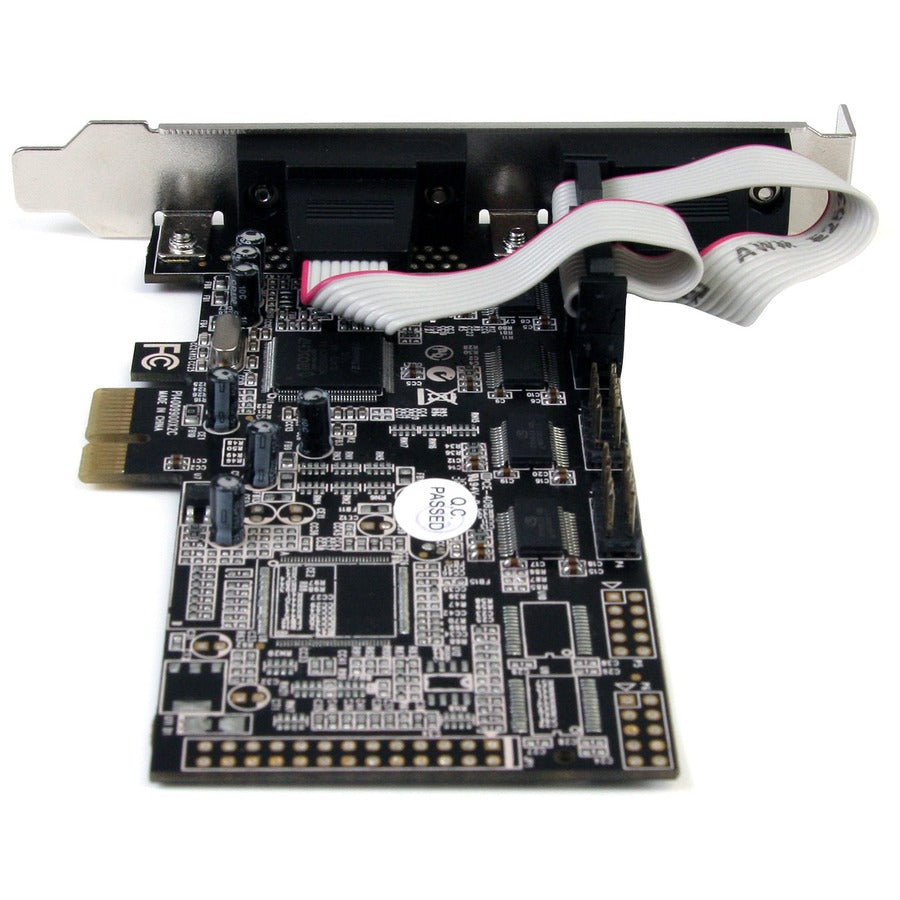

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
- Compliant with PCI Express Base Specification 1.1
- Built-in 16C450/550 compatible UART
- Native single-Chip, single lane PCI Express
- Includes half-height/low profile mounting brackets
- 256-byte deep FIFO per transmitter and receiver
- Four high speed RS232 serial ports, with support for data transfer rates up to 128000bps
- Environmental Certification : RoHS,WEEE,REACH
- Environmentally Friendly : Yes
- Platform Supported : PC
- Limited Warranty : Lifetime
- Number of Serial Ports (External) : 4
- Packaged Quantity : 1
- Form Factor : Plug-in Card
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART

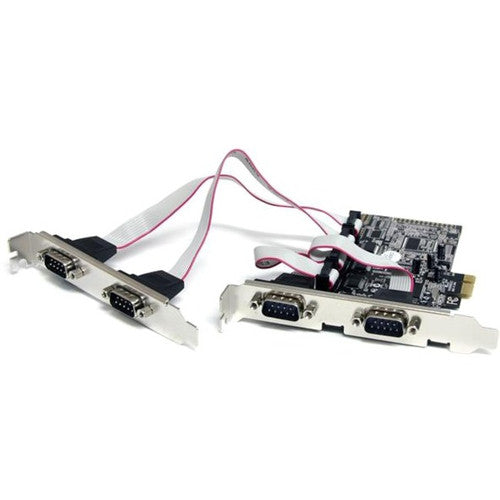

- 1 x Full Profile Bracket With Two DB9 Connectors
- 4 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Product Type : Serial Adapter
- Card Height : Dual-profile
- Host Interface : PCI Express x1
- Manufacturer : StarTech.com
- Country of Origin : China
- UART Type : 16550,16C450
