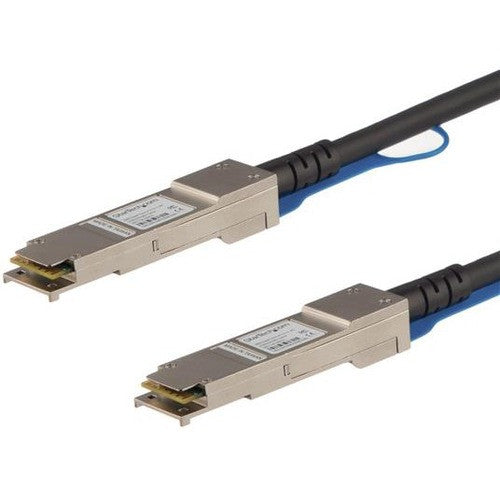

StarTech.com StarTech.com 5m 40G QSFP+ to QSFP+ Direct Attach Cable for Cisco QSFP-H40G-CU5M - 40GbE Copper DAC 40 Gbps Passive Twinax QSFPH40GCU5M

The QSFPH40GCU5M is a Cisco QSFP-H40G-CU5M compatible direct-attach copper QSFP+ cable that's designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.

This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.

StarTech.com SFP Cables

All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.

• 100% CISCO QSFP-H40G-CU5M COMPATIBLE: Works with Cisco switches like C9300, C9200, C9400, C9500, C9600 and others
• TECHNICAL SPECS: 5m (16.4ft)
• 40 Gbps
• Passive Twinax (Copper)
• 2x QSFP+ Pluggable Connector
• 100 Ohm Impedance
• 30 AWG Wire Gauge
• PVC Cable Jacket
• Hot swappable
• MSA Compliant
• TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches
• OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
• WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
• Hot-swappable

. .

• Data Transfer Rate : 40 Gbit/s
• Environmental Certification : RoHS,WEEE
• Cable Type : Twinaxial
• Environmentally Friendly : Yes
• Device Supported : Network Device,Server,Switch,Transceiver
• Limited Warranty : Lifetime
• Packaged Quantity : 1
• Manufacturer Website Address : http://www.startech.com
• Product Type : Network Cable
• Manufacturer : StarTech.com
• Features : Passive,Hot-swappable
• Cable Length : 16.4 ft
• Compatibility : Cisco Switches:

  • C9300
  • C9200
  • C9400
  • C9500
  • C9600
• Country of Origin : Taiwan
• American Wire Gauge : 30 AWG
• Product Material : Copper
• Connector on First End Details : 1 x QSFP+ Network - Male
• Jacket Material : Polyvinyl Chloride (PVC)
• Product Color : Black
• Connector on Second End Details : 1 x QSFP+ Network - Male
• Connector Type on First End : QSFP+ Network - Male
• Connector Type on Second End : QSFP+ Network - Male
