StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz Docking Station w/ DisplayPort - PCIe M.2 NVMe SSD Enclosure, SD 4.0, USB, 85W PD TB3DK2DPM2

This compact Thunderbolt™ 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.

Create a Dual-4K 60Hz Workstation

Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:

• 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
  • USB-C to DP cable or USB-C video adapter may be required

• 1x 5K monitor at 60H

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

Add Data Storage

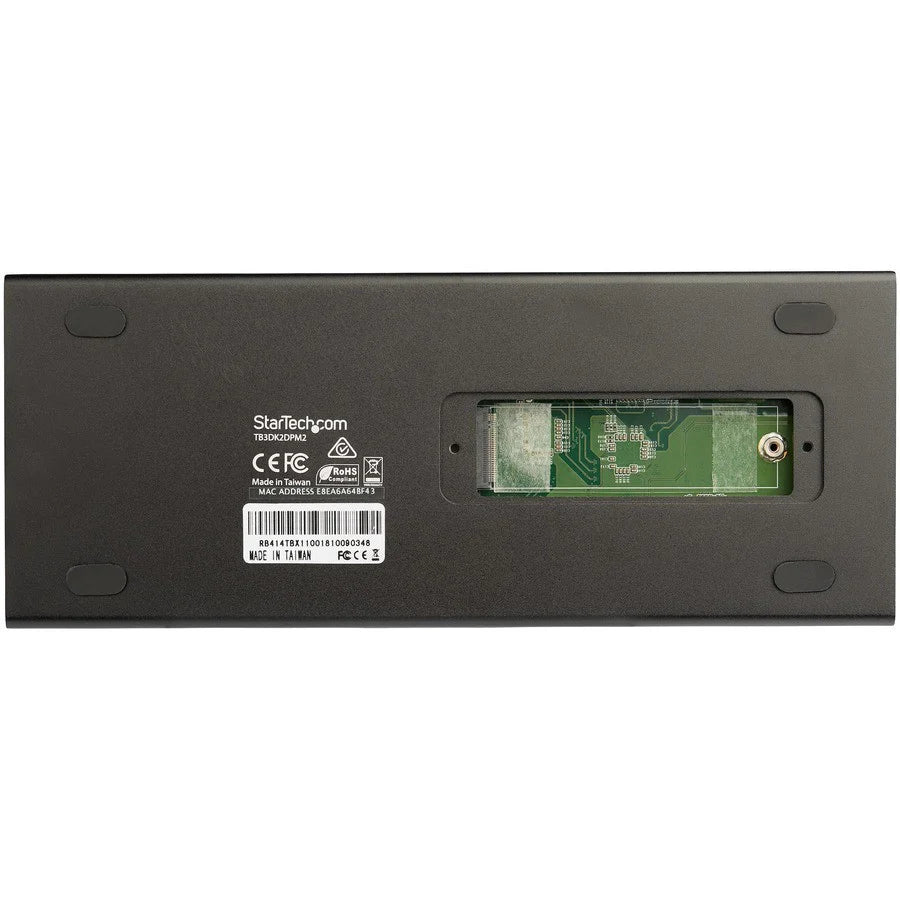

The Thunderbolt 3 dock's built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.

Fast SD Card Access

Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock's SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.

Connect Your Devices

Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.

The GbE port (with PXE Boot and WoL support) provides reliable wired network access.

85W Power Delivery

Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.

The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.

• LOCALIZED HIGH-PERFORMANCE STORAGE: Thunderbolt 3 dock has a PCIe NVMe M.2 SSD bay to store/back up files, SD/SDHC/SDXC 4.0 UHS-II card slot & USB-C 3.1 Gen 2 10Gbps port to connect an external drive
• DESIGNED FOR CONTENT CREATORS: The Thunderbolt 3 Dock features dual monitor 4K 60Hz or single 5K 60Hz via DisplayPort & downstream TB3/USB-C port, SD, 1x USB-C & 2x USB-A Hub, Gigabit Ethernet & audio
• 85W POWER DELIVERY: Thunderbolt 3 docking station with charging to power & charge workstation laptops like MacBook Pro 13/15/16, HP EliteBook, Lenovo ThinkPad, Dell XPS using macOS and Windows
• FLEXIBLE THUNDERBOLT 3 PORT: Thunderbolt 3 docking station's downstream TB3 port supports 15W & three modes of operation: a second display, daisy chain TB3 peripherals, or connects USB-C accessories
• EASY TO USE: Thunderbolt 3 dock w/ auto drivers; incl. TB3 host cable, front facing ports, USB-A & USB-C BC 1.2 Fast Charge, & Audio; supports extended dual display support on MacBook Pro/Air with Intel processor & single display with Apple M1 Chip

• DisplayPort : Yes
• USB Type-C Detail : 2 x Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female, 1 x USB Type-C (24 pin) USB 3.1 (10Gbps) Female
• Manufacturer Website Address : http://www.startech.com
• Audio Line In : Yes
• Thunderbolt : Yes
• Host Interface : USB Type C
• USB Type-A : Yes
• Country of Origin : Taiwan
• Headphone/Microphone Combo Port : Yes
• Number of DisplayPort Outputs : 1
• TAA Compliant : Yes
• Product Color : Black
• Memory Card Supported : microSDHC
• Package Contents :
  • Docking Station
  • Thunderbolt 3 cable
  • Universal power adapter
  • Power cords (NA/JP, EU, UK, ANZ)
  • Instruction manual
• Device Supported : Notebook/Monitor
• Connectivity Technology : Wired
• Environmentally Friendly : Yes
• Number of Displays Supported : 2
• Compatibility :
  • Apple MacBook Pro
  • Apple MacBook Air
• USB Type-C : Yes
• Microphone : Yes
• Operating System Supported : Windows
• Environmental Certification : WEEE
• Number of USB 3.0 Ports : 2
• Manufacturer : StarTech.com
• Product Type : Docking Station
• Limited Warranty : 3 Year
• Ethernet Technology : Gigabit Ethernet
• Maximum Power Supply Wattage : 85 W
• Network (RJ-45) : Yes
• Memory Card Reader : Yes
• Screen Mode Supported : 4K
• Supported Resolutions : 3840 x 2160
• Total Number of USB Ports : 4
