Description

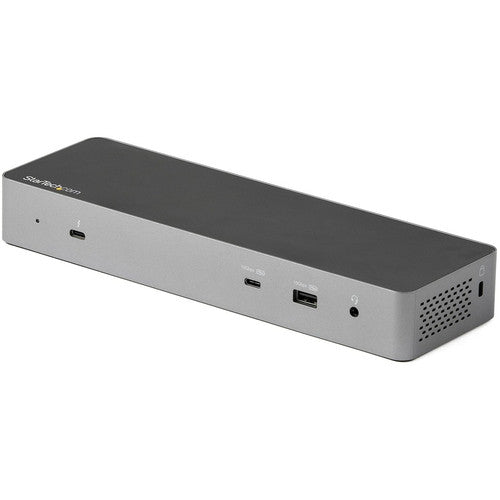

A high-performance Thunderbolt™ 3 Certified docking station with USB Type-C® compatibility featuring dual monitor 4K 60Hz DSC support from either dual DisplayPort or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports.
Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort HDMI + HDMI DisplayPort + HDMIResolutions and video outputs are host-dependent.
Host Output
DSC Status
Single Video
Dual Video Thunderbolt with DP 1.4 (nVidia Graphics)
Off
8K (7680 x 4320) @ 30Hz (DP Only) n/a Thunderbolt with DP 1.4 (nVidia Graphics)
Off
n/a 2x 4K (3840x2160) @60Hz Thunderbolt with DP 1.4 (nVidia Graphics) On 4K (3840x2160) @144Hz n/a Thunderbolt with DP 1.4 (nVidia Graphics) On n/a 2x 4K (3840x2160) @60Hz Thunderbolt with DP 1.4 (Intel Graphics) n/a 5K (5120x2880) @60Hz (DP Only) n/a Thunderbolt with DP 1.4 (Intel Graphics) n/a n/a 2x 4K (3840x2160) @60Hz Thunderbolt with DP 1.2 n/a 4K (3840x2160) @60Hz n/a Thunderbolt with DP 1.2 n/a n/a 2x 4K (3840x2160) @60Hz USB Type-C DP Alternate Mode DP 1.4 Off
4K (3840x2160) @30Hz n/a USB Type-C DP Alternate Mode DP 1.4 Off n/a 2x QHD (2560x1440) USB Type-C DP Alternate Mode DP 1.4 On 5K (5120x2880) @60Hz (DP Only) n/a USB Type-C DP Alternate Mode DP 1.4 On n/a 2x 4K (3840x2160) @60Hz USB Type-C DP Alternate Mode DP 1.2 n/a 4K (3840x2160) @30Hz n/a USB Type-C DP Alternate Mode DP 1.2 n/a n/a 2x 1080p (1920x1080) @ 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:

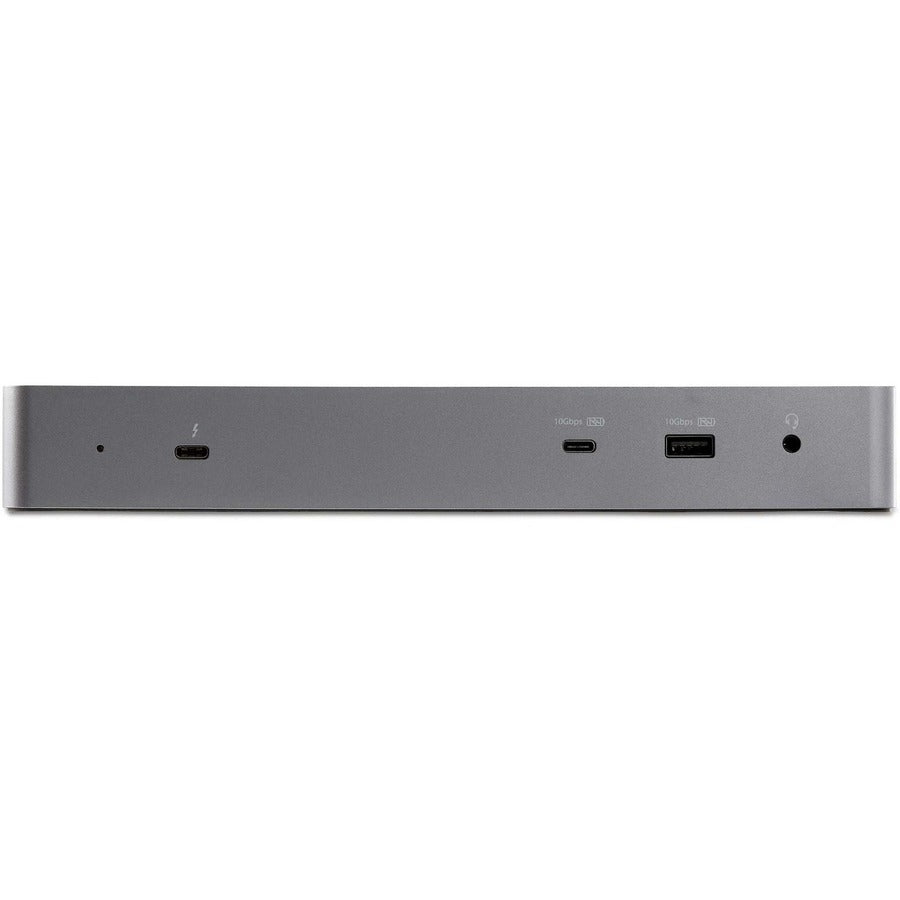

Front Facing:
- 1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
- 1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging

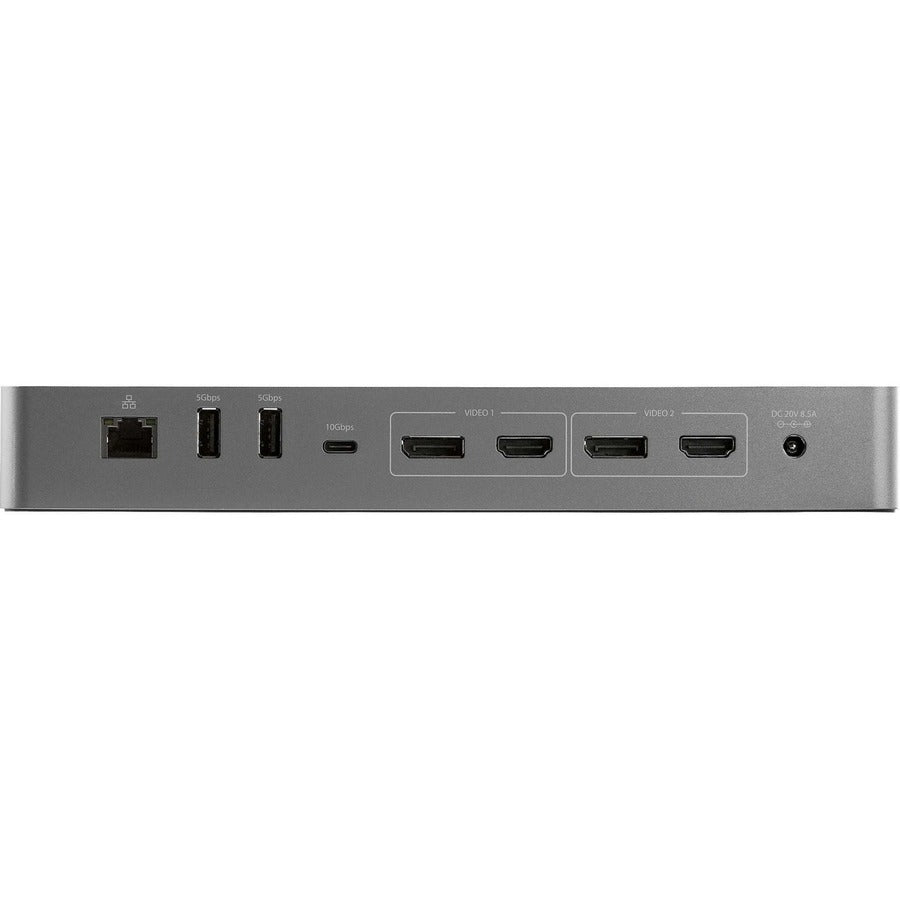

Back Facing:
- 2x USB 3.2 Gen 1 Type-A (5 Gbps)
- 1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage

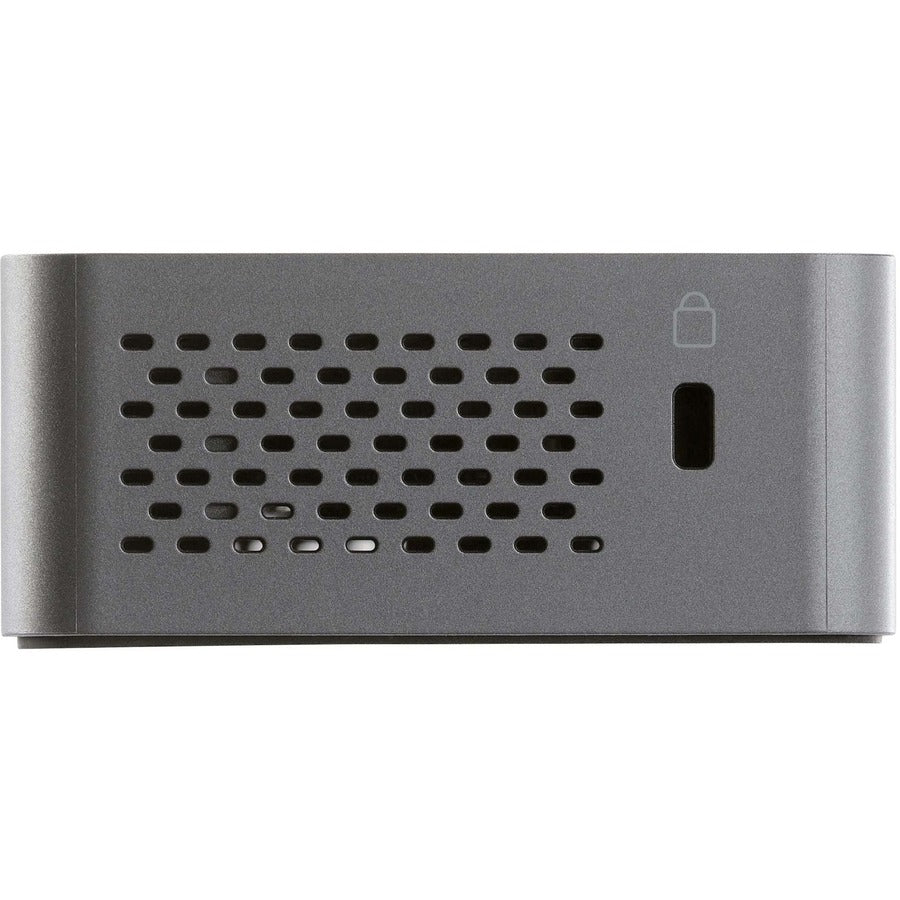

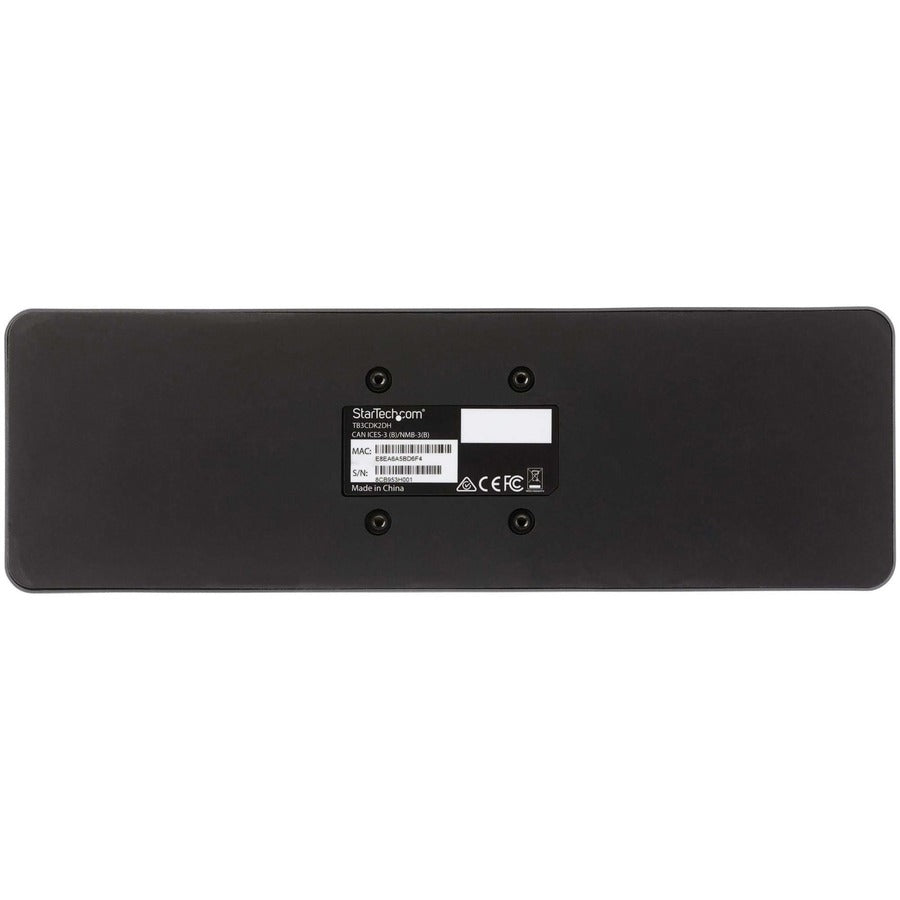

This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The TB3CDK2DH includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
TB3CDK2DH is backed by a StarTech.com three-year warranty and free lifetime technical support.
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
- EASY TO USE: Universal Thunderbolt 3/USB-C dock with automatic drivers; incl. 2.6 ft (0.8m) Thunderbolt 3 host cable, mounting holes for optional bracket, k-slot for security lock
- COMPATIBILITY: Thunderbolt 3 certified dock works with both TB3 Macbooks and Windows w/ TB3 & USB-C like Dell, HP, & Lenovo; Ubuntu (18.04 & 20.04) compatible; supports extended dual displays on MacBook Pro/Air with Intel processor & single display w/ Apple M1 Chip
- FLEXIBLE MONITOR OUTPUTS: Thunderbolt 3 docking station features dual DisplayPort 1.4 w/ DSC (single 8K 30Hz) or dual HDMI 2.0 video outputs w/ options for dual DP, dual HDMI or DP + HDMI displays at dual 4K 60Hz on both TB3 & USB-C (non TB3) laptops
- 96W CERTIFIED POWER DELIVERY: Thunderbolt 3 / USB Type-C Dock can deliver up to 100W peak power (96W sustained) and charge high performance laptops, Ultrabooks & workstation laptop computers such as MacBook Pro 16, HP, Lenovo ThinkPad & Dell XPS
- FULL FUNCTION DOCK: Thunderbolt 3 docking station with USB-C compatibility features dual monitor 4K 60Hz, 96W PD, 5x USB Hub (incl 2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet, headset ports
- USB Type-C Detail : 2 x USB-C (USB 3.1 Gen 2)
- Maximum Power Supply Wattage : 96 W
- Device Supported : Monitor/Notebook/Workstation
- USB Type-C : Yes
- Operating System Supported : macOS,Windows
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- Docking Station
- Universal Power Adapter
- Power Cords (NA/JP, ANZ)
- Thunderbolt 3 Host Cable (80 cm)
- User Manual
- Screen Mode Supported : 4K
- DisplayPort : Yes
- USB Type-A : Yes
- Manufacturer : StarTech.com
- Supported Resolutions : 4096 x 2160,5120 x 2880,7680 x 4320
- Ethernet Technology : Gigabit Ethernet
- Number of Displays Supported : 2
- Audio Line Out : Yes
- Limited Warranty : 3 Year
- Network (RJ-45) : Yes
- Product Type : Docking Station
- Host Interface : USB Type C,Thunderbolt 3
- HDMI : Yes
- Thunderbolt : Yes
- Compatibility :
- HP Notebooks
- Lenovo ThinkPad Notebooks
- Dell XPS Notebooks
- MacBook Air
- MacBook Pro
- Kensington Security Slot : Yes
- Country of Origin : Malaysia
- Connectivity Technology : Wired
- Product Color : Black,Space Gray
