Description

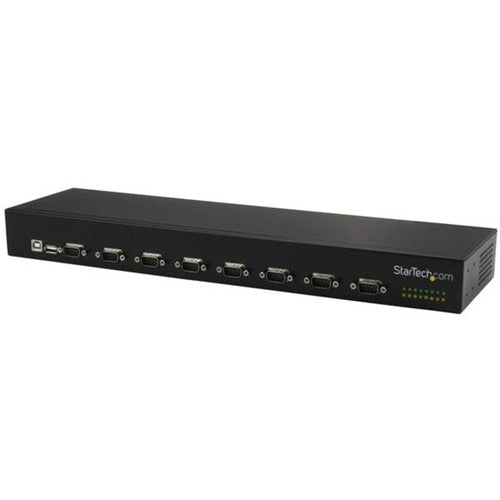

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provideseasy installation into a broad range of operating systems.
Meets the demands of industrial environments

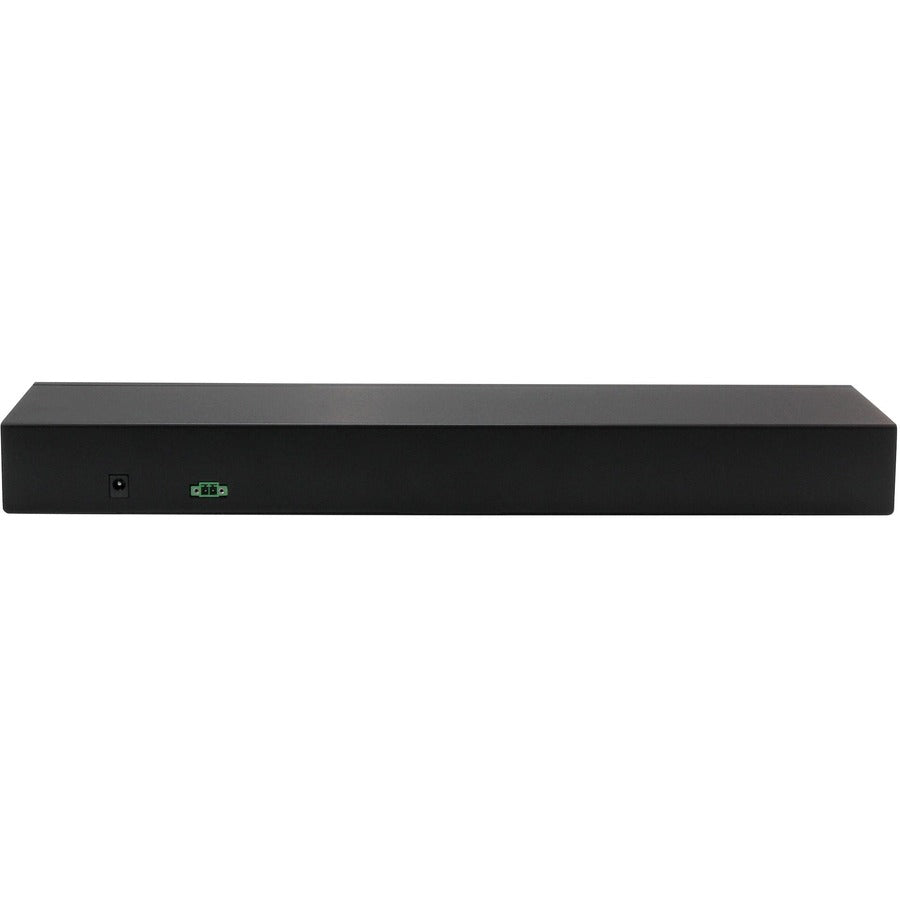

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
- COM port retention
- 256-byte transmit, 128-byte receive FIFO
- Extended operating temperature range: -40?C to 85?C (-40?F to 185?F)
- Rack-mountable design with durable all-metal chassis
- 921.6Kbps baud rate per port
- Connect multiple hubs together through daisy chain functionality
- Gain eight RS232 serial port interfaces through a single USB port
- Environmental Certification : RoHS,WEEE,REACH
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Platform Supported : Mac,Linux,PC
- Limited Warranty : 2 Year
- Number of Serial Ports (External) : 8
- Packaged Quantity : 1
- Form Factor : External
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- 8-Port USB-to-Serial Adapter Hub
- 1 x USB 2.0 Cable
- 2 x Rack-mounting Brackets
- 8 x Rack-mounting Screws
- 2 x Din-rail Mounting Brackets
- 4 x Din-rail Mounting Screws
- 4 x Washers
- 4 x Nuts
- 1 x Universal Power Adapter (NA/JP, UK, EU, AU)
- 1 x Driver CD
- 1 x Terminal Block Plug
- 1 x Quick Start Guide
- Product Type : Serial Hub
- Host Interface : USB 2.0
- Manufacturer : StarTech.com
- Country of Origin : Taiwan
