Description

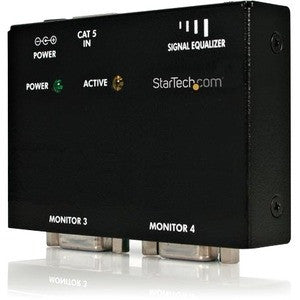

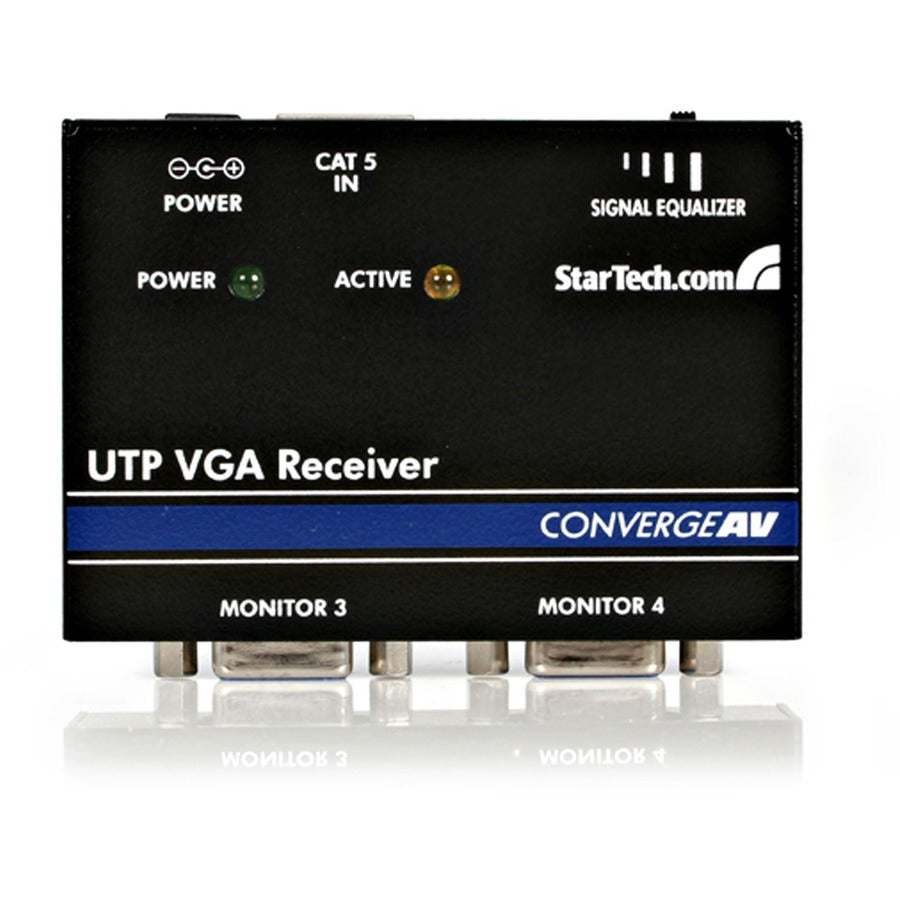

The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays.
From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet).
A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

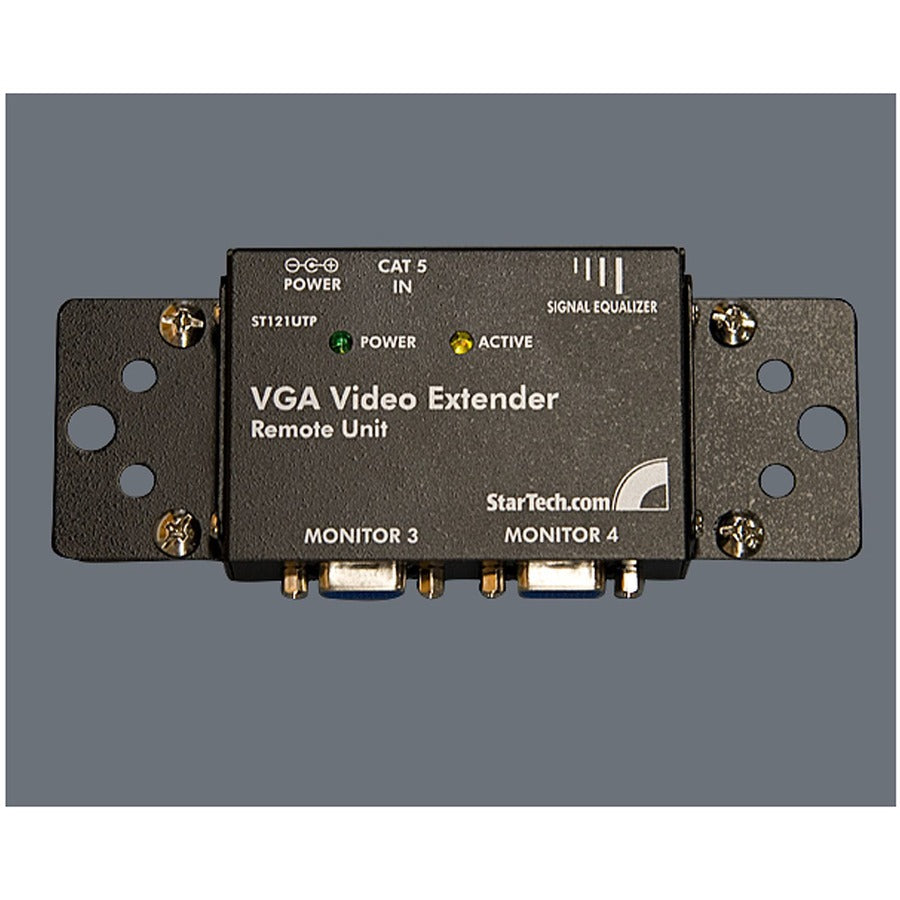

- Included mounting brackets
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
- Pure hardware design, no software or drivers required
- Extends video cables by up to 500 ft. (150m)
- Environmental Certification : RoHS,WEEE,REACH
- Maximum Operating Distance : 492.13 ft (150000 mm)
- Number of Output Devices Supported : 2
- Receiver Width : 3.30" (83.82 mm)
- Manufacturer Website Address : http://www.startech.com
- Package Contents :
- VGA Over CAT5 UTP Receiver
- 1 x 9V Power Adapter
- 1 x Instruction Manual
- Twisted Pair Cable Standard : Category 5
- Manufacturer : StarTech.com
- Receiver Weight (Approximate) : 168 g
- VGA Out : Yes
- Maximum Video Resolution : 1024 x 768
- TAA Compliant : Yes
- Environmentally Friendly : Yes

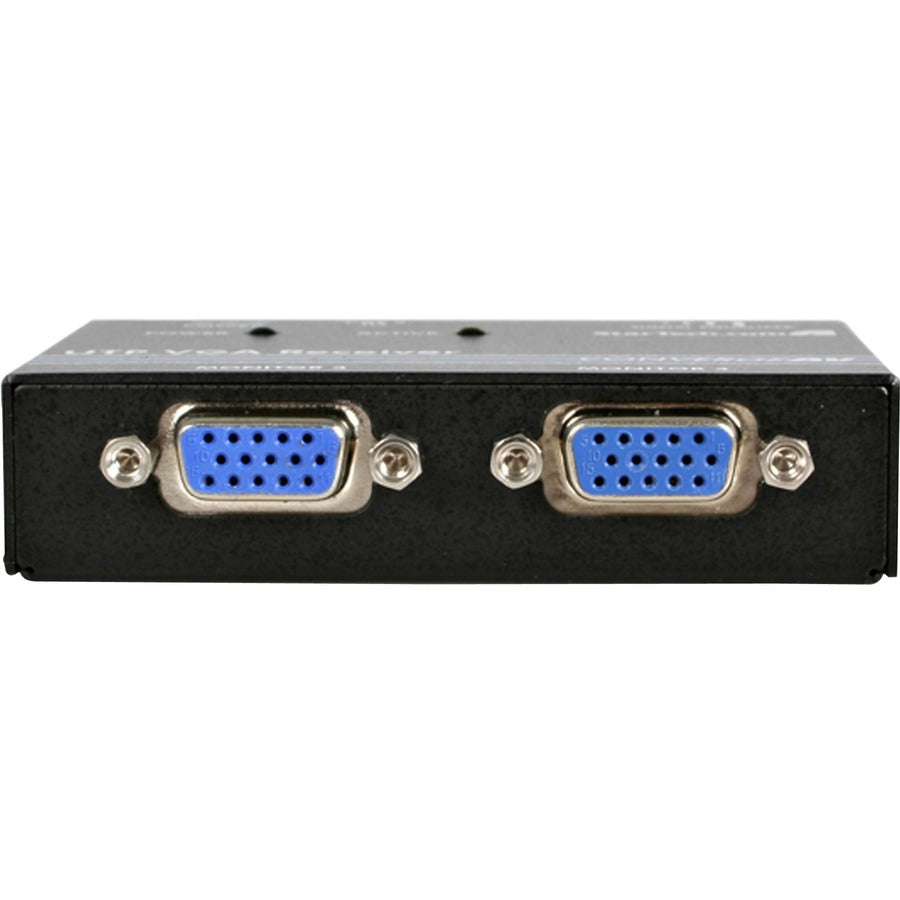

- Number of VGA Outputs : 2
- Receiver Height : 0.80" (20.32 mm)
- Receiver Depth : 2.60" (66.04 mm)
- Limited Warranty : 2 Year
- Network (RJ-45) : Yes
- Product Type : Video Extender Receiver
- Graphics Modes : VGA
- Media Type Supported : Twisted Pair
- Number of Network (RJ-45) Ports : 1
- Country of Origin : Taiwan
- Connectivity Technology : Wired
- Product Color : Black
