Description
Securing your business assets

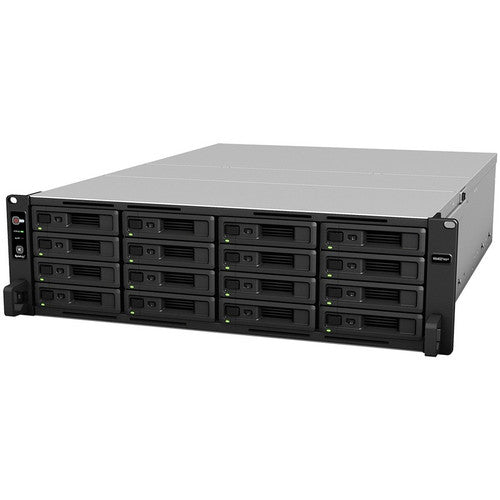

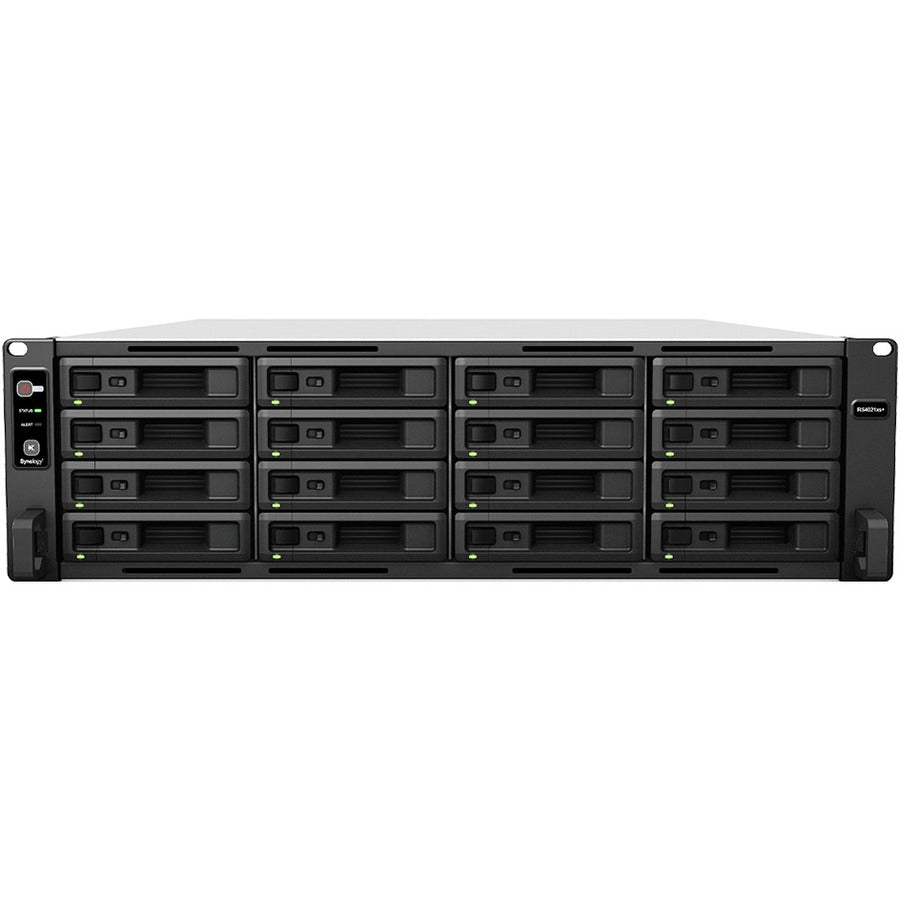

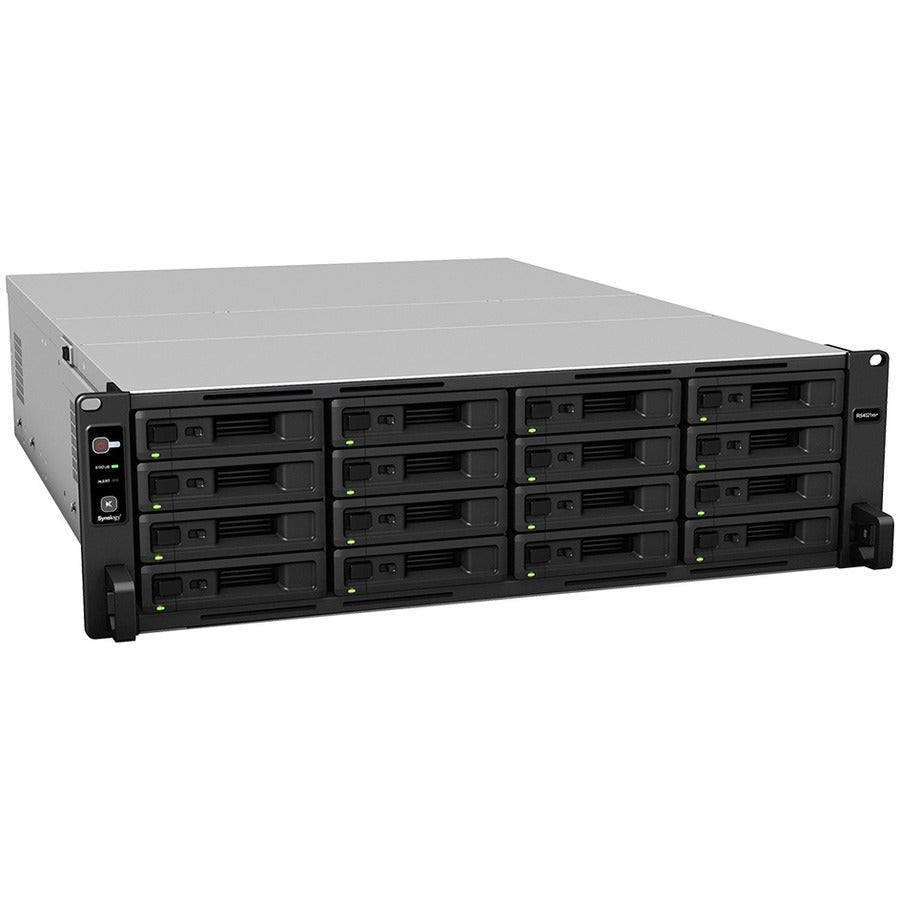

The 16-bay RS4021xs+ provides solid data security and lightening-fast performance with over 234K 4K random read IOPS and 6,258 MB/s sequential read throughput. Together with its 8-core processor, ECC memory, advanced snapshot technology, and built-in 10GbE connectivity, the RS4021xs+ can support large multi-user environments while handling data-intensive workloads.
Compute
Intel® Xeon® D-1541 8-core 2.1 GHz
Networking
Built-in dual-port 10GbE
Memory
16 GB ECC DDR4 Up to 64 GB
Scalability
Up to 40 drive bays with RX1217(RP)
Engineered for service continuity
The RS4021xs+ ensures mission-critical data is always available, enabling businesses to deliver the best results, even in the face of disaster.
Redundant power

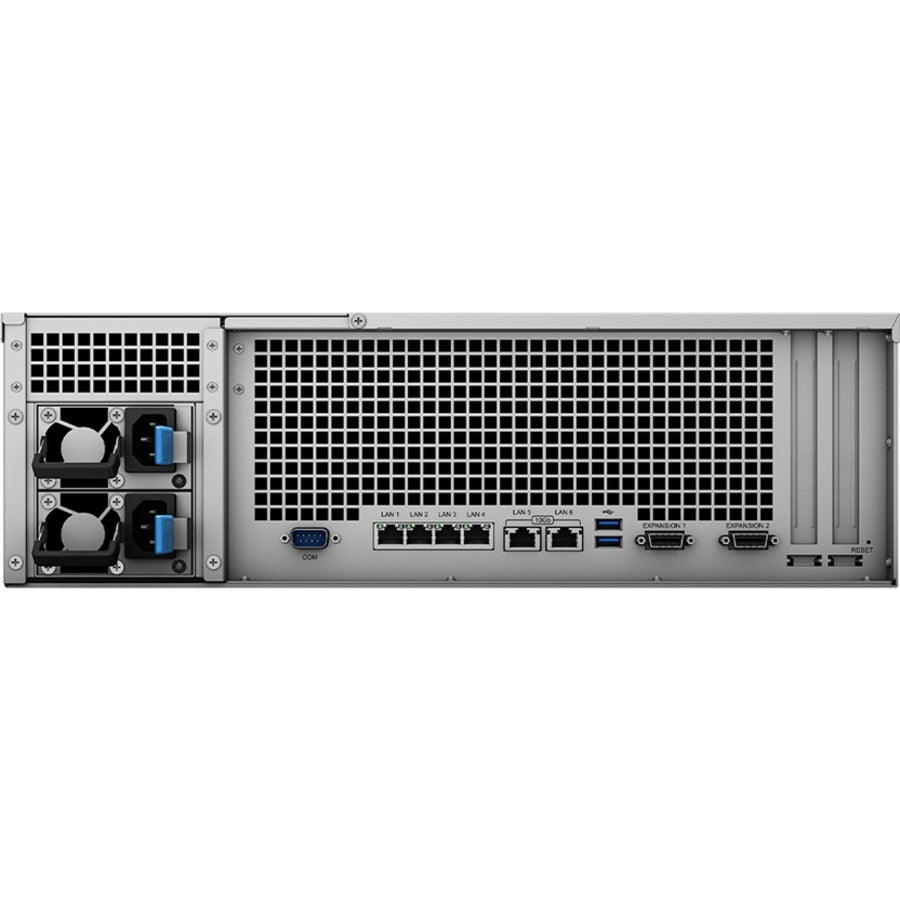

Dual PSUs provide protection against a PSU failure or accidental cord removal while hot-swappable fans can be replaced without powering down the system.
Maximize service availability
Synology High Availability (SHA) pairs two identical units together creating an active-passive cluster with minute-level failover. Learn more
Next-generation file system
Btrfs prevents data corruption and reduces maintenance overheads with advanced storage technologies and optimized snapshots. Learn more
Customize to your business
The RS4021xs+ includes two PCIe slots for performance, networking, and storage upgrades enabling it to adapt to any business environment.
-
Double bandwidth
Upgrade network bandwidth in minutes by 2x or more with Synology's range of 10GbE NICs.
-
SSD cache
Boost read/write IOPS by up to 16 times by enabling SSD cache with our Synology M.2 NVMe adapter cards and SNV3500 SSDs, or by installing one or more 2.5" SAT5200 SSDs.
-
Storage expansion
Quickly and easily scale up to 40 drives with two RX1217(RP) expansion units.
The ultimate backup solutions - license-free
Keep disaster at bay
Hyper Backup
A comprehensive backup and recovery solution for securing data stored on Synology servers. Backup data locally, to another Synology device, rsync server, or cloud-based storage such as Google Drive, Dropbox, S3-compatible destinations, and Synology C2. Deduplication, integrity checks, and incremental transfer technology reduce bandwidth and storage used. Learn more
Snapshot Replication
Easily schedule flexible point-in-time backups of shared folders and iSCSI LUNs with an RPO as low as 5 minutes and recovery in seconds. Set up replication and failover to other Synology storage systems for fast RTOs and minimal service disruption. Learn more
Active Backup Suite
Enables administrators to easily backup the entire IT infrastructure to their NAS, including Windows & Linux workstations and servers, file servers, VMware and Hyper-V virtual machines, and Microsoft 365 and Google Workspace accounts. Backups benefit from deduplication, multiversioning, and optimizations to reduce bandwidth and storage used. Learn more
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.10 ghz processor
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- RAID technology - data reliability, fault tolerance and improved overall performance
- Memory Technology : DDR4 SDRAM
- Standard Memory : 16 GB
- Manufacturer Website Address : http://www.synology.com
- Number of Power Supplies Installed : 2
- Number of Total Expansion Bays : 16
- Country of Origin : Taiwan
- Number of 2.5"/3.5" Bays : 16
- Processor Core : Octa-core (8 Core)
- Processor Manufacturer : Intel
- Product Series : XS
- Controller Type : Serial ATA
- RAID Supported : Yes
- Operating System : DiskStation Manager
- Rack Height : 3U
- Packaged Quantity : 1
- Processor Type : Xeon
- Number of Solid State Drive Supported : 16
- Number of Solid State Drive Installed : 0
- Product Line : RackStation
- Protocols : CIFS,AFP,NFS,FTP,WEBDAV,SMB 1.0,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA
- RAID Levels : 0, 1, 5, 6, 10, Basic, JBOD, RAID F1
- Number of Hard Drives Supported : 16
- Number of USB 3.2 Gen 1 Ports : 2
- Number of Hard Drives Installed : 0
- Form Factor : Rack-mountable
- Manufacturer : Synology, Inc
- Product Type : SAN/NAS Storage System
- Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
- Product Model : RS4021XS+
- Number of Network (RJ-45) Ports : 6
- Network (RJ-45) : Yes
- Maximum Power Supply Wattage : 800 W
- Processor Model : D-1541
- Processor Speed : 2.10 GHz
- Total Number of USB Ports : 2
- Redundant Power Supply : Yes
