Description

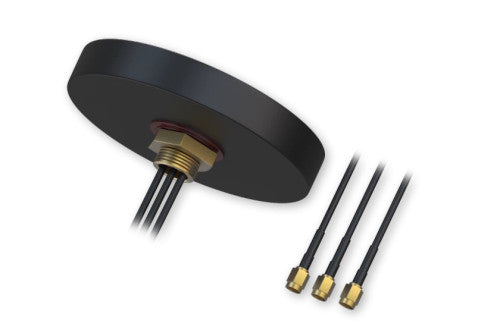

COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA PR1KCS28
MECHANICAL/ENVIRONMENTAL
-
Mounting method
Screw
-
Radome ingress protection rating
IP67 (exclude cable outlet)
-
Radome material
ABS
-
Housing dimensions
Ø 80.5 x 15.2 mm
-

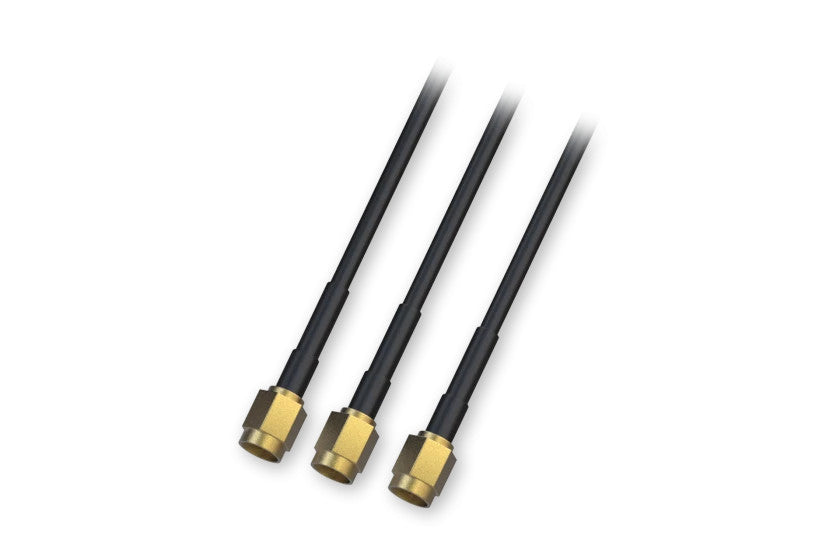

Cable
3x RG174, 3000 mm
-
Operating temperature
- 40 ~ +85 °C
-
Weight
215 ± 10 g
-
UV resistance
✓
-
RoHS Compliant
✓
GNSS ANTENNA
-
Frequency range
1575 – 1610 MHz
-
Polarization
RHCP
-
LNA gain
28 dBi
-
LNA noise figure
1.5 dB
-
V.S.W.R
≤ 1.5
-
Impedance
50 Ω
-
Supply voltage
2.7 – 5.0 ± 0.5 VDC
-
Current consumption
< 15 mA
-
Connector type and count
SMA Male
LTE ANTENNA
-
Frequency range
617 – 960, 1710 – 2690 MHz
-
Polarization
Linear
-
Radiation pattern
Omni - Directional
-
Gain
3.5 dBi
-
V.S.W.R
≤ 1.5
-
Impedance
50 Ω
-
Connector type and count
SMA Male
WIFI ANTENNA
-
Frequency range
2350 – 2500 MHz
-
Polarization
Linear
-
Radiation pattern
Omni - Directional
-
Gain
2.5 dBi
-
V.S.W.R
≤ 1.5
-
Impedance
50 Ω
-
Connector type and count
RP-SMA Male
