Description

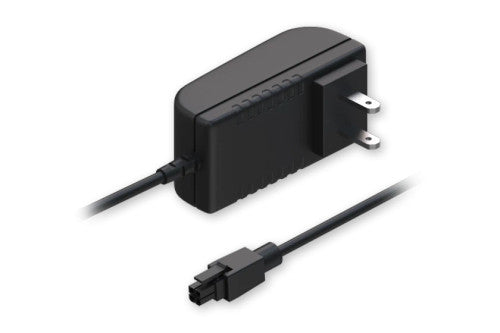

US POWER SUPPLY, 24W PR3P2US3
TECHNICAL DATA
-
GENERAL
-
Input voltage
100 – 240 VAC
-
Input frequency
50 / 60 Hz
-
Input current
0.6 A
-
Input connector
US (Type A)
-
Output voltage
12 VDC
-
Output current
2.0 A
-
Output connector
4-pin, 3 mm pitch
-
ADDITIONAL
US POWER SUPPLY, 24W
-
Input voltage range
90 – 264 VAC
-
Input frequency range
47 – 63 Hz
-
Maximum input inrush current
40 A
-
Output voltage maximum deviation
11.4 – 12.6 VDC
-
Short circuit protection
✓
-
HIPOT (dielectric withstand test)
Primary to Secondary: 3000 VAC
-
MTBF
50000 h
-
Certification
47 CFR FCC part 15 subpart B, 10-1-2016, ANSI C63.4:2014, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C, UL 60950-1, CSA C22.2 No 60950-1-03
