Description

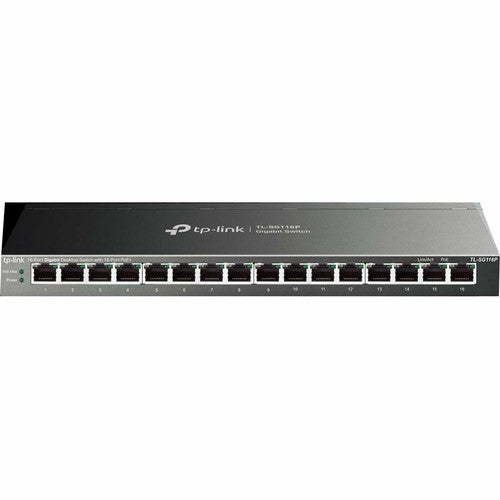

TL-SG116P is an unmanaged switch with 16 Gigabit ports that requires no configuration and provides 16 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
16 RJ45 ports of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Overload Arrangement
TL-SG116P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is ? 120 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
- Features 16 networking ports to easily establish a local network or expand your existing one
- Supports layer 3 switching for enhanced performance and usability
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Ethernet Technology : Gigabit Ethernet
- Power Source : Power Supply
- Layer Supported : 3
- PoE Budget : 120 W
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 16 x Gigabit Ethernet PoE+
- PoE (RJ-45) Port : Yes
- Form Factor : Desktop,Wall Mountable
- Manufacturer Website Address : http://www.tp-link.com
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Networking Standards : IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- Manufacturer : TP-LINK Technologies Co., Ltd
- Product Model : TL-SG116P
- Features : Fanless
- Total Number of Network Ports : 16
- Power Consumption : 144.28 W
- Manageable : No
- Media Type Supported : Twisted Pair
- Network Technology : 10/100/1000Base-T
