TP-Link Archer AX95 Wi-Fi 6 IEEE 802.11ax Ethernet Wireless Router ARCHER AX95

FASTER. BROADER. UNSTOPPABLE.

AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

Tri-Band AX7800 Wi-Fi 6

High-End Flagship

2.5GbE Port

Lightning-Fast Wired Connections

1.7 GHz Quad-Core CPU

Robust Power Eradicates Latency

3 Levels of Signal Boosting

8� High-Performance Antennas
8� High-Power FEM
Beamforming

160 MHz Channel

Doubled Throughput, Suitable for 8K Streaming

• OneMesh™
• HomeShield
• VPN Server and Client

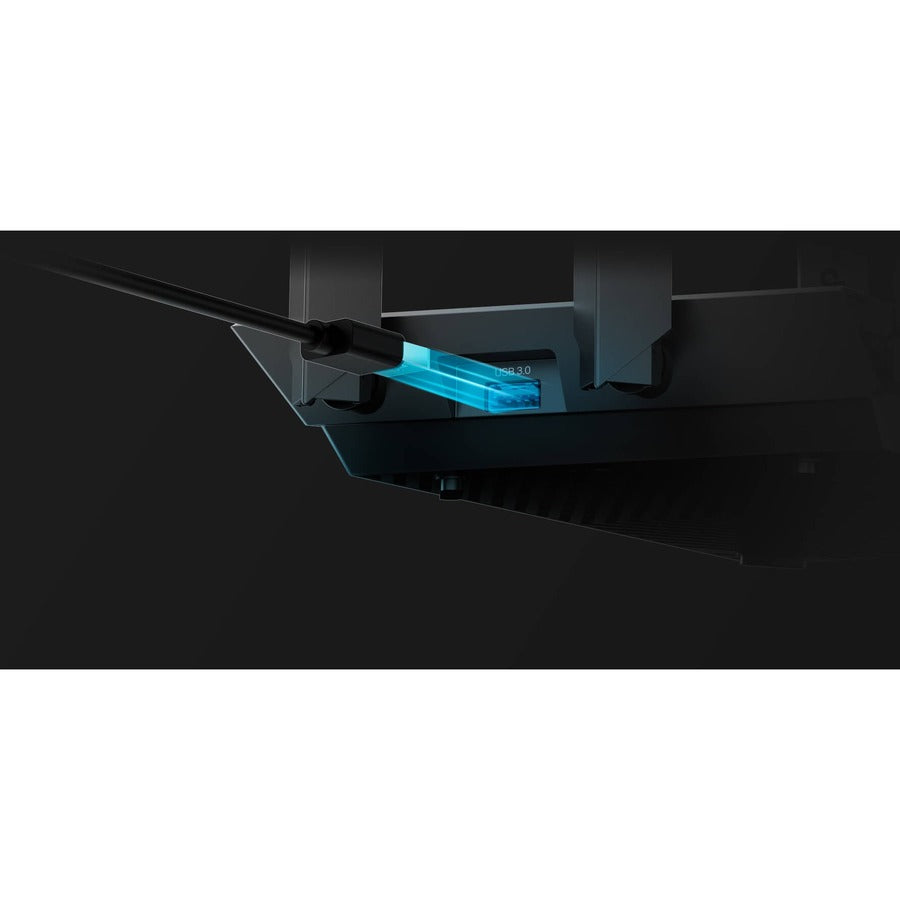

• USB 3.0 Port

Hello Tri-Band AX7800, Goodbye Congestion

Combining tri-band WiFi with high-tech WiFi 6, Archer AX95 provides eight simultaneous data streams to deliver speeds up to 7.8 Gbps, achieving higher efficiency and lower congestion.

160 MHz Width Channel

2� throughput

1024-QAM

25% faster

8-Stream Tri-Band

More available bandwidth and less congestion

Smart Connect

Intelligently assigns devices to the best WiFi band

Go Faster - Multi-Gig Wired Connections

In addition to stunning wireless speeds of more than 7.8 Gbps, AX95 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network's needs.

Powerful Processing with High RAM

An advanced Broadcom™ chipset and high memory empowers AX95's tri-band structure. Enjoy fast connections and minimal latency even under the heaviest of transmission loads.

1.7 GHz
Quad-Core 64-Bit CPU

512 MB
High-Speed Memory

Boosted WiFi Coverage Throughout Your Home

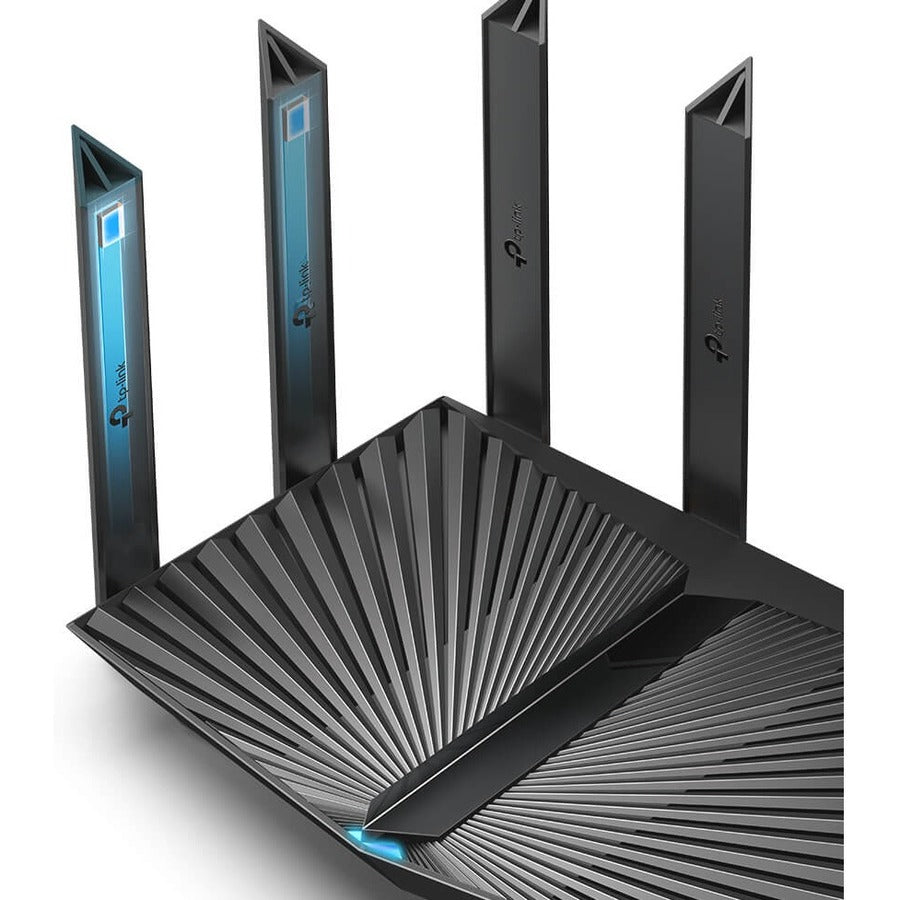

8� high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially in hard-to-reach areas.

Massively Expanded Device Capacity

The number of IoT devices today creates greater demands on home WiFi. Archer AX95 future-proofs your home network with a higher capacity of up to 200+ devices, providing fast WiFi to all your devices.

OFDMA
Multiple devices share one channel at the same time

MU-MIMO
Offers 4�4 connections to reduce wait time

8 Streams
More simultaneous connections

Tri-Band
More available bandwidth

• Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.
• Ultra Connectivity: 1� 2.5 Gbps WAN/LAN port + 1� 1 Gbps WAN/LAN port + 3� Gigabit LAN ports + 2� USB ports ensure max flexibility and boosted throughput.
• Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.
• More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
• Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.
• OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.
• HomeShield: Customize your home network with enhanced security and control.
• Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security.

. .

• Wireless LAN Standard : IEEE 802.11ax
• Environmental Certification : RoHS
• Ethernet Technology : 2.5 Gigabit Ethernet
• Environmentally Friendly : Yes
• UNII Maximum Frequency : 5 GHz
• Wi-Fi Generation : Wi-Fi 6
• USB : Yes
• VPN Supported : Yes
• Total Wireless Transmission Speed : 972.63 MB/s
• Limited Warranty : 3 Year
• Virtual Assistant Supported : Alexa/Google Assistant
• ISM Band : Yes
• Number of Broadband (RJ-45) Ports : 2
• Form Factor : Desktop
• ISM Maximum Frequency : 2.40 GHz
• Manufacturer Website Address : http://www.tp-link.com
• UNII Band : Yes
• Network Band : Tri Band
• Product Type : Wireless Router
• Manufacturer : TP-LINK Technologies Co., Ltd
• Product Model : AX95
• Broadband Transmission Technology : Ethernet
• Number of Network (RJ-45) Ports : 3
• Product Line : Archer
