Description

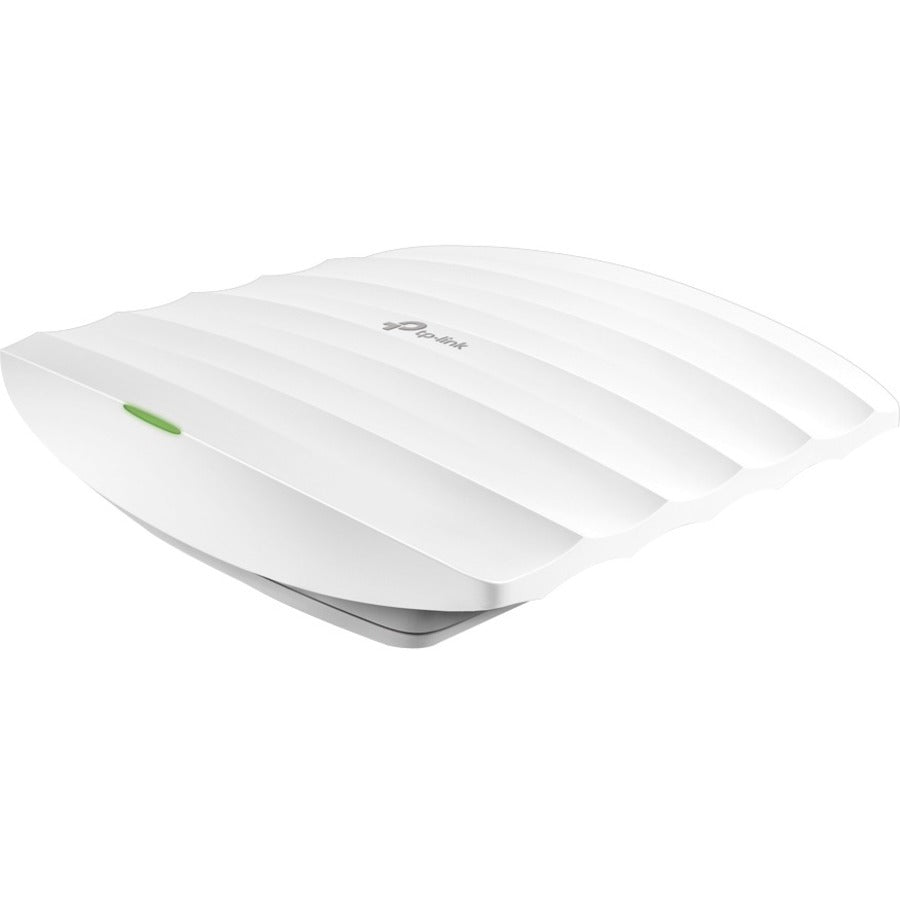

An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution

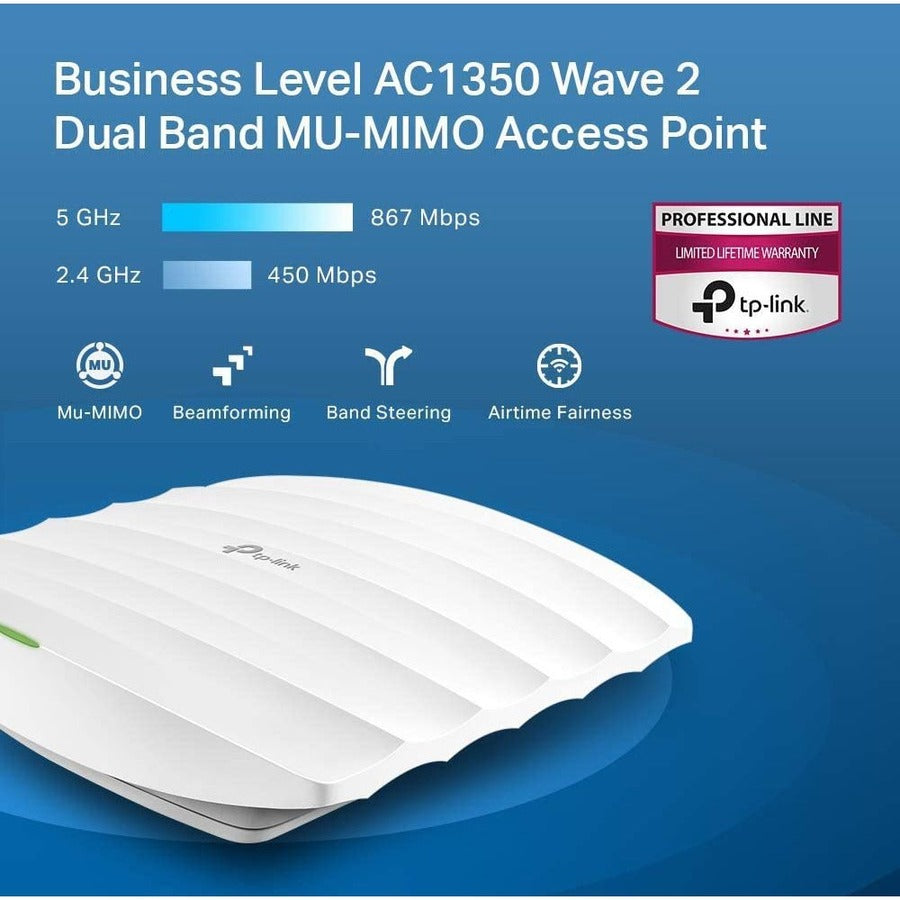

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

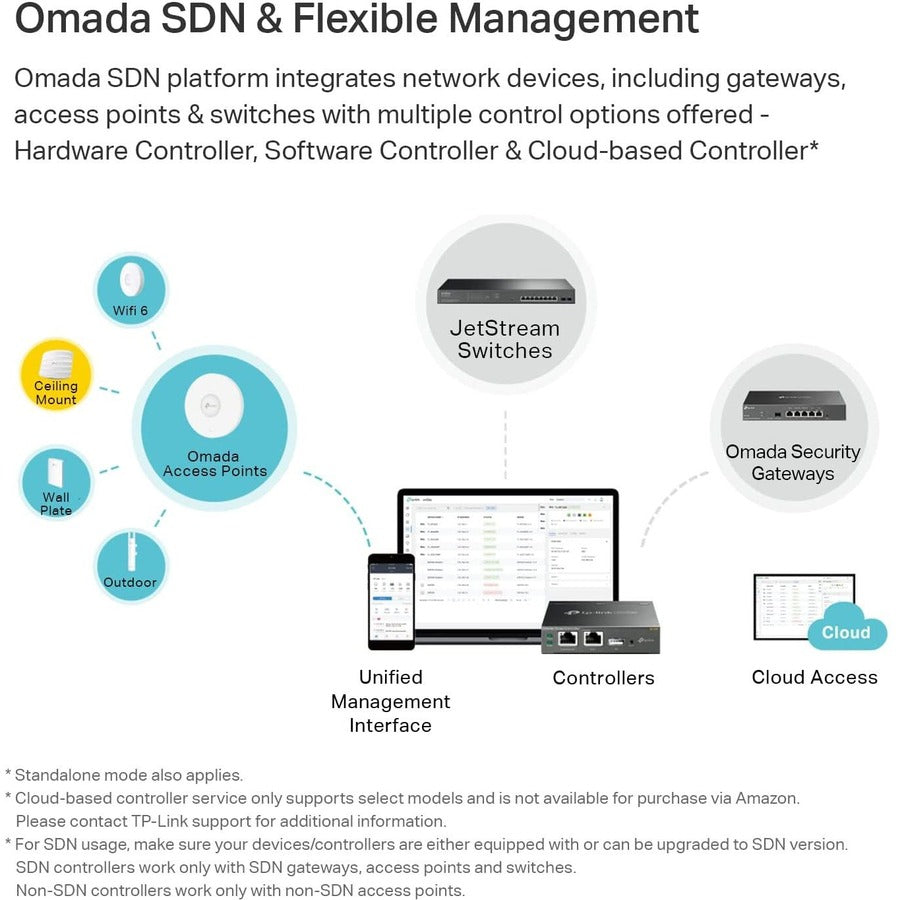

EAP Controller Software
Easy for Centralized Management

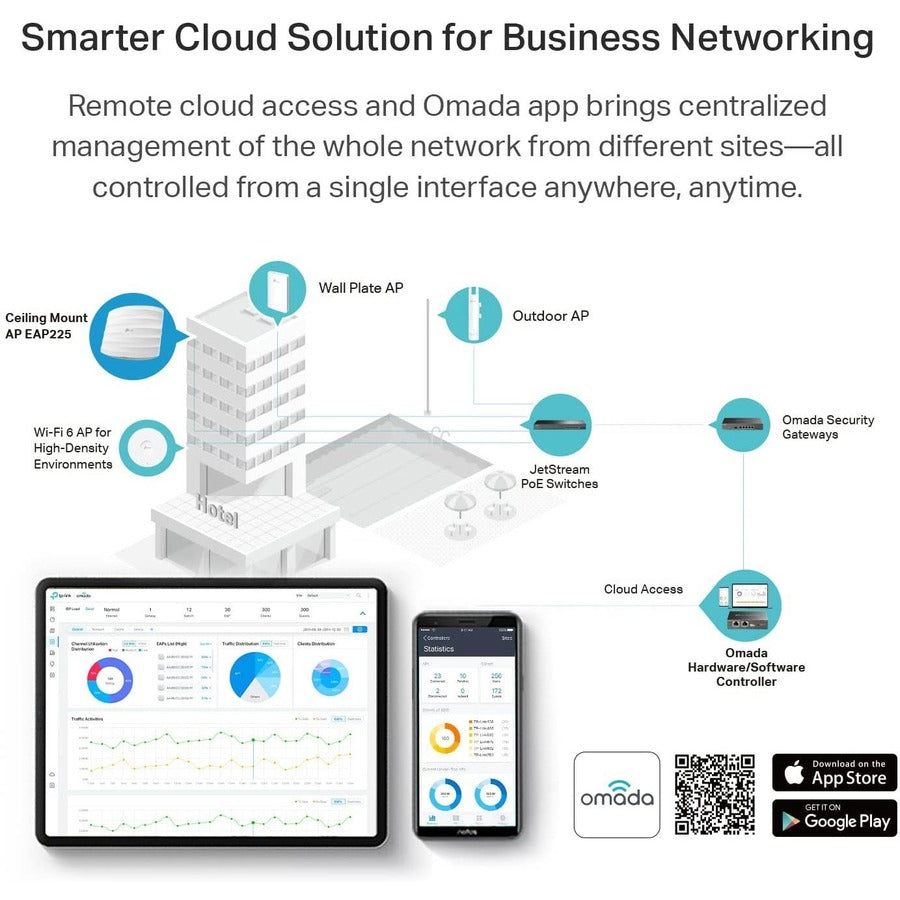

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

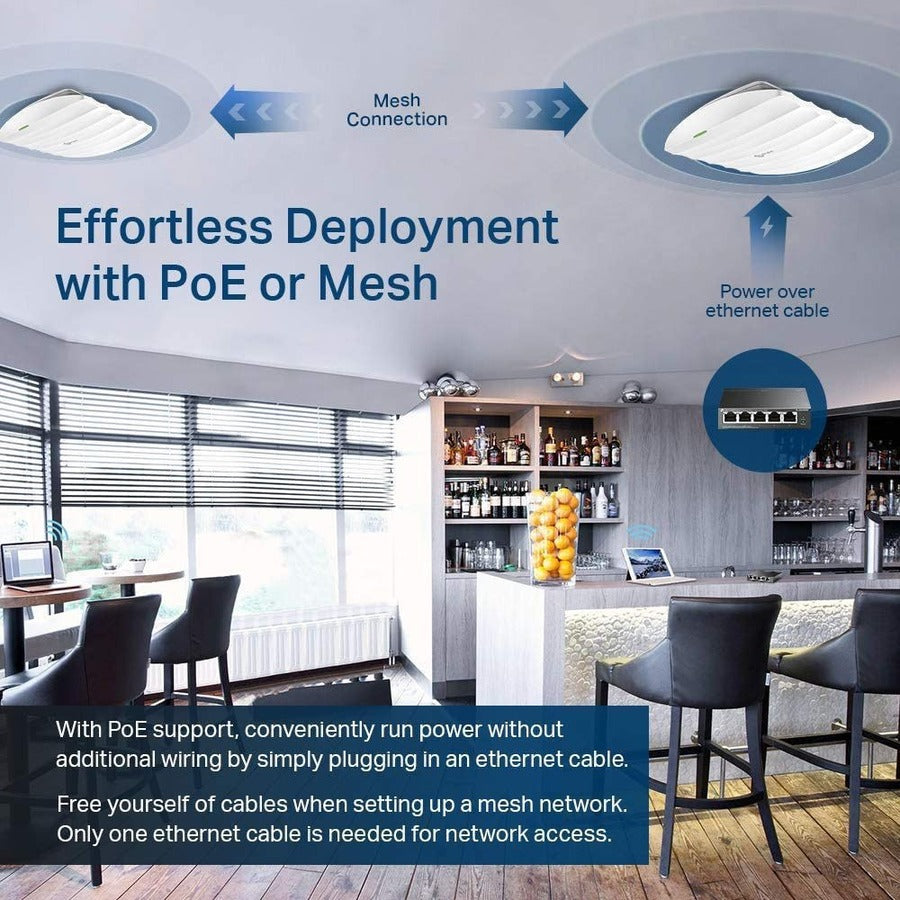

Multiple PoE Options for Easy Installation

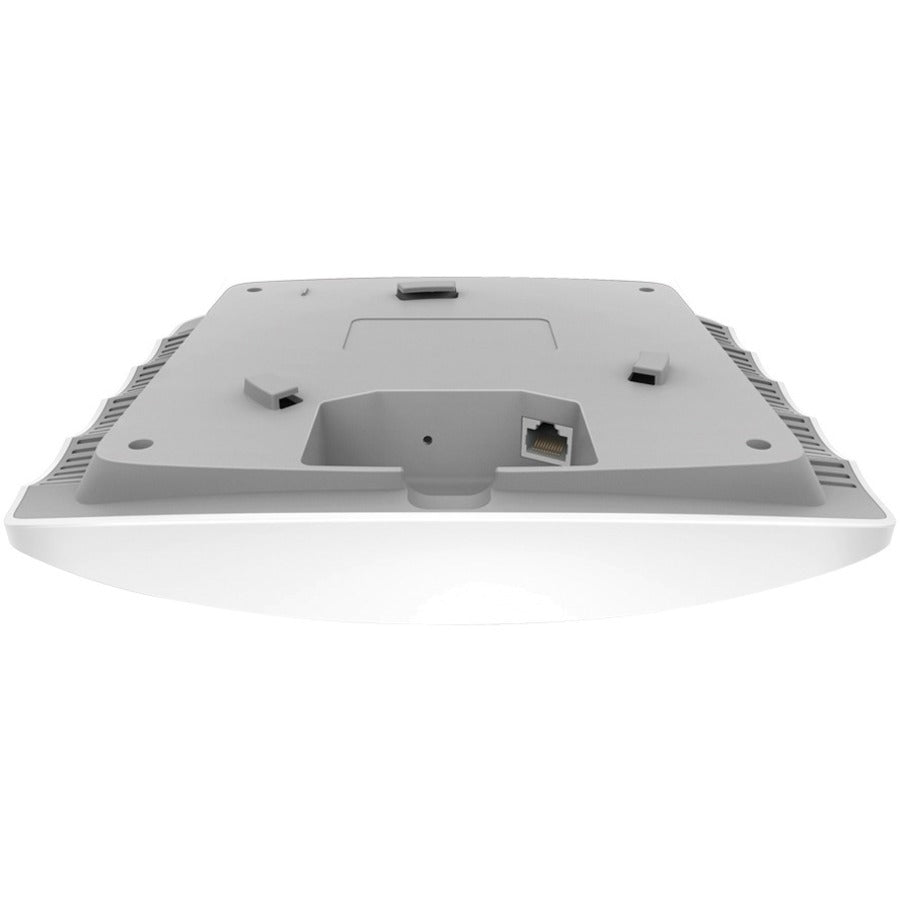

EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.

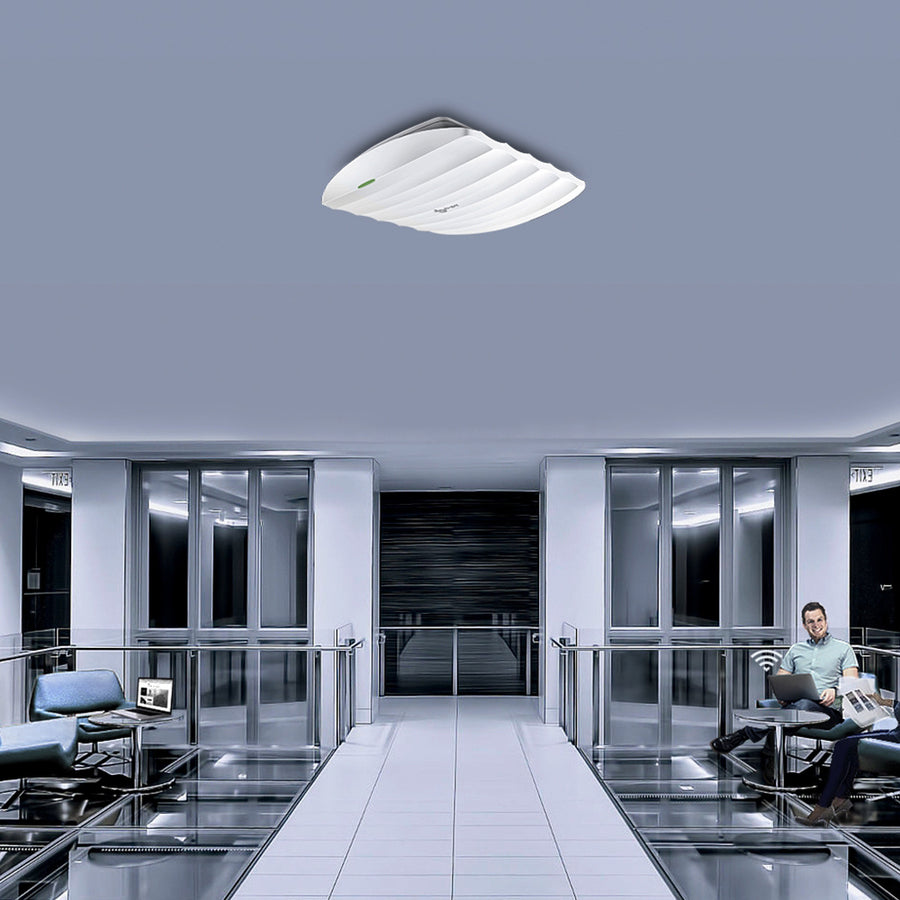

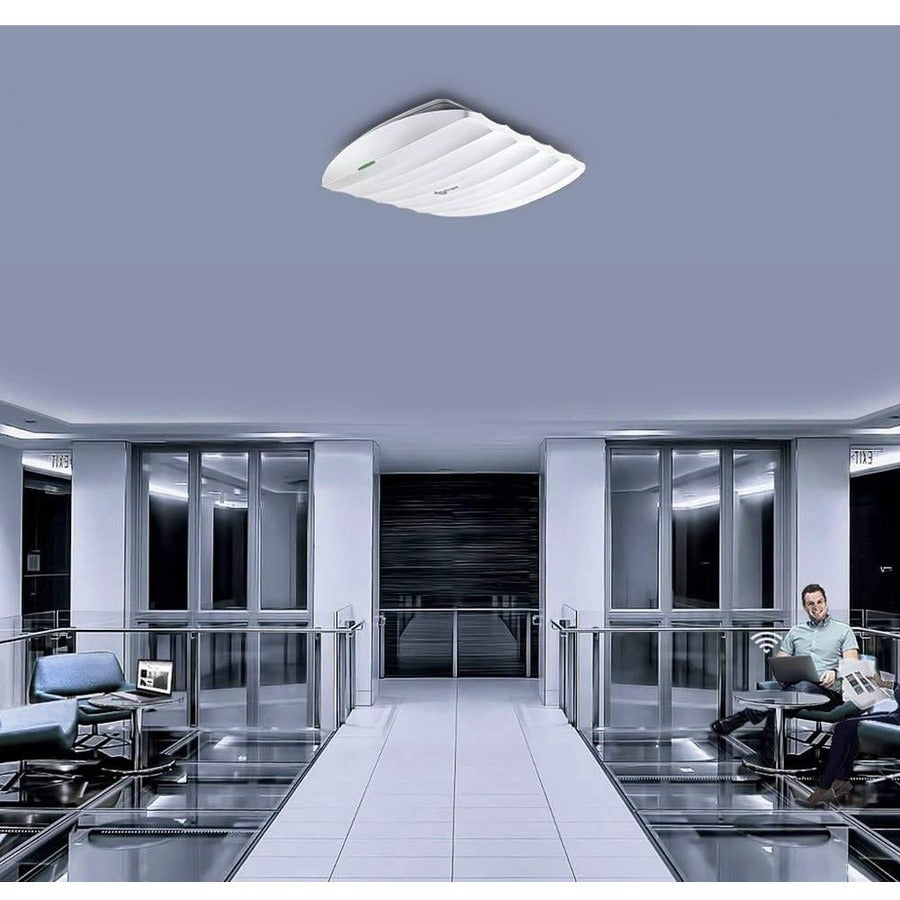

Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
- Supports management VLAN for an enhanced network management
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- Captive portal provides a convenient method for guest authentication
- Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
- EAP Controller Software lets administrators easily manage hundreds of EAPs
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Environmentally Friendly : Yes
- Environmental Certification : RoHS
- Manufacturer : TP-LINK Technologies Co., Ltd
- Product Type : Wireless Access Point
- Product Model : EAP225
- Total Number of Antennas : 3

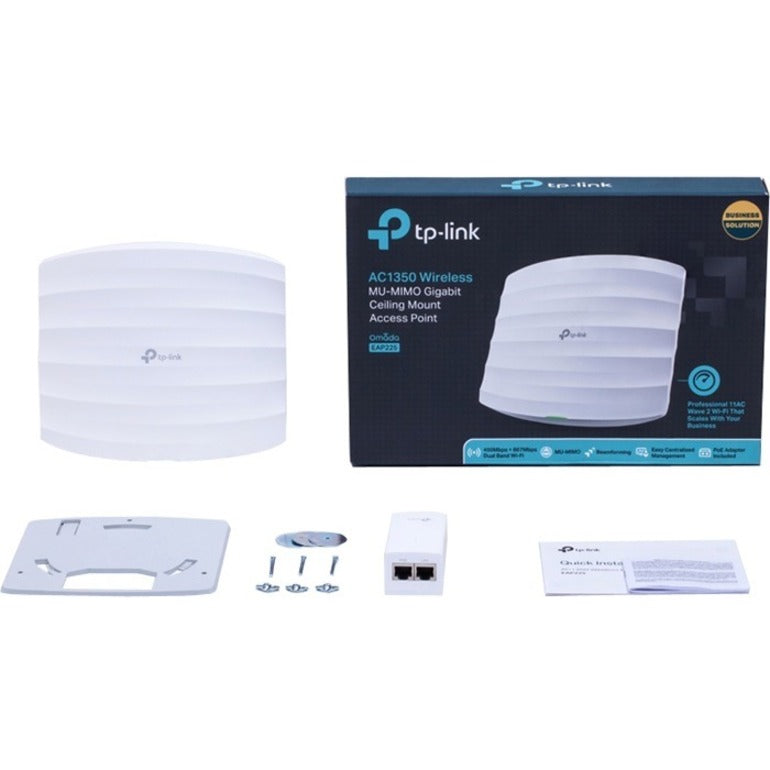

- Package Contents :

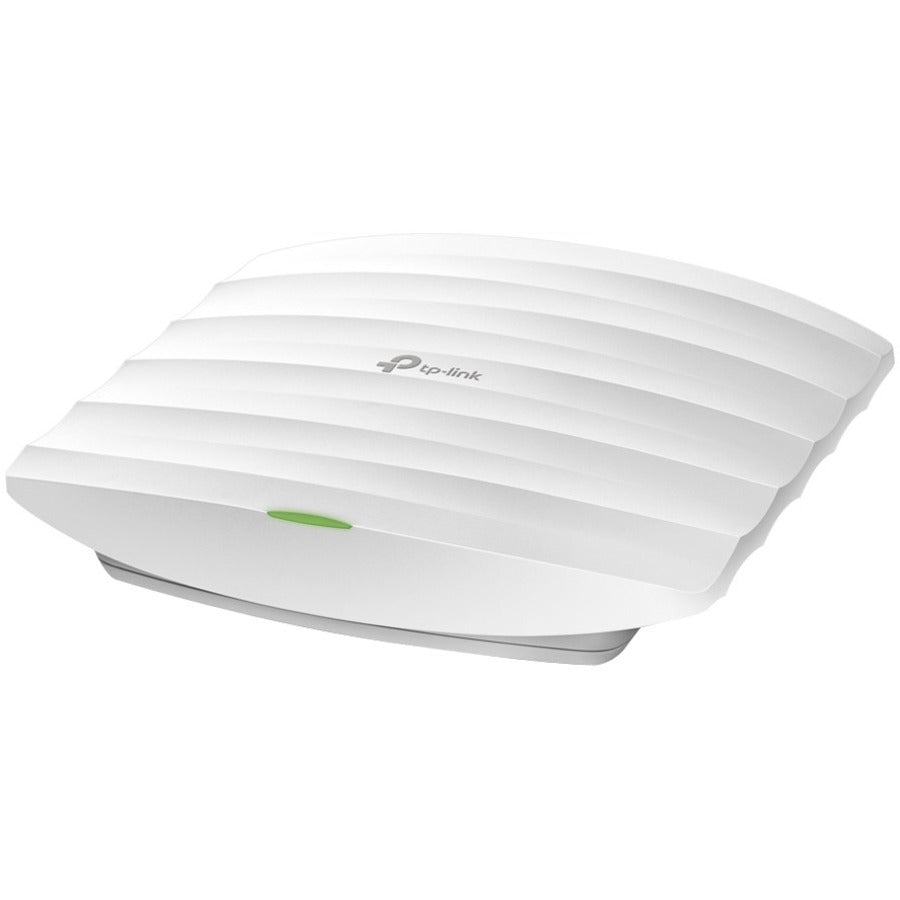

- AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
- Passive PoE Adapter
- Power Cord
- Mounting Kits
- Installation Guide
- Manufacturer Website Address : http://www.tp-link.com
- Wireless LAN Standard : IEEE 802.11ac
- Beamforming Technology : Yes
- PoE PD Port : Yes
- USB : No
- Wireless Transmission Speed : 1.32 Gbit/s
- Number of Internal Antennas : 3
- VGA : No
- MIMO Technology : Yes
- Ethernet Technology : Gigabit Ethernet
- Number of Network (RJ-45) Ports : 1
- HDMI : No
- Management Port : Yes
- Powerline : No
- Indoor/Outdoor : Indoor
- Frequency Band : 5 GHz,2.40 GHz
- Form Factor : Ceiling Mountable,Wall Mountable
- Antenna Form Factor : Internal
- Network Band : Dual Band
- Power Consumption : 12.60 W
