Description
Match Your Room with AX3000 WiFi 6

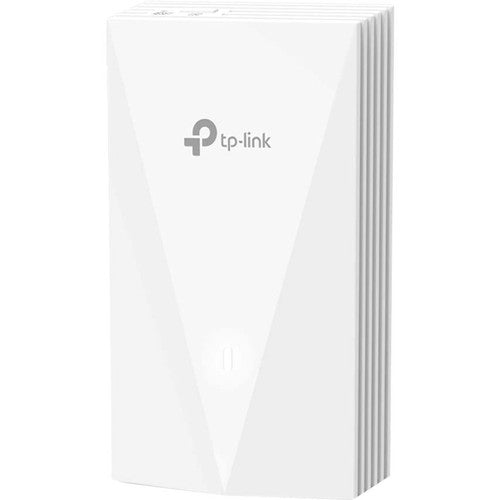

AX3000 Wall Plate WiFi 6 Access Point
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz
High-Efficiency WiFi 6More connected devices enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Enhanced Security
With guest networks, Captive Portal, and WPA3 encryption
Seamless Roaming
Uninterrupted streaming when moving between APs
Four Gigabit Ports
Three downlink gigabit ports, one with PoE pass-through
802.3af/at PoE Support
Flexible and convenient deployment
Quick, Simplified Installation
Compatible with 86 mm & EU & US standard junction box

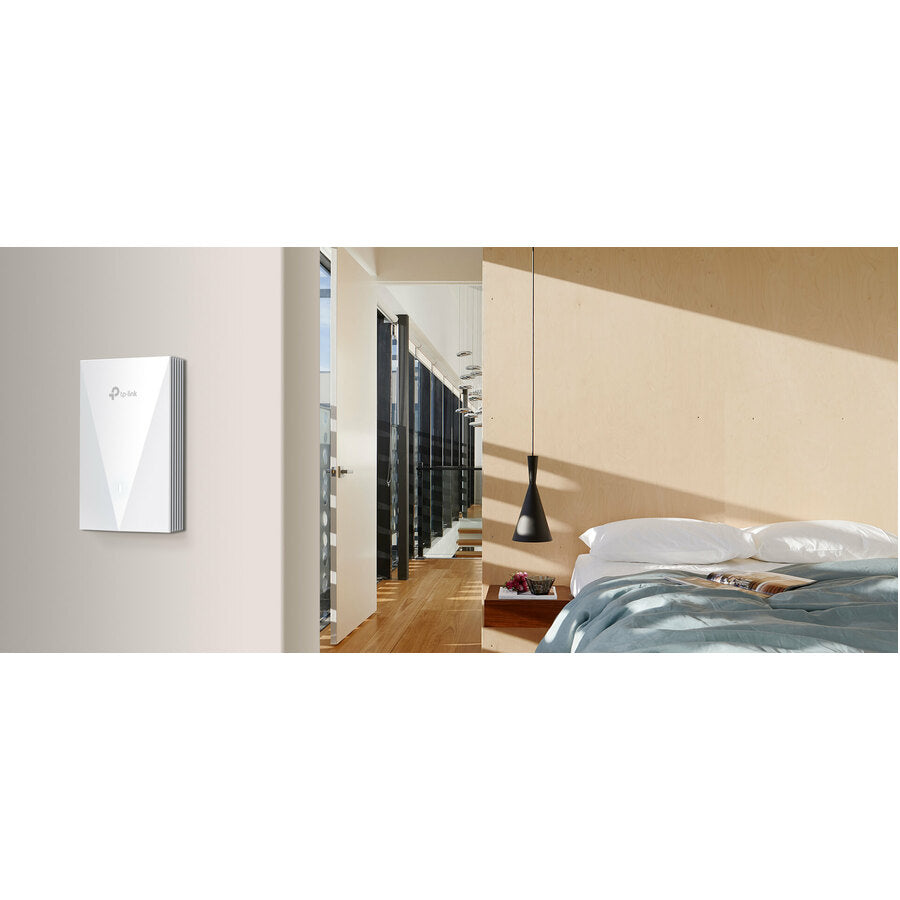

Dedicated Complete, Private WiFi Network in Each Room | Hospitality
Room-by-room connection with elegant appearance
Dormitory
Stable wireless and wired connections
Apartment
Private and secure network access for every family
Villa
Whole-home WiFi coverage with seamless roaming
Meeting Room
Faster streaming, downloading, video conferencing, and everything to satisfy your needs

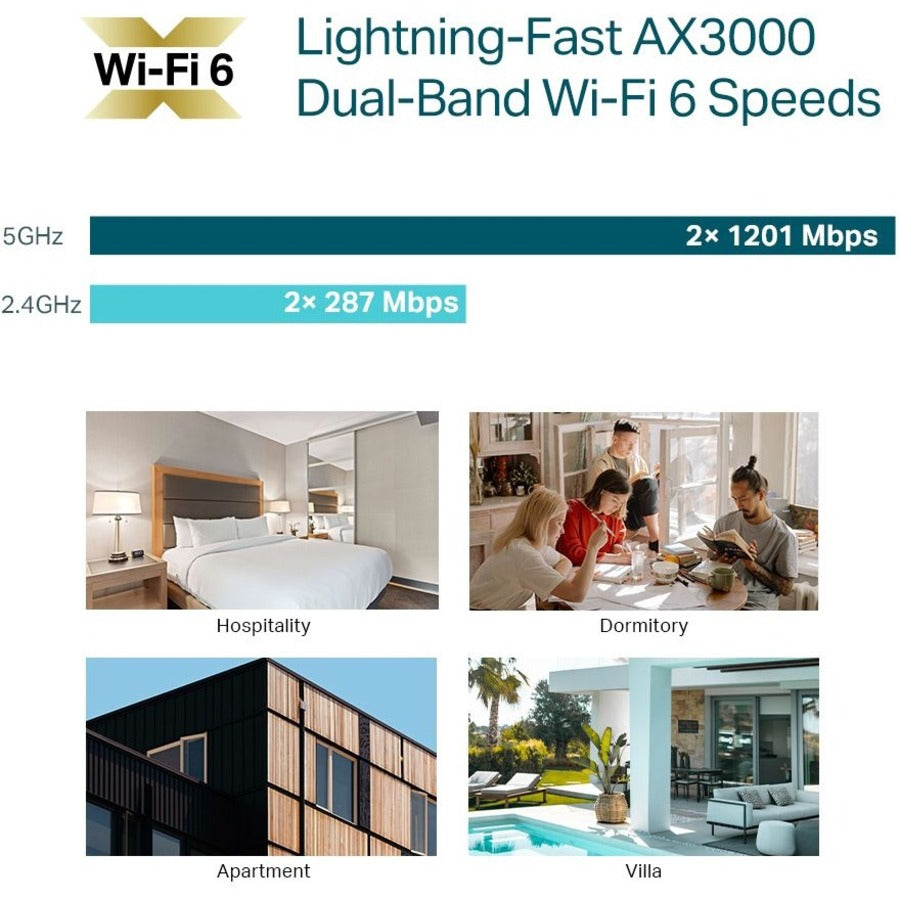

Lightning-Fast AX3000 WiFi 6 Speeds
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity. Enjoy more than twice the speed of WiFi 5 with new-era business WiFi 6 with speeds up to 2976 Mbps.
Better User Experience with High-Performance WiFi 6 Connectivity
The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency.
More than Speed, Security Matters
Safeguard your network against brute force attack and snooping with WPA3 enterprise-grade security protection, portal authentication, and segregated guest networks.
Secure Guest Network with Up to 16 SSIDs
Guest networks provide enhanced security. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portals (including SMS, Facebook WiFi, Voucher) and 802.1x authentication ensure authorized guests can access the network. Boost your business with a customized marketing page.
- Limited Lifetime Protection: Backed by our industry-leading limited lifetime protection and free 24/7 technical support, you can work with confidence.
- Advanced Wireless Tech: Supports Seamless Roaming*(require the use of Omada SDN controllers), Band Steering, Load Balancing, Airtime Fairness and Beamforming technologies.
- Cloud Access & Omada Compatibility: Remote Cloud access and Omada app enables centralized cloud management of the whole network from different sites - all controlled from a single interface anywhere, anytime. For devices that are compatible with SDN firmware, please visit TP-Link website.

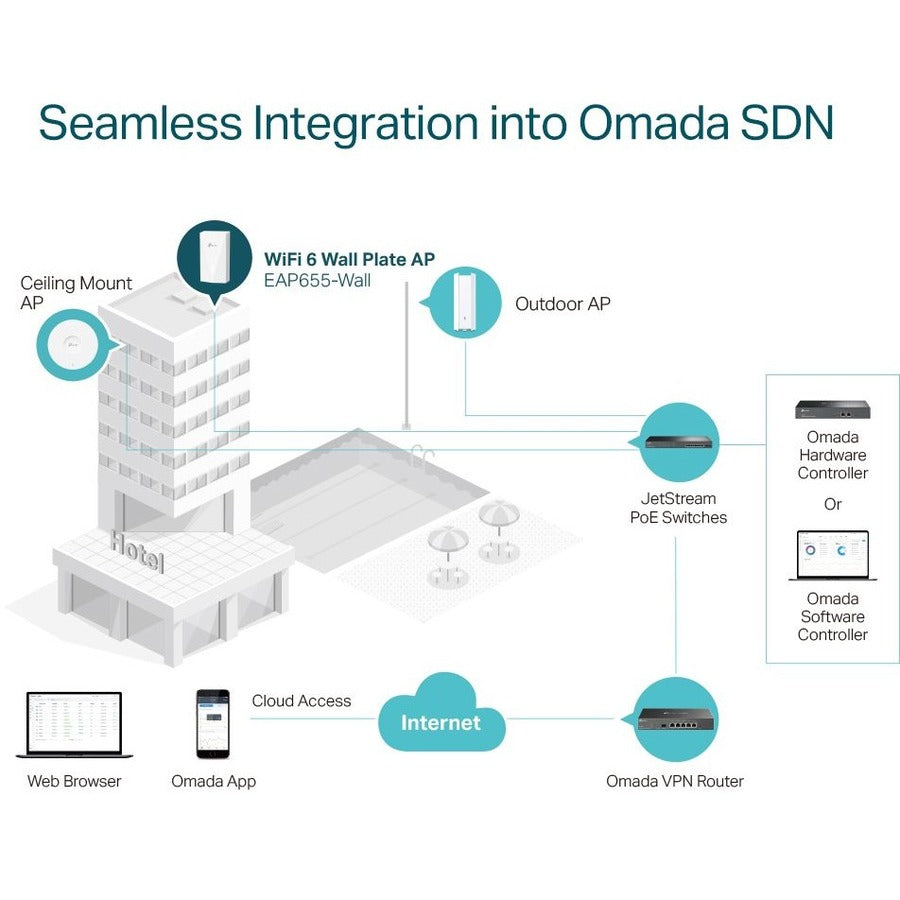

- Integrated into Omada SDN: Omada's Software Defined Networking (SDN) platform integrates network devices including access points, switches & gateways with multiple control options offered - Omada Hardware controller, Omada Software Controller or Omada cloud-based controller*(Contact TP-Link for Cloud-Based Controller Plan Details). Standalone mode also applies.

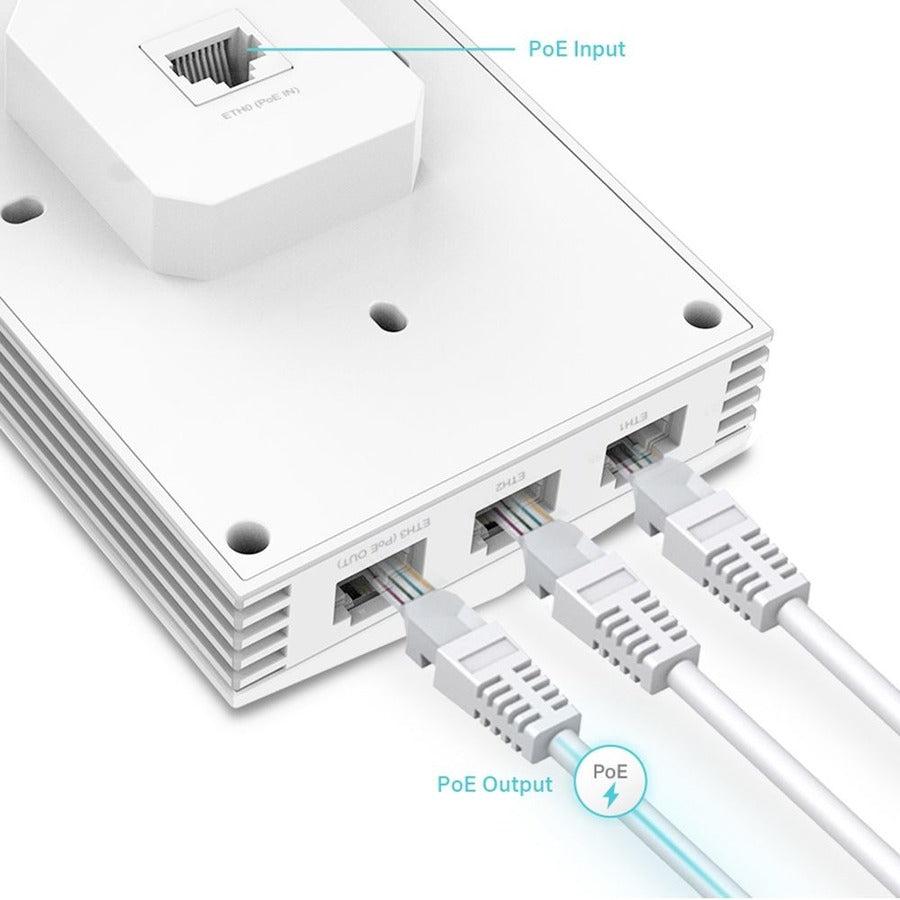

- Gigabit Ports w/ PoE Passthrough: 4 Gigabit Ethernet Ports: 1� Uplink 802.3 af/at PoE powered port, 3� Downlink ports, with one access port supporting PoE pass-through to provide power for a wired device (requires 802.3at PoE+ input), making deployment effortless and flexible.
- Dedicated Wi-Fi Network In Each Room: Designed for office cubicles and hotel rooms while allowing guests to enjoy their own private Wi-Fi network.
- Ultra-Fast True Wi-Fi 6 Speeds: Designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM, HE60 and Long OFDM Symbol, the EAP655-Wall boosts dual-band Wi-Fi speeds up to 2976 Mbps.
- Limited Warranty : 5 Year
- Ethernet Technology : Gigabit Ethernet
- Data Encryption : Yes
- Frequency Band : 2.40 GHz,5 GHz
- Indoor/Outdoor : Outdoor
- PoE (RJ-45) Port : Yes
- Encryption Standard : WPA-PSK,WPA-ENT,WPA2-PSK,WPA2-ENT,WPA3-PSK,WPA3-ENT
- Form Factor : Wall Plate
- Manufacturer Website Address : http://www.tp-link.com
- Network Band : Dual Band
- Product Type : Wireless Access Point
- Manufacturer : TP-LINK Technologies Co., Ltd
- Product Model : EAP655-WALL
- Beamforming Technology : Yes
- Number of Network (RJ-45) Ports : 4
- PoE PD Port : Yes
- Wireless LAN Standard : IEEE 802.11 a/b/g/n/ac/ax
- Wireless Transmission Speed : 2.91 Gbit/s
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Package Contents :
- EAP655-WALL AX3000 Wall Plate WiFi 6 Access Point
- Installation Guide
- Mounting Kits
- Total Number of Antennas : 2
- Power Consumption : 12.60 W
