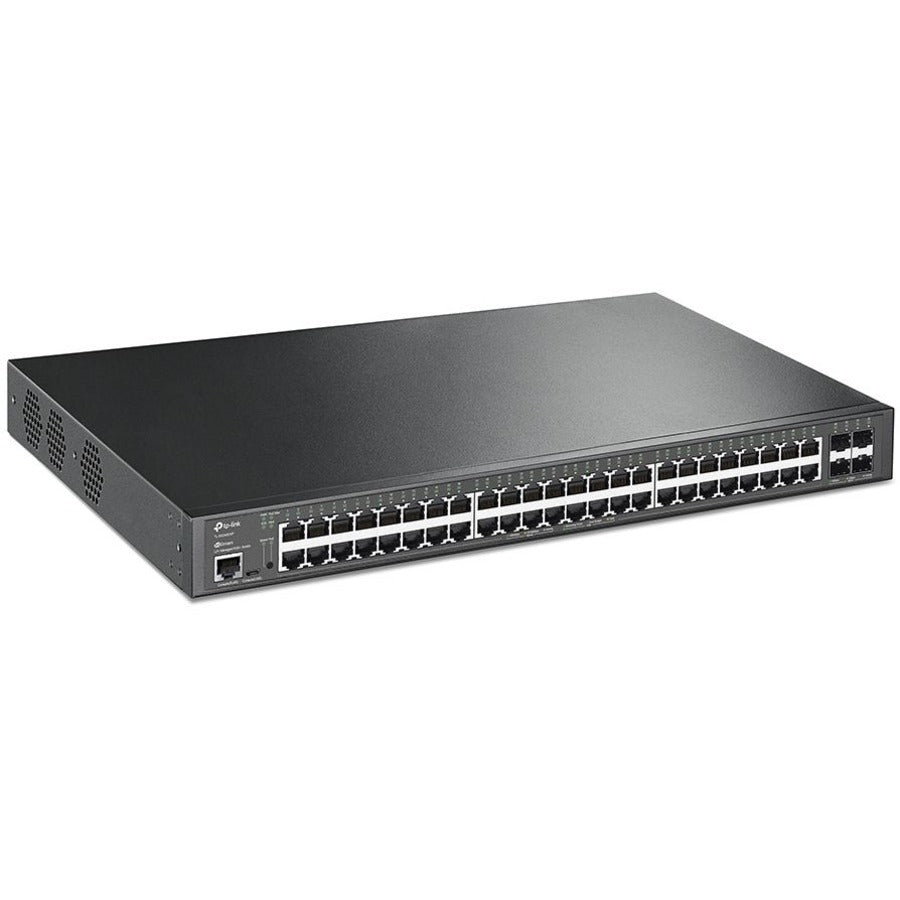

TP-Link JetStream 48 Port POE+ Ethernet Switch TL-SG3452XP


Sale price$880.99
Only 28 units left


10G Uplink Managed Switch with 48 PoE+ Ports for a Complete Omada Network


10G Lightning-Fast Uplink Connection

4� 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

PoE+ Output

48� Gigabit PoE+ Ports with Total 500 W Power Budget

Centralized Cloud Management

SDN Solutions Integration for a Highly Efficient Network

Advanced L2+ Features

Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch with 10G Uplink

4� 10 Gbps SFP+ slots provide non-blocking switching performance, and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Dedicated 48 PoE+ Ports (500 W Budget) for Numerous Applications

The 48� 802.3af/at compliant PoE+ ports support up to 500 W total PoE power budget.* Designed to use a single Ethernet cable for data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Software-Defined Networking (SDN) with Cloud Access

Omada's Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

  • Hassle-Free Cloud or On-Premises Controllers
  • Multi-Site Cloud Management
  • Zero-Touch Provisioning (ZTP)
  • Intelligent Monitoring
Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

  • 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
  • PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
. .
  • Power Source : Power Supply
  • Modular : Yes
  • PoE (RJ-45) Port : Yes
  • Form Factor : Rack-mountable,Desktop
  • Package Contents :
    • JetStream TL-SG3452XP Ethernet Switch
    • Power Cord
    • Quick Installation Guide
    • Rackmount Kit
    • Rubber Feet
  • Manufacturer Website Address :
  • Uplink Port : Yes
  • Manufacturer : TP-LINK Technologies Co., Ltd
  • Product Model : TL-SG3452XP
  • Manageable : Yes
  • Network Technology : 1000Base-T,10GBase-X
  • Environmental Certification : RoHS
  • Ethernet Technology : Gigabit Ethernet,10 Gigabit Ethernet
  • Environmentally Friendly : Yes
  • Layer Supported : 3
  • PoE Budget : 500 W
  • Input Voltage : 120 V AC,230 V AC
  • Port/Expansion Slot Details : 48 x Gigabit Ethernet PoE+,4 x 10 Gigabit Ethernet Expansion Slot
  • Limited Warranty : 3 Year
  • Network (RJ-45) : Yes
  • Product Type : Ethernet Switch
  • Number of Total Expansion Slots : 4
  • Networking Standards : IEEE 802.3at,IEEE 802.3af,IEEE 802.1p,IEEE 802.3ad,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1x,IEEE 802.1ab
  • Total Number of Network Ports : 48
  • Power Consumption : 49.19 W
  • Media Type Supported : Optical Fiber,Twisted Pair
  • Product Line : JetStream
  • Expansion Slot Type : SFP+
  • Number of SFP+ Slots : 4
