Description

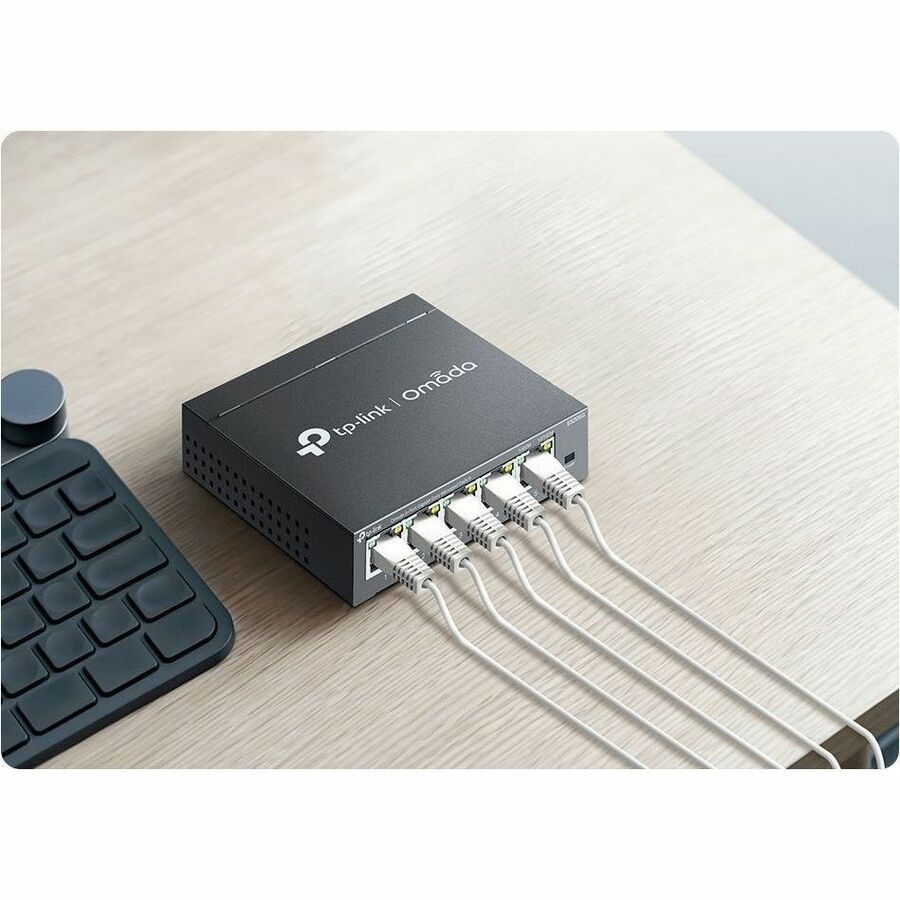

- 5� Gigabit RJ45 Ports
- Fanless Design for Silent Operation
- Compact Metal Casing
- Easy to Use
- Centralized Management
- Omada App
- Traffic Separation
- Traffic Prioritization
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

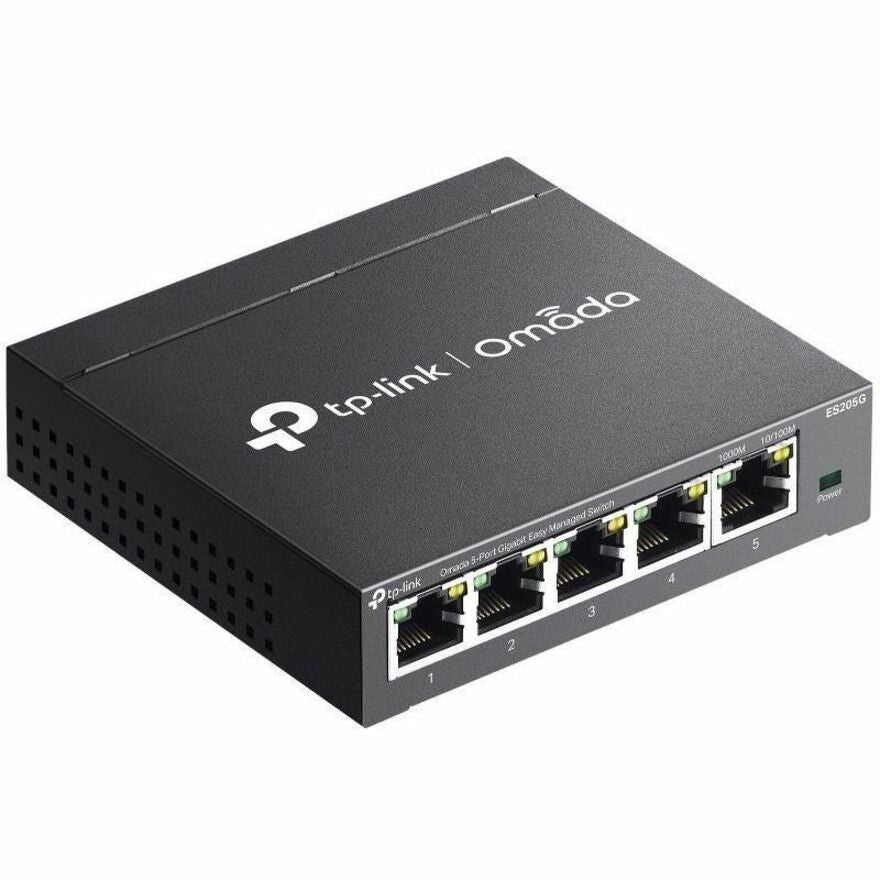

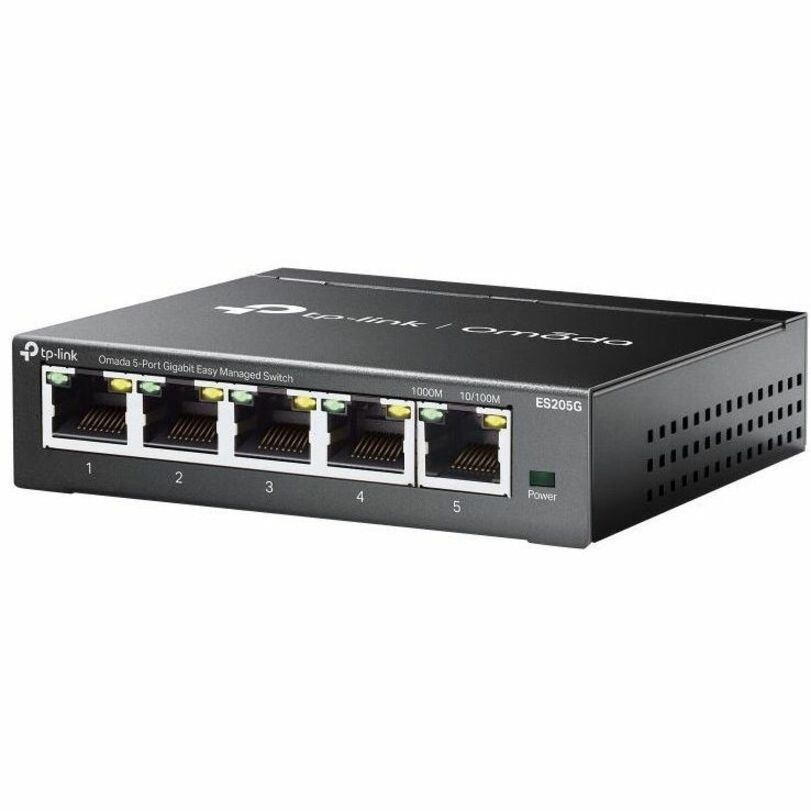

- 5� 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

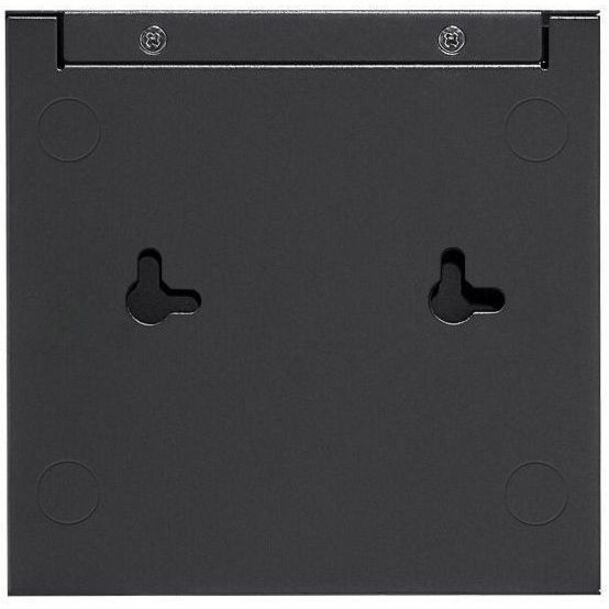

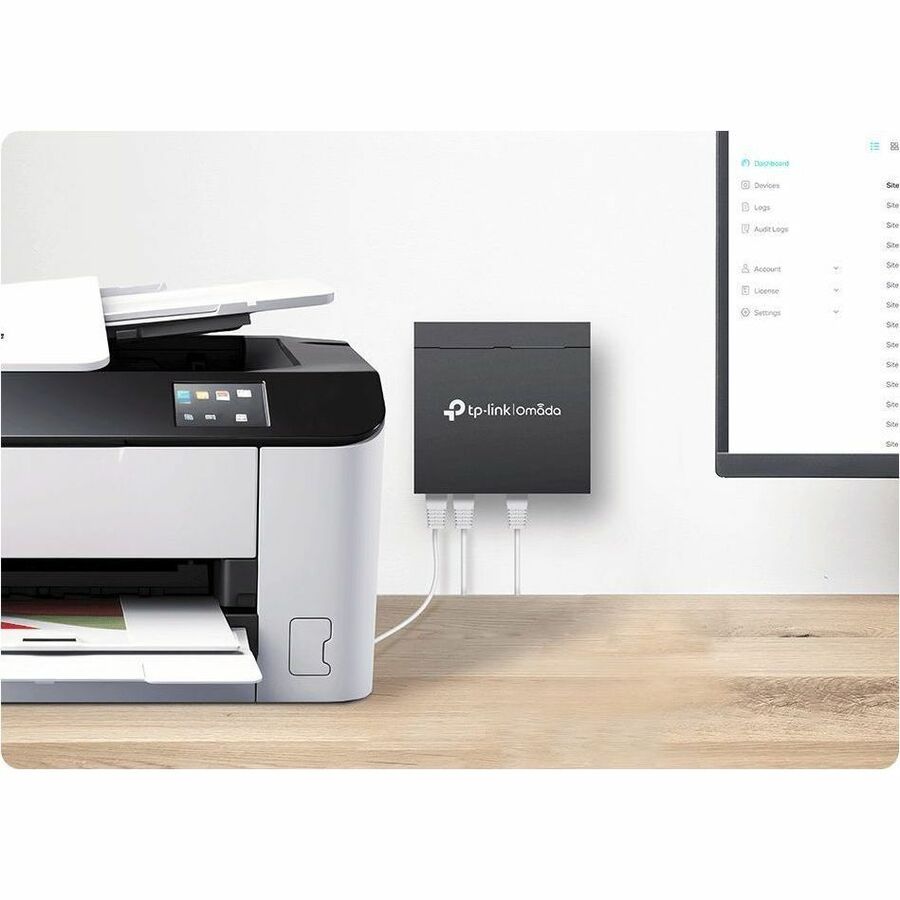

- Durable metal casing and desktop/wall mounting design
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
|---|---|
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) |
| Max Power Consumption | 2.82 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 9.62 BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2 K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention |
| VLAN | • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • DS105GE • Power Adapter • Installation Guide |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
