Description
DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity, and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (Power supply sold separately (models: TI-S24052, TI-S24048). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.

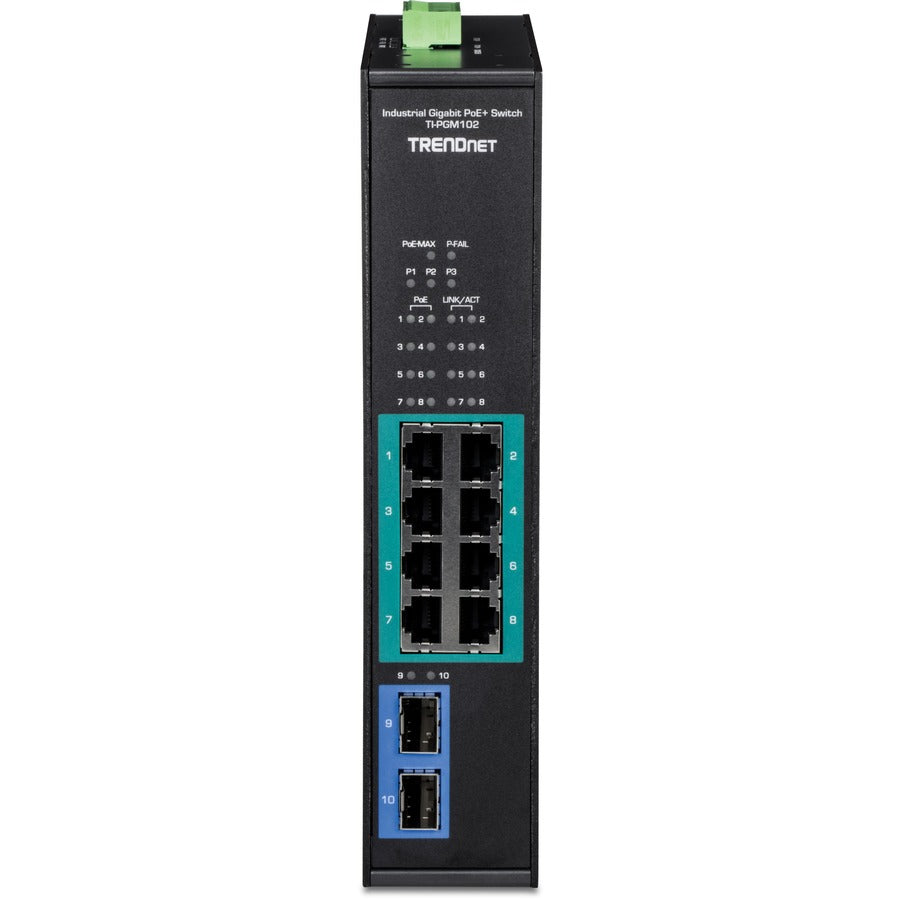

- 8 x Gigabit PoE+ ports
- 2 x Gigabit SFP slots
- 240W PoE power budget
- 20Gbps switching capacity
- Hardened IP30 rated metal switch

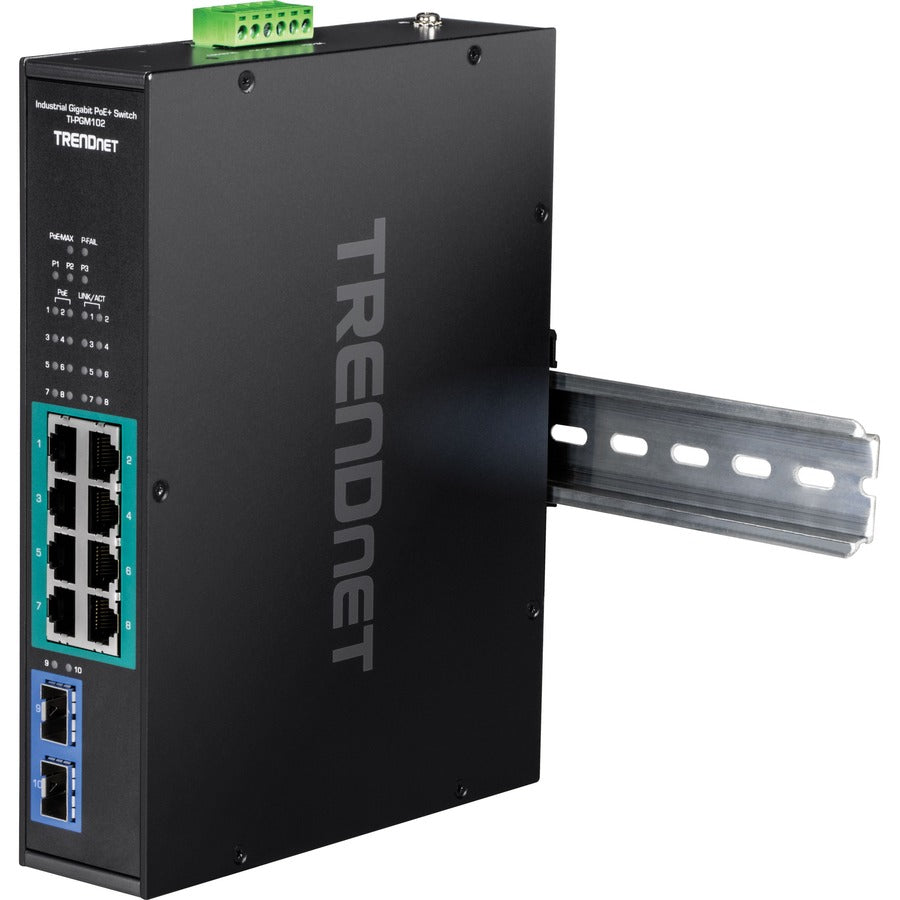

- Includes DIN-Rail and wall mounts
- Wide operating temperature range of -20° - 65°C (-4° - 149°F)

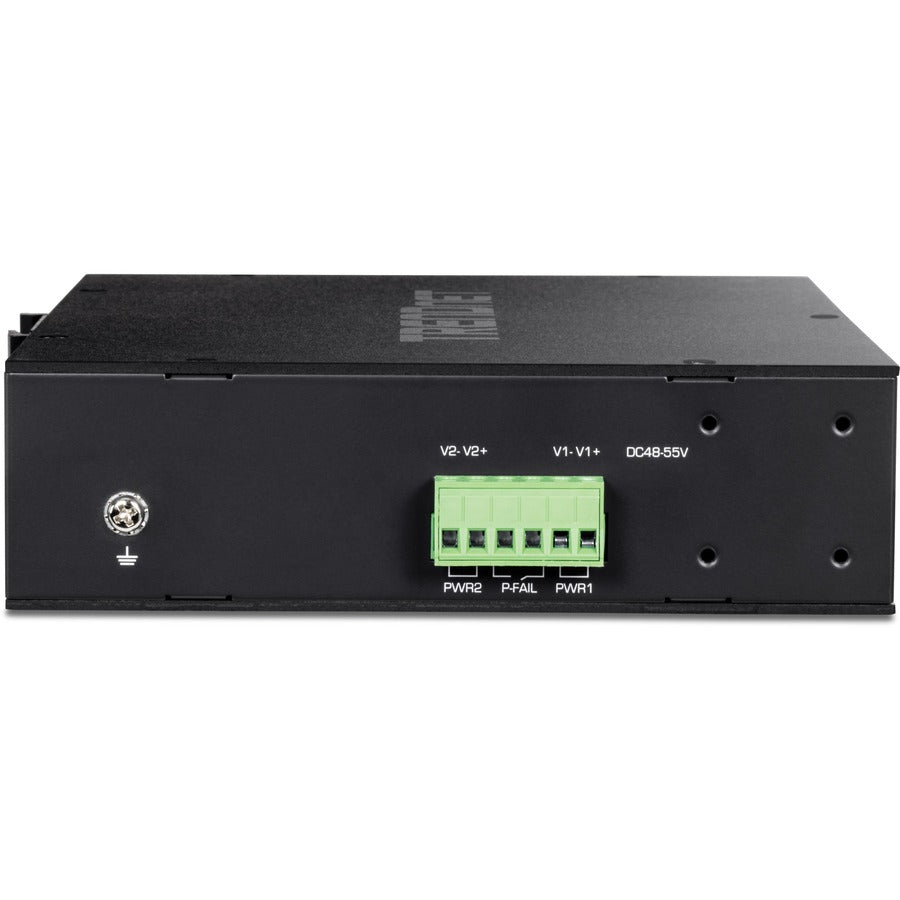

- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24048)
- NDAA / TAA compliant (U.S. and Canada only)
- Lifetime Warranty*
- Power supply sold separately (models: TI-S24052, TI-S24048)
- Power Source : AC/DC
- PoE (RJ-45) Port : Yes
- Form Factor : DIN Rail Mountable,Wall Mountable
- Package Contents :
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
- Manufacturer Website Address : http://www.trendnet.com
- Manufacturer : TRENDnet
- Product Model : TI-PGM102
- Network Technology : 1000Base-FX,1000Base-T
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 2
- PoE Budget : 240 W
- Port/Expansion Slot Details : 8 x Gigabit Ethernet PoE+,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Material : Metal
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
- Total Number of Network Ports : 8
- Power Consumption : 6.30 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
