Description

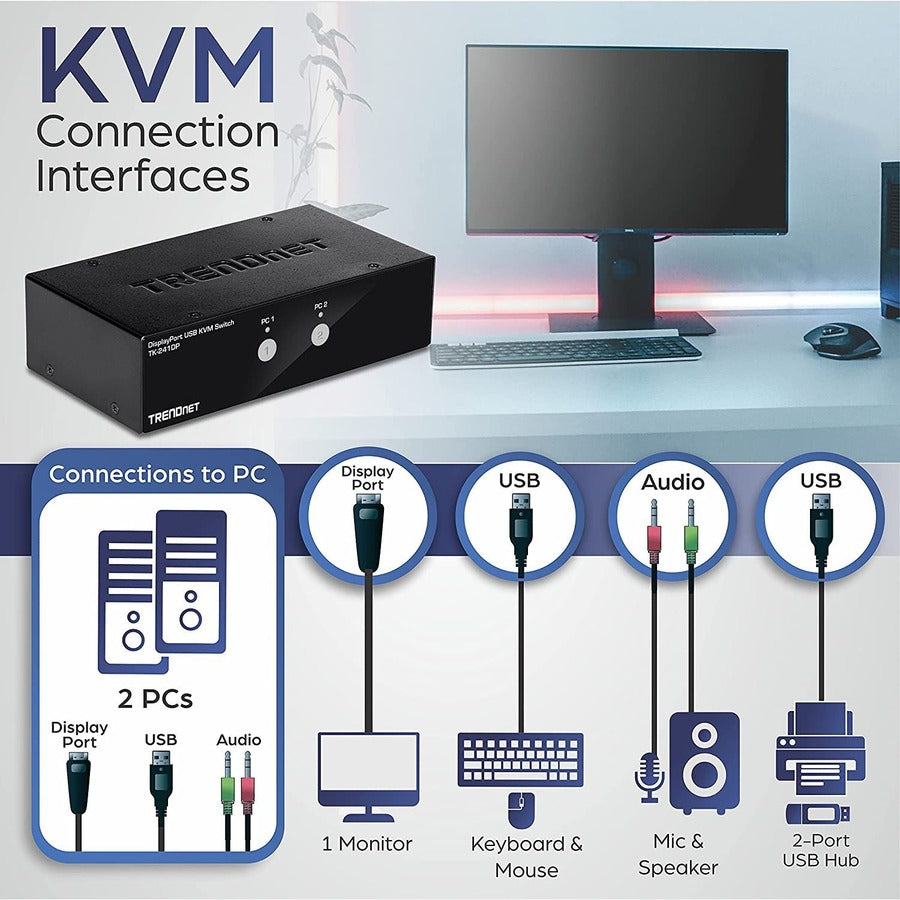

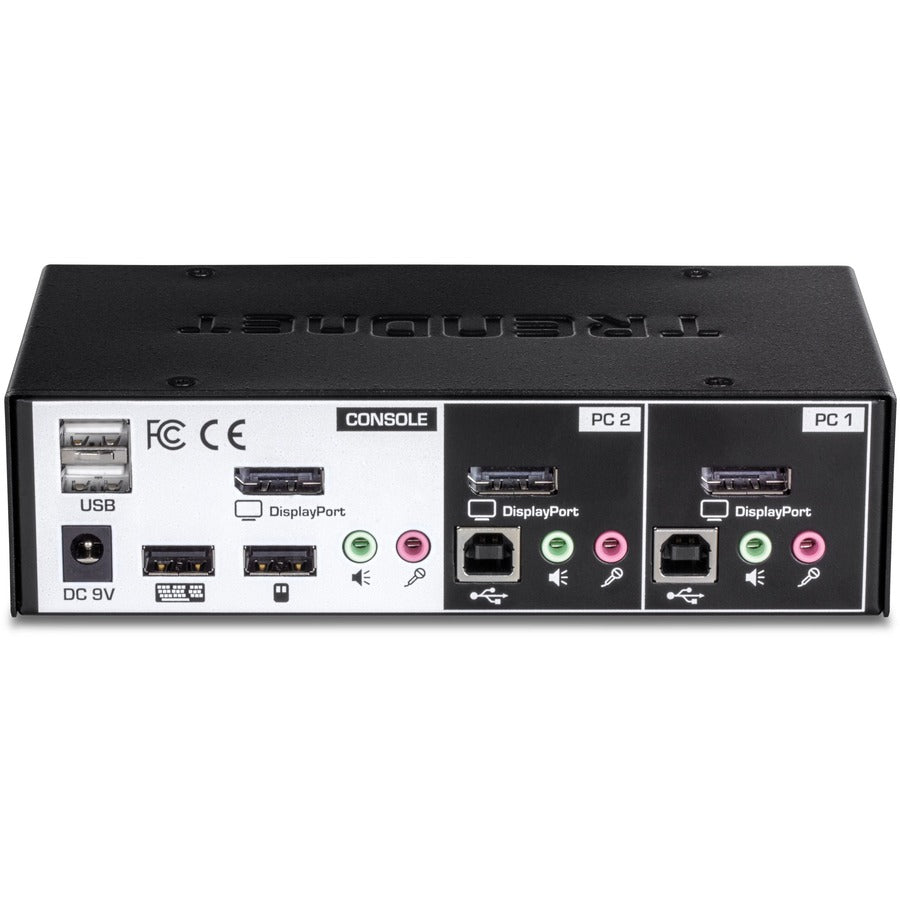

- DEVICE INTERFACE: 2-Port USB 2.0 Hub, Keyboard: USB Type A, Mouse: USB Type A, Monitors: 1 x DisplayPort 1.2, Speaker Jack: 3. 5mm, Microphone Jack: 3.5mm

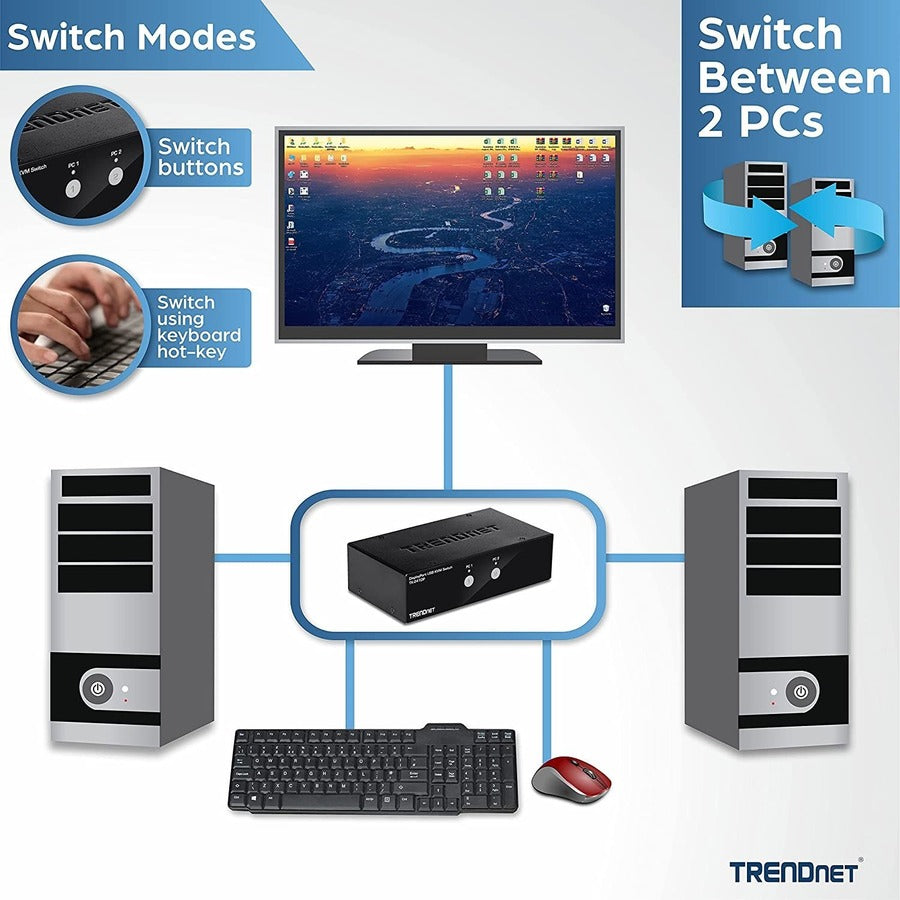

- CONTROL TWO COMPUTERS: This 2-port DisplayPort 1.2 KVM switch allows you to control two computers with one set of console controls and is designed for use with DisplayPort systems. The KVM switch is designed to connect two DisplayPort computers.
- 4K UHD RESOLUTION: This 2-port KVM switch enables you to experience up to 4K UHD resolutions 3840 x 2160 @ 60Hz and up to 2560 x 1440 @144 Hz
- AUDIO SUPPORT: The DisplayPort KVM switch provides full audio support with 3.5mm speaker and microphone connections that maximize work station productivity
- USB 2.0 HUB: The 4K KVM switch is designed with two additional USB 2.0 ports to connect storage drives, printers, and other USB peripherals.
- REQUIRED CABLING (Sold Separately): We recommend using this KVM switch with 2 x TK-CP06 TRENDnet DisplayPort, USB, and Audio KVM Cable Kits (Sold Separately)
- USB MOUSE & KEYBOARD: True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs with the KVM switch.
- EASY INSTALLATION: No CD installation required. DisplayPort KVM switch features simple setup with driverless installation

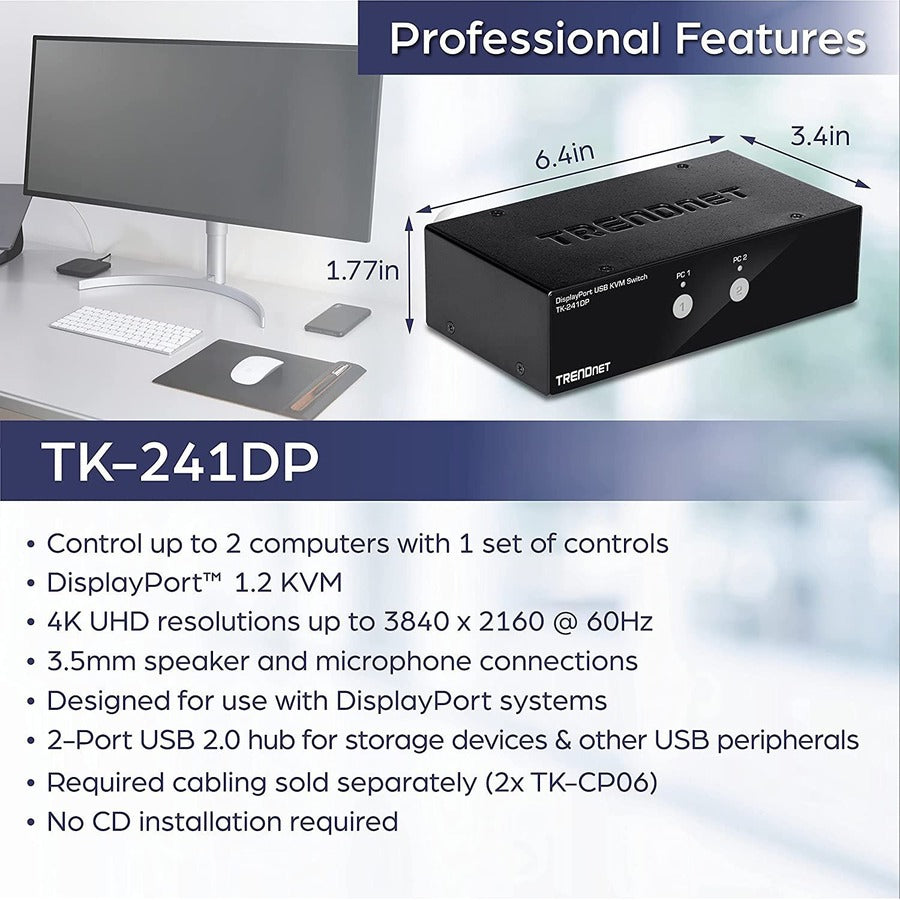

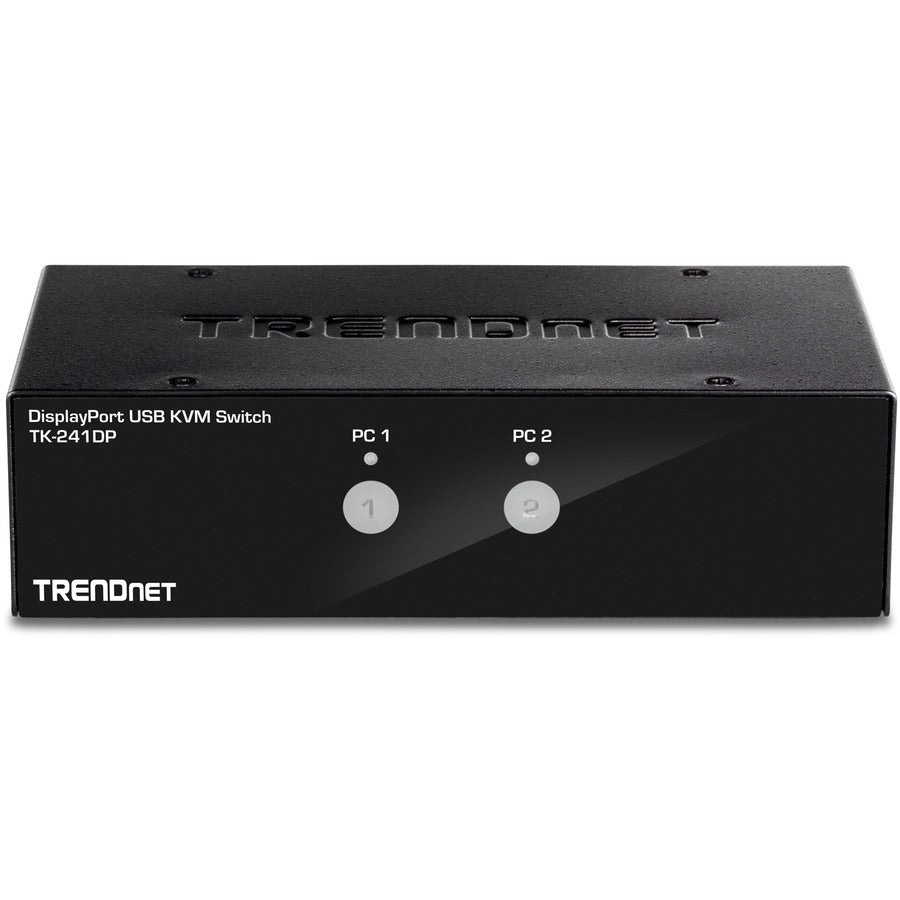

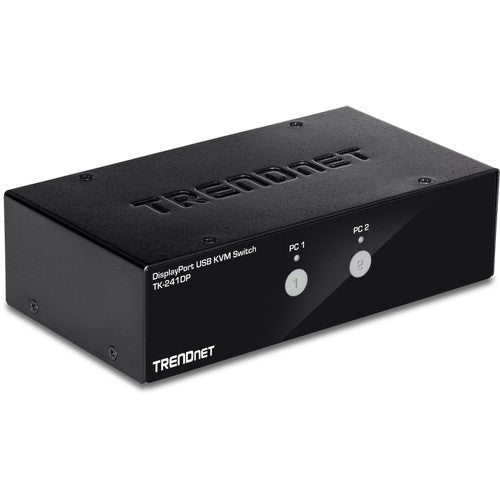

TRENDnet's 2-Port DisplayPort KVM Switch, model TK-241DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolution with this DisplayPort KVM switch, no driver installation required. The TK-241DP DisplayPort KVM switch is designed for systems with DisplayPort, USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or other USB peripherals between computers.
DisplayPort 1.2
Designed to connect to two DisplayPort computers.
4K UHD Resolution
Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).
USB 2.0 Hub
Two additional USB ports to connect storage drives and other USB peripherals.
2-Port Monitor KVM
Control up to two separate computers with up to 4K resolution
DisplayPort Monitor
Designed to connect to two DisplayPort computers
4K UHD
Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)
Audio Support
Full audio support maximizes work station productivity
USB Mouse & Keyboard
True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs
Housing
DisplayPort KVM switch with rugged metal enclosure
USB 2.0 Hub
Two additional USB ports to connect storage drives and other USB peripherals
Hot Keys
Hot Key command shortcuts
Easy Installation
DisplayPort KVM switch features simple setup with driverless installation
NDAA / TAA compliant (U.S. and Canada only)
- DisplayPort™ 1.2 KVM
- 3.5mm speaker and microphone connections
- Designed for use with DisplayPort systems
- Resolutions & refresh rates: Up to 1920 x 1080 @ 144Hz, Up to 1920 x 1200 @ 144Hz Up to 1920 x 1440 @ 144Hz, Up to 2560 x 1440 @ 144Hz, Up to 3440 x 1440 @ 60Hz, Up to 3840 x 2160 @ 60Hz
- 2-Port USB 2.0 hub for storage devices and other USB peripherals
- Required cabling sold separately (2x TK-CP06)
- No CD installation required
- Maximum Video Resolution : 3840 x 2160
- TAA Compliant : Yes
- USB : Yes
- Number of Computers Supported : 2
- Limited Warranty : 2 Year
- Package Contents :
- 2-Port DisplayPort KVM Switch TK-241DP (Version 1.0R)
- Quick Installation Guide
- Power Adapter (9V DC, 1A)
- Manufacturer Website Address : http://www.trendnet.com
- Number of USB Ports : 6
- Number of DisplayPorts : 3
- Product Type : KVM Switchbox
- DisplayPort : Yes
- Manufacturer : TRENDnet
- Frequency : 50 Hz,60 Hz
- Product Model : TK-241DP
- Input Voltage Range : 100V AC to 240V AC
- Country of Origin : Taiwan
- Number of Local Users Supported : 1
