Description

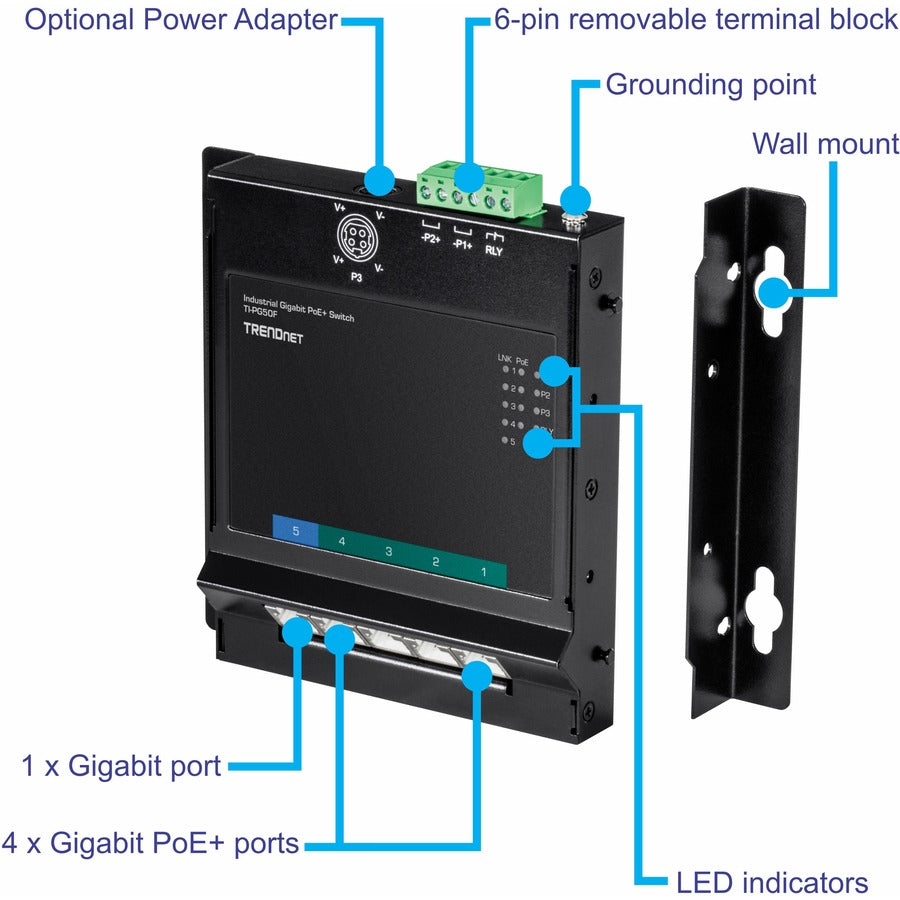

- 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
- Supports jumbo frames up to 9KB

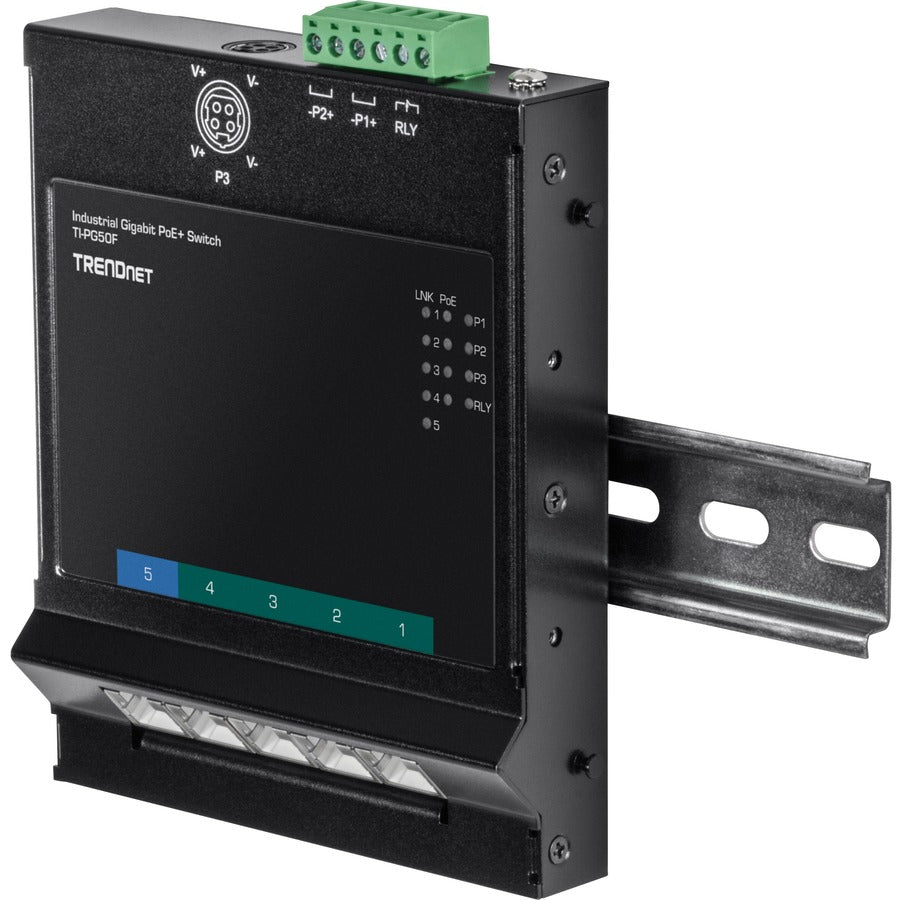

- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty

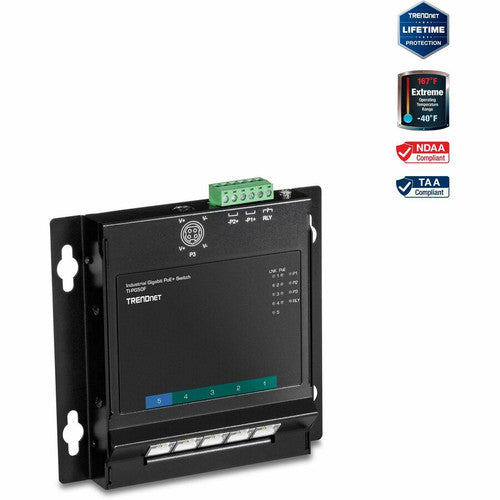

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

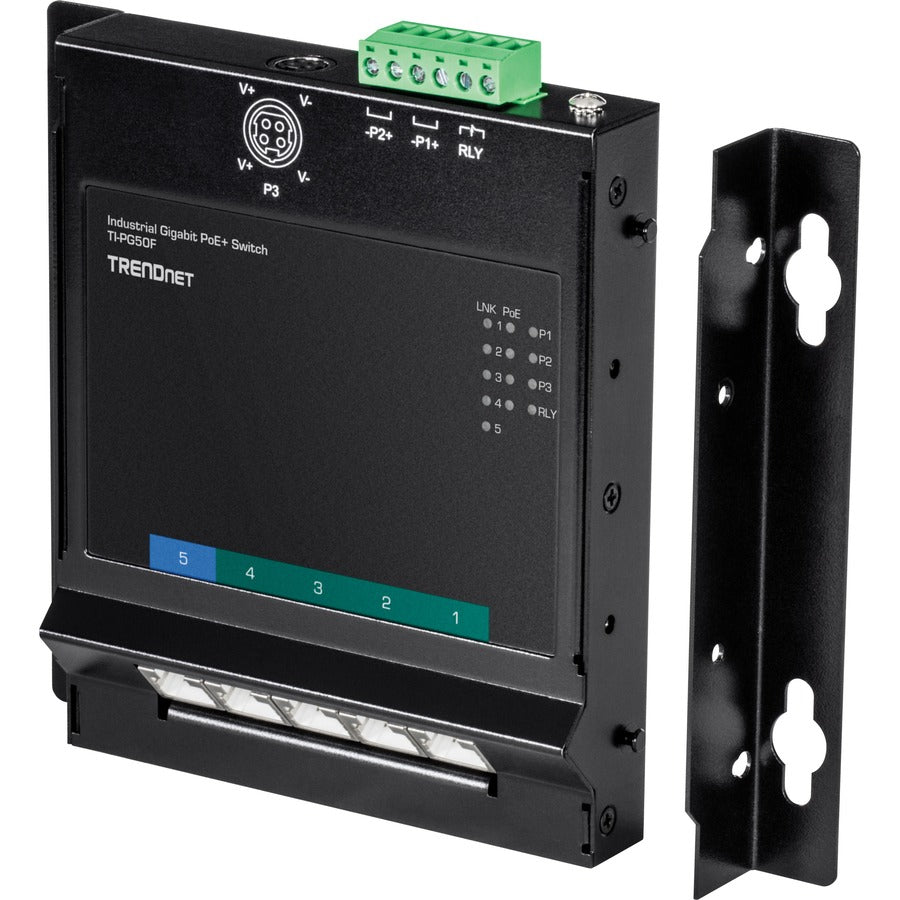

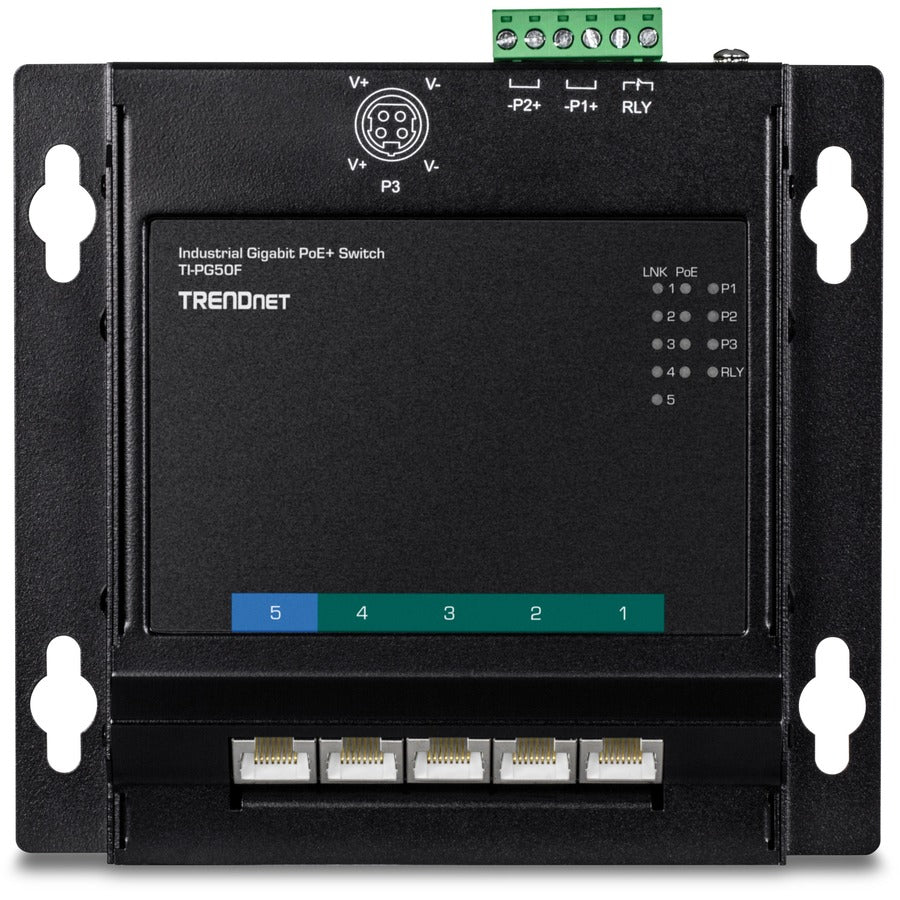

Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
PACKAGE CONTENTS
TI-PG50F
Quick Installation Guide
Removable terminal block

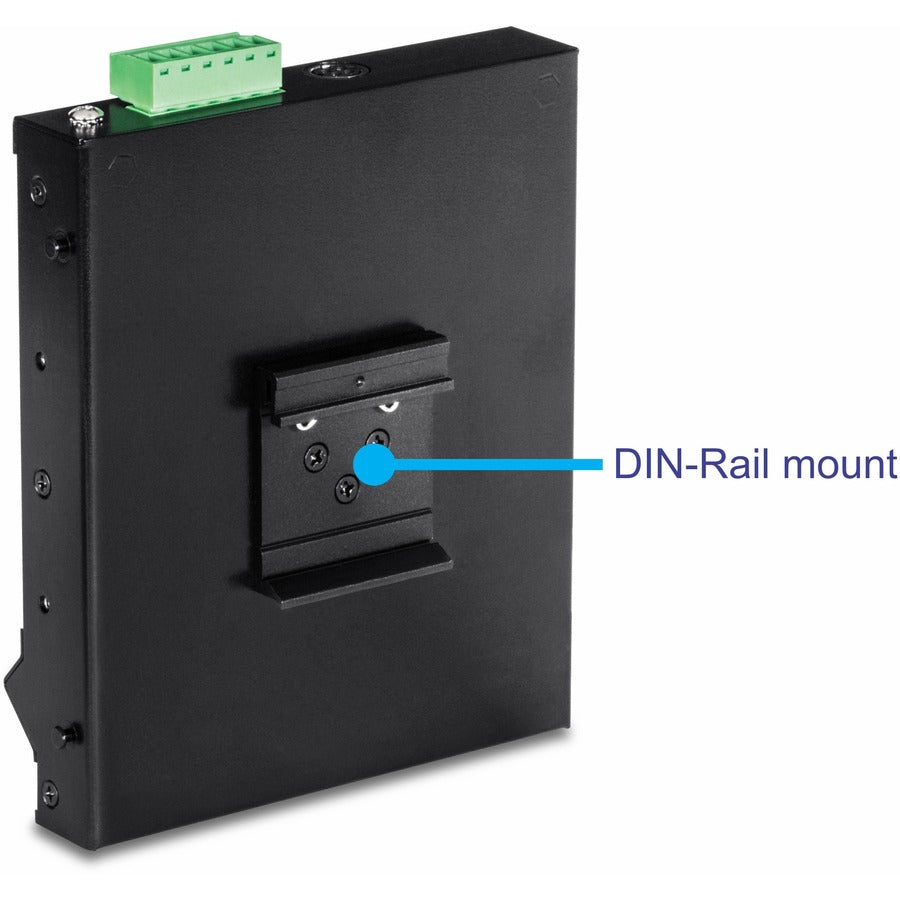

DIN-Rail, wall and magnet mount kit
- 4 x Gigabit PoE+ ports, 1 x Gigabit port,120W PoE power budget,10Gbps switching capacity
- Power supply sold separately (models: TI-S15052, TI-S24052, TI-S12048, TI-S24048, and 48VDC3000)
- Supports jumbo frames up to 9KB
- Hardened IP30 rated metal housing, Includes wall mounting and DIN-Rail brackets
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual redundant power inputs with overload current protection
- Alarm relay triggered by power failure
- Lifetime TRENDnet Manufacturer's Warranty
- NDAA / TAA compliant (U.S. and Canada only)
- Redundant Power Supply Supported : Yes
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Power Source : Power Supply
- Layer Supported : 2
- Product Condition : New
- Port/Expansion Slot Details : 5 x Gigabit Ethernet Network
- Modular : No
- Limited Warranty : Lifetime
- Form Factor : DIN Rail Mountable,Wall Mountable
- Manufacturer Website Address : http://www.trendnet.com
- Product Type : Ethernet Switch

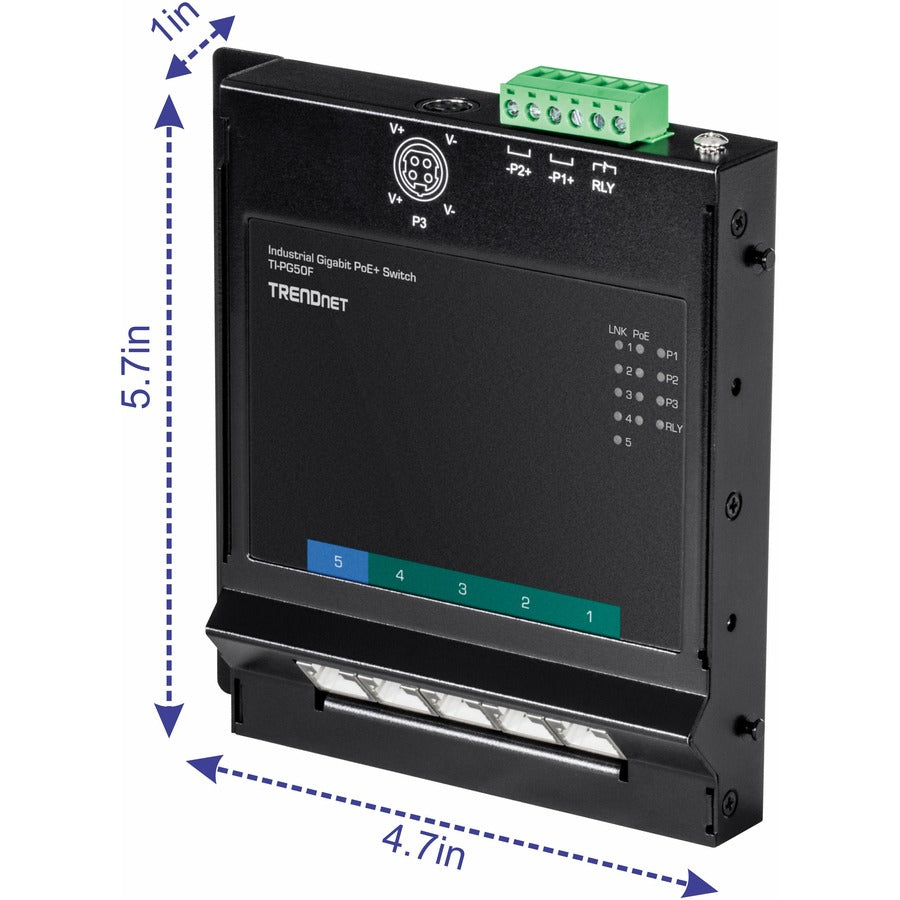

- Length : 4.60" (116.84 mm)
- Manufacturer : TRENDnet
- Product Model : TI-PG50F
- Total Number of Network Ports : 5
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Network Technology : 10/100/1000Base-T
