Description
- 4 x Gigabit PoE++ ports
- 2 x SFP slots
- Supports 1000Base-FX fiber SFP modules
- 360W PoE power budget
- Perpetual PoE provides PoE power to connected devices at booting
- Fast PoE remembers per port PoE power draw of connected devices at booting
- PoE alive check restarts unresponsive PoE powered devices
- 12Gbps switching capacity
- Hardened IP30 rated metal housing
- Includes DIN-Rail mounting bracket
- Operating temperature range of -40° - 75° C (-40° - 167° F)
- Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
- IEEE 802.1p QoS with queue scheduling support
- CLI (Console / Telnet / SSH), Web (HTTP / HTTPS), SNMP v1 / 2c / 3 management
- 802.1Q / Q-in-Q VLAN and IGMP Snooping / MLD / MVR support
- 802.1p / DSCP / Queue Scheduling (SPQ / WRR) QoS support
- Bandwidth control per port
- Dual inputs provide redundant power with overload current protection
- Alarm output triggered by power failure
- Supports Ethernet Ring Protection Switching (ERPSv2)
- Power supply sold separately (model: TI-S48048)
- NDAA / TAA compliant
- Lifetime Warranty

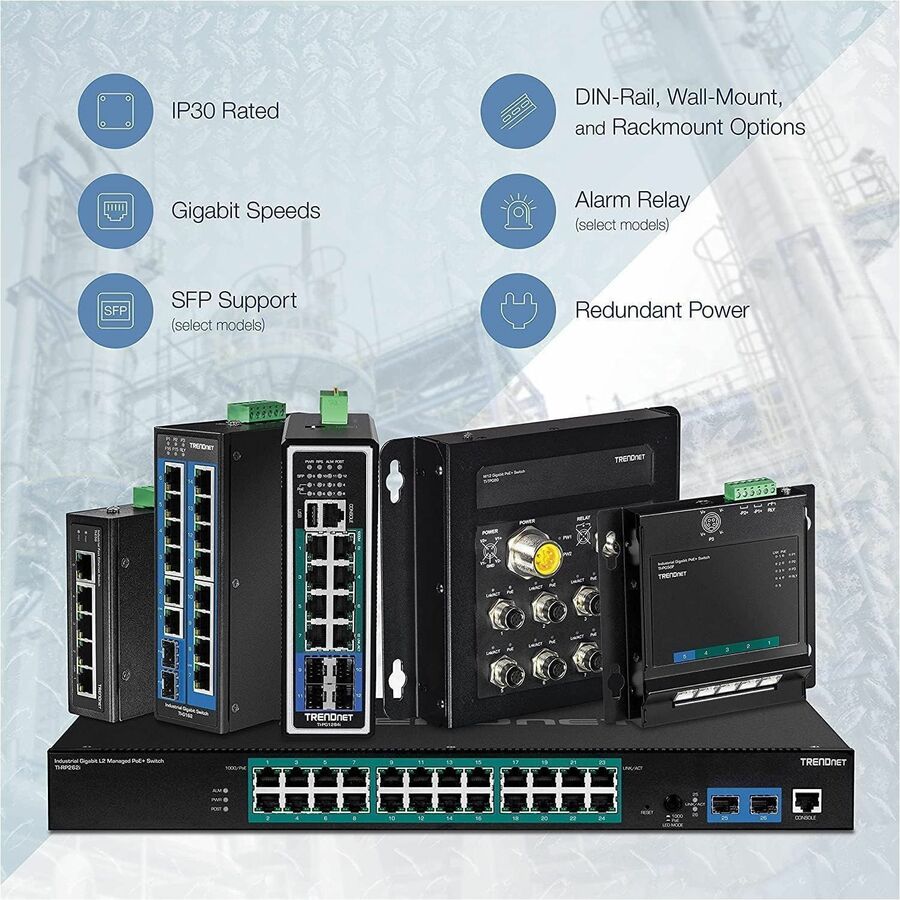

TRENDnet's Industrial Gigabit L2+ Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today's SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support 1000Base-FX modules for long distance fiber networking applications.
These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.
This industrial 802.3bt PoE++ switch has four gigabit PoE++ ports with a 360W PoE power budget, plus two SFP slots for long distance fiber applications. Advanced PoE technology supported includes Perpetual PoE, Fast PoE, and PoE Alive Check.

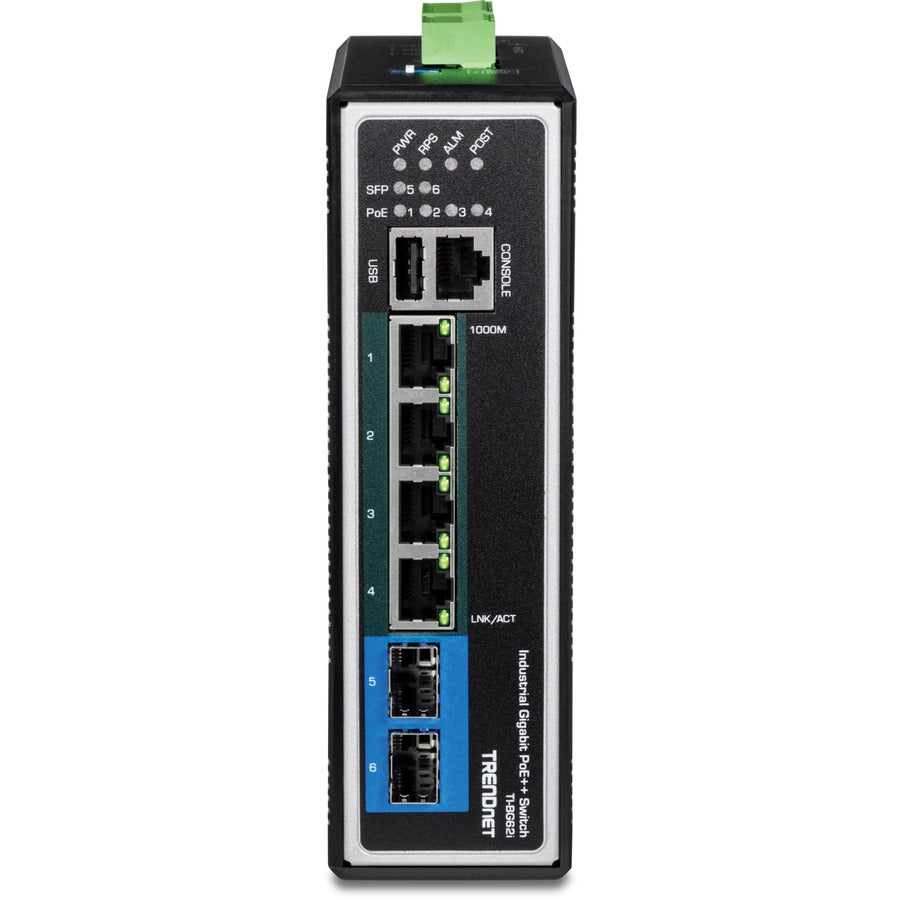

- ETHERNET PORT INTERFACE: 4 x Gigabit PoE++ ports; 2 x Gigabit SFP slots
- POE++ POWER & SWITCHING CAPACITY: A 12Gbps switching capacity and a 360W PoE power budget supplies up to eight Power over Ethernet devices, and includes advanced PoE port controls such as enabling / disabling PoE, power priority, PD alive check, and power scheduling
- OTHER POE FEATURES: Perpetual PoE provides PoE power to connected devices at booting; Fast PoE remembers per port PoE power draw of connected devices at booting; PoE alive check restarts unresponsive PoE powered devices

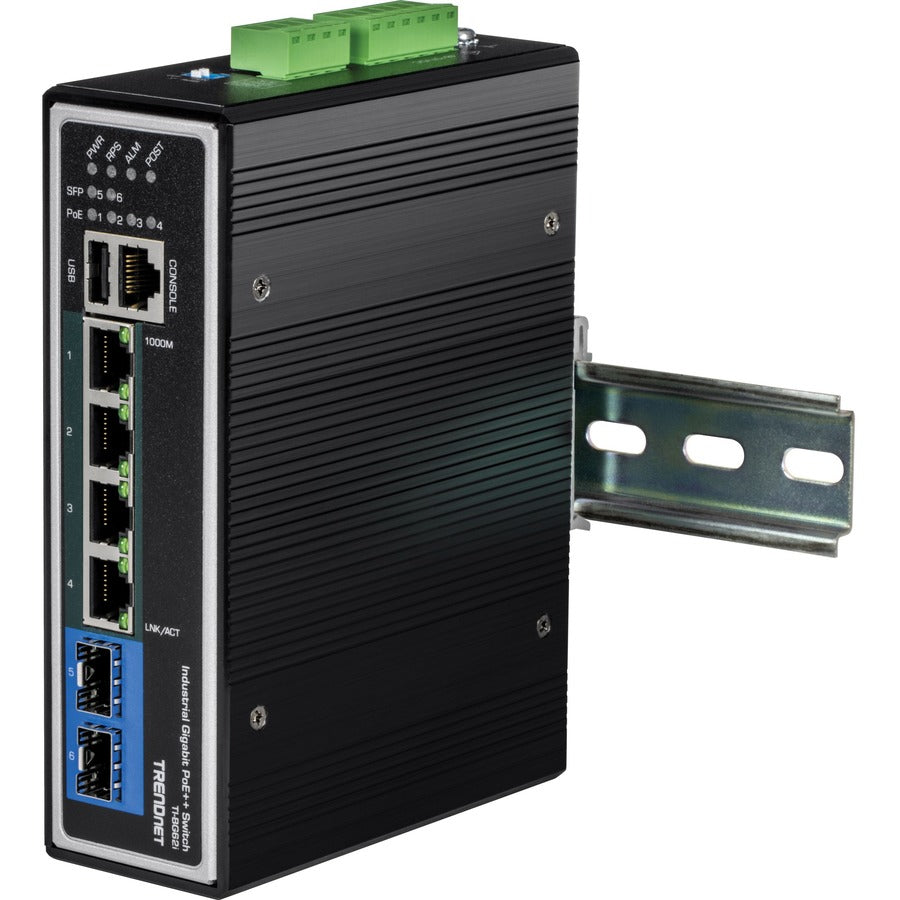

- DIN-RAIL & WALL MOUNT KIT: This 6-Port gigabit layer 2 PoE+ industrial switch comes with an integrated DIN-Rail mount and mounting hardware.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated gigabit layer 2 PoE+ DIN-Rail switch is equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD/EMI/surge, and operate with a wide temperature range (- 40 - 75 °C (- 40 - 167 °F)) for harsh environments.
- LAYER 2 MANAGEMENT: The layer 2 managed switch Provides an easy to use web management interface for traffic management controls such as VLAN, QoS, access controls, link aggregation, troubleshooting, SNMP monitoring, and per port MAC restriction.
- ACCESS CONTROL: Managed access control featues include ACLs, IP-MAC-Port binding, ARP inspection, 802.1X RADIUS, MAC address learning, DHCP snooping and IP Source Guard provides layered network access controls

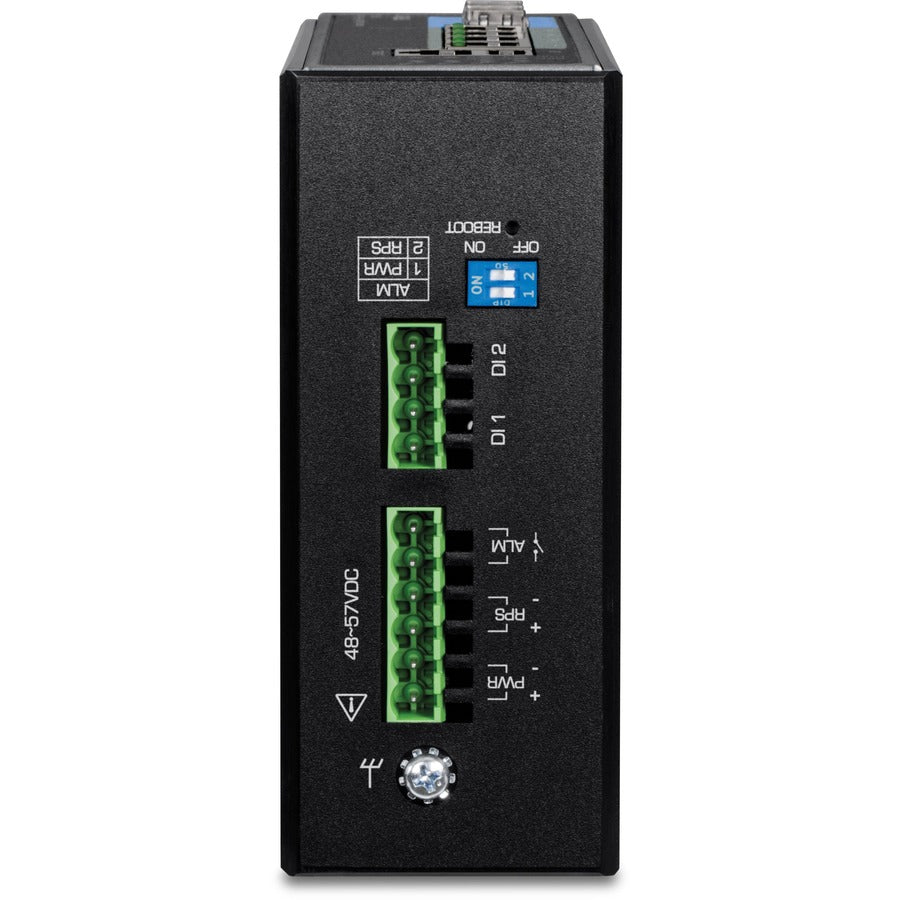

- REDUNDANT POWER: The 6 port network switch has dual redundant power inputs with overload current protection (power supply sold separately: TI-S48048
- TRAFFIC MANAGEMENT: Managed features include 802.1Q / Q-in-Q / GVRP / MAC & Protocol-Based VLAN, IGMP v1 / 2 / 3, IGMP Snooping, MLD, MVR, per port bandwidth control / 802.1p / DSCP / Queue Scheduling (SPQ / WRR), STP / RSTP / MSTP spanning tree, static and dynamic link aggregation, Xpress Ring, and ERPS for flexible network integration
- TRENDnet LIFETIME PROTECTION: The TI-B62i 6-Port Industrial Gigabit L2 Switch comes with Lifetime TRENDnet Manufacturer Protection.
- NDAA / TAA compliant (U.S. and Canada only)
- Number of SFP Slots : 2
- Expansion Slot Type : SFP
- Power Source : Power Supply
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : DIN Rail Mountable,Enclosure
- Package Contents :
- TI-BG62i
- Quick Installation Guide
- Removable terminal block
- DIN rail mounting bracket
- Manufacturer Website Address : http://www.trendnet.com
- Manufacturer : TRENDnet
- Product Model : TI-BG62i
- Manageable : Yes
- Network Technology : 1000Base-T,1000Base-FX
- Ethernet Technology : Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 3
- PoE Budget : 360 W
- Input Voltage : 48 V DC,57 V DC
- Port/Expansion Slot Details : 4 x Gigabit Ethernet PoE++,2 x Gigabit Ethernet Expansion Slot
- Limited Warranty : 3 Year
- Product Material : Metal
- Network (RJ-45) : Yes
- Plug/Connector Type : Terminal Block
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.1ab,IEEE 802.1AX,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1s
- Total Number of Network Ports : 6
- Power Consumption : 20 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
