Description

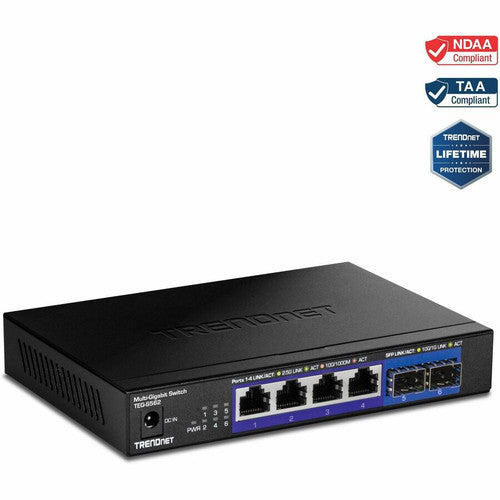

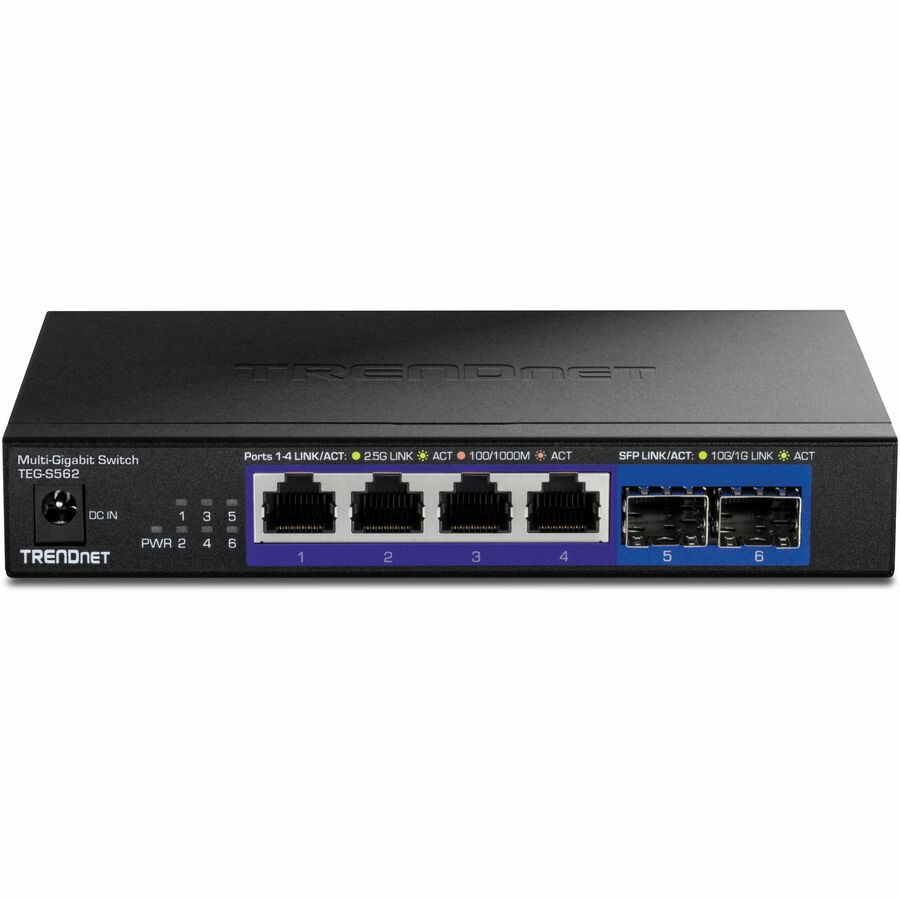

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged Multi-Gigabit Switches. This 2.5G switch with SFP+ support comes equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. The 2.5G switch with 10G fiber also offers two dedicated 10G SFP+ ports for high-speed network connections, providing a cost-effective solution in adding 10G link capability to an SMB network. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable multi-gigabit switches are costeffective solutions to increase your network's throughput.

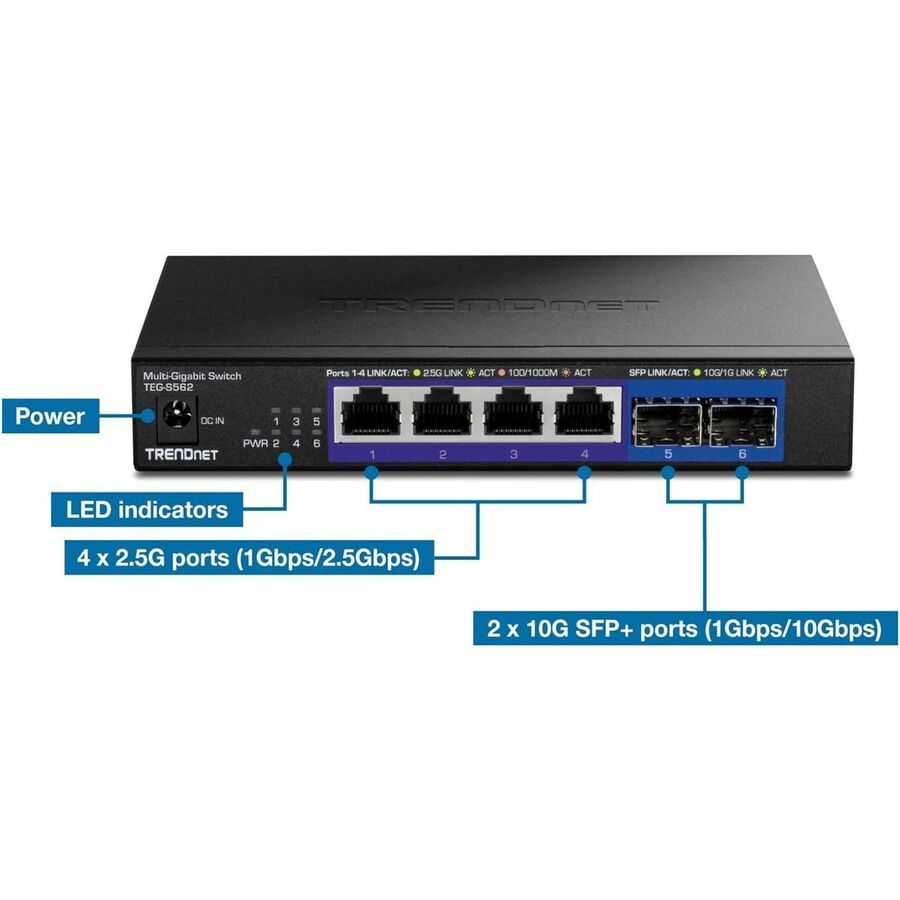

10G SFP+ Ports
Offers two 10G SFP+ ports for highspeed network connections providing a cost-effective solution in adding 10G link capability.
2.5G Ports
Equipped with four 2.5GBASE-T RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Fanless
The compact fanless design lowers power consumption and energy costs, and eliminates distracting operating noise.
FEATURES | Easy Installation
No configuration needed, simply connect network devices to the 2.5G switch
2.5G Ports
Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling
10G SFP+ Ports
The 2.5G switch with SFP+ ports features 10G SFP+ ports for highspeed network connections providing a cost-effective solution in adding 10G link capability
Fanless
Compact fanless design lowers energy consumption and eliminates operating noise
Housing Design
Sturdy metal housing

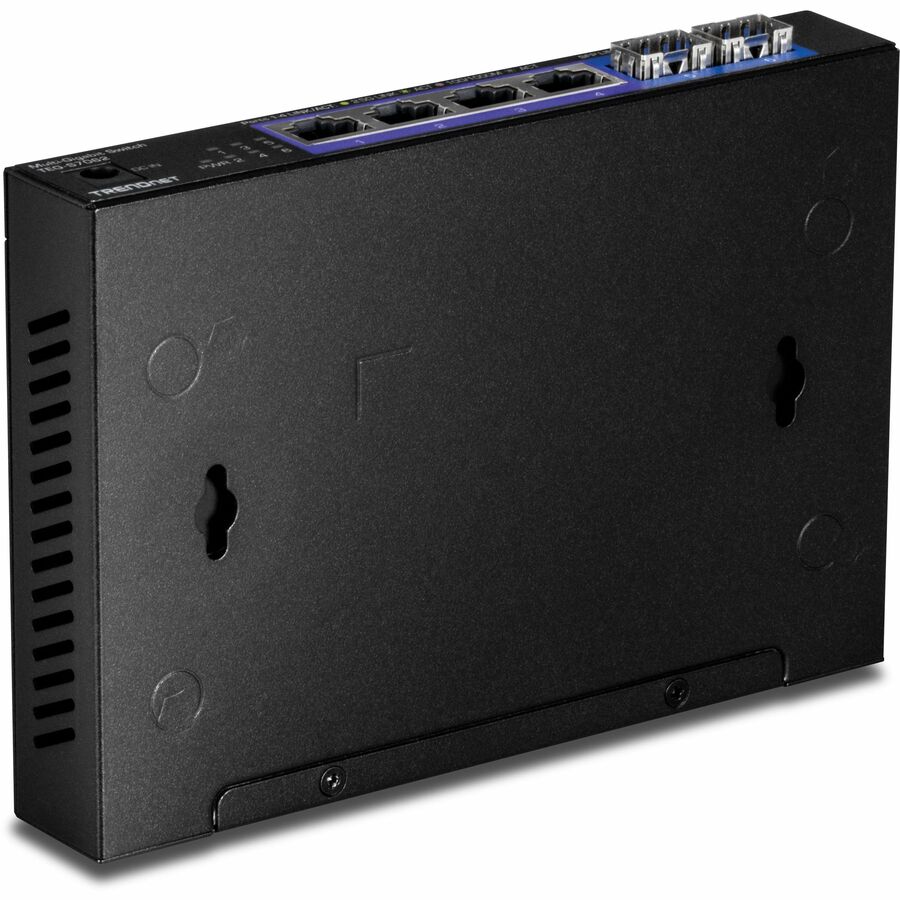

Wall Mountable
Features a convenient wall-mountable design for greater installation flexibility
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance
LED Indicators
LED indicators on this 2.5G switch with SFP+ ports conveys port status
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Power Source : Power Adapter
- Modular : Yes
- Form Factor : Wall Mountable
- Package Contents :
- 6-Port Unmanaged Multi-Gig Switch
- Quick Installation Guide
- Power Adapter (12V, 1A)
- Manufacturer Website Address : http://www.trendnet.com
- Manufacturer : TRENDnet
- Product Model : TEG-S562
- Features : Fanless
- Manageable : No
- Network Technology : 2.5GBase-T,10GBase-X
- Ethernet Technology : 2.5 Gigabit Ethernet,10 Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 2
- Input Voltage : 120 V AC,230 V AC
- Port/Expansion Slot Details : 4 x Gigabit Ethernet Network,2 x 10 Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Material : Metal
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3bz,IEEE 802.3ae,IEEE 802.3ab,IEEE 802.3an,IEEE 802.1x
- Total Number of Network Ports : 4
- Power Consumption : 5.86 W
- Media Type Supported : Twisted Pair,Optical Fiber
- Country of Origin : Taiwan
- Expansion Slot Type : SFP+
- Number of SFP+ Slots : 2
