Description

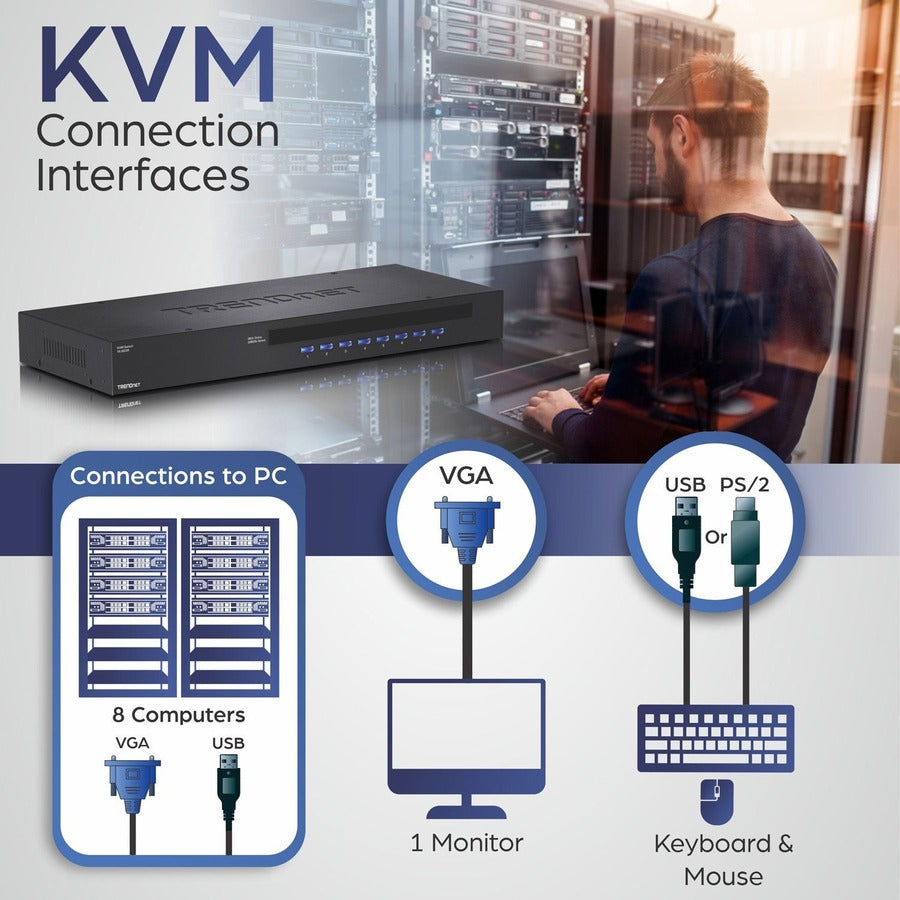

- PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
- MANAGE MULTIPLE PC'S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
- SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
- VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
- CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
- USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
- FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
- RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design
- NDAA / TAA compliant (U.S. and Canada only)

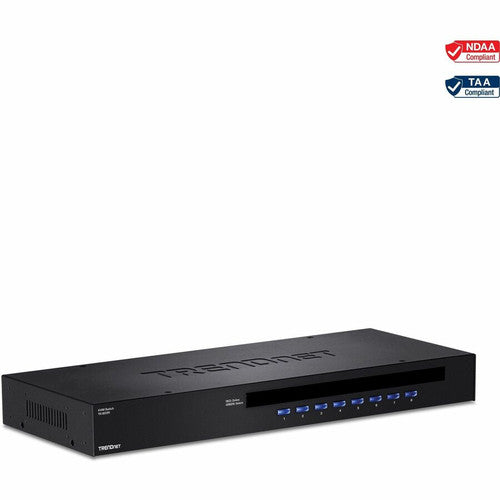

The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.
-Controls up to 8 computers or servers.
-Supports both USB and PS/2 Interface for console port
-Supports Windows®, Linux®, Mac OS® and more
-High video quality, up to 2048 x 1536 VGA resolution
-Firmware upgradeable via PC port
-Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
-Keyboard status restored when switching between computers
-LEDs display for easy status monitoring
-Beeping sound for port switching confirmation (enable/disable)
-Keyboard hot key command or push button switching
-Plug & Play and Hot-Pluggable
-Standard 19" (1U) rack mount design
-2-Year TRENDnet Manufacturer's Warranty
Package Contents:
- TK-803R
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
-Rack mount kit
- NDAA / TAA compliant (U.S. and Canada only)
- RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19" (1U) rack mount design
- FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management
- USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
- CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
- VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
- SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
- MANAGE MULTIPLE PC'S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
- PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
- Number of PS/2 Ports : 2
- Form Factor : Rack-mountable
- Package Contents :
- 8-Port Rackmount KVM Switch
- Quick Installation Guide
- Power Adapter (9 V DC, 1 A)
- Rack Mount Kit
- Manufacturer Website Address : http://www.trendnet.com
- Number of USB Ports : 2
- Manufacturer : TRENDnet
- Input Voltage Range : 100 - 240V
- Features : Plug and Play
- Rack Height : 1U
- Maximum Video Resolution : 2048 x 1536
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Product Condition : New
- USB : Yes
- Number of Computers Supported : 8
- Limited Warranty : 2 Year
- VGA : Yes
- Product Type : KVM Switchbox
- Number of VGA Ports : 9
- Frequency : 50 Hz,60 Hz
- Graphic Mode : VGA,QXGA
- Country of Origin : Taiwan
- PS/2 Port : Yes
- Number of Local Users Supported : 1
