TRENDnet 95W 2-Port Industrial 2.5G PoE++ Injector TI-IG290

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70° C (-40° - 167° F) for harsh industrial environments. NDAA / TAA compliant (U.S. and Canada only).

More from the Manufacturer

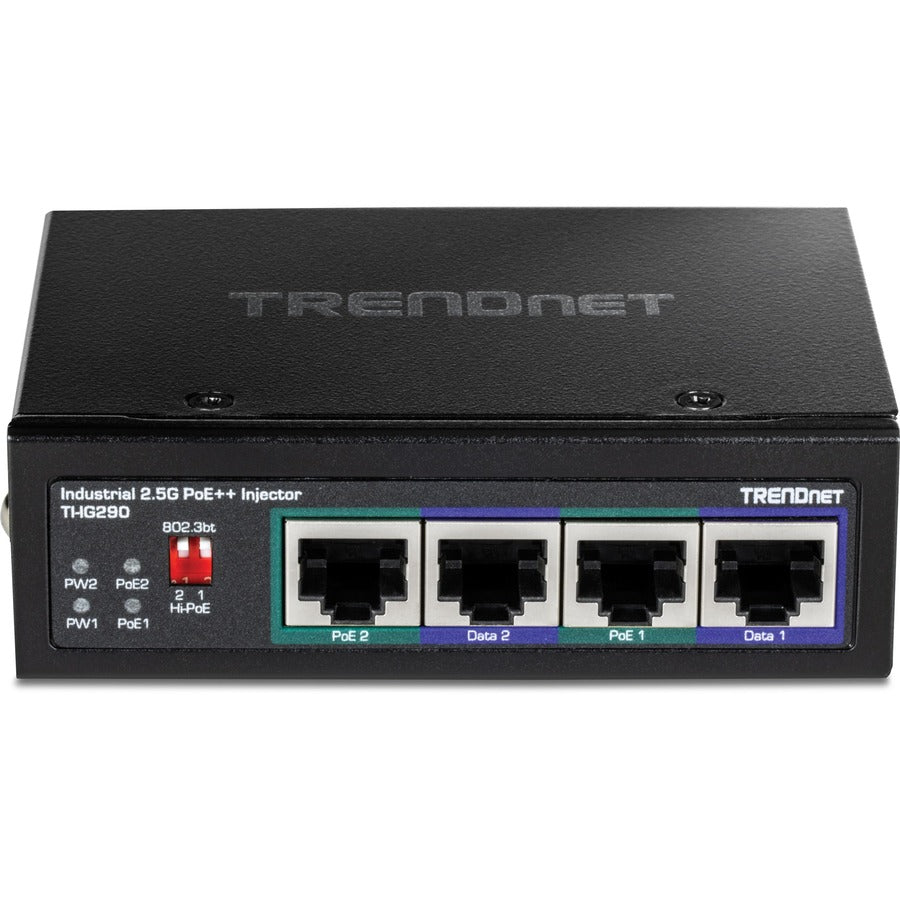

• 2 x 2.5G PoE++ ports (Data + PoE out)
• 2 x 2.5G ports (Data in)
• 180W PoE power budget
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)

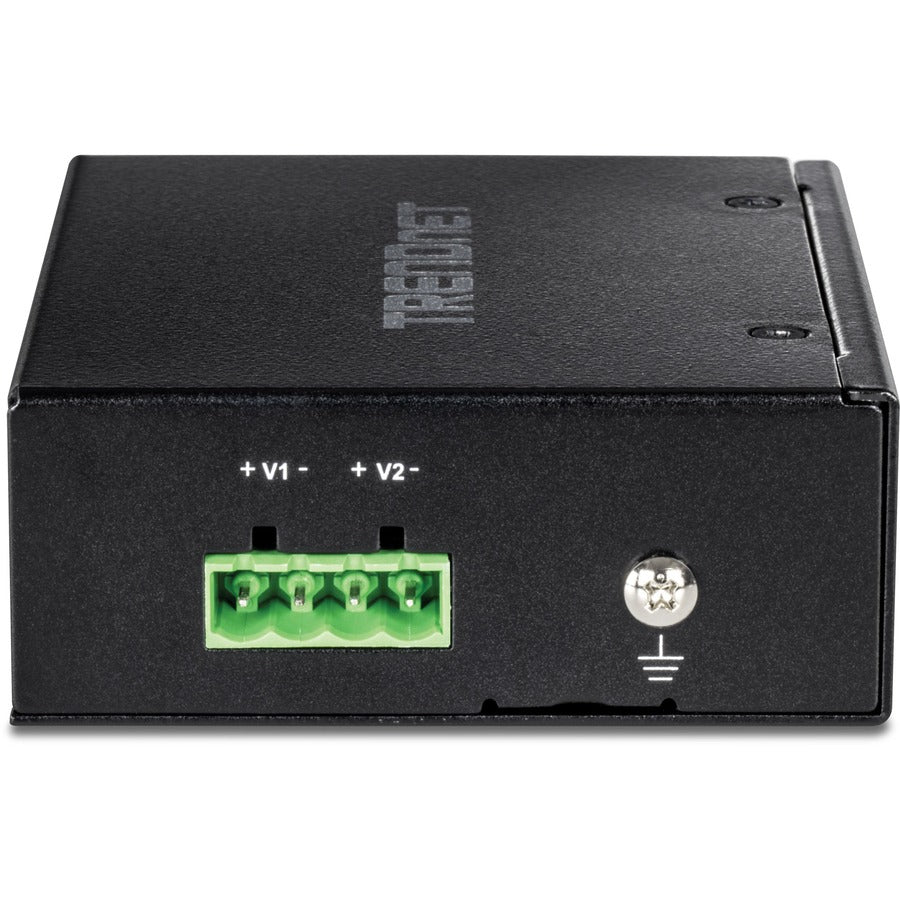

• Redundant power inputs with overload current protection

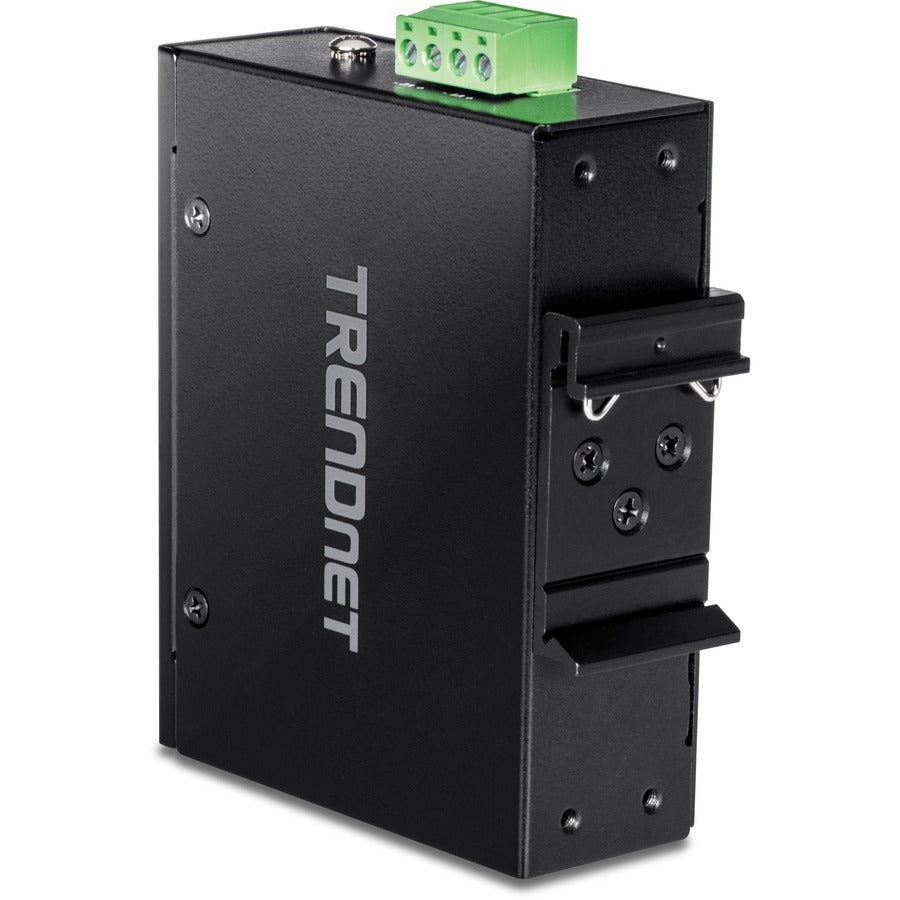

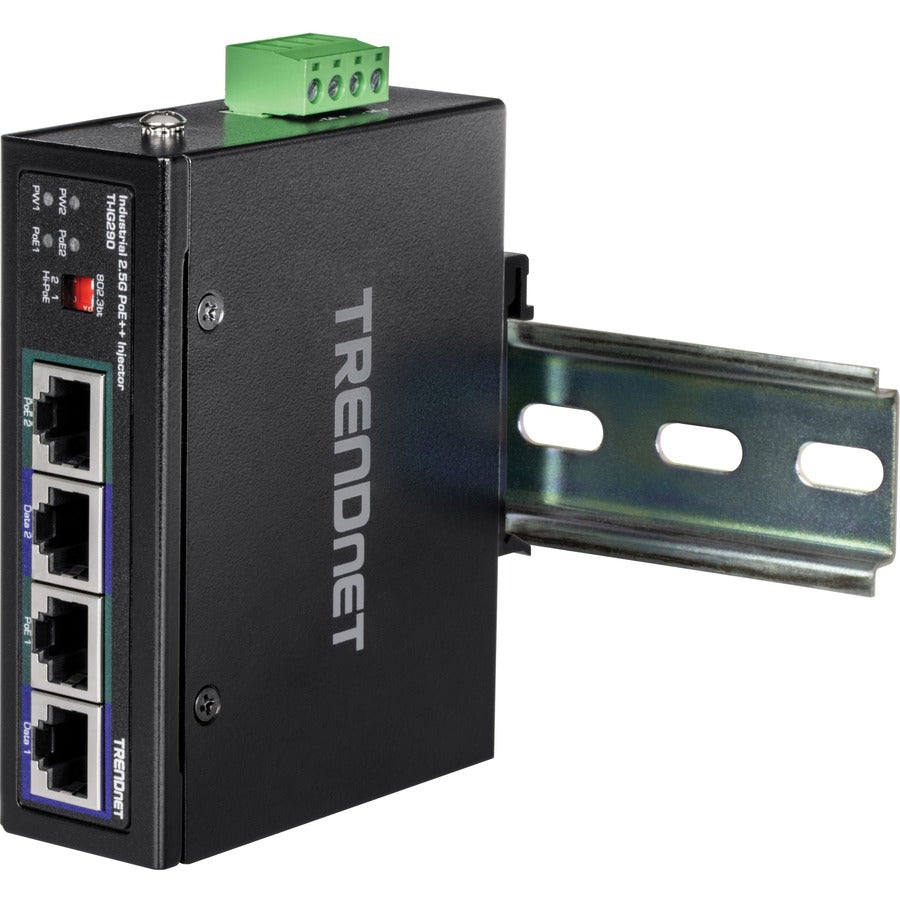

• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model TI-S24052, TI-S24048)
• NDAA / TAA compliant (U.S. and Canada only)

• Certifications & Standards :
  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
• TAA Compliant : Yes
• Input Voltage : 56 V DC
• Limited Warranty : 3 Year
• Form Factor : DIN Rail/Wall Mountable
• Output Ports : 2 x 2.5 Gigabit PoE++
• Package Contents :
  • 95W 2-Port Industrial 2.5G PoE++ Injector
  • Quick Installation Guide
  • Removable Terminal Block

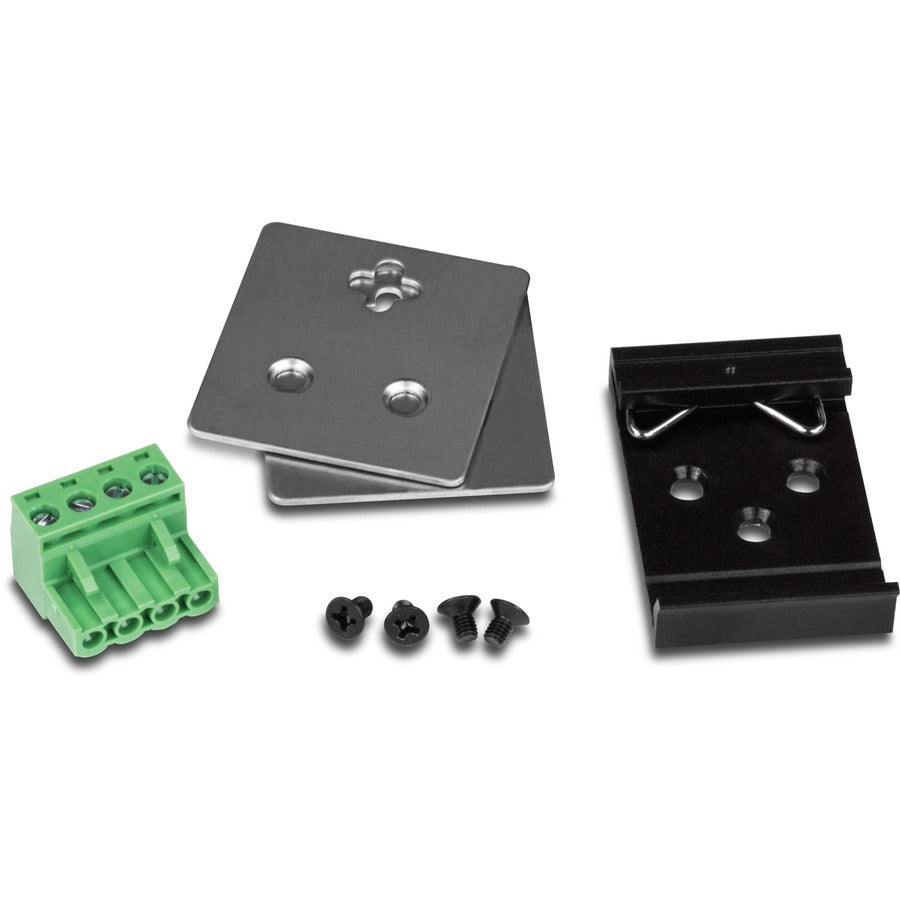

  • DIN-rail and Wall Mount Kit
  • IP30 Rated Metal Enclosure
• Manufacturer Website Address : http://www.trendnet.com
• Product Type : PoE++ Injector
• Length : 4.06" (103 mm)
• Input Ports : 2 x 2.5 Gigabit Ethernet
• Protection Type : Surge Protection,ESD Protection,Overload Protection,Over Current
• Manufacturer : TRENDnet
• Product Model : TI-IG290
• Maximum Output Power : 180 W
• Country of Origin : Taiwan
