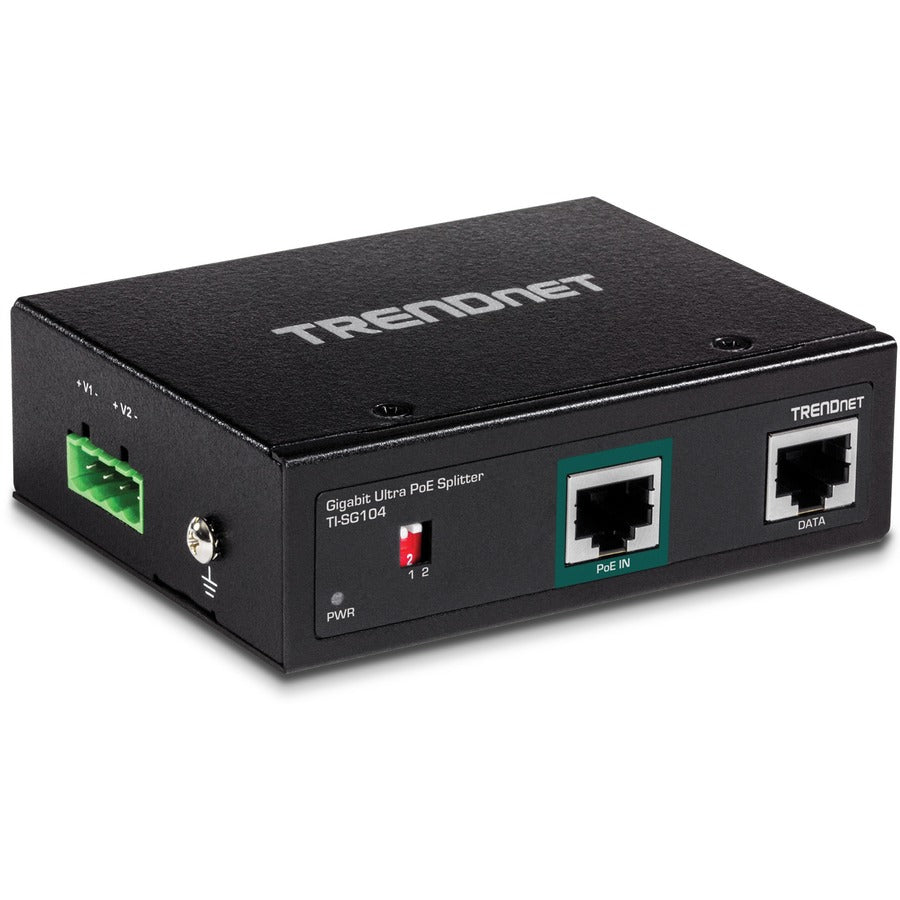

TRENDnet Industrial Gigabit UPoE Splitter, Dual DC Power Outputs, DIN-Rail or Wall-Mountable, Adjustable Voltage Output, TI-SG104 TI-SG104

TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility. NDAA / TAA compliant (U.S. and Canada only).

More from the Manufacturer

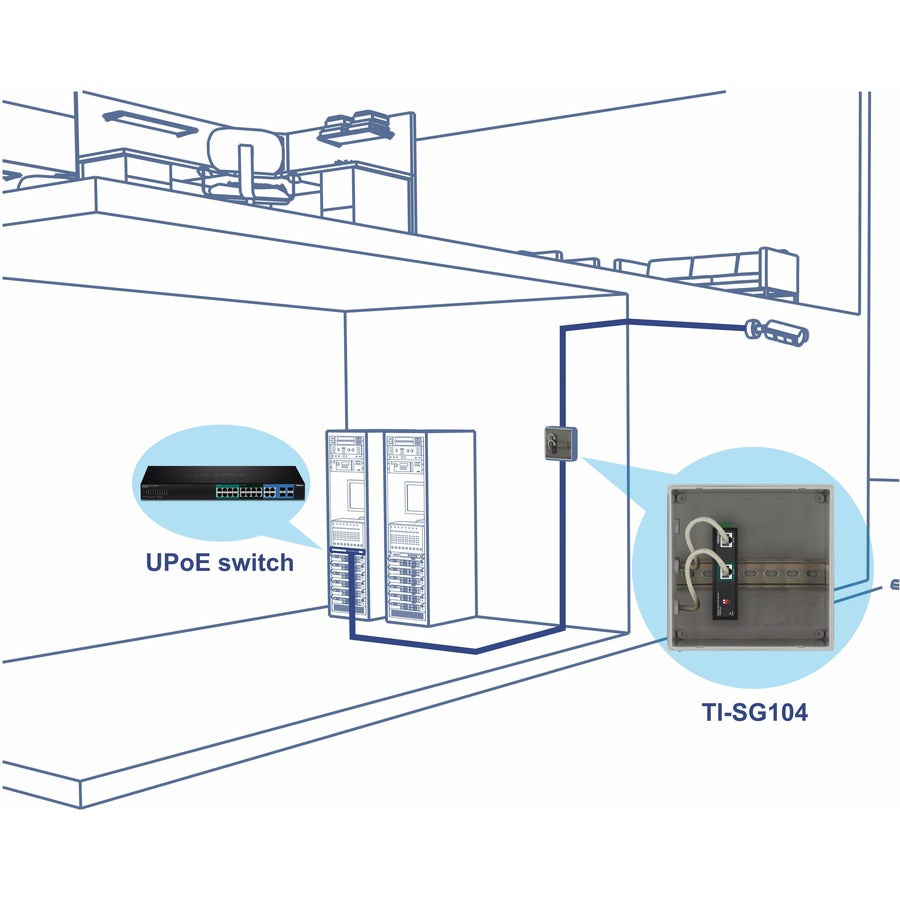

• Power a non-PoE device up to 100m (328 ft.) away from PSE
• Splits a gigabit PoE signal into separate power and data sources
• A single Ultra PoE source can power up to two devices
• Adjustable voltage output supports 12V, 16V, 24V or 48V devices
• For best performance pair with UPoE switches or injectors
• Save on installation and equipment cost
• Full Duplex Gigabit speeds
• IEEE 802.3bt compatible
• NDAA / TAA compliant (U.S. and Canada only)

• Certifications & Standards : Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt compatible
  Certifications:

  • CE
  • FCC
  • IEC EN60950-1
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
• TAA Compliant : Yes
• Product Condition : New
• Maximum Output Voltage : 48 V DC
• Limited Warranty : 3 Year

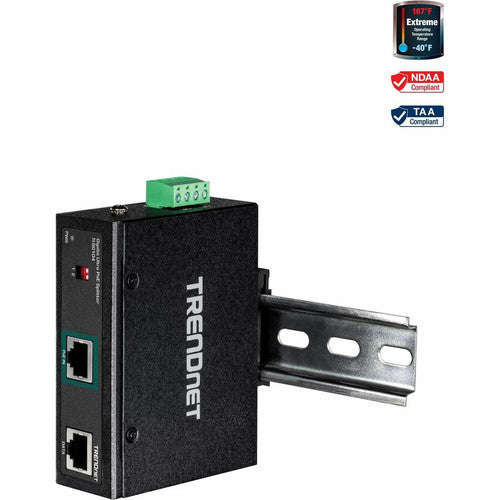

• Form Factor : DIN Rail/Wall Mountable
• Output Ports : 1 x Gigabit Ethernet

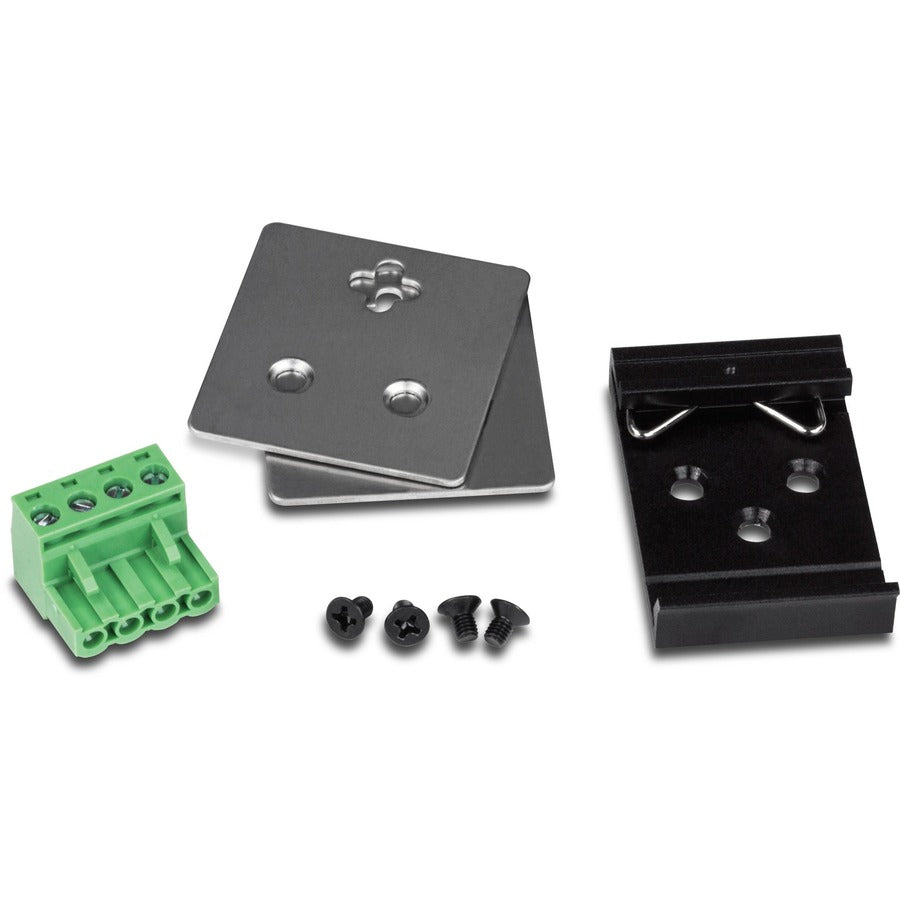

• Package Contents :
  • Industrial Gigabit UPoE Splitter
  • Quick Installation Guide
  • Removable Terminal Block
  • DIN-rail and Wall Mount Kit
• Manufacturer Website Address : http://www.trendnet.com
• Product Type : PoE Splitter

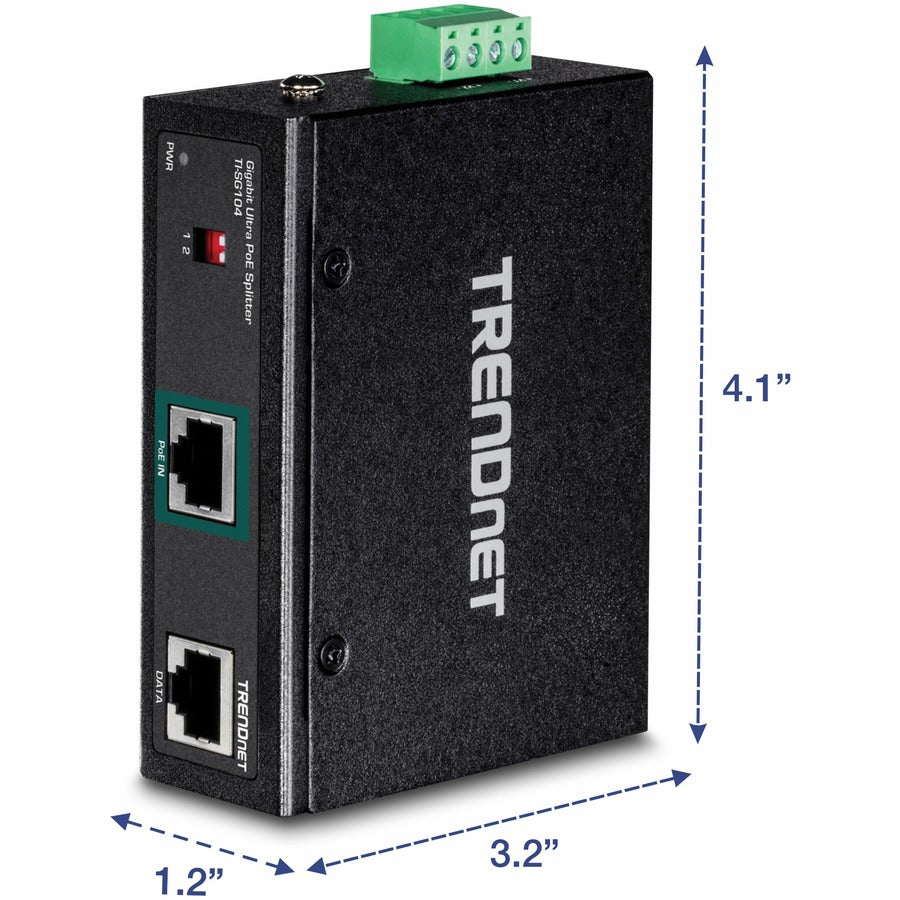

• Length : 9" (228.60 mm)
• Input Ports : 1 x UPoE
• Protection Type : Surge Protection,ESD Protection
• Manufacturer : TRENDnet
• Product Model : TI-SG104
• Minimum Output Voltage : 12 V DC
• Country of Origin : Taiwan
