Description

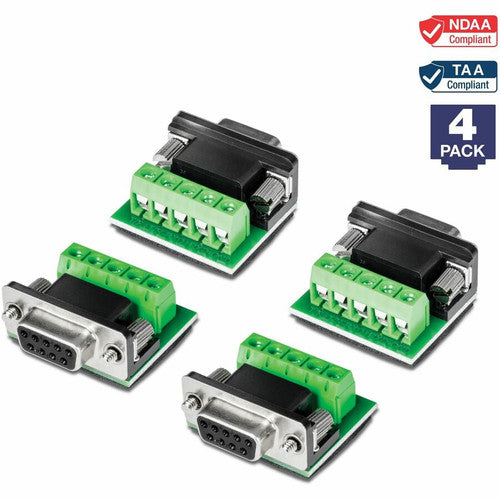

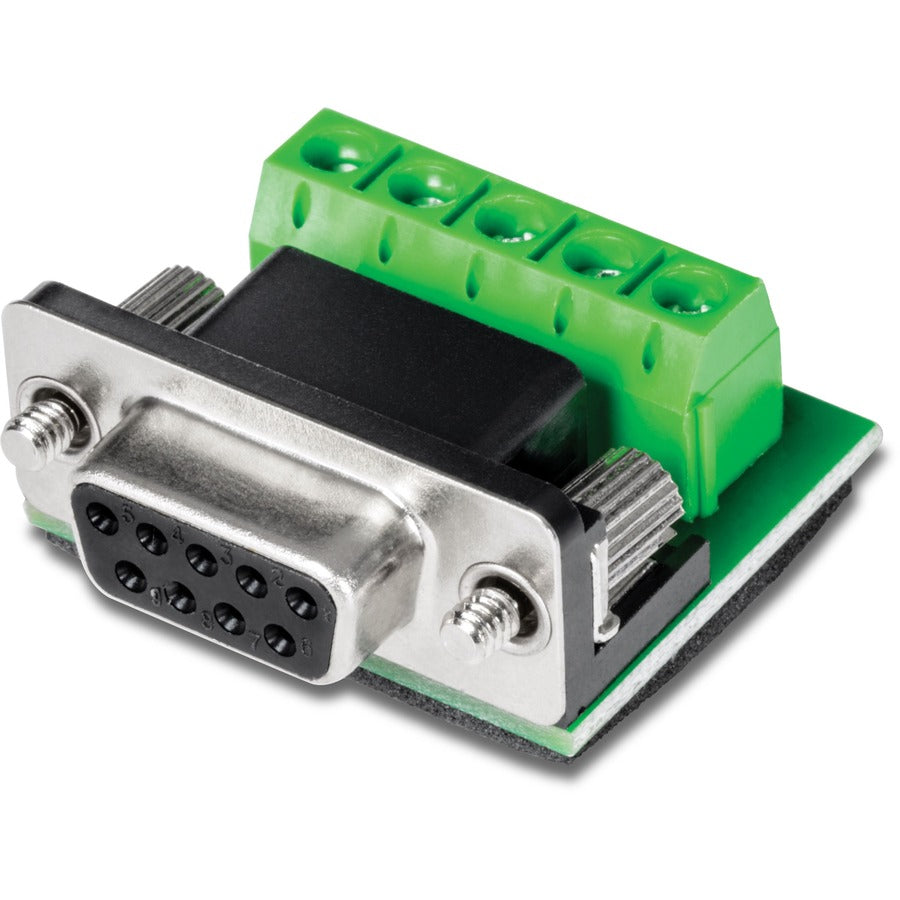

TRENDnet's RS232 to RS422/RS485 Converter Adapter (4-Pack), model TI-S400, is designed for use with our TI-M12 and TI-M42 industrial modbus gateways.
- INCLUDES: Four TI-S400 RS232 to RS422/RS485 Converter Adapters
- DEVICE INTERFACE (Single Unit): 1 x DB9 Female RS-232 to RS-422/RS485; 1 x Terminal block
- TERMINAL BLOCK: Redundant power inputs, 5-pin; Wire range: 26-14AWG; Solid wire (AWG): 26-14AWG; Stranded wire (AWG): 26-14AWG; Torque: 0.4Nm (3.6 Lb.-In); Wire strip length: 6-7mm
- Convert a RS232 port to a RS422/RS485 terminal block
- Designed for use with the TI-M12 and TI-M42 industrial modbus gateways
- NDAA / TAA compliant (U.S. and Canada only)
- Connector on Second End Details : 1 x Terminal Block RS-422/485 Serial
- Manufacturer Website Address : http://www.trendnet.com
- Connector on First End Details : 1 x 9-pin DB-9 RS-232 Serial - Female
- Connector Type on First End : DB-9 RS-232 Serial - Female
- Connector Type on Second End : Terminal Block RS-422/485 Serial
- Product Type : Data Transfer Adapter
- Manufacturer : TRENDnet
- Limited Warranty : 1 Year
- Adapter Type : Serial
- Country of Origin : China
- Packaged Quantity : 4
