Description
- INCLUDES: One TI-S400 RS232 to RS422/RS485 Converter Adapter
- DEVICE INTERFACE: 1 x DB9 Female RS-232 to RS-422/RS485; 1 x Terminal block
- TERMINAL BLOCK: Redundant power inputs, 5-pin; Wire range: 26-14AWG; Solid wire (AWG): 26-14AWG; Stranded wire (AWG): 26-14AWG; Torque: 0.4Nm (3.6 Lb.-In); Wire strip length: 6-7mm
- Convert a RS232 port to a RS422/RS485 terminal block
- Designed for use with the TI-M12 and TI-M42 industrial modbus gateways
- NDAA / TAA compliant (U.S. and Canada only)

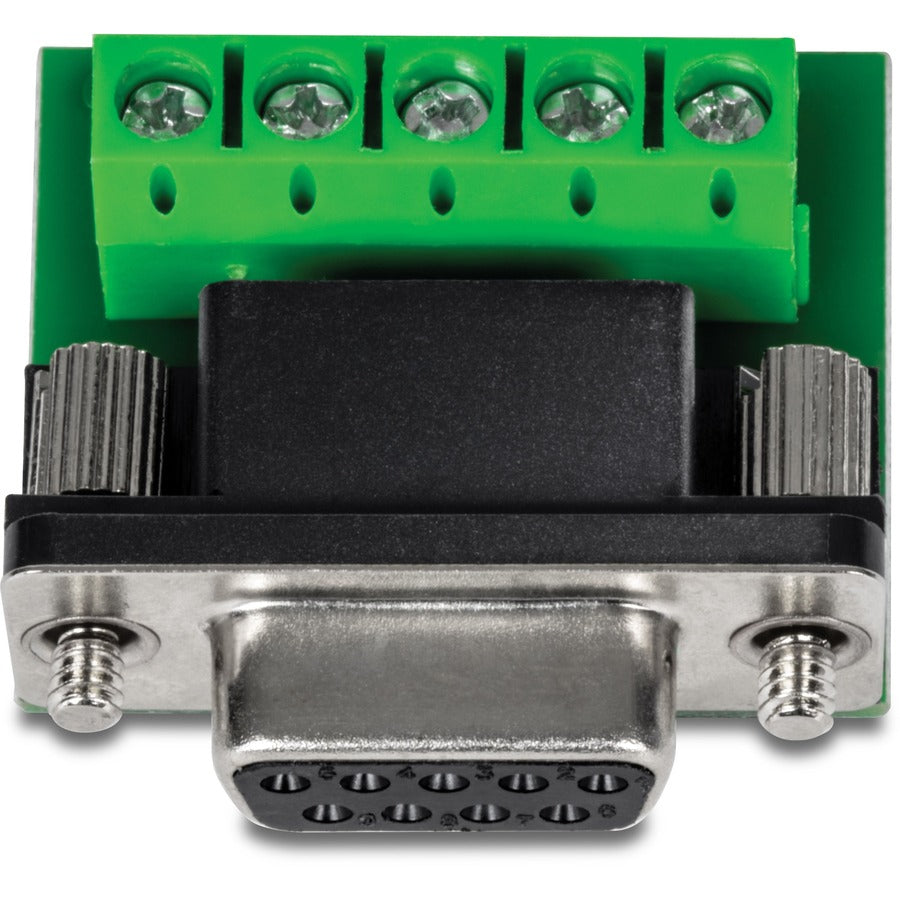

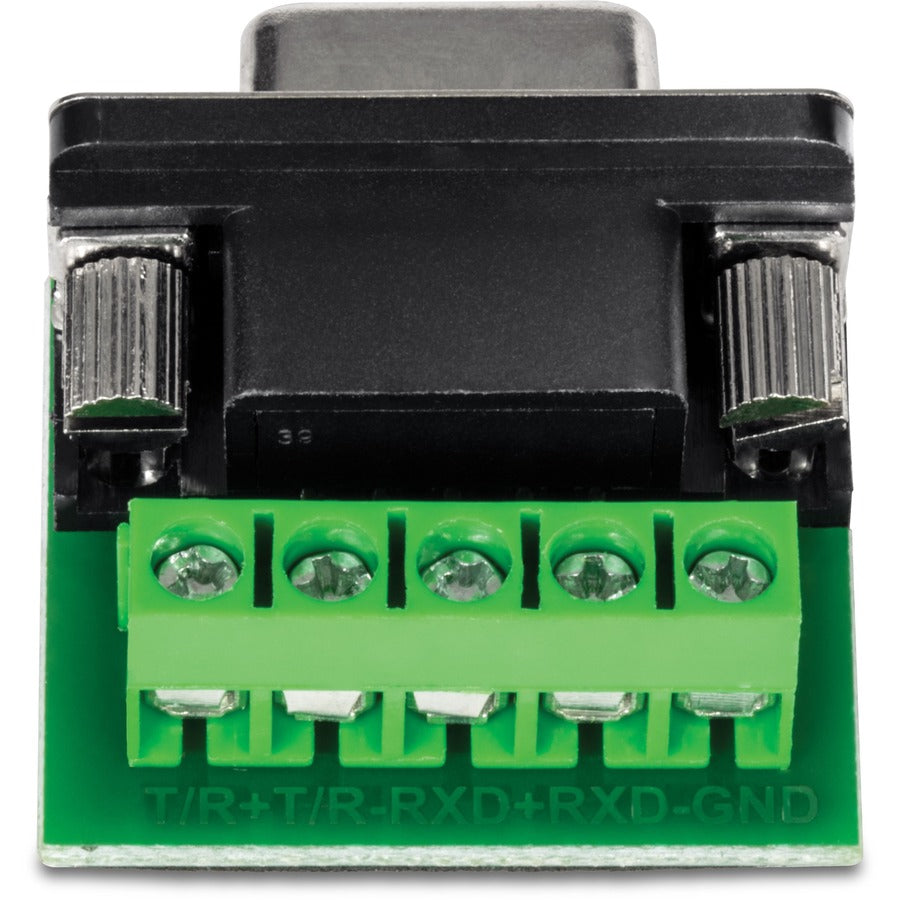

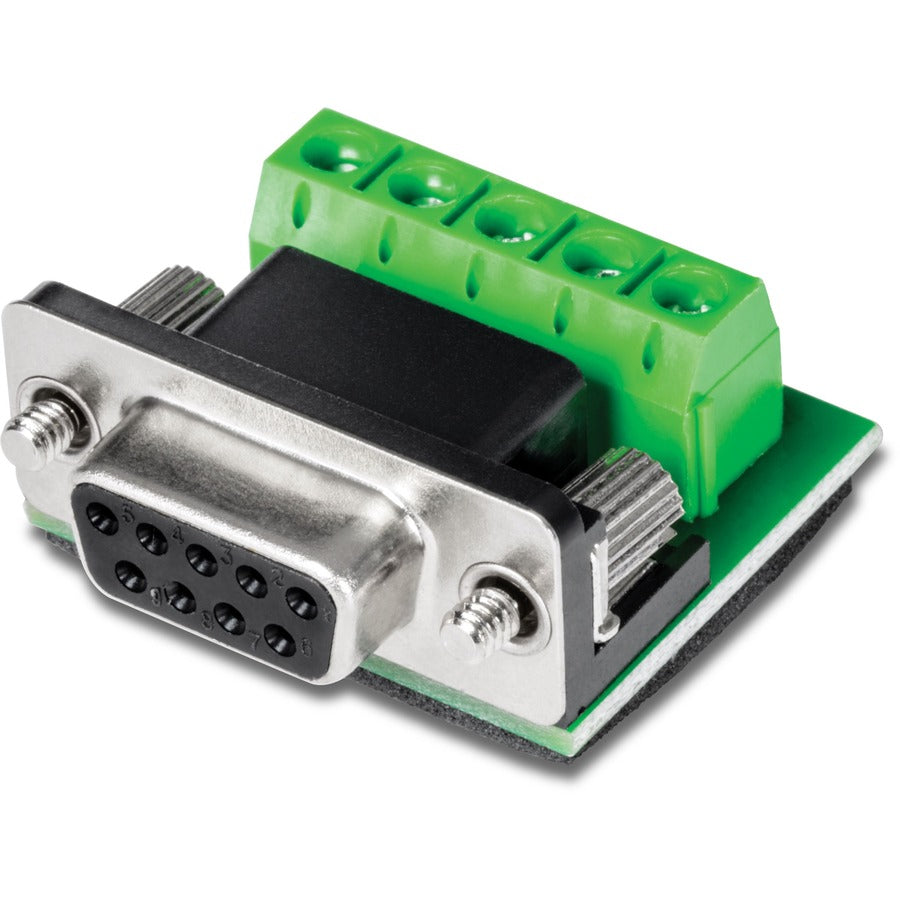

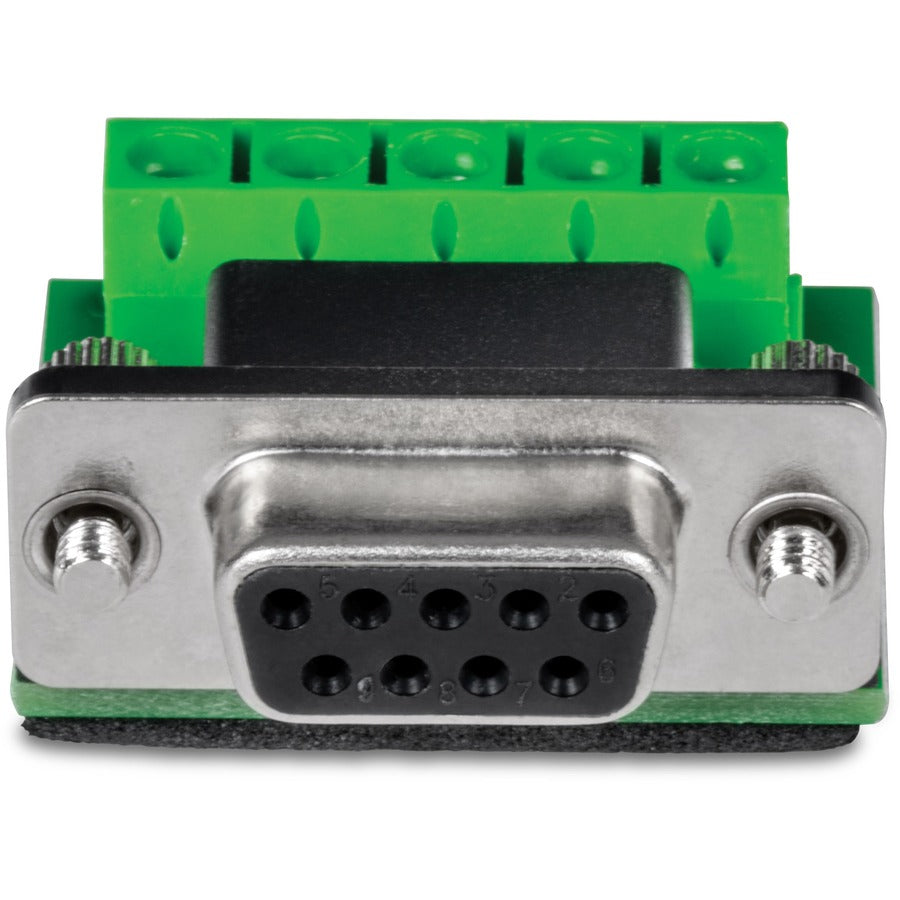

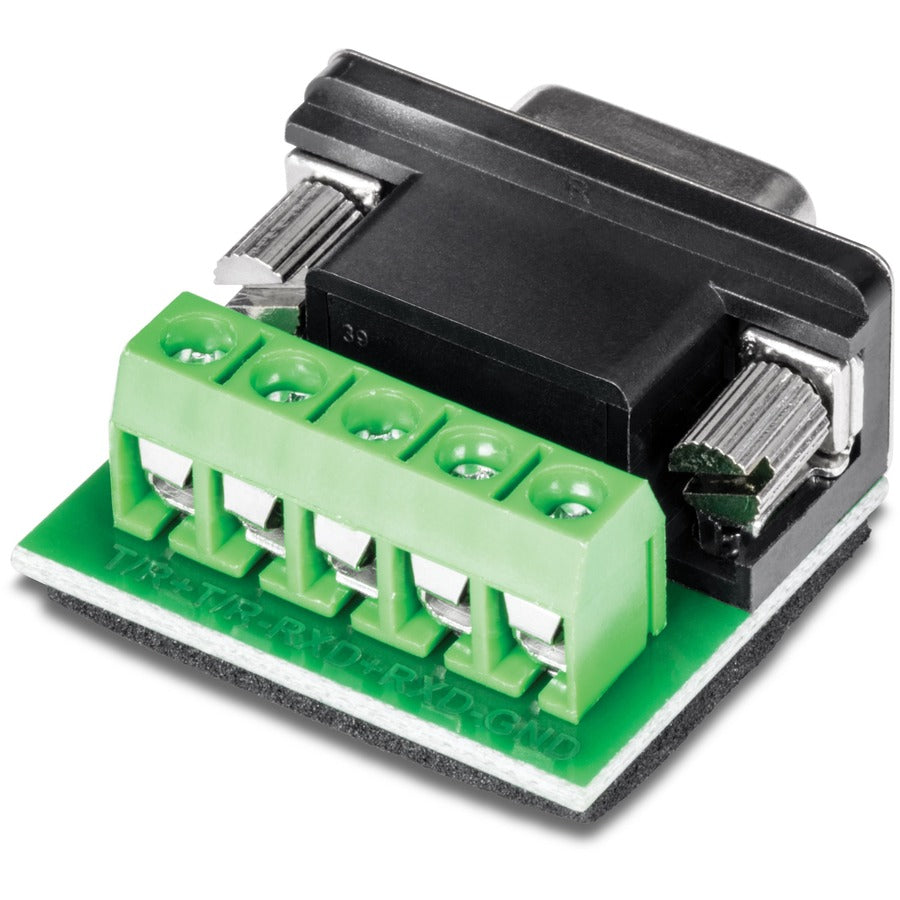

TRENDnet's RS232 to RS422/RS485 Converter Adapter, model TI-S100, is a DB9 terminal block adapter designed for use with our TI-M12 and TI-M42 industrial modbus gateways. The TI-S100 RS232 terminal block adapter conveniently converts an RS232 port to an RS422 or RS485 terminal block.
. .- Connector on Second End Details : 1 x Terminal Block RS-422/485 Serial
- Manufacturer Website Address : http://www.trendnet.com
- Connector on First End Details : 1 x DB-9 RS-232 Serial - Female
- Connector Type on First End : DB-9 RS-232 Serial - Female
- Connector Type on Second End : Terminal Block RS-422/485 Serial
- Product Type : Data Transfer Adapter
- Manufacturer : TRENDnet
- Product Model : TI-S100
- Limited Warranty : 1 Year
- Adapter Type : Serial/Terminal Block
- Country of Origin : China
