Description

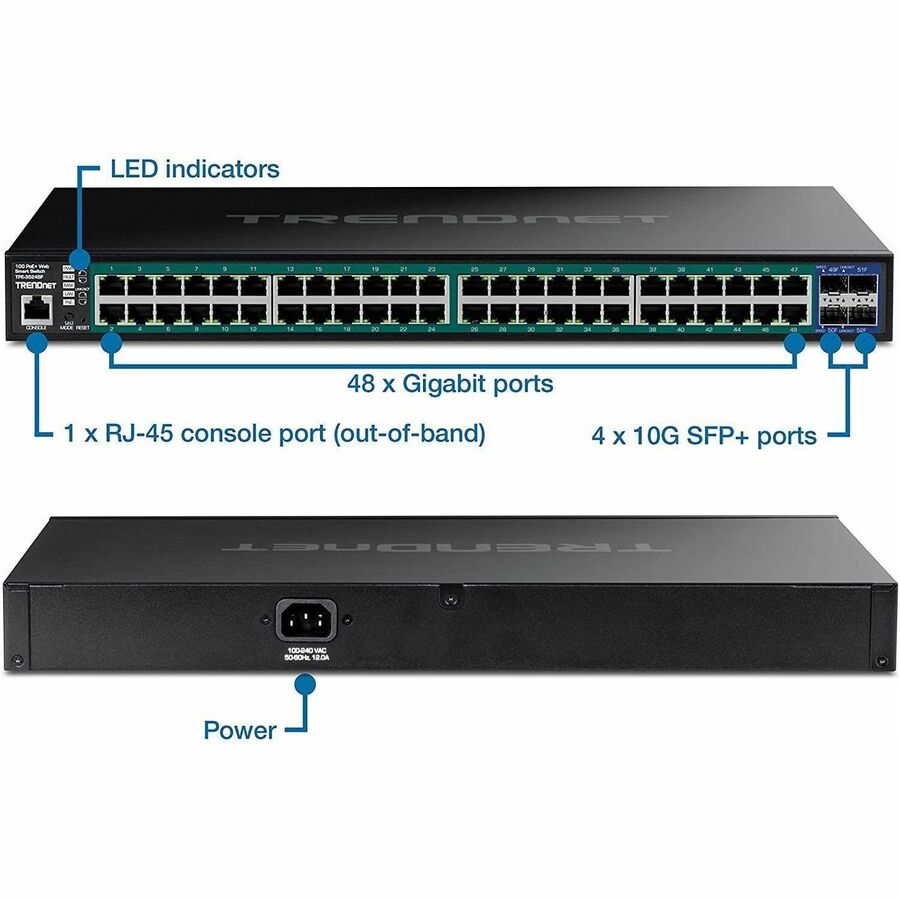

• DEVICE INTERFACE: 48 x Gigabit PoE+ Ports; 4 x 10G SFP+ Ports; LED Indicators; Reset Button; Rack Mountable
• SWITCHING CAPACITY: The Web Smart Gigabit PoE+ switch provides 48 gigabit (RJ-45) poe+ ports with 176Gbps switching capacity.
• POE POWER: A 740W total PoE power budget on the managed PoE+ switch supplies Power over Ethernet devices with up to 30W per port.
• WEB SMART MANAGEMENT: The 52 Port PoE+ Switch provides an easy to use web-based management interface for reduced switch configuration complexity and offers a combination of more commonly used SMB management features for easy deployment.
• IPv4/IPv6 STATIC ROUTING: Free up router resources by offloading routing processes to the managed PoE+ switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level.
• INTEGRATION FLEXIBILITY: The Gigabit PoE+ network switch managed features include access control lists, VLAN, IGMP/MLD snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
• 10G SFP+ PORTS: The network switch has four shared 10 gigabit SFP+ ports for high-speed network connections, providing acost-effective solution in adding 10G link capability to increase you network throughput.
• TRAFFIC MANAGEMENT: This web smart Ethernet switch features include: Link aggregation, 802.1Q VLAN, Voice VLAN,
Multicast VLAN, RSTP, MSTP, Loopback Detection, QoS, and port bandwidth management
• TRENDnet LIFETIME PROTECTION: The 52 Port Gigabit PoE+ Switch comes with lifetime TRENDnet Manufacturer Protection.

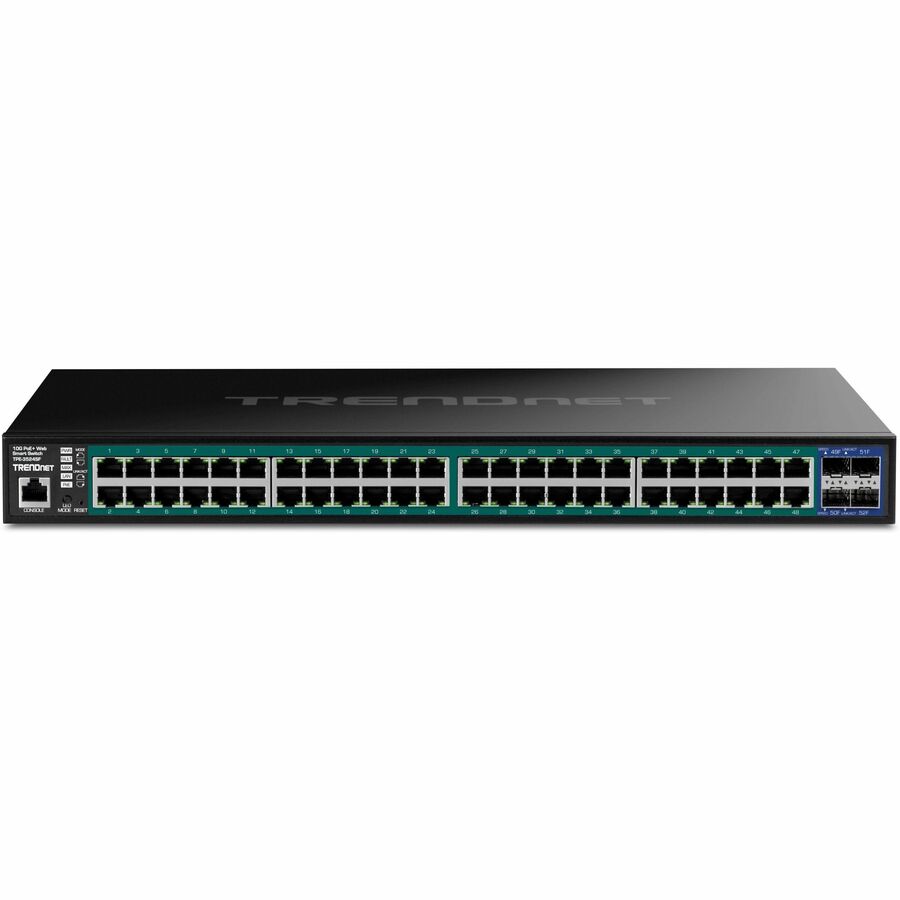

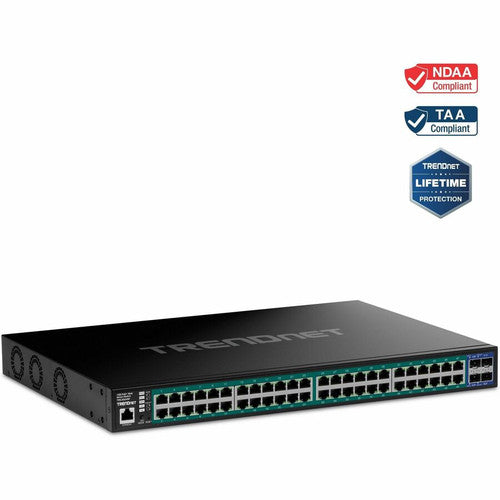

TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase TPE-3524SF bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ portsports to support long-distance fiber networking applications.

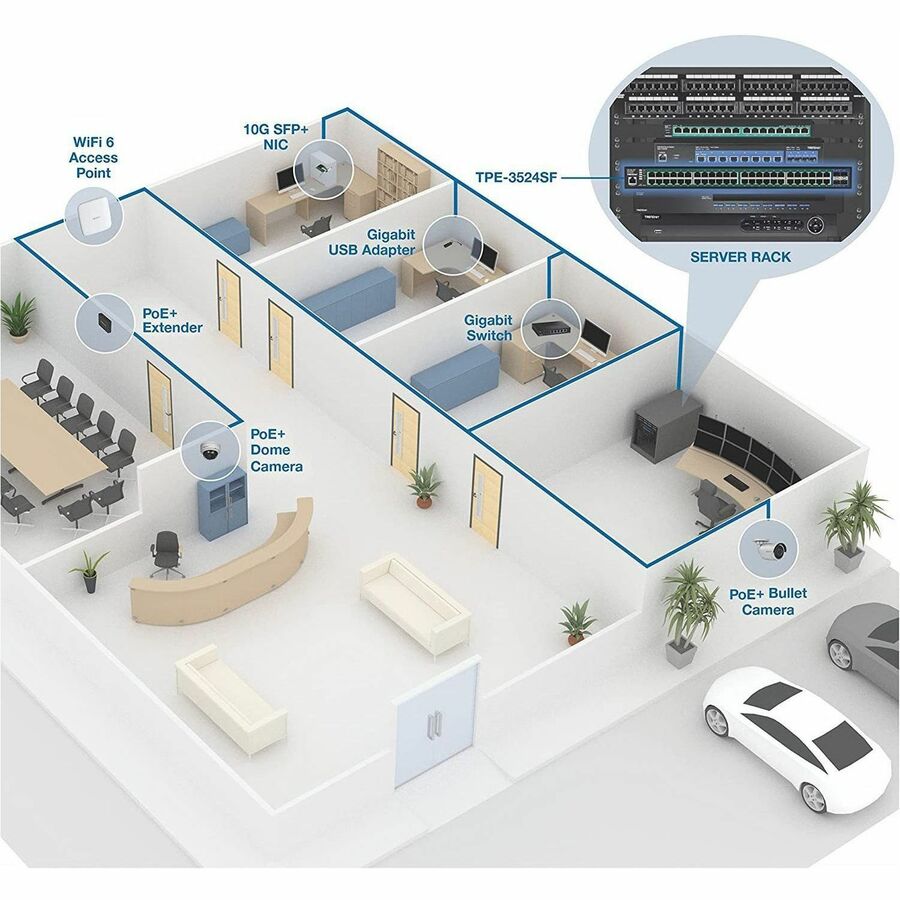

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.
