Description

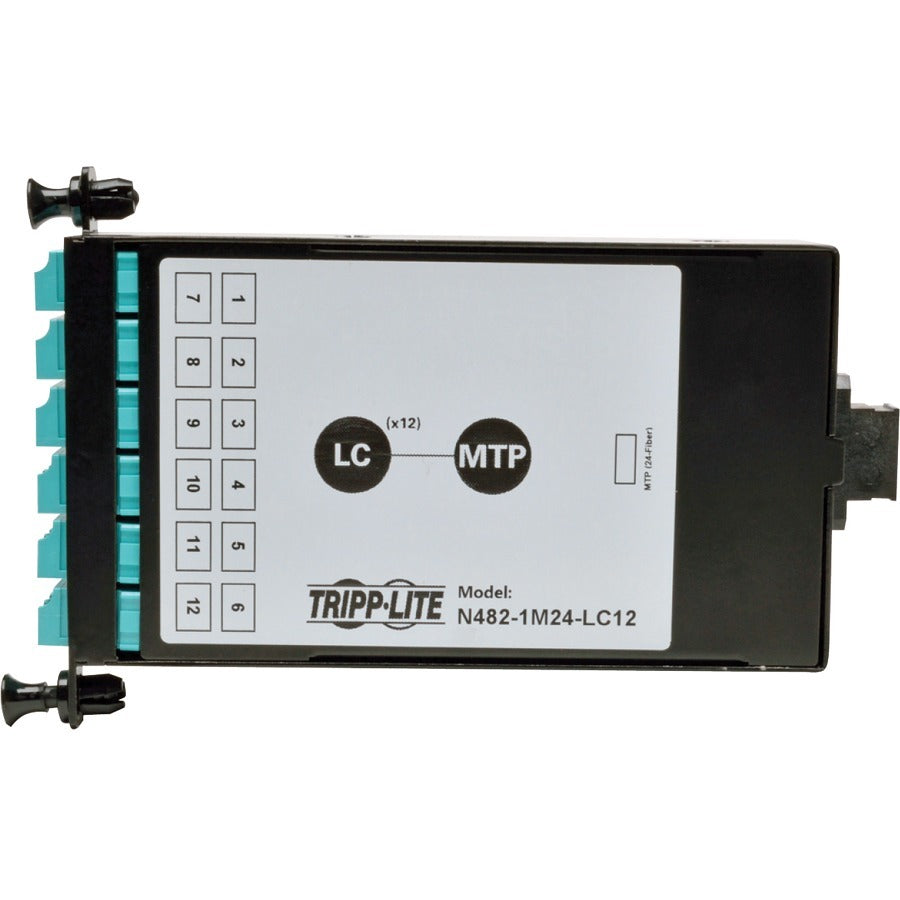

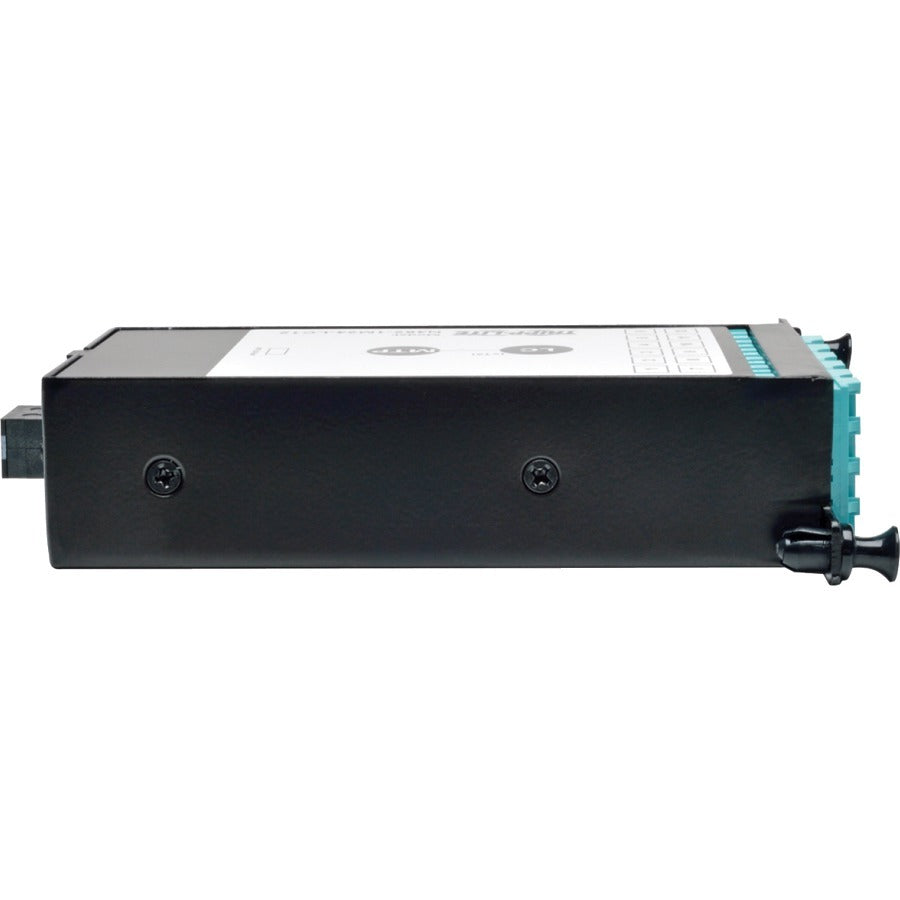

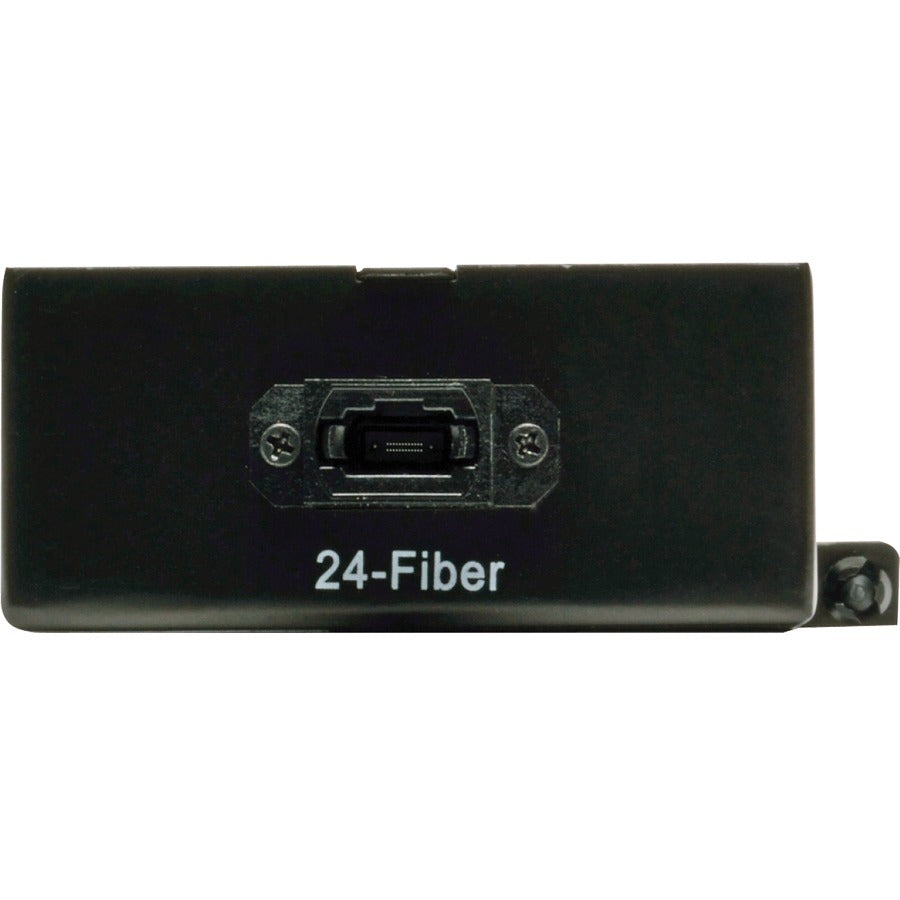

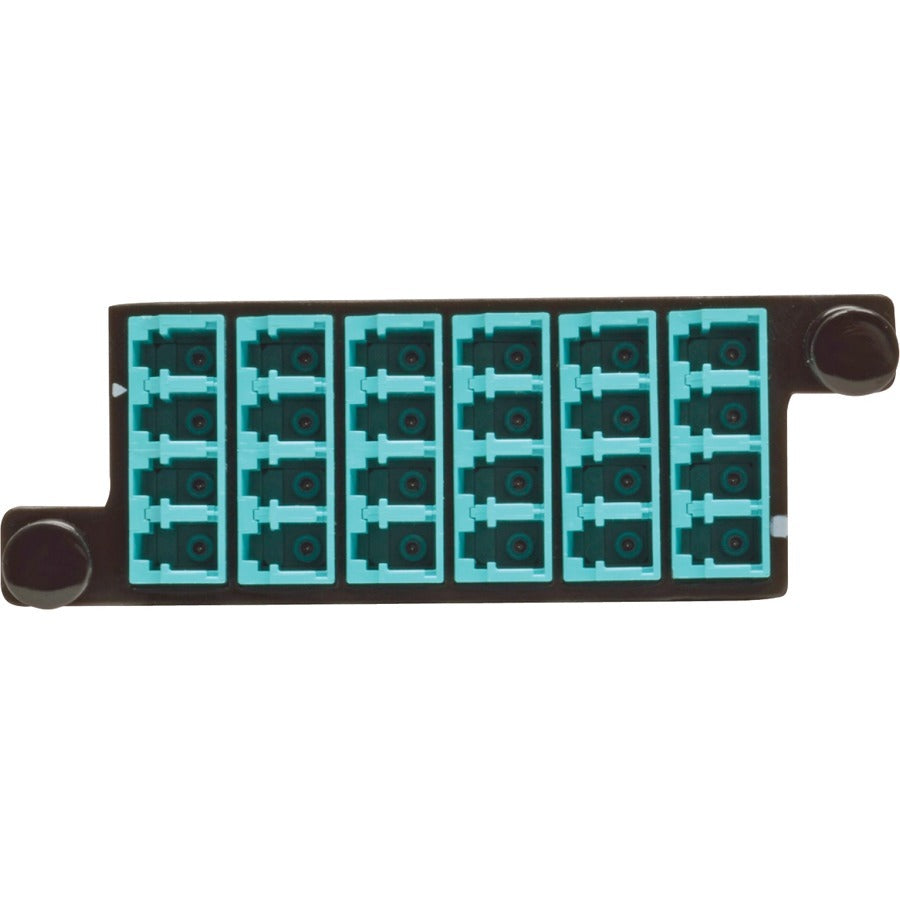

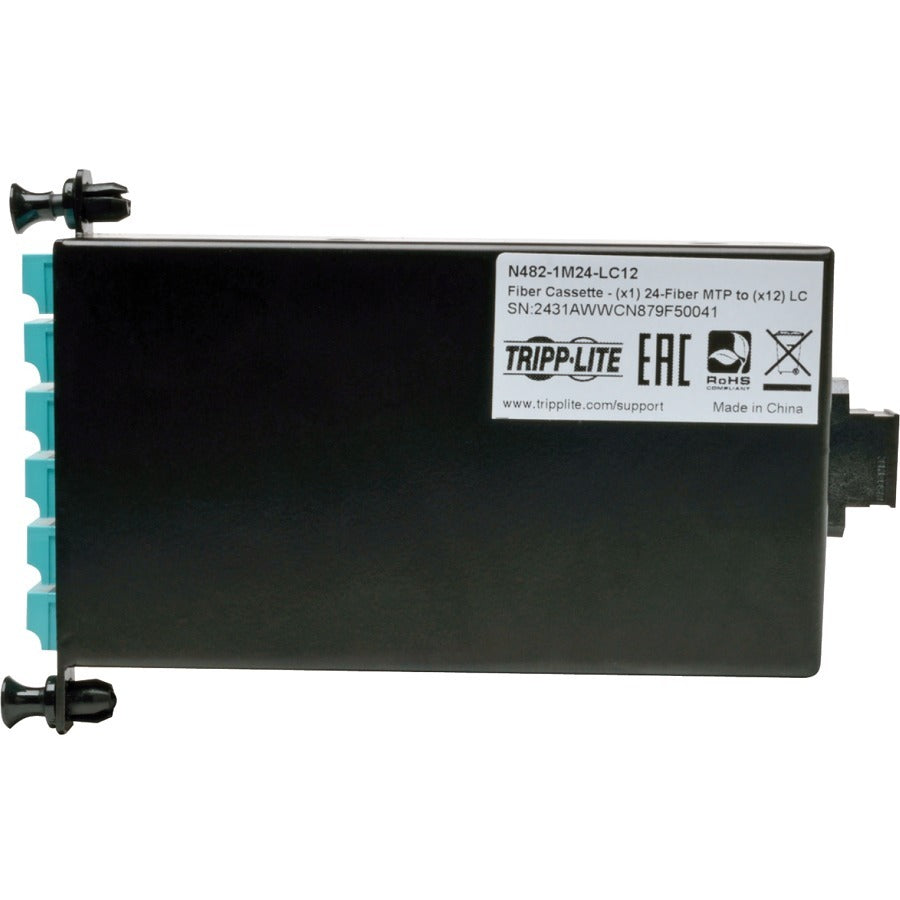

Tripp Lite's N482-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.
- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
- Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
- Factory terminated connectors reduce the time and labor required of field connector terminations
- Internal OM4 wiring
- 100/120Gb to 10Gb Breakout Cassette, with (x12) LC connections to a 24-Fiber MTP/MPO connection

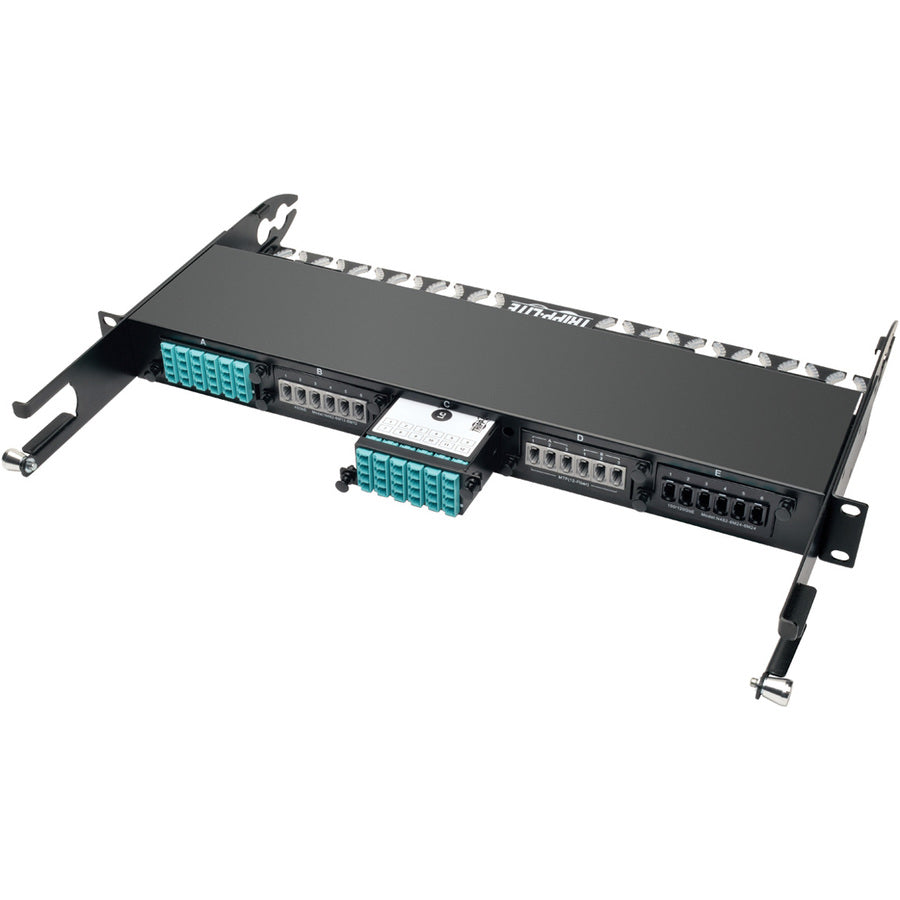

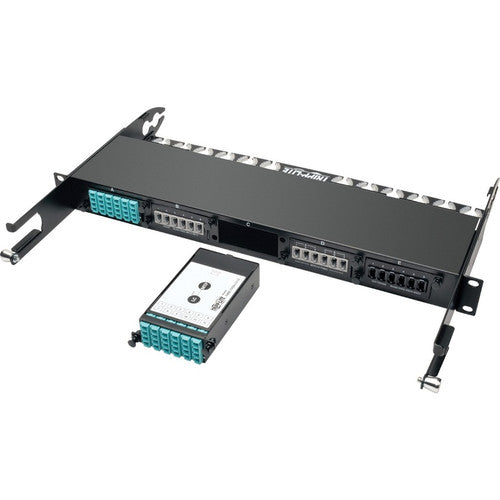

- High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels
- Number of RJ-11 Ports : 13
- Environmentally Friendly : Yes
- Product Color : Black
- Limited Warranty : Lifetime
- Package Contents :
- 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber MTP/MPO to (x12) LC
- Quick Start Guide
- Number of LC Ports : 12
- Total Number of Ports : 13
- Product Type : Network Patch Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : N482-1M24-LC12
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
