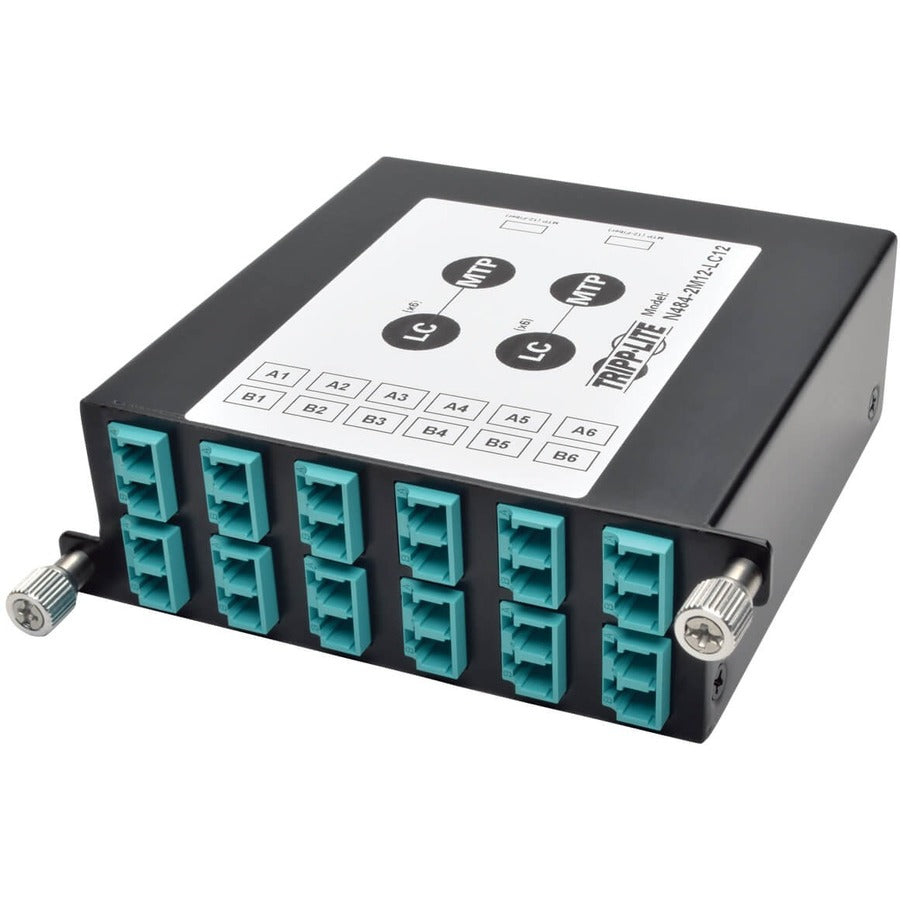

Tripp Lite 40G to 10G Breakout Cassette 2 12-Fiber MTP/MPO to 12 LC Duplex N484-2M12-LC12

Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 40GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables, breaking out to (x12) LC Duplex fiber connections. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N844-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.

• Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB
• Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements
• Internal OM4 wiring

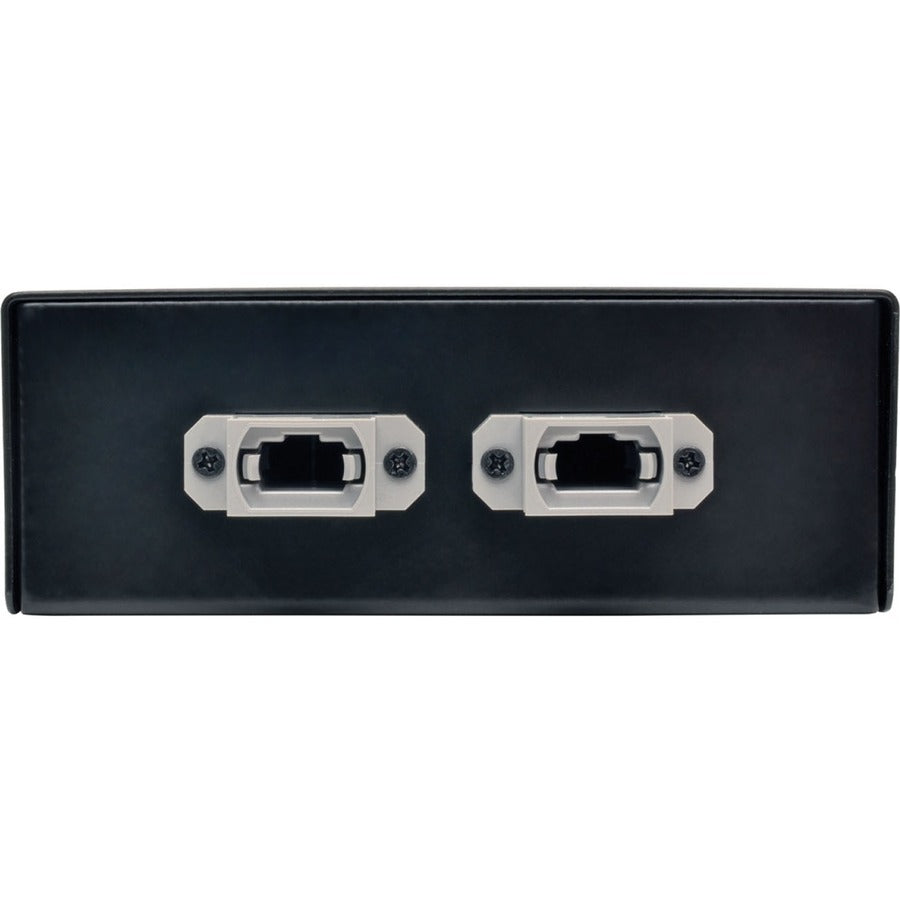

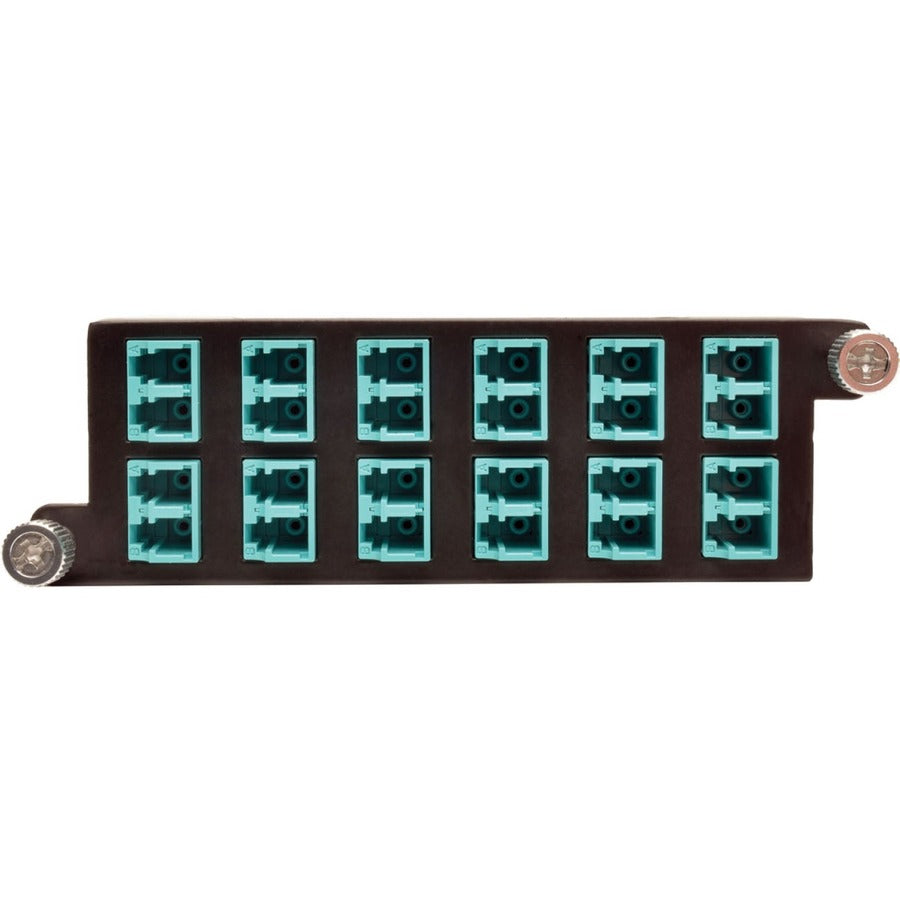

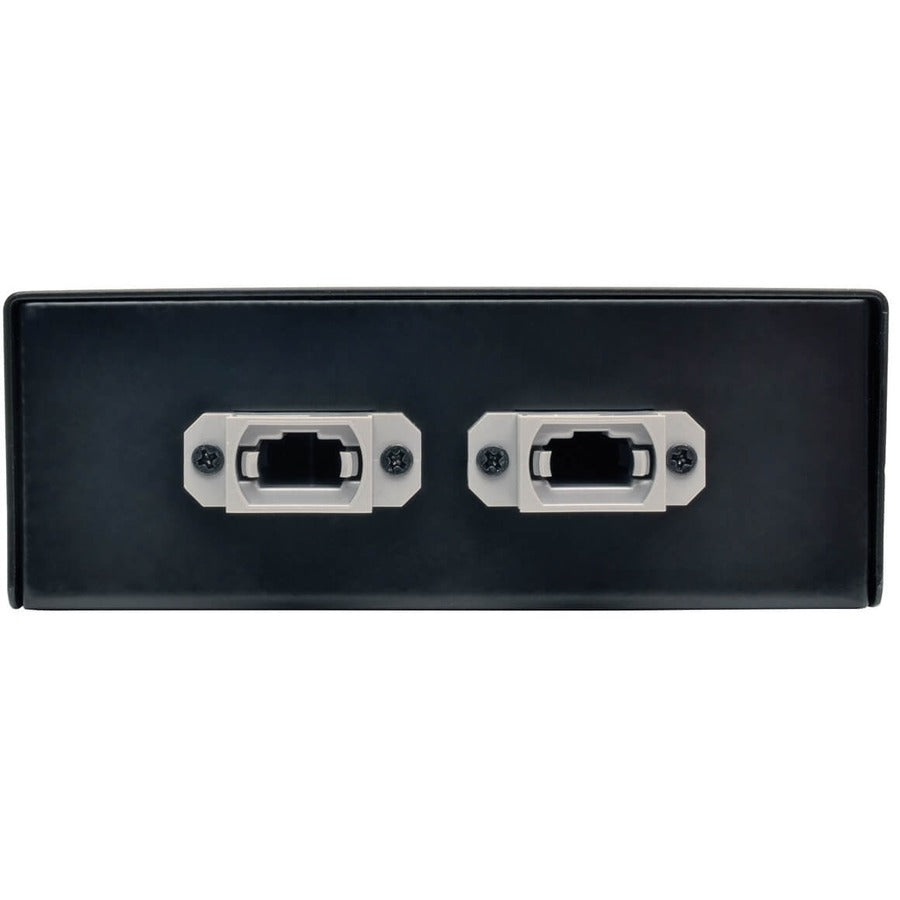

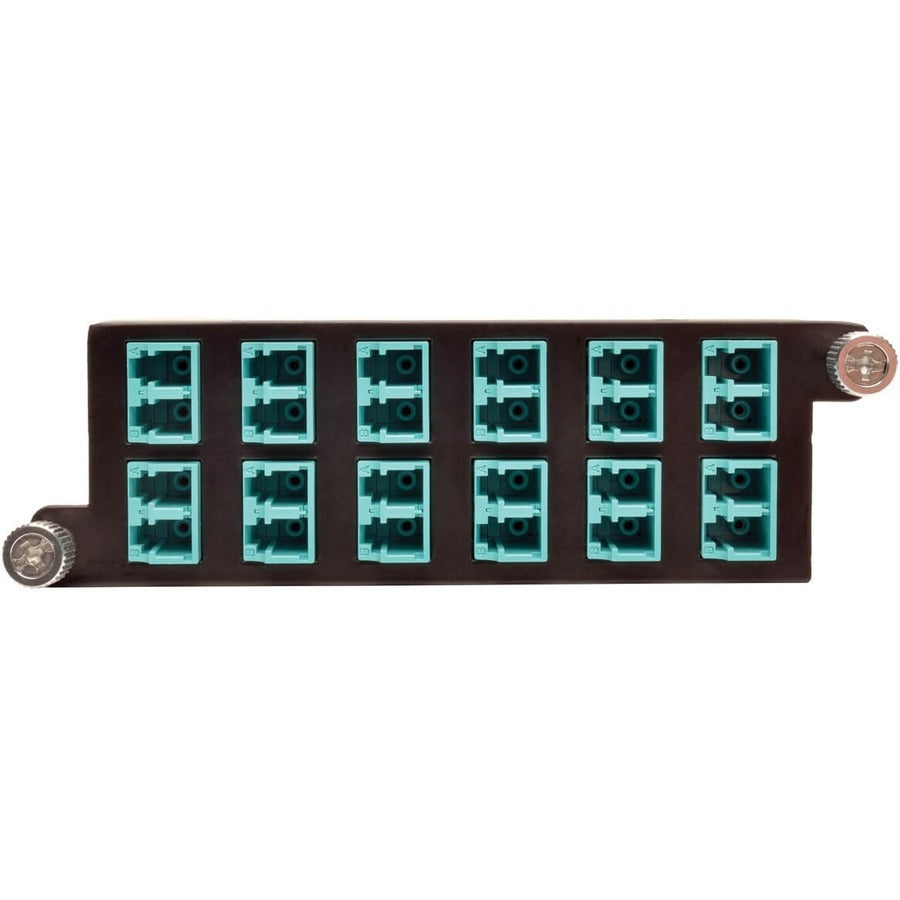

• 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber MTP/MPO connections

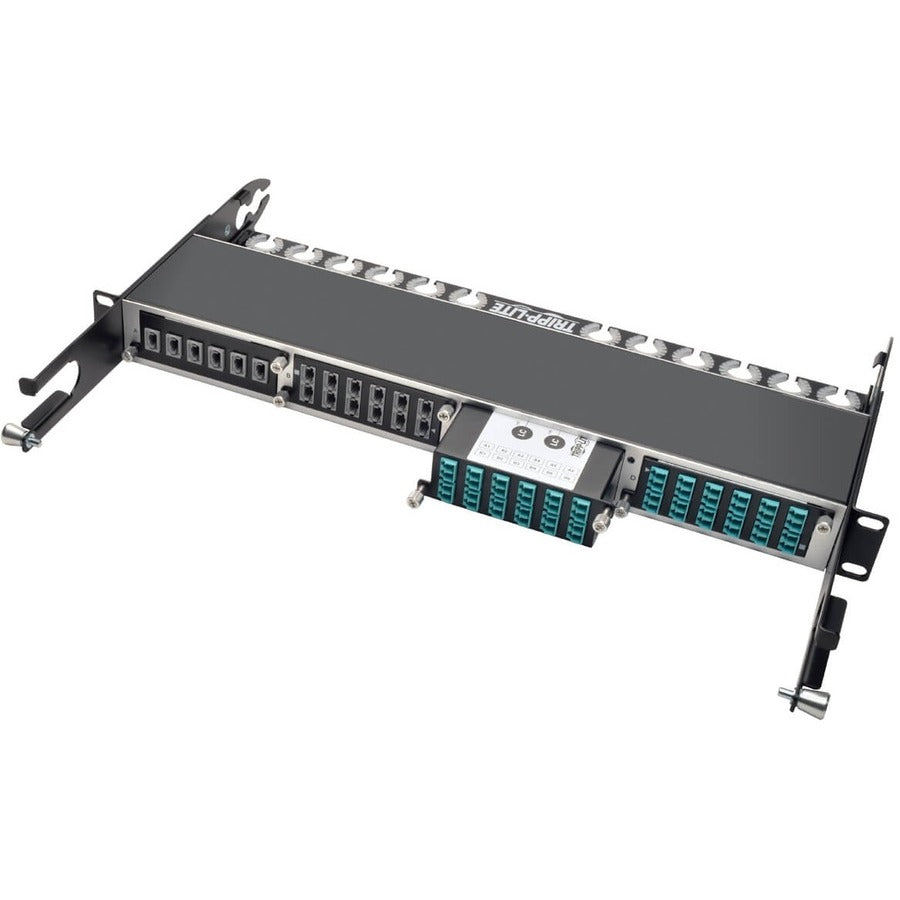

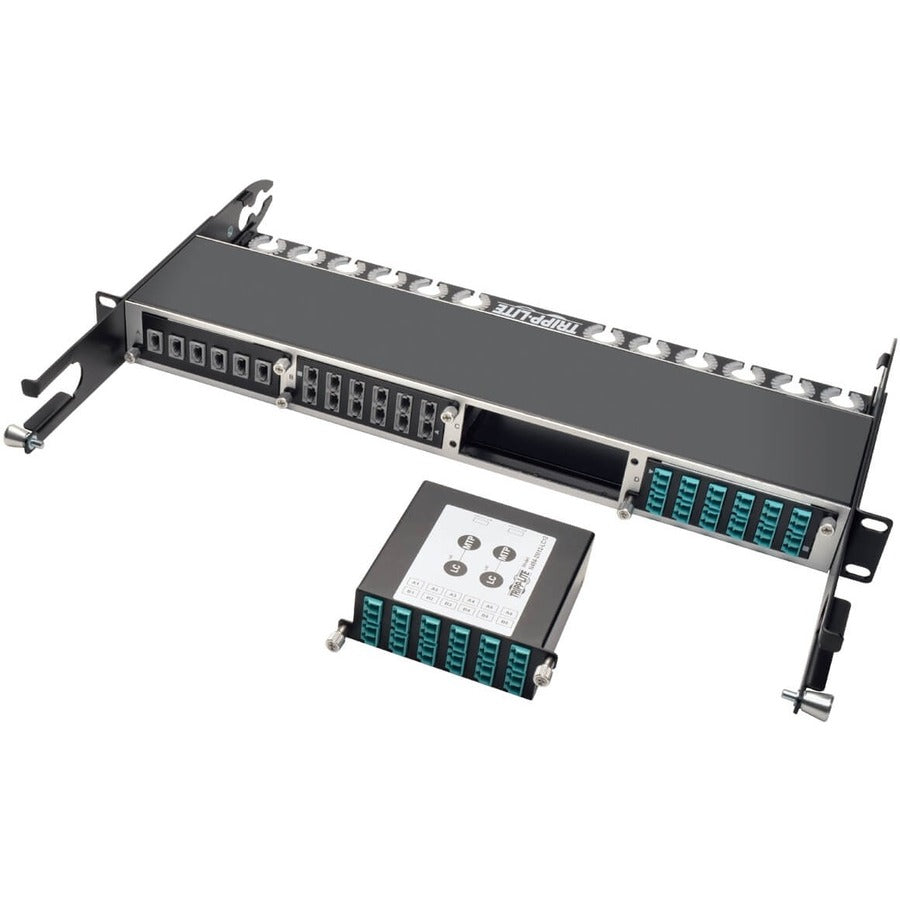

• High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis'

. .

• Number of RJ-11 Ports : 14
• Environmentally Friendly : Yes
• Product Color : Black
• Limited Warranty : Lifetime
• Package Contents :
  • 40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber MTP/MPO to ( x12 ) LC Duplex
  • Quick Start Guide
• Number of LC Ports : 12
• Total Number of Ports : 14
• Product Type : Network Patch Panel
• Manufacturer : Tripp Lite by Eaton
• Product Model : N484-2M12-LC12
• Country of Origin : China
• LC Port Type : Duplex
• Number of MT Ports : 2
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Black
