Description

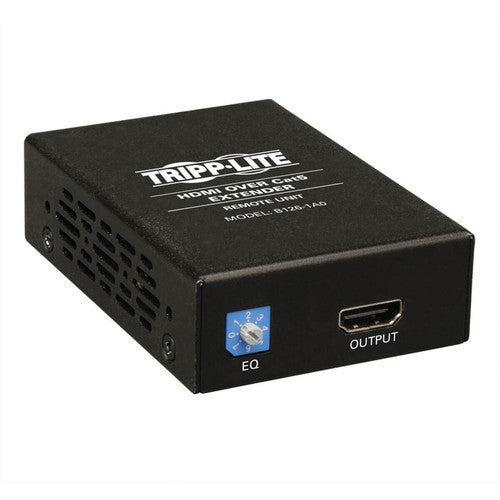

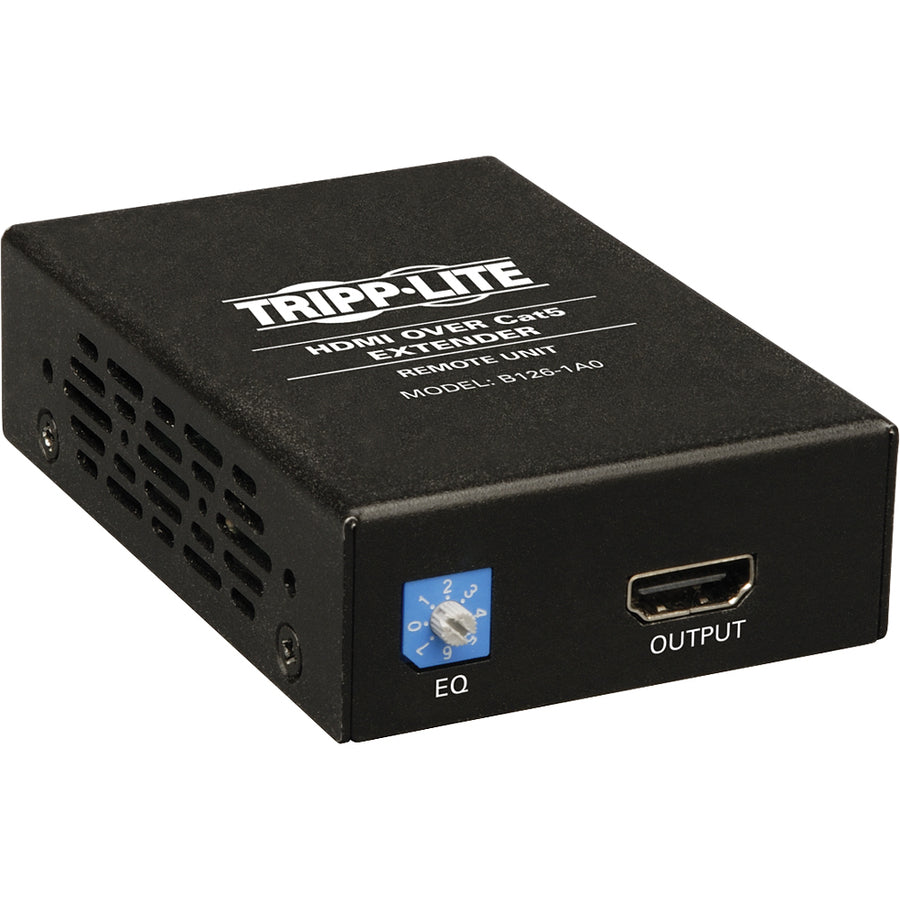

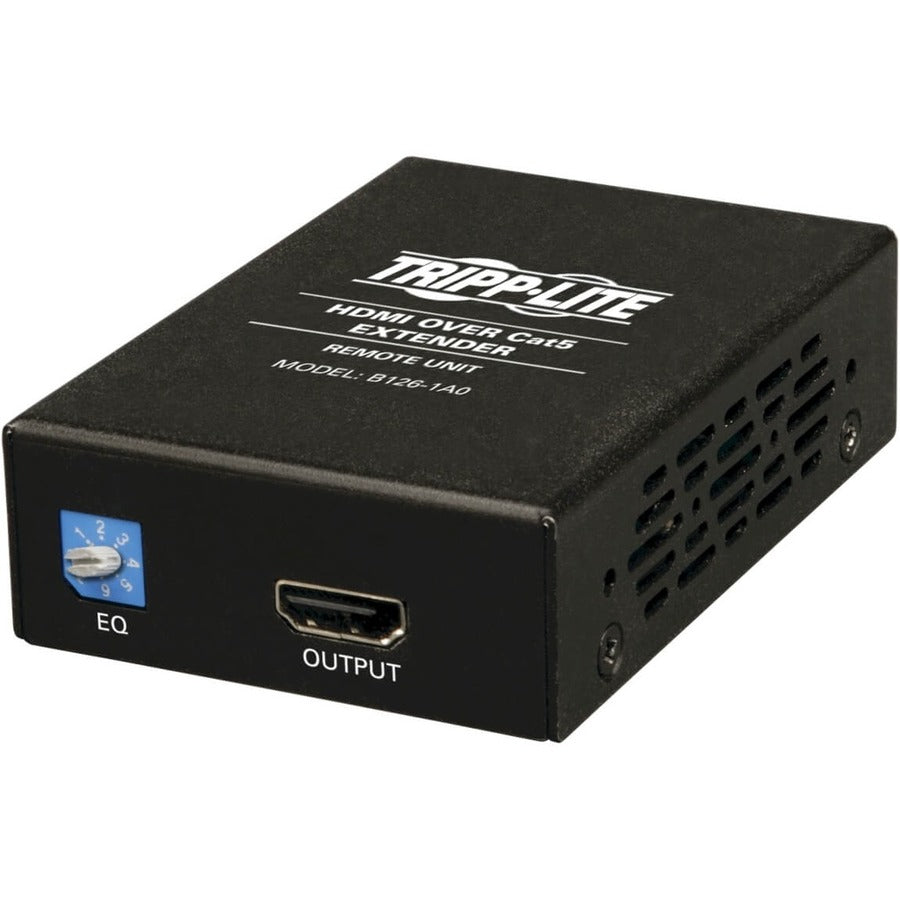

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Plug and play-no software or drivers to install
- Works with all operating systems and HDMI video sources
- Supports stereo and 7.1-channel surround sound audio
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Works in tandem with B126-002 or B126-004 transmitter unit
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Receiver Height : 1" (25.40 mm)
- Number of HDMI Outputs : 1
- Product Color : Black
- Maximum Operating Distance : 200 ft (60960 mm)
- Number of Input Devices Supported : 1
- Receiver Depth : 3.60" (91.44 mm)
- Limited Warranty : 1 Year
- Number of Output Devices Supported : 1
- Form Factor : Wall Mountable

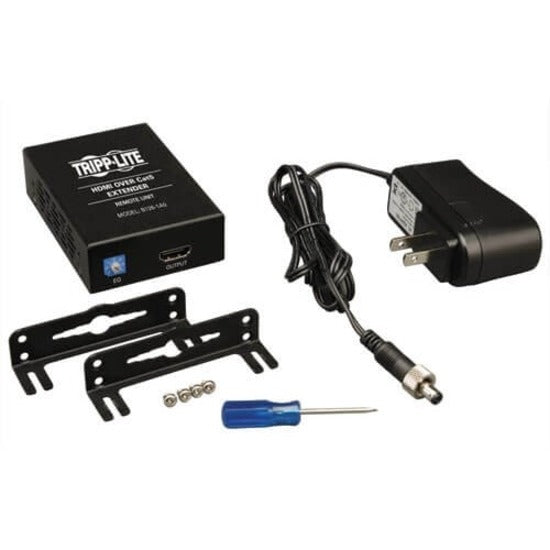

- Package Contents :
- B126-1A0 Video Console
- Screwdriver for Adjustment of Equalization
- Mounting Hardware
- External Power Supply
- Owner's manual
- Manufacturer Website Address : http://www.tripplite.com
- Receiver Width : 2.50" (63.50 mm)
- Network (RJ-45) : Yes
- HDMI Out : Yes
- Product Type : Video Extender Receiver
- Twisted Pair Cable Standard : Category 6
- Manufacturer : Tripp Lite by Eaton
- Product Model : B126-1A0
- Media Type Supported : Twisted Pair
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 1
- Connectivity Technology : Wired
