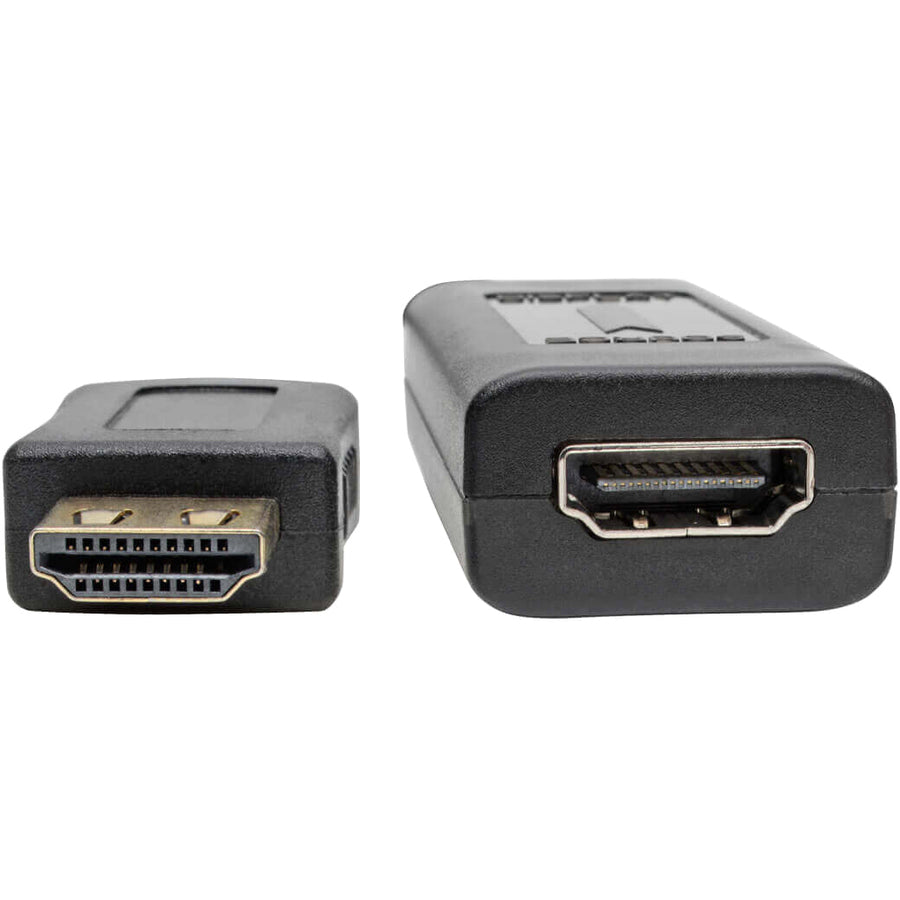

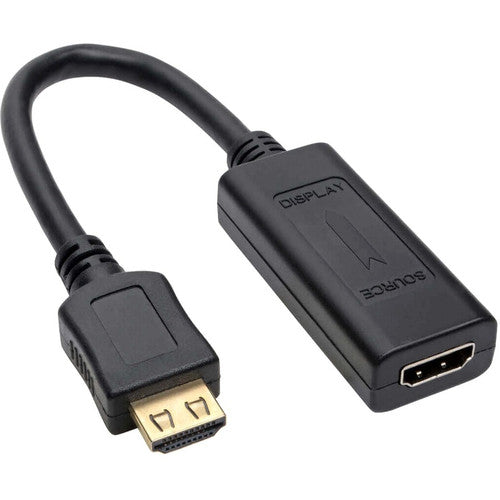

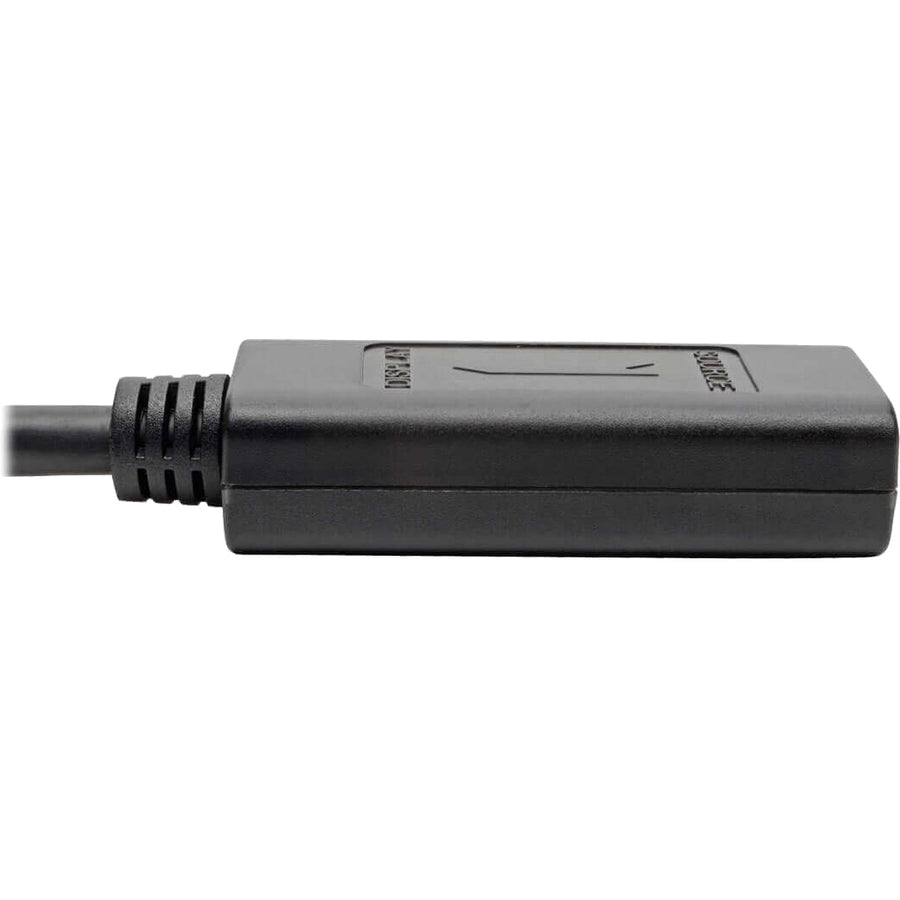

Tripp Lite by Eaton 1-ft. HDMI Active Signal Extender Cable (HDMI M/F) B123-001-60

Tripp Lite's B123-001-60 HDMI Signal Extender increases the distance a 1080p @ 60Hz(or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft.(5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz, at a maximum distance of 125 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 60Hz(or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD.(Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the built-in cable between the adapter and the monitor/TV. Software or drivers are not required. HDCP compliant. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

• The B123-001-60 has been designed for use with Tripp Lite P568-Series HDMI cables. To ensure maximum distance and performance, it is recommended that you use Tripp Lite P568-Series HDMI cabling. For distances over 75-ft, 24AWG cable such as Tripp Lite's P568-100-HD is required.

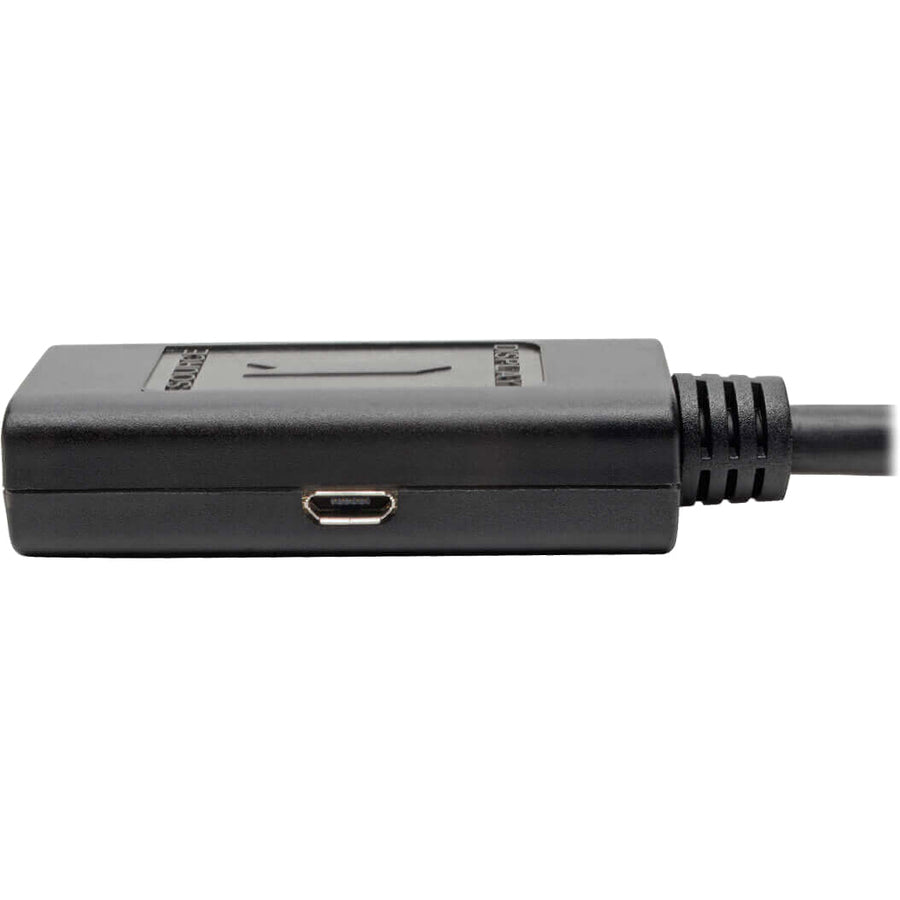

• Although most installations will not require power, a Micro USB port is provided in the event power is needed. Using a Micro USB cable(such as Tripp Lite's UR05C-Series), connect the Micro USB port to a USB wall charger, the USB port on your monitor, or the USB port on a computer.

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
• Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
• 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
• When extending a 1080p @ 60Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
• Extend a 1080p @ 60Hz (or 1920 x 1200) HDMI signal up to 125 ft. from the source

. .

• Environmental Certification : RoHS,WEEE
• Cable Type : HDMI
• TAA Compliant : Yes
• Connector on First End Details : 1 x HDMI Digital Audio/Video - Male
• Environmentally Friendly : Yes
• Product Color : Black
• Device Supported : Audio/Video Device,Monitor,TV
• Limited Warranty : 3 Year
• Connector on Second End Details : 1 x HDMI Digital Audio/Video - Female
• Package Contents :
  • 1-ft. HDMI Active Signal Extender Cable (HDMI M/F)
  • External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A )
  • Screwdriver for Equalization Adjustment
• Connector Type on First End : HDMI Digital Audio/Video - Male
• Connector Type on Second End : HDMI Digital Audio/Video - Female
• Product Type : A/V Cable
• Manufacturer : Tripp Lite by Eaton
• Product Model : B123-001-60
• Cable Length : 1 ft
• Features : Repeater
• Compatibility :

  Tripp Lite P568-Series HDMI Cables

• Country of Origin : Taiwan
• Manufacturer Website Address : https://tripplite.eaton.com/
• Color Family : Black
