Description
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- TAA Compliant

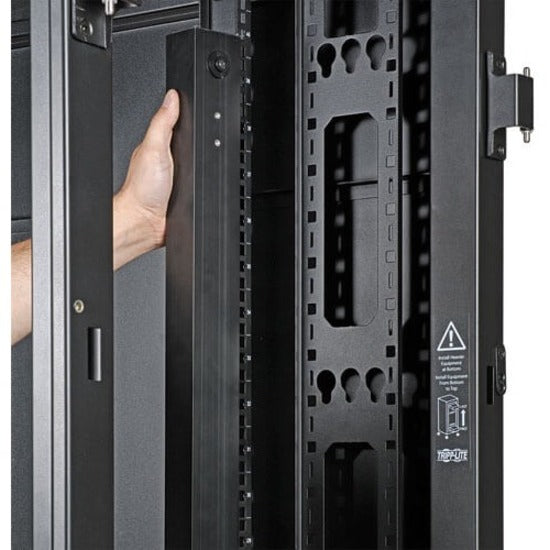

- Toolless button-mount installation; cord retention brackets included

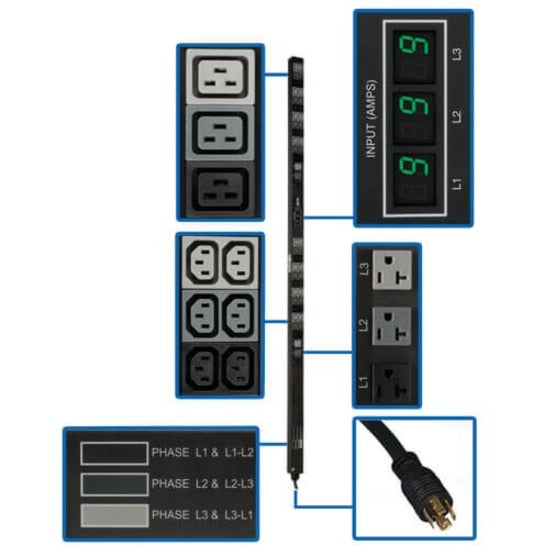

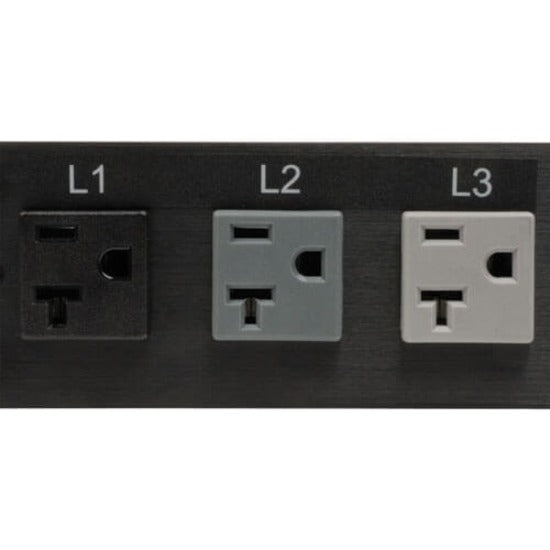

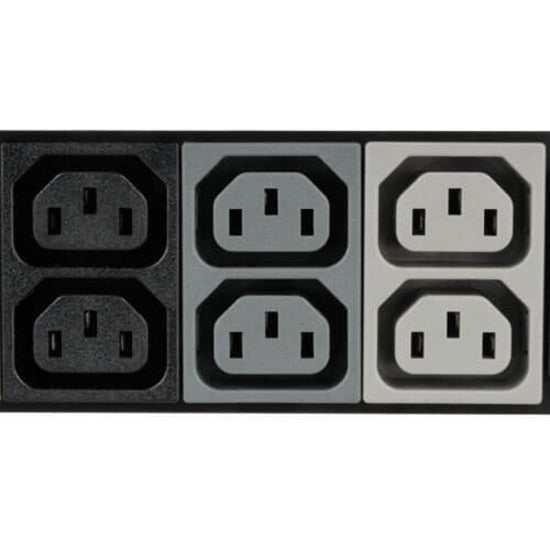

- 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)

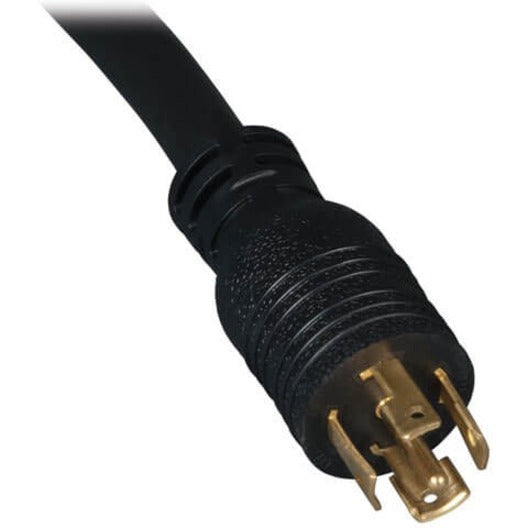

- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

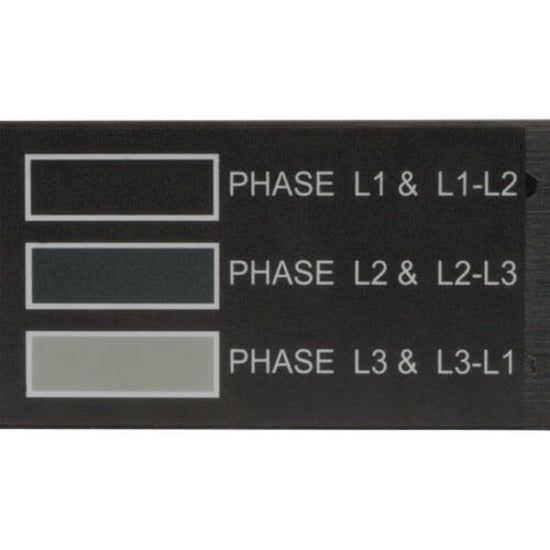

- Reports input current per-phase via built in current meters

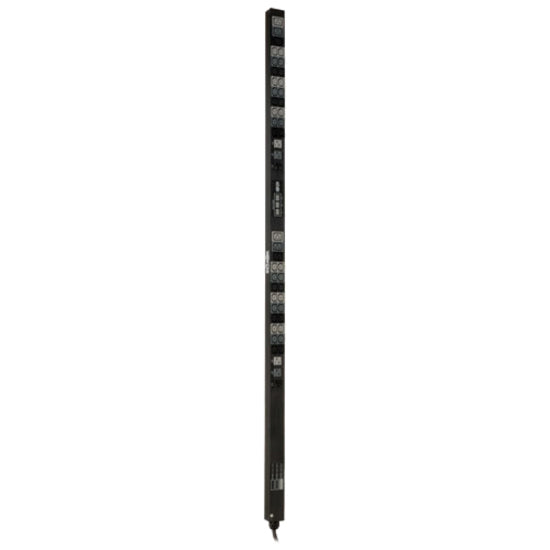

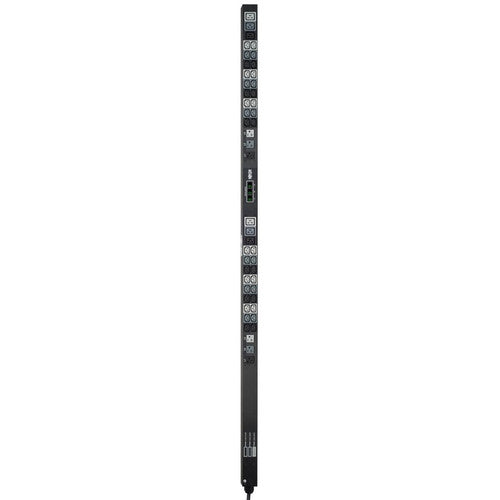

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
- Receptacle Type : IEC 60320 C13,IEC 60320 C19,NEMA 5-15/20R
- Receptacle Detail : 36 x IEC 60320 C13,6 x IEC 60320 C19,6 x NEMA 5-15/20R
- Environmental Certification : RoHS
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Power Rating (Watt) : 5.70 kW
- Input Voltage : 230 V AC
- Product Series : Metered
- Limited Warranty : 2 Year

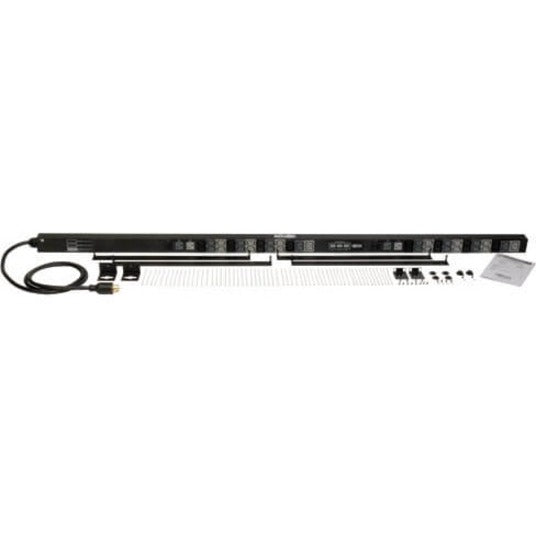

- Package Contents :
- Metered Rackmount PDU
- Cord Retention Brackets
- Rack Mounting Brackets
- User Manual
- Plug/Connector Type : NEMA L21-20P
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDU3MV6L2120
- Output Voltage : 120 V AC,208 V AC
- Mounting Orientation : Vertical
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
