Description

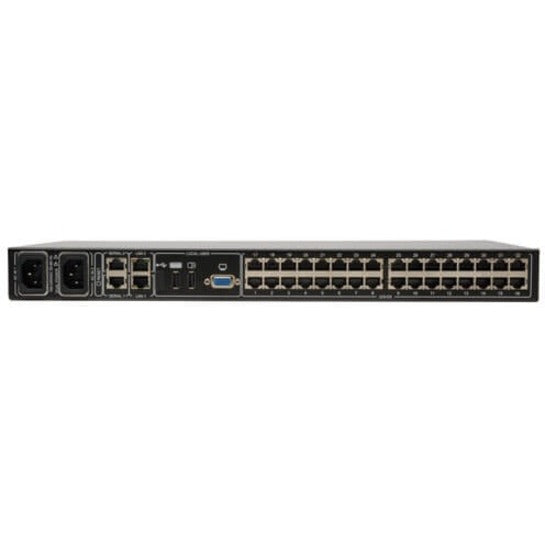

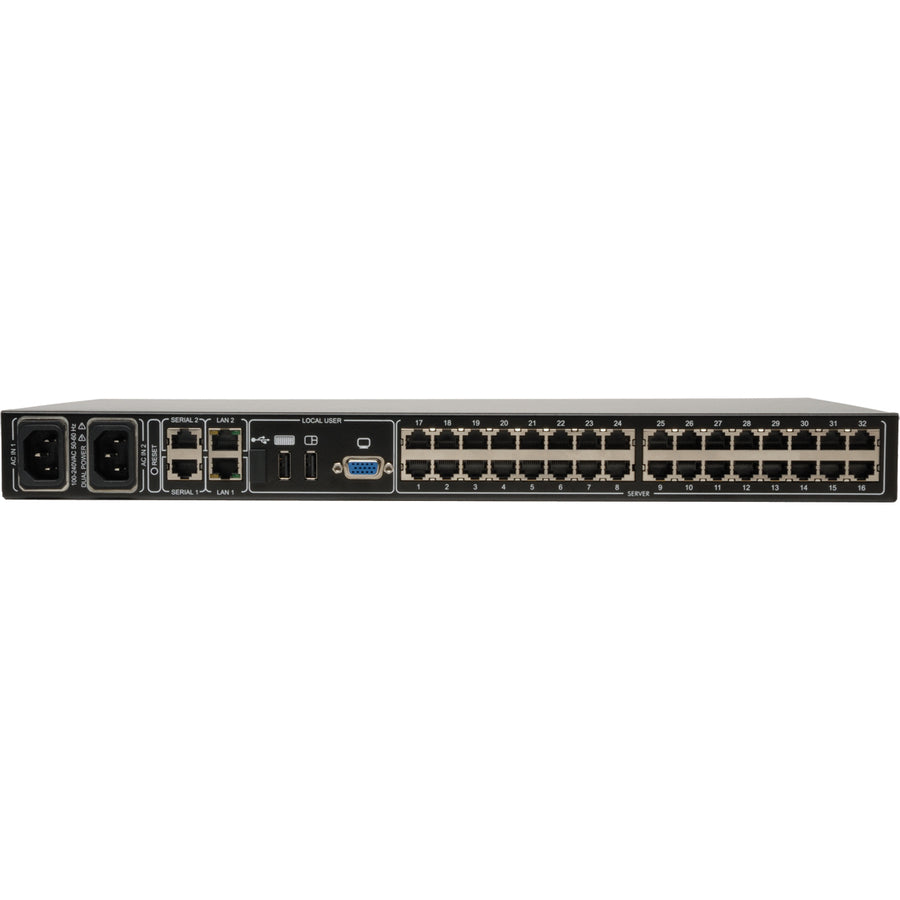

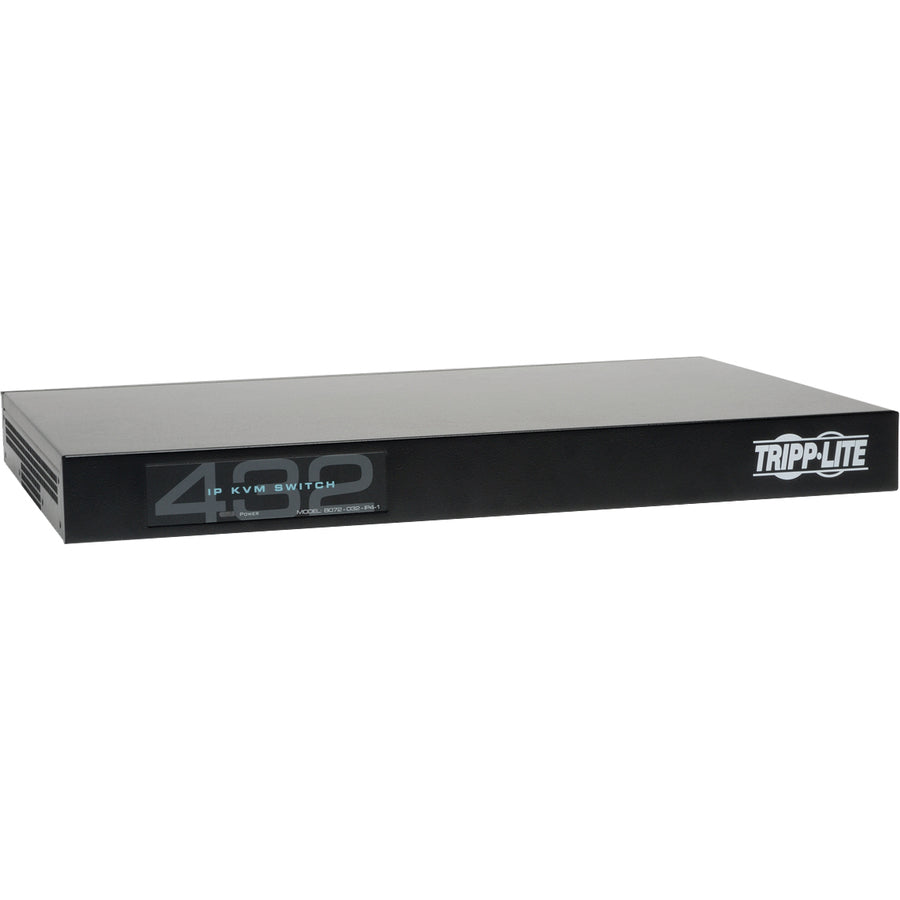

Tripp Lite's B072-032-IP4 KVM Switch is the optimal solution for controlling up to 32 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available. The B072-032-IP4 uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports and dual power supplies; if one fails, the other takes over, keeping access uninterrupted. Switch easily between the 32 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and up to four remote users can each log on and access different ports simultaneously.Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.Virtual Media allows an.iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media supported when using a B078-101-USB-1 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-032-IP4.
- Use this KVM Switchbox and eliminate the need for manually switching cables between sources
- Quickly route data between 32 computers and 1 local users
- Get high-resolution video with impressive clarity, thanks to the 1920 x 1080 resolution.
- Establishes a rapid connection with USB devices
- The rack-mountable form factor provides convenient installation
- Maximum Operating Distance : 100 ft (30480 mm)
- Form Factor : Rack-mountable
- Package Contents :
- 32-Port, 4+1 User NetCommander Cat5 IP KVM Switch
- Rackmount Hardware
- 2 x Power Cords
- Number of USB Ports : 2
- Manufacturer : Tripp Lite by Eaton
- Product Model : B072-032-IP4
- Rack Height : 1U
- Environmental Certification : RoHS
- Maximum Video Resolution : 1920 x 1080
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- USB : Yes
- Number of Computers Supported : 32
- Limited Warranty : 3 Year
- VGA : Yes
- Network (RJ-45) : Yes
- Number of Remote Users Supported : 4
- Product Type : KVM Switchbox
- Number of VGA Ports : 1
- KVM Technology : Digital
- Graphic Mode : Full HD
- Country of Origin : Taiwan
- Number of Network (RJ-45) Ports : 36
- Product Line : NetCommander
- Number of Local Users Supported : 1
- Manufacturer Website Address : https://tripplite.eaton.com/
